Description

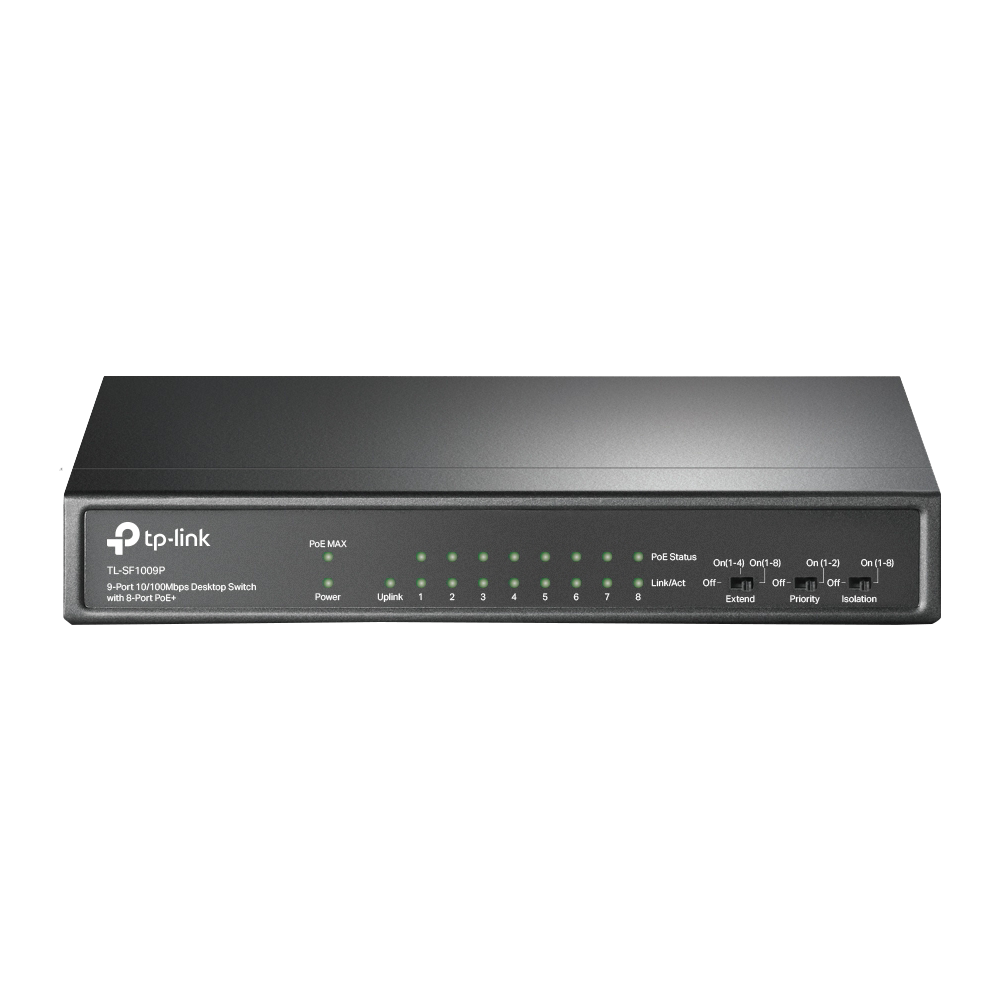

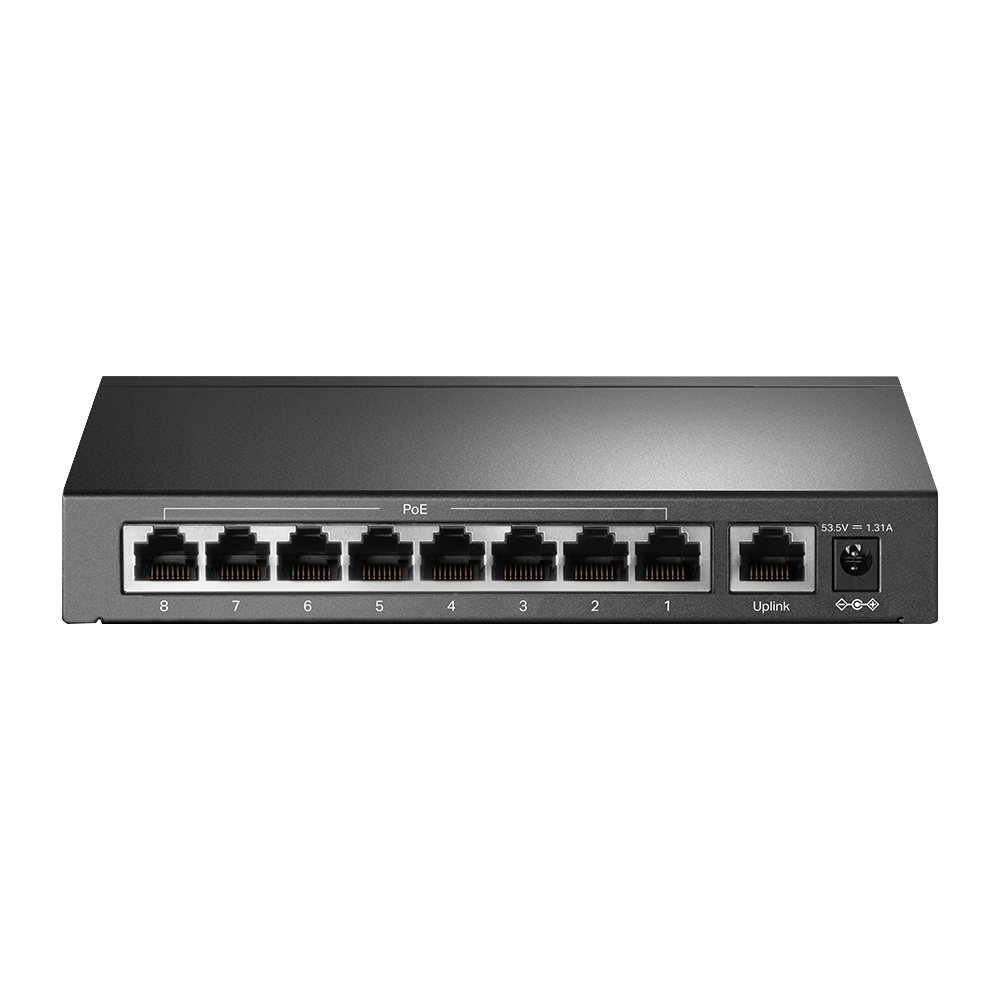

9-Port 10/100Mbps Desktop Switch with 8-Port PoE+
- 9× 10/100 Mbps RJ45 ports
- 8× PoE+ ports transfer data and power on individual cables
- Works with IEEE 802.3af/at compliant PDs
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 65 W for 8 PoE ports*
- Up to 250 m data and power transmitting range under Extend Mode**
- Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
- Isolation Mode allows one-click client traffic separation for higher security and performance
- Plug and play with no configuration required
Specifications
HARDWARE
- Interface
- 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ ports)
- AUTO Negotiation
- AUTO MDI/MDIX
- Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- Fan Quantity :Fanless
- Physical Security Lock :Yes
- External Power Supply :External Power Adapter (Output: 53.5VDC / 1.31A)
- Packet Forwarding Rate :1.3392 Mpps
- PoE Ports (RJ45)
- Standard: 802.3 af/at compliant
- PoE Ports: Ports 1–8
- Power Supply: 65 W
- Mac Address Table 2K
- Jumbo Frame 2 KB
- Switching Capacity :1.8 Gbps
- Dimensions ( W x D x H ) :6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)
- Max Power Consumption
- 3.6 (220/50 Hz. no PD connected)
- 77.08 (220/50 Hz. with 65 W PD connected)
- Max Heat Dissipation
- 12.28 BTU/h (no PD connected)
- 262.84 BTU/h (with 65 W PD connected)
SOFTWARE
- Transmission Method :Store-And-Forward
- Advanced Functions
- Compatible With IEEE 802.3af/at Compliant PDs
- Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission)
- Priority Mode Button (Ports 1–2)
- Isolation Mode Button (Ports 1–8)
- Mac Address Auto-Learning and Auto-Aging
- IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode
- Warranty:1year
