Specifications
-

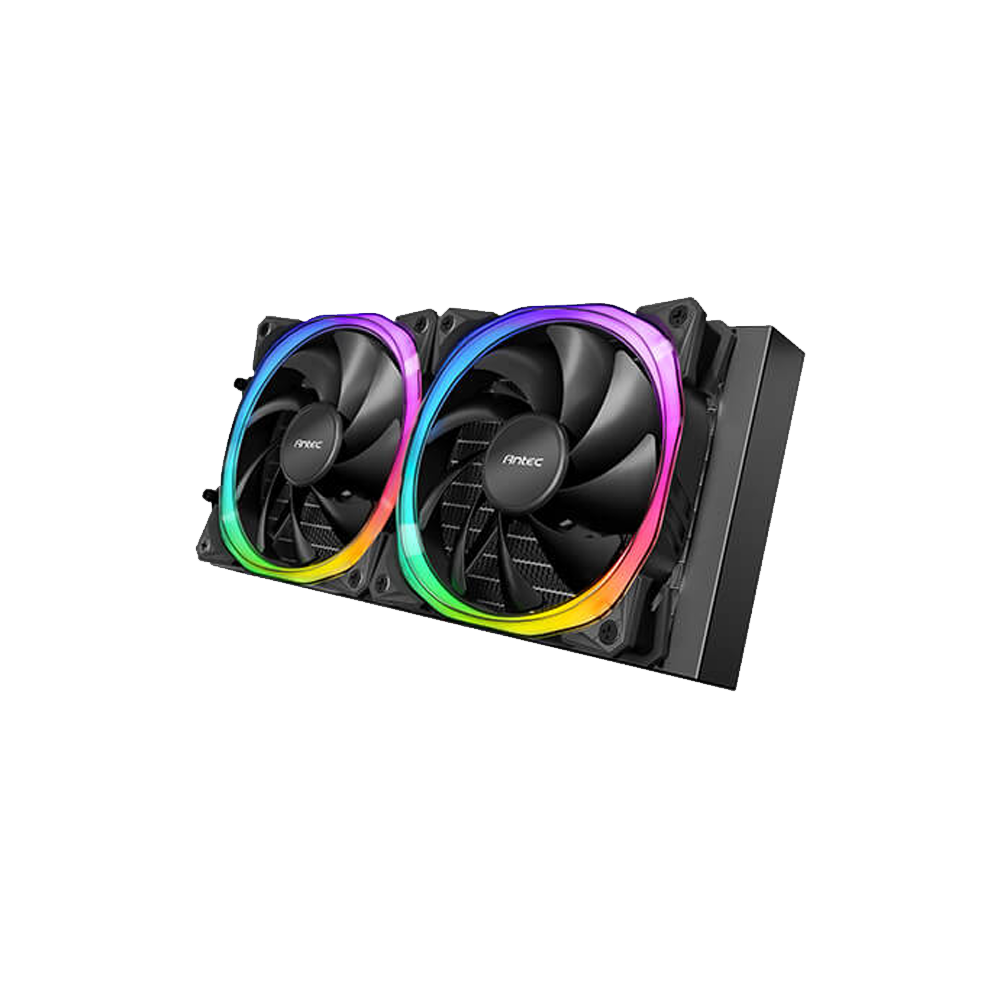

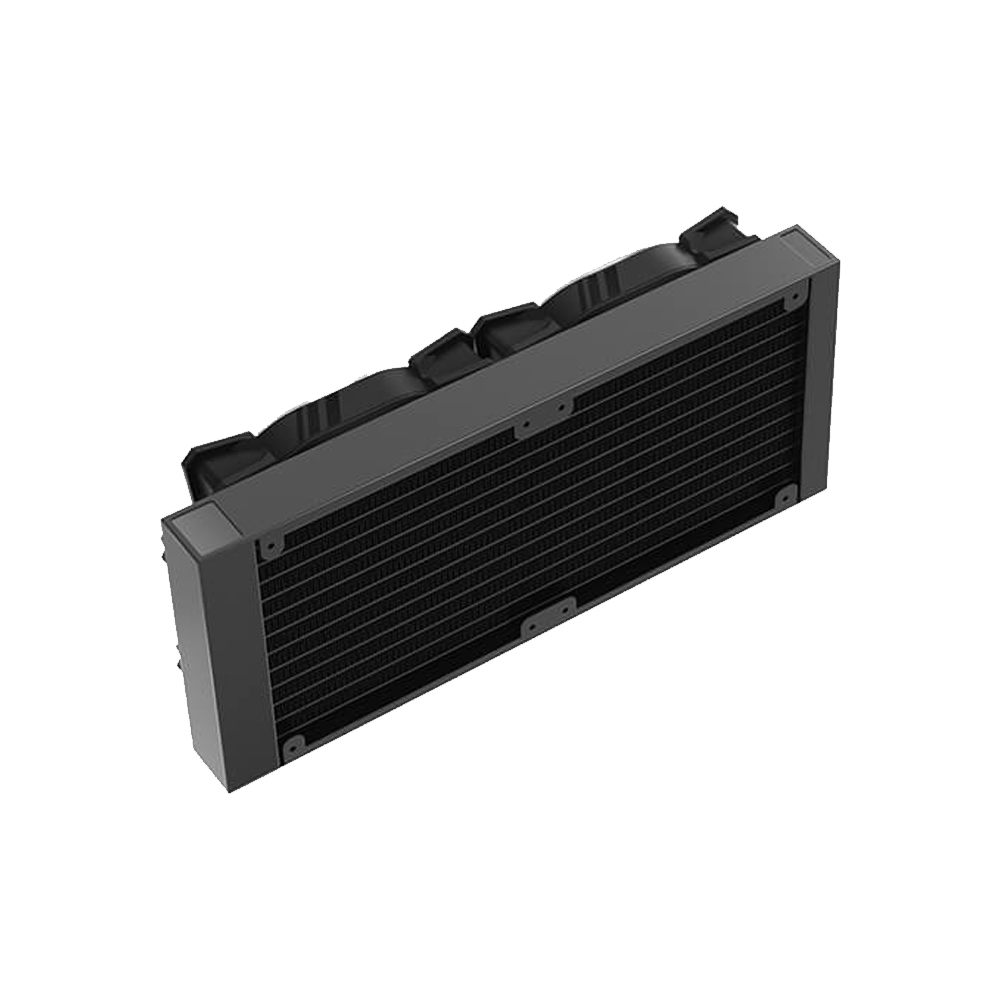

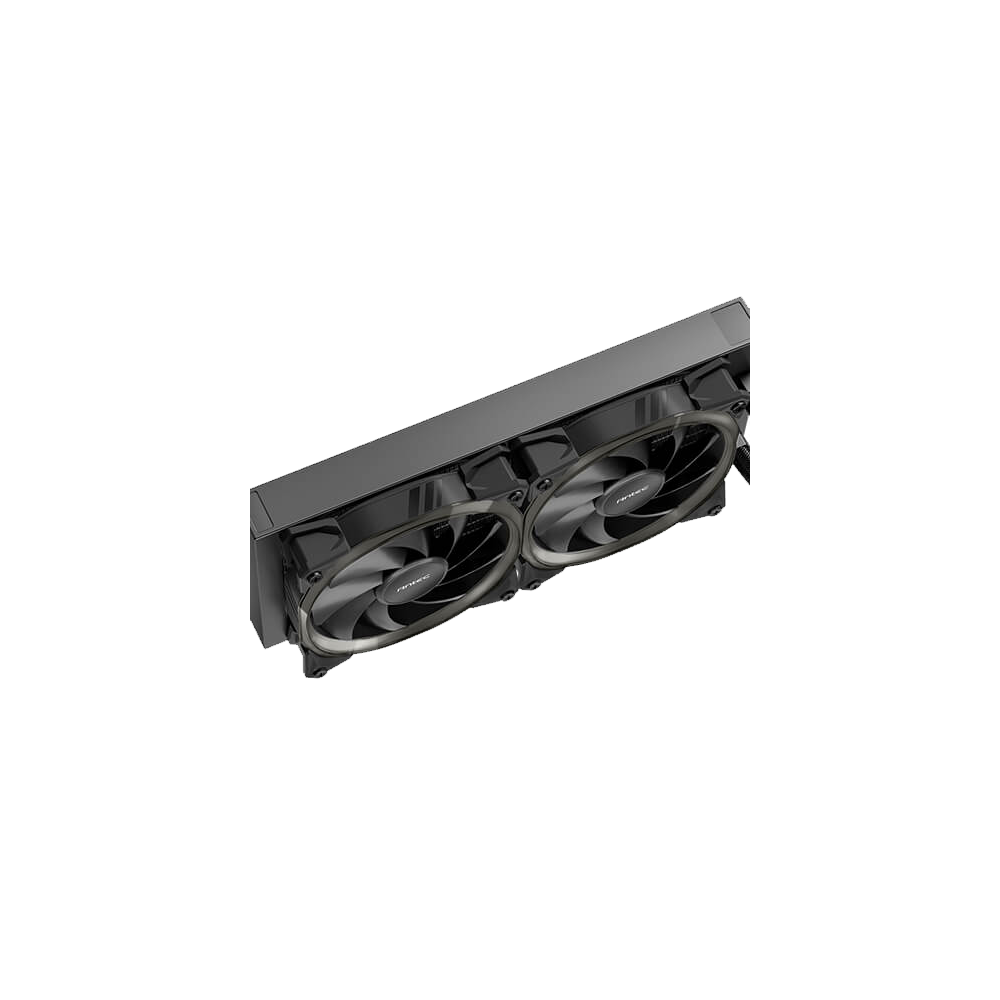

Radiator
Radiator Dimensions : 277 x 120 x 27 mm
Radiator Material : Aluminum -
Tdp Number
Vortex240 240W -

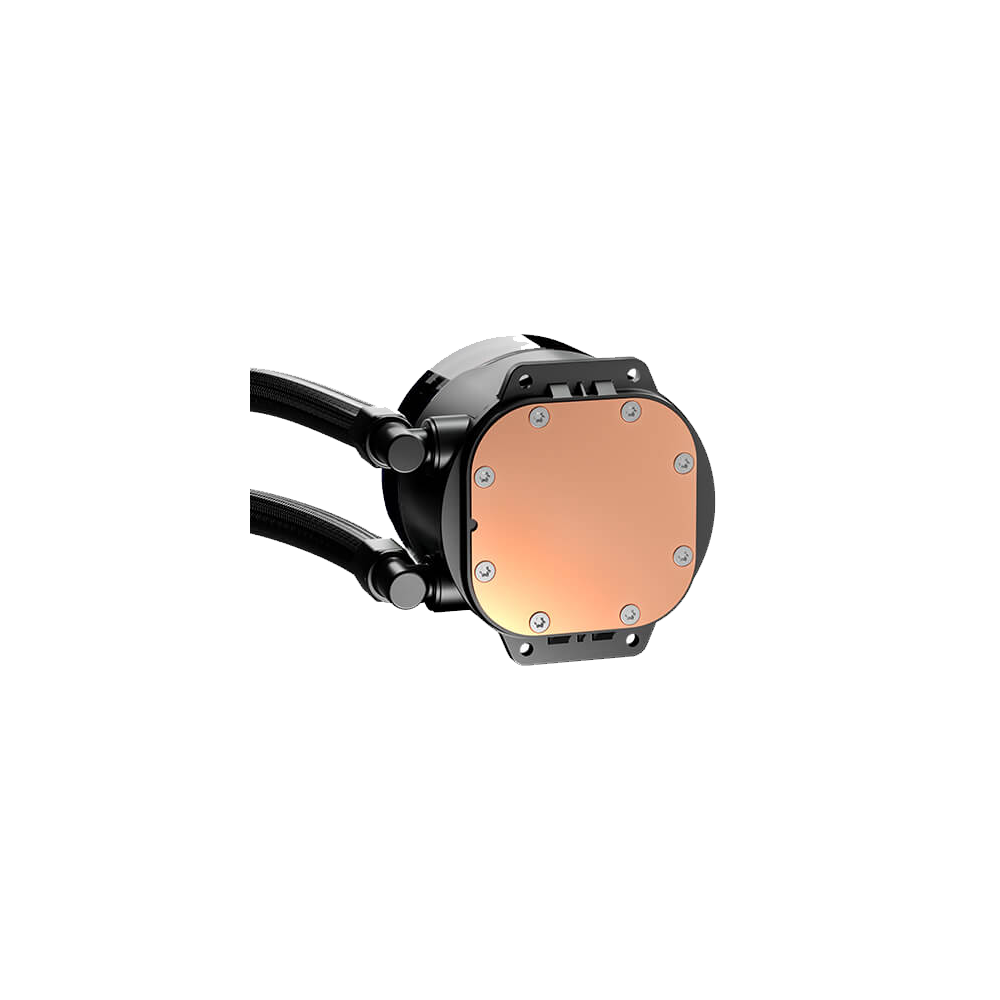

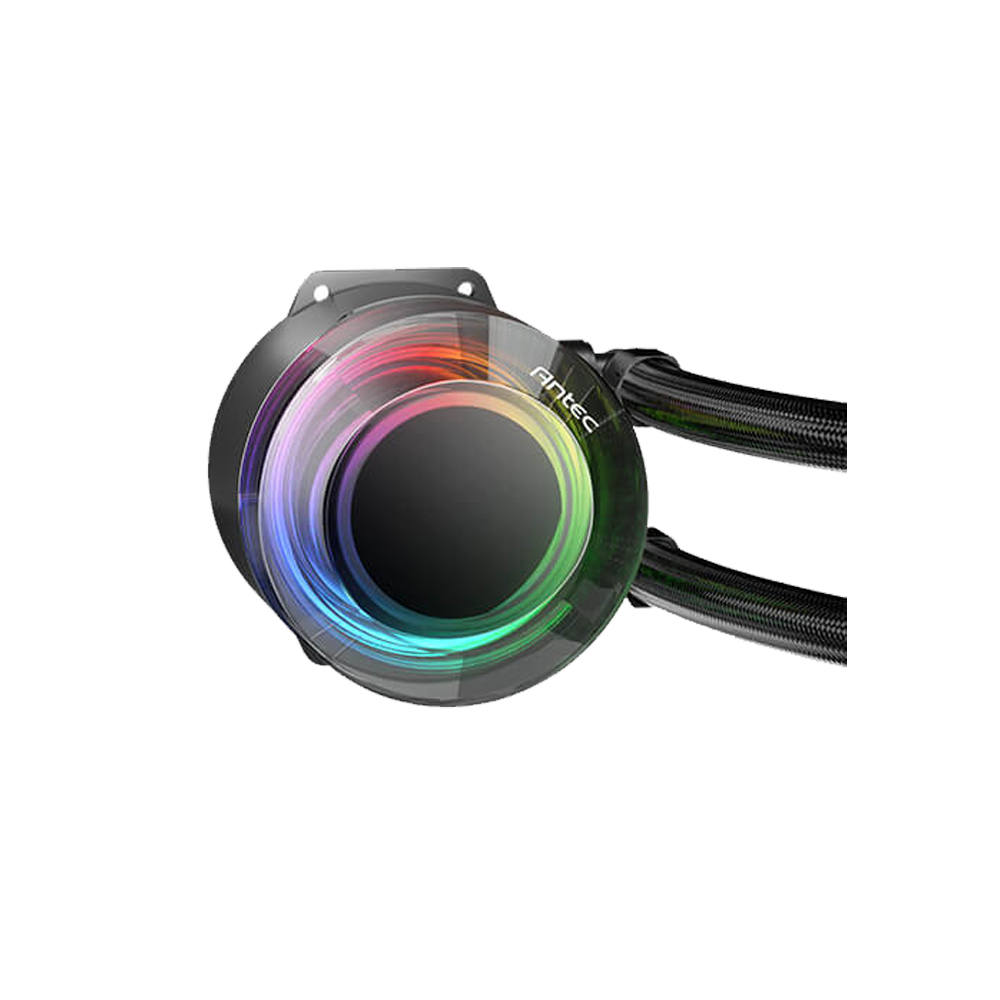

Pump
Dimensions:￠67 x 48.5 mm
Rating Voltage: DC 12 V
Minimum Startup Voltage: ≥ 5.0 V
Fan Speed: 2800±10% RPM
Rated Current : 0.25±20% A
Consumed Power: 3.0 W
Flow rate :≥ 1300 mL / min
Water Pressure:1.4M
Operation Temperature : -10°C ~ +60°C
Noise Level : ≤ 28 dB(A)
Lifespan: 40,000 hours
Connector: PUMP: 3-pin | LED: 3-pin -

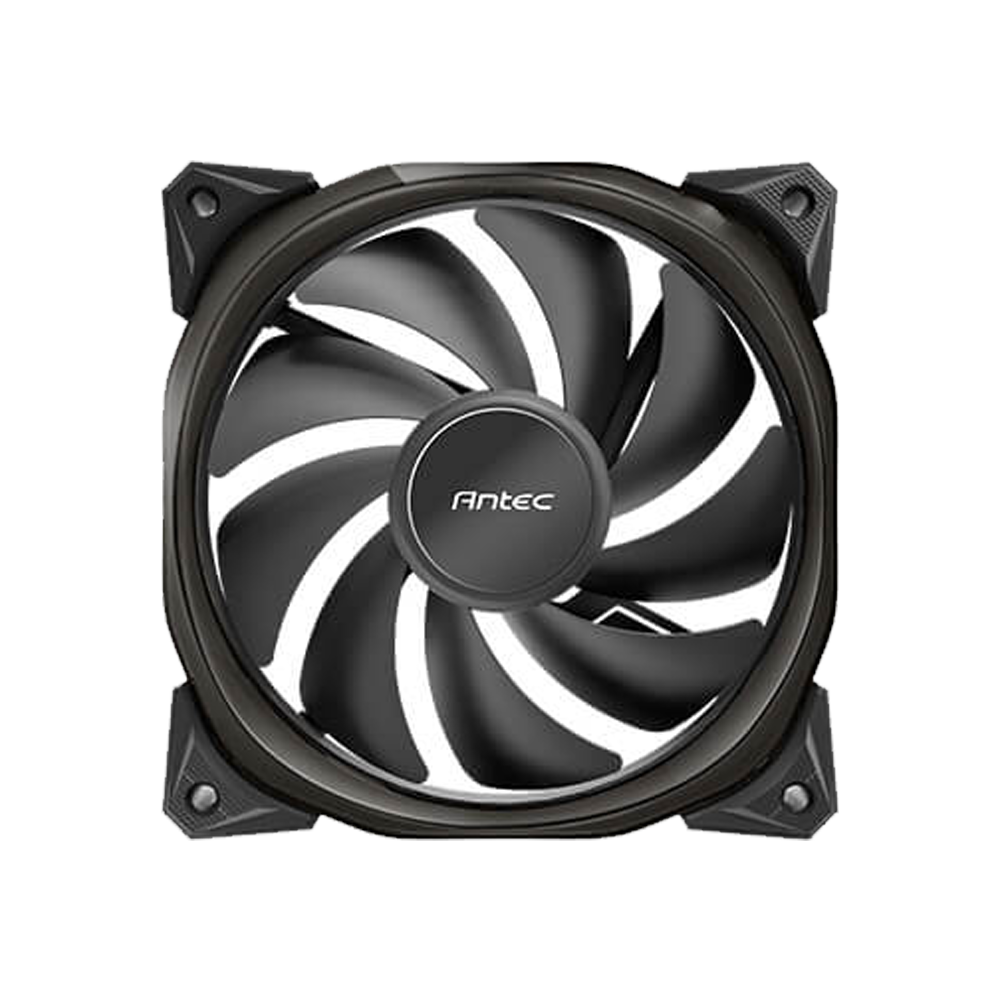

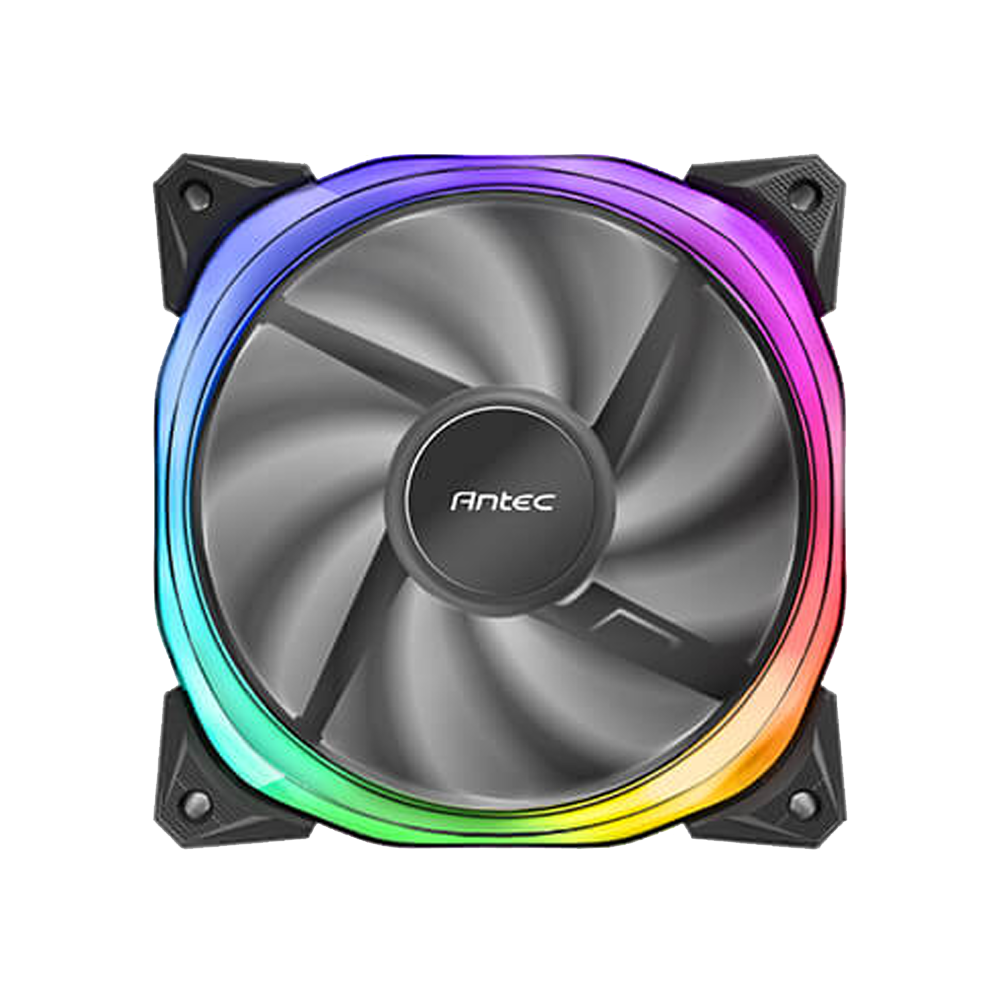

Fan
Model Name : Fusion 120 ARGB fan (AH12012FM1)
Fan Type: PWM Fan
Dimensions : 120 x 120 x 25 mm
Bearing Type : Hydraulic Bearing
LED Type: Addressable RGB
Fan Speed : 600±200 ~ 2000±10% RPM
Airflow : 57.93 CFM (max.)
Air Pressure: 2.11 mmH₂O (max.)
Fan Noise Level : 31.24 dB(A)
Lifespan :40,000 hours
Connector : FAN: 4-pin PWM | LED: 3-pin
Rated Voltage : FAN: DC 12 V | LED: DC 5 V
Operation Voltage: FAN: DC 6.0-13.8 V | LED: DC 4.5-5.5 V
Rated Current : FAN : ≤ 0.21 A | LED : ≤ 0.58 A
Socket Compatibility CPU : Intel : LGA 115X / 1200 / 1700 / 20XX
AMD : AM3/AM4/AM5 - Warranty: 1 year
