Description

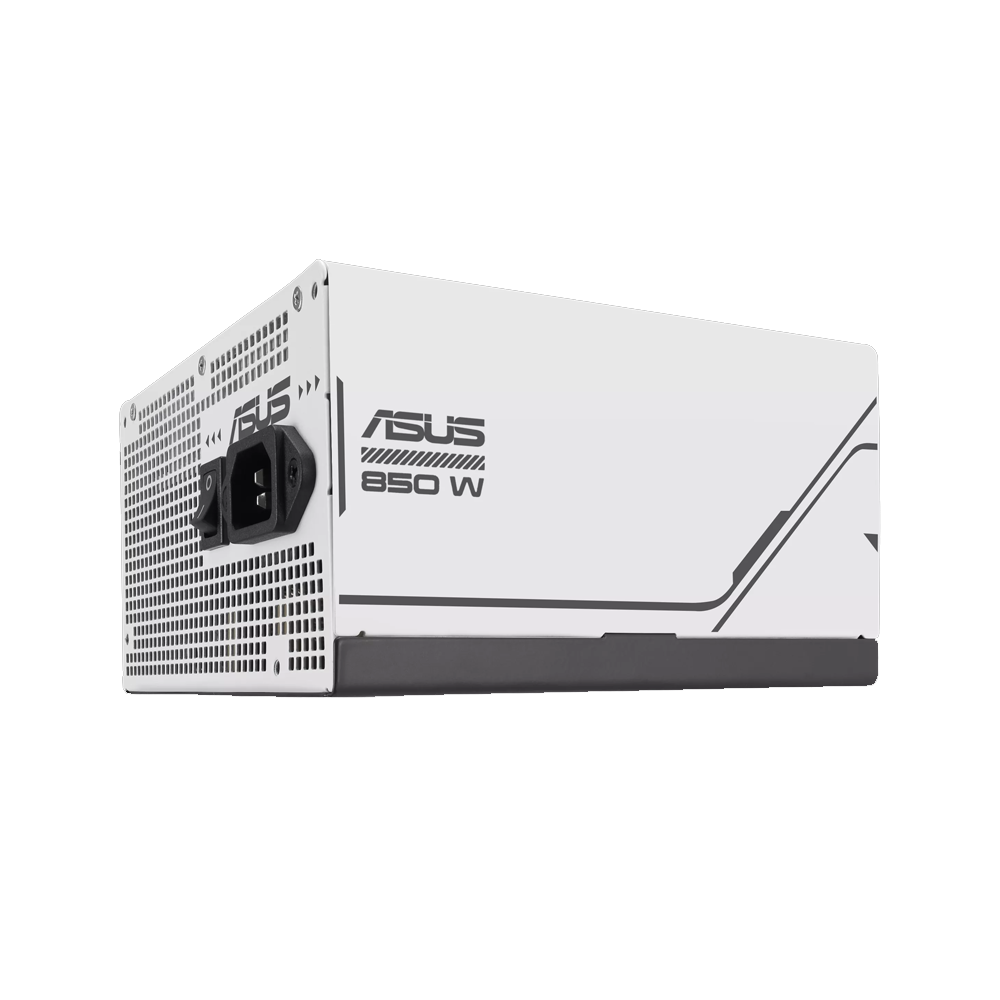

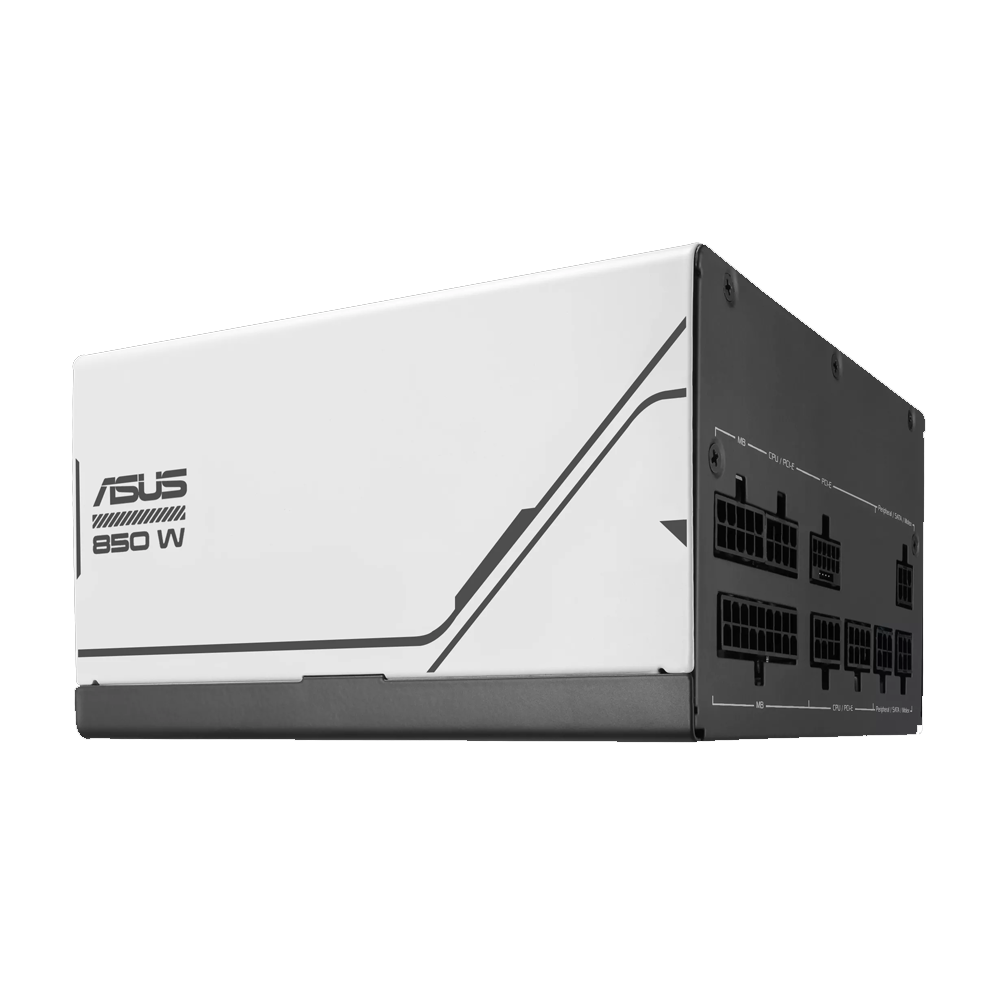

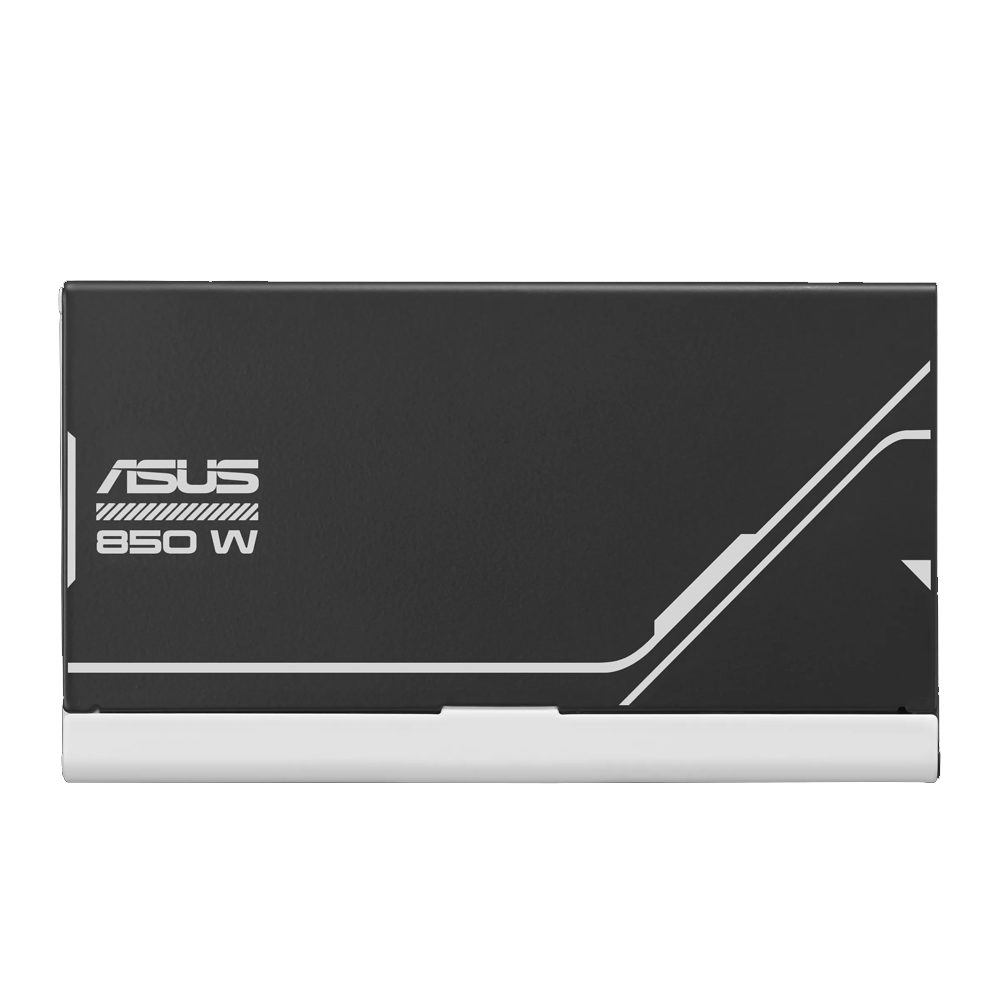

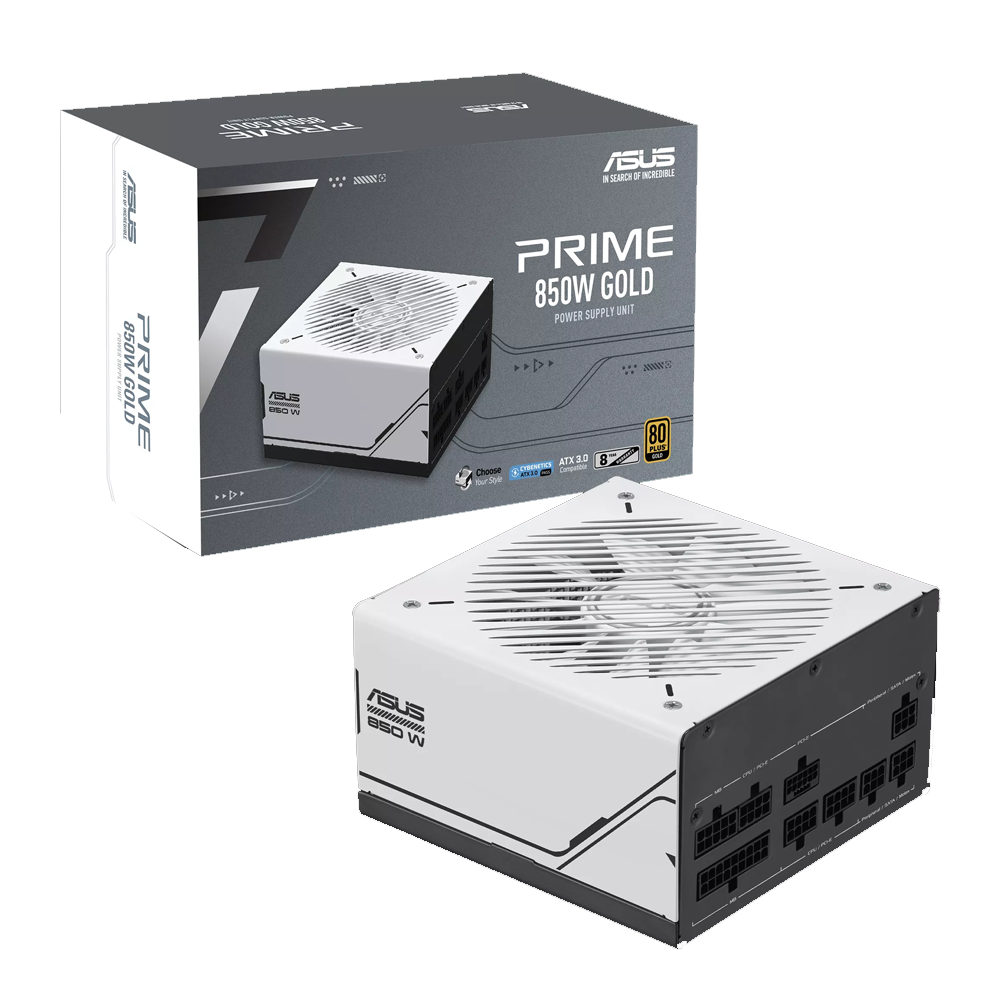

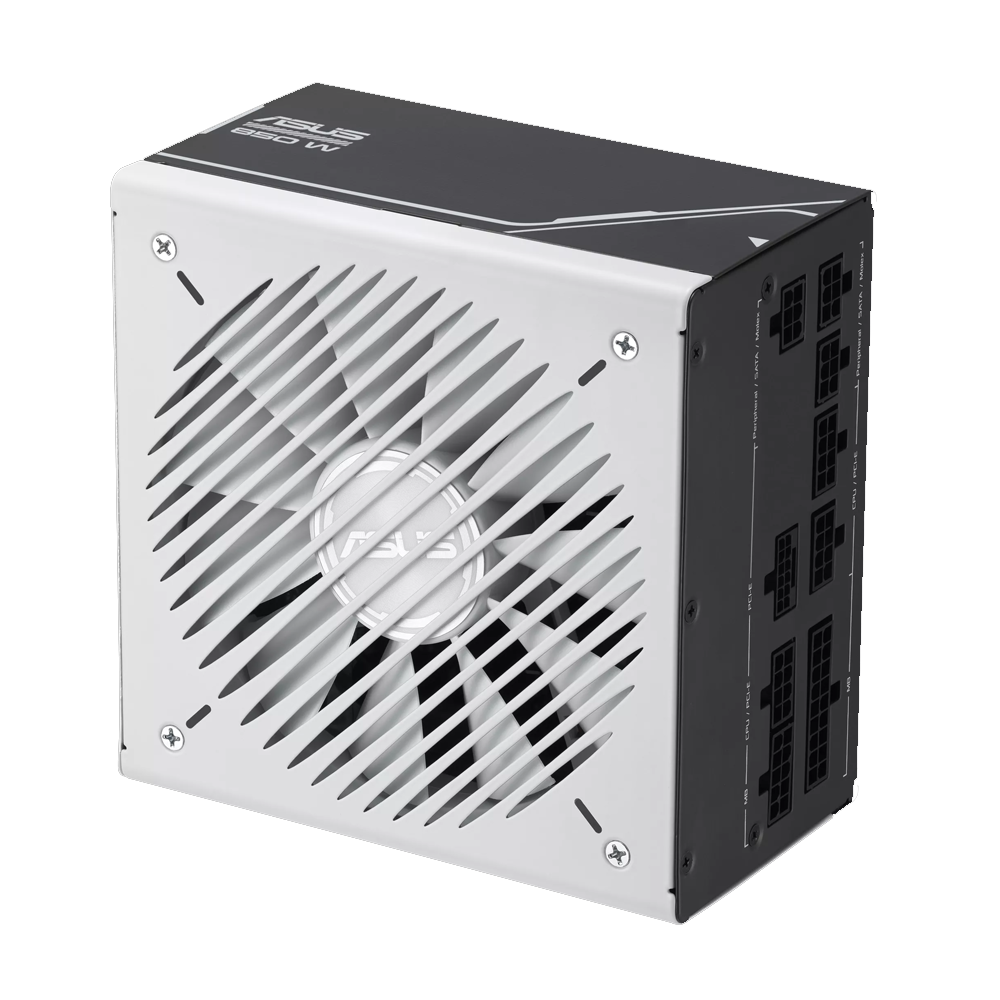

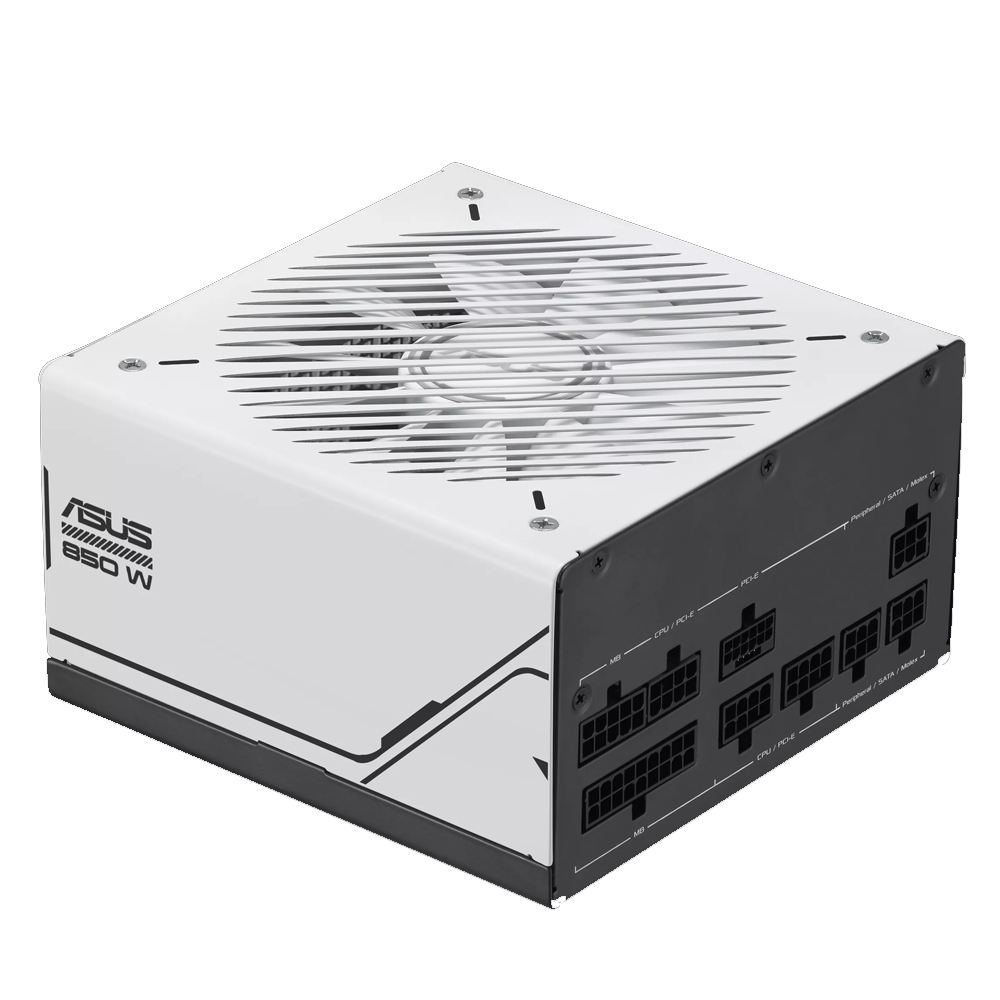

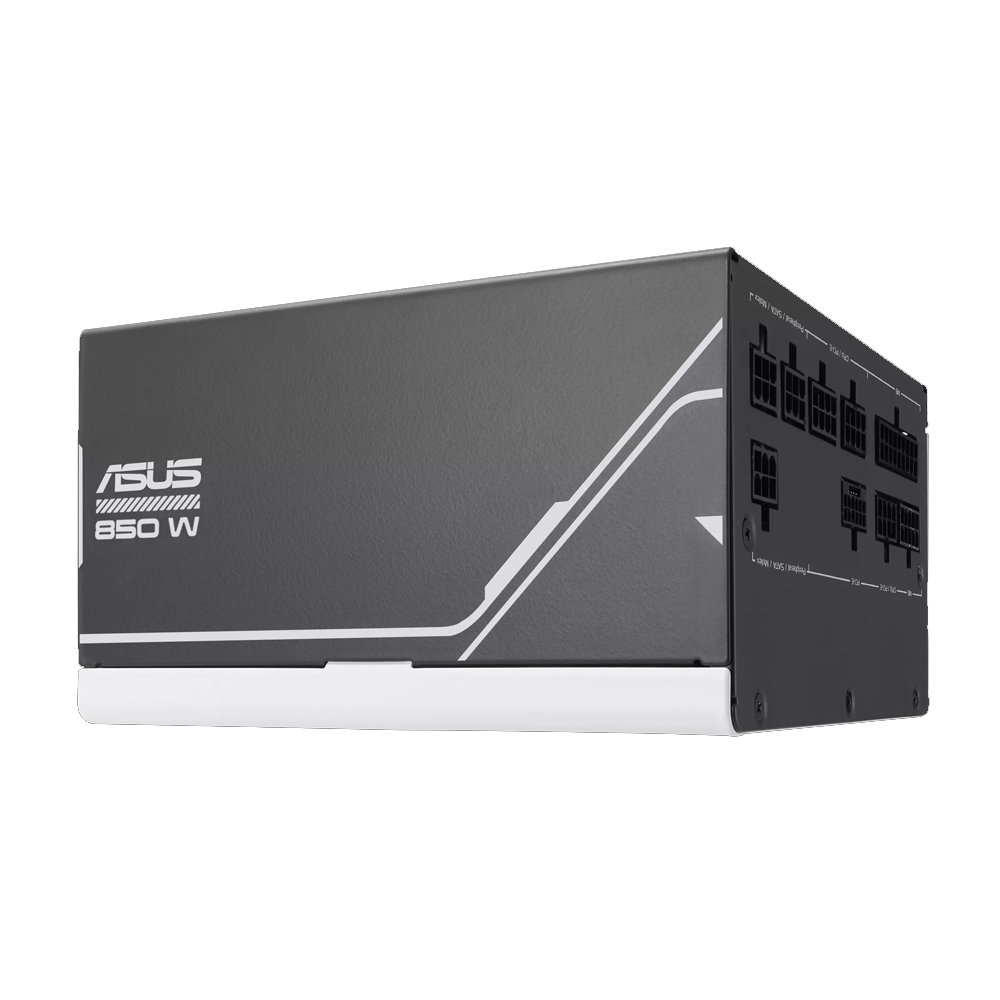

ASUS Prime 850W Gold PSU brings efficient and durable power delivery to all-round PCs, and gaming rigs

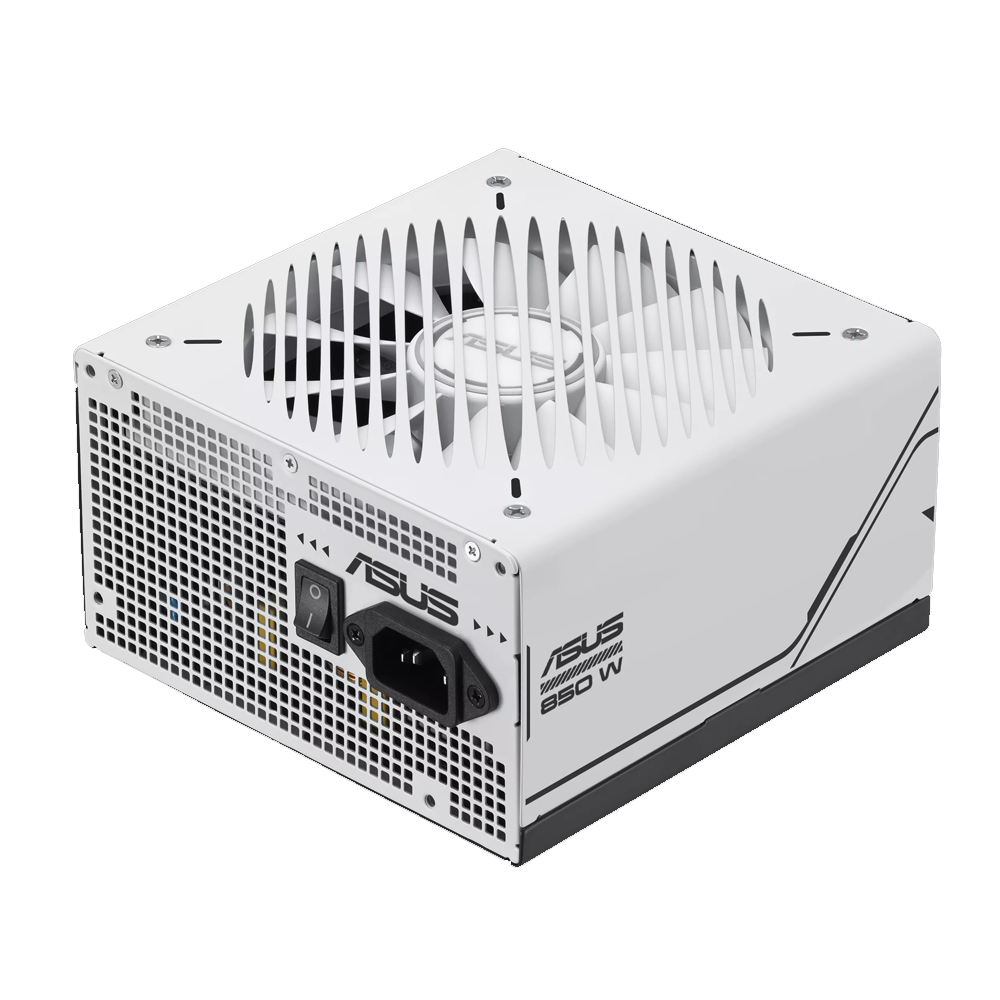

- Dual ball fan bearings that can last up to twice as long as sleeve bearing designs.
- An 80 Plus gold certification is the result of low-ESR capacitors and other premium components.
- ATX 3.0 compatible: ASUS Prime Gold is compliant with ATX 3.0 guidelines and bundled with a 16-pin PCIe cable that is compatible with PCIe Gen 5.0 graphics cards.
Specifications
- Model :AP-850G
- Intel Form Factor :ATX12V
- PFC Type :Active PFC
- ATX Standard :ATX 3.0
- Dimensions :150 x 150 x 86 mm
- Efficiency :80Plus Gold
- MTBF :>120,000 hrs @ 25°C
- Protection Features :OPP/OVP/UVP/SCP/OCP/OTP
- Hazardous Materials : ROHS

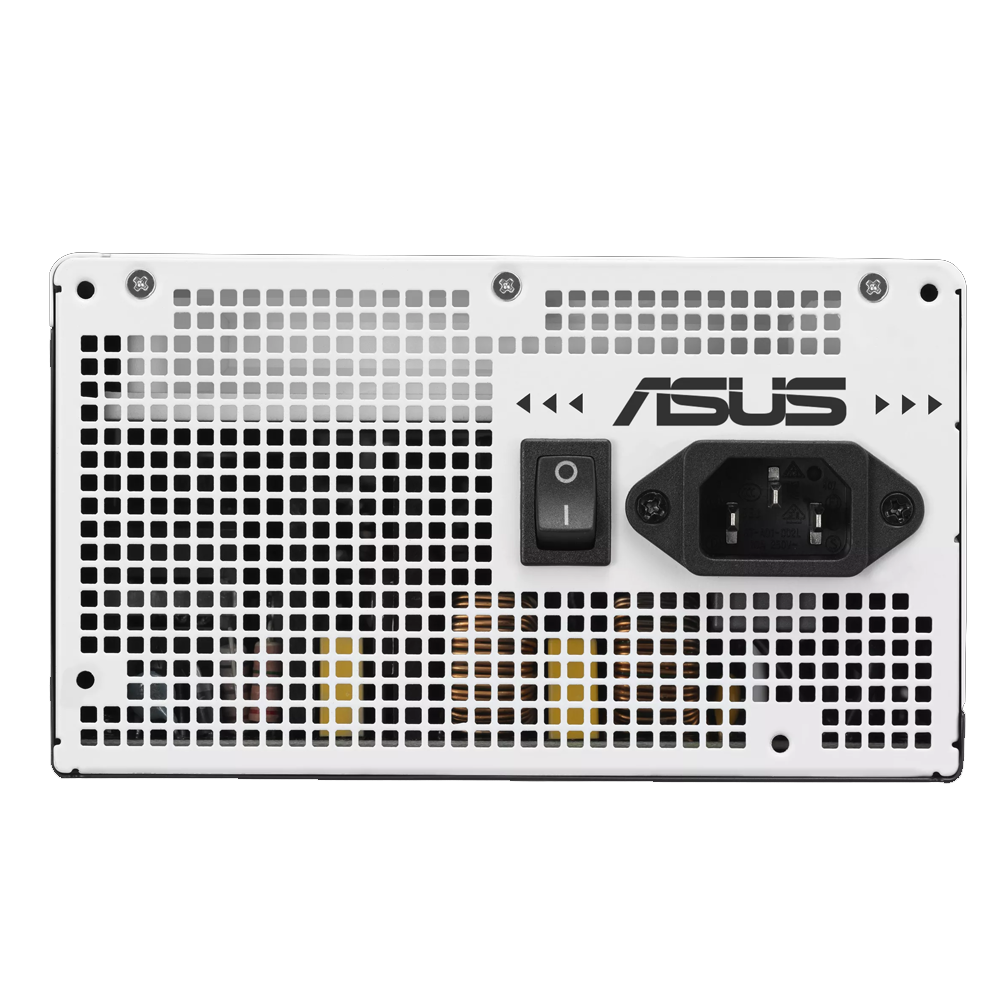

- AC Input Range :100-240Vac
- DC Output Voltage :+3.3V +5V +12V -12V +5Vsb
- Maximum Load :20A20A70.5A 0.3A 2.5A
- Combined Load :110W 110W 846W 3.6W 12.5W
- Total Output :850W

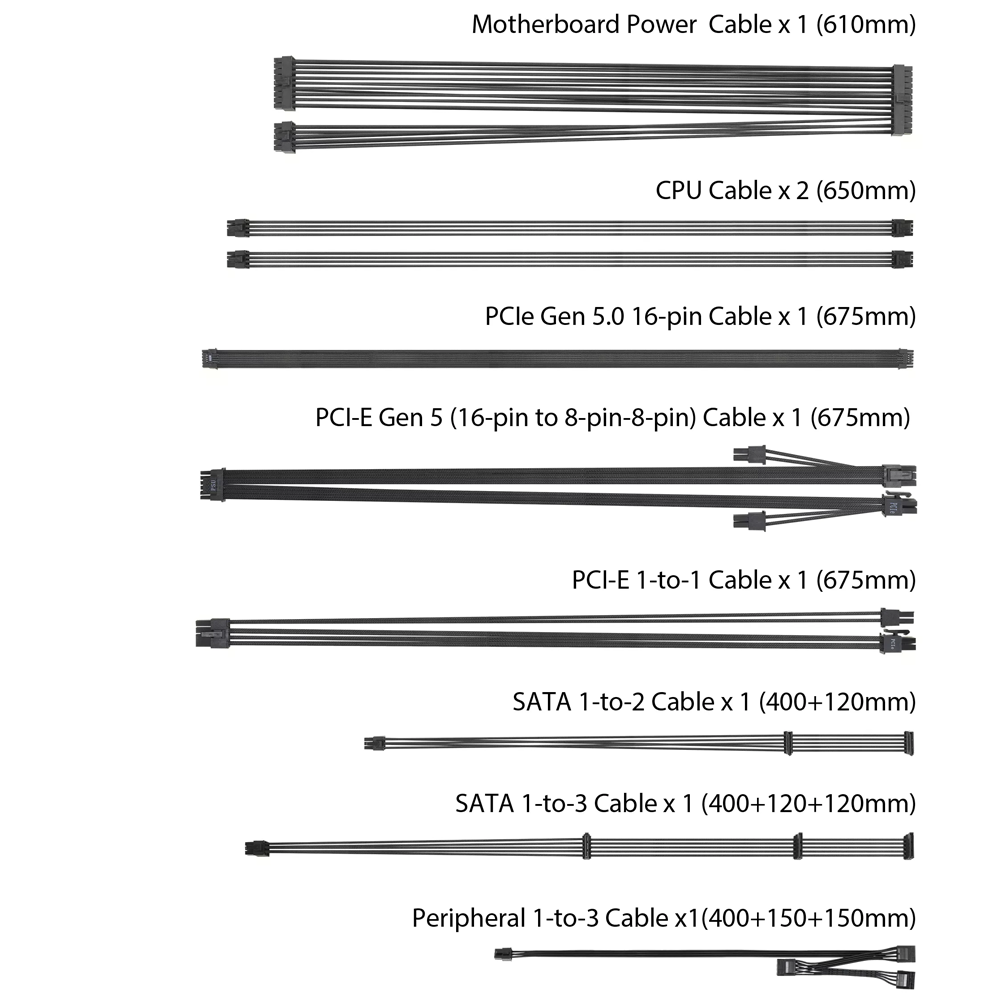

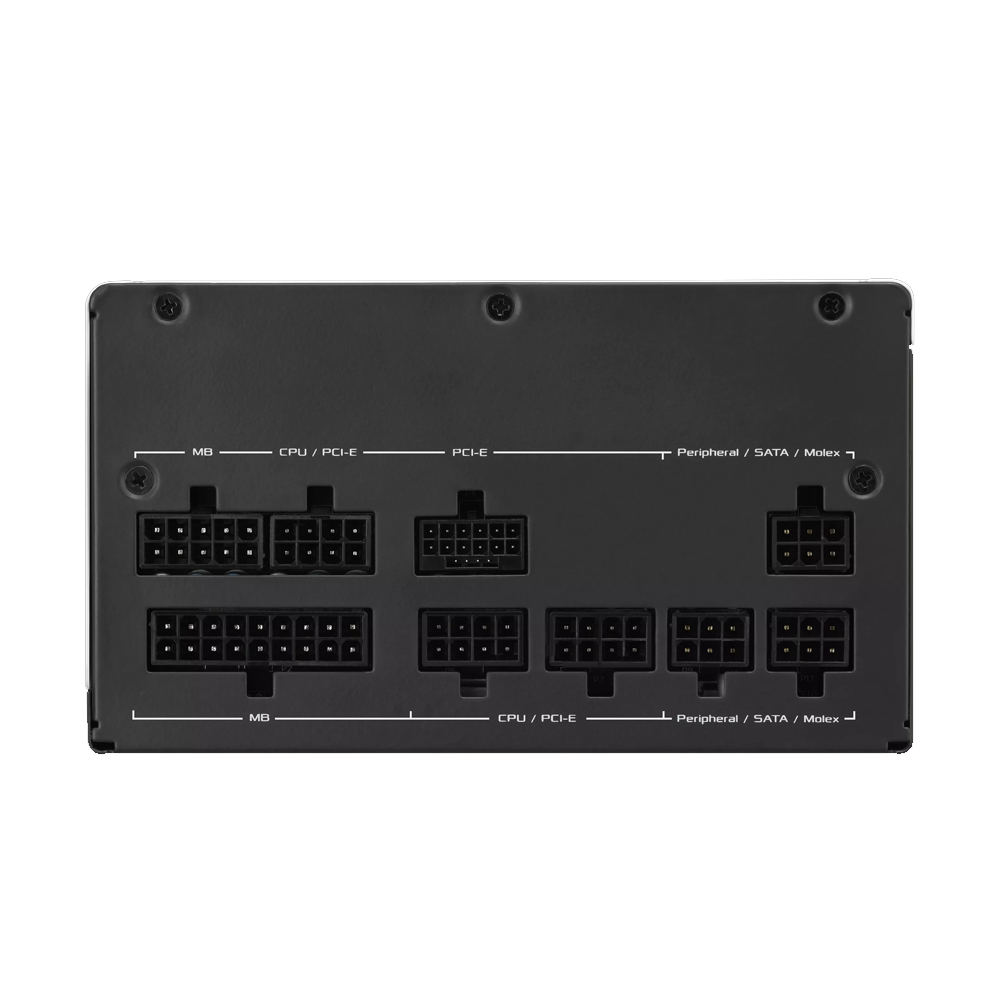

- Cable Connectors
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU & connector side)
PCI-E 8-pin x 3
SATA x 5
PERIPHERAL x 3 - Weight :1.502 kg (single PSU)
- 0dB Technology :No
- 0dB Fan Button :No, this product is without 0dB technology.
- warranty :1 year
