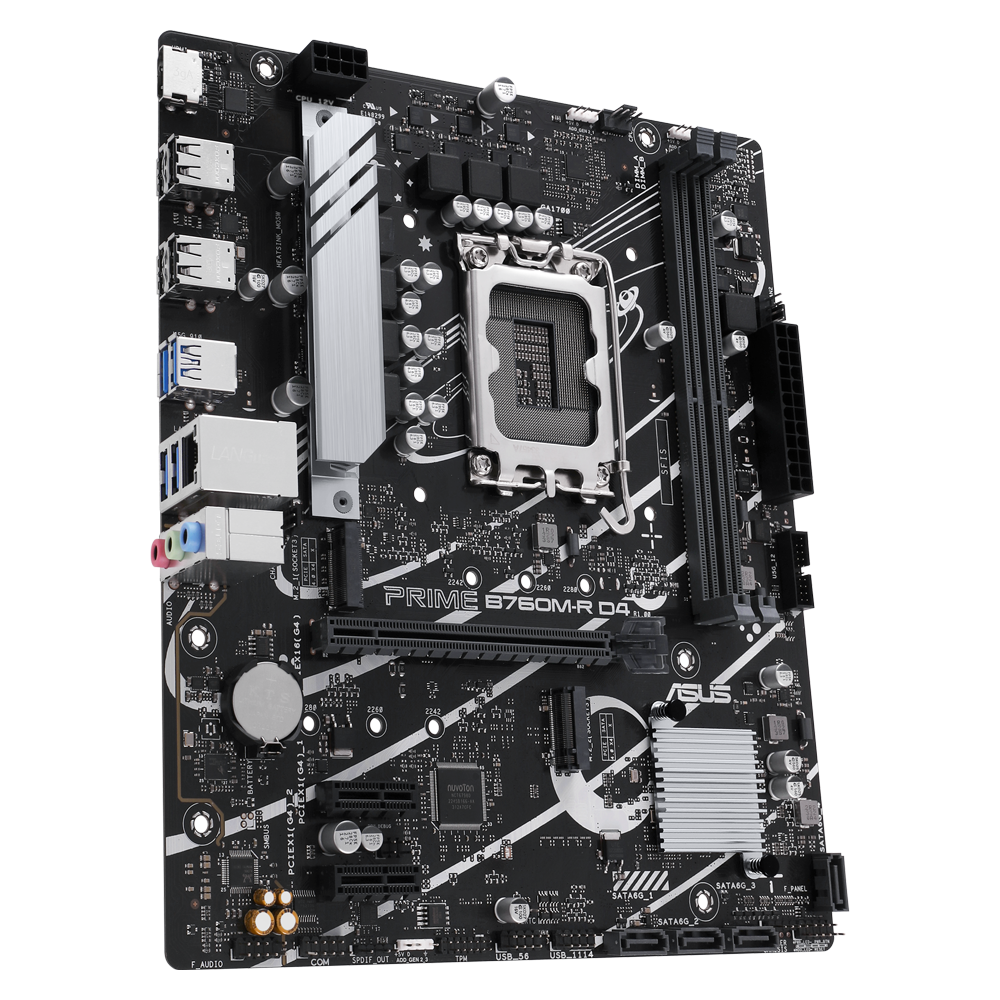

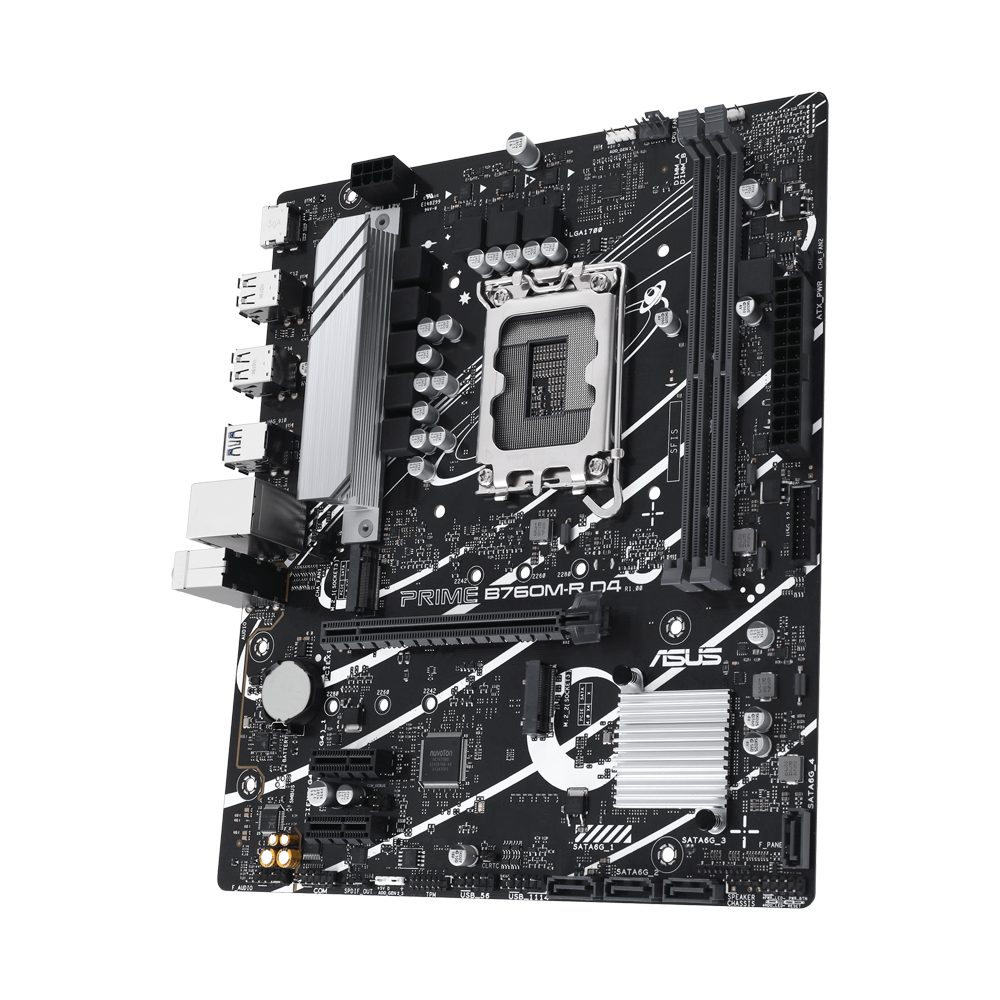

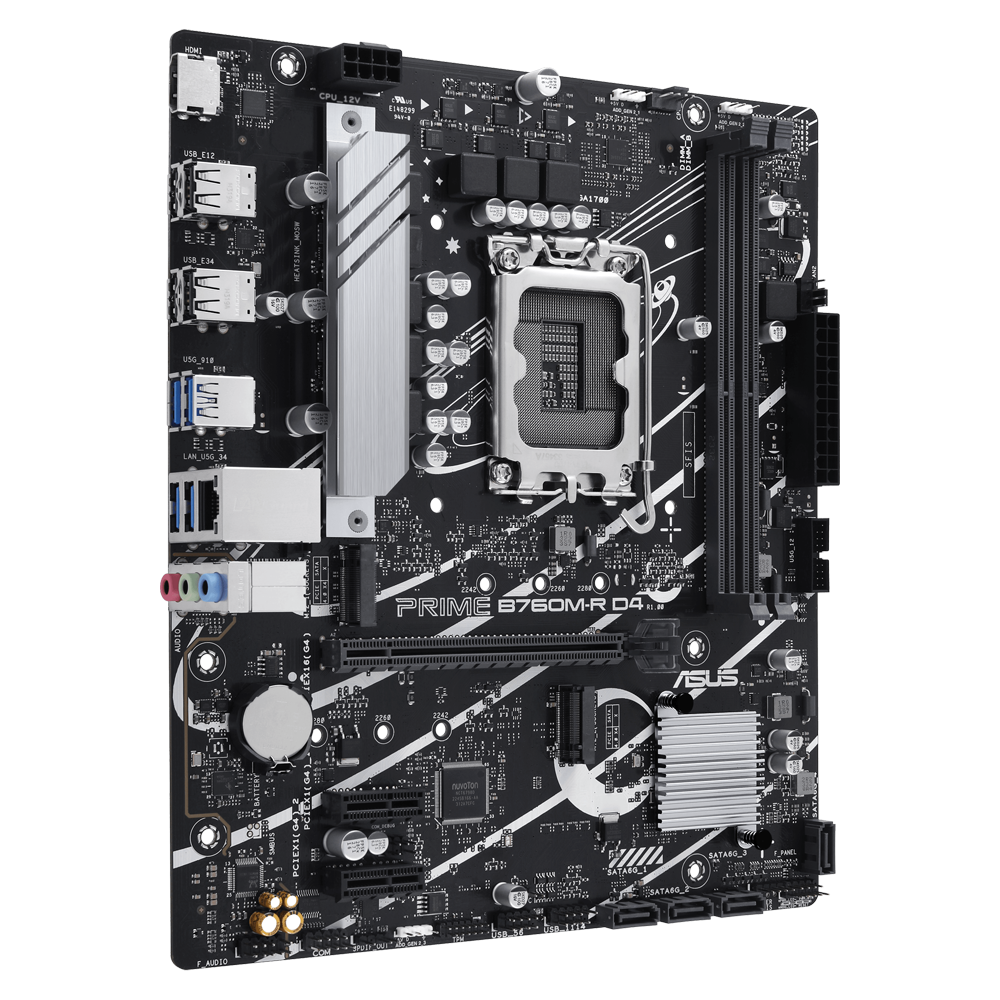

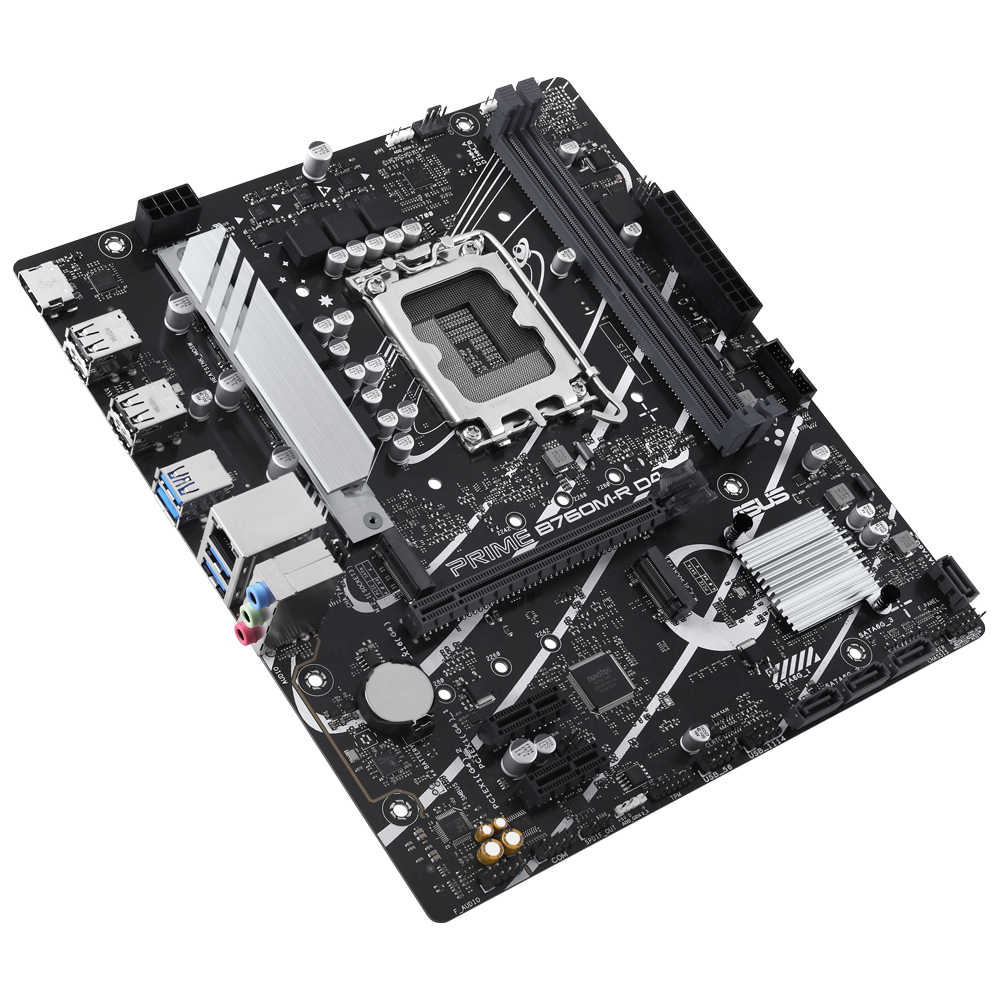

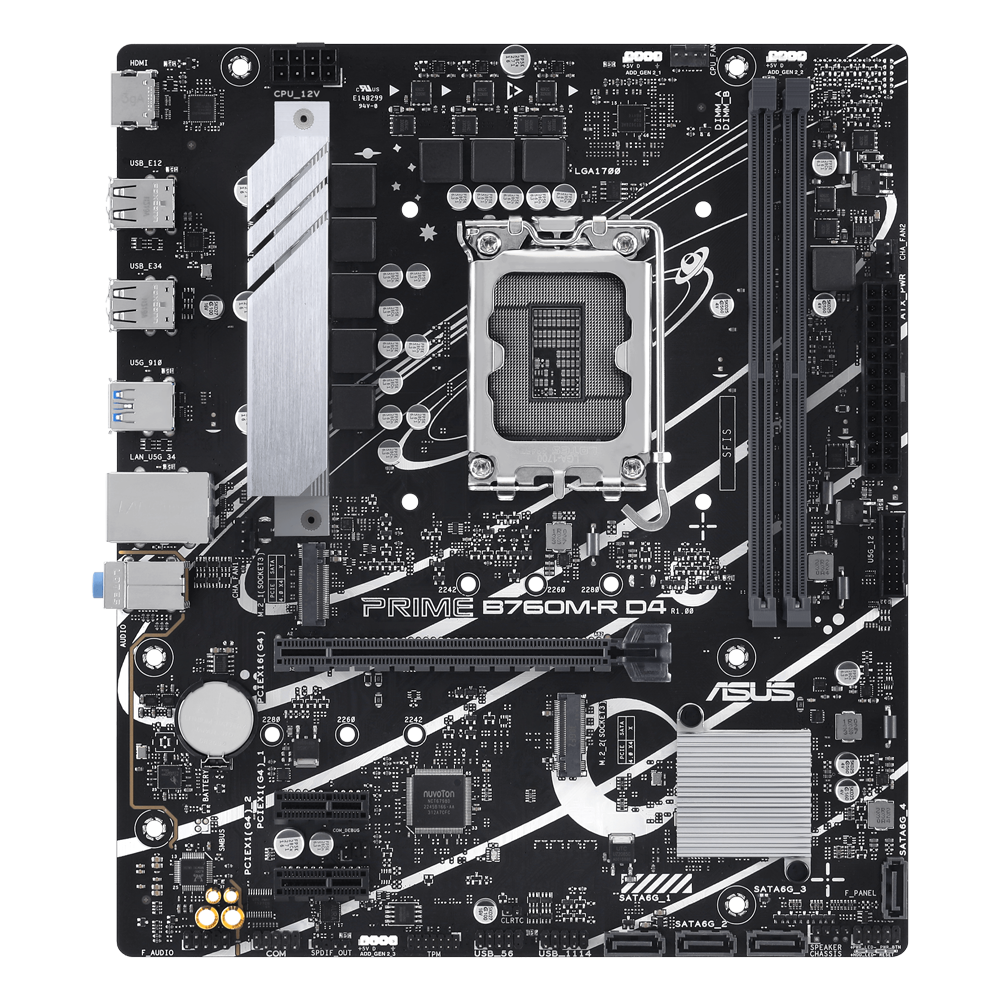

Asus Prime B760M-R D4 Intel Socket LGA 1700 Motherboard

• Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• Intel^® LGA 1700 Socket: Ready for 14^th,13^th and 12^th Gen Intel^® processors
• Ultrafast Connectivity: PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet and front USB 5Gbps support
• Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardwares
• Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences

Specifications

• Model :PRIME B760M-R D4
• News & Updates
  2024/08/12: The new BIOS with Intel microcode (0x129) enhancing the stability of Intel Core 13th and 14th Gen desktop processors is now available. Please visit support site for the latest BIOS updates.
• CPU
  Intel® Socket LGA1700 for Intel® Core™14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
  Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  * Refer to www.asus.com for CPU support list.
  ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Chipset :Intel® B760 Chipset
• Memory
  2 x DIMM slots, Max. 64GB, DDR4
  5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
  Dual channel memory architecture
  Supports Intel® Extreme Memory Profile (XMP) memory module
  * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
• Graphics
  1 x HDMITM port**
  * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  ** Supports 4K@60Hz as specified in HDMI 2.1.
• Expansion Slots
  Intel® Core™ Processors (14th  & 13th & 12th Gen)
  1 x PCIe 4.0 x16 slot
  Intel® B760 Chipset
  2 x PCIe 4.0 x1 slots
  - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
• Storage
  Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
  Intel® Core™ Processors (14th  & 13th & 12th Gen)
  M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  Intel® B760 Chipset
  M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  4 x SATA 6Gb/s ports
  * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
• Ethernet 1 x Realtek 2.5Gb Ethernet
• USB
  Rear USB (Total 8 ports)
  4 x USB 5Gbps ports (4 x Type-A)
  4 x USB 2.0 ports (4 x Type-A)*
  Front USB (Total 6 ports)
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
  * USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
• Audio
  Realtek 7.1 Surround Sound High Definition Audio CODEC*
  - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  - Supports up to 24-Bit/192 kHz playback
  Audio Features
  - Audio Shielding
  - Premium audio capacitors
  - Dedicated audio PCB layers
  * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

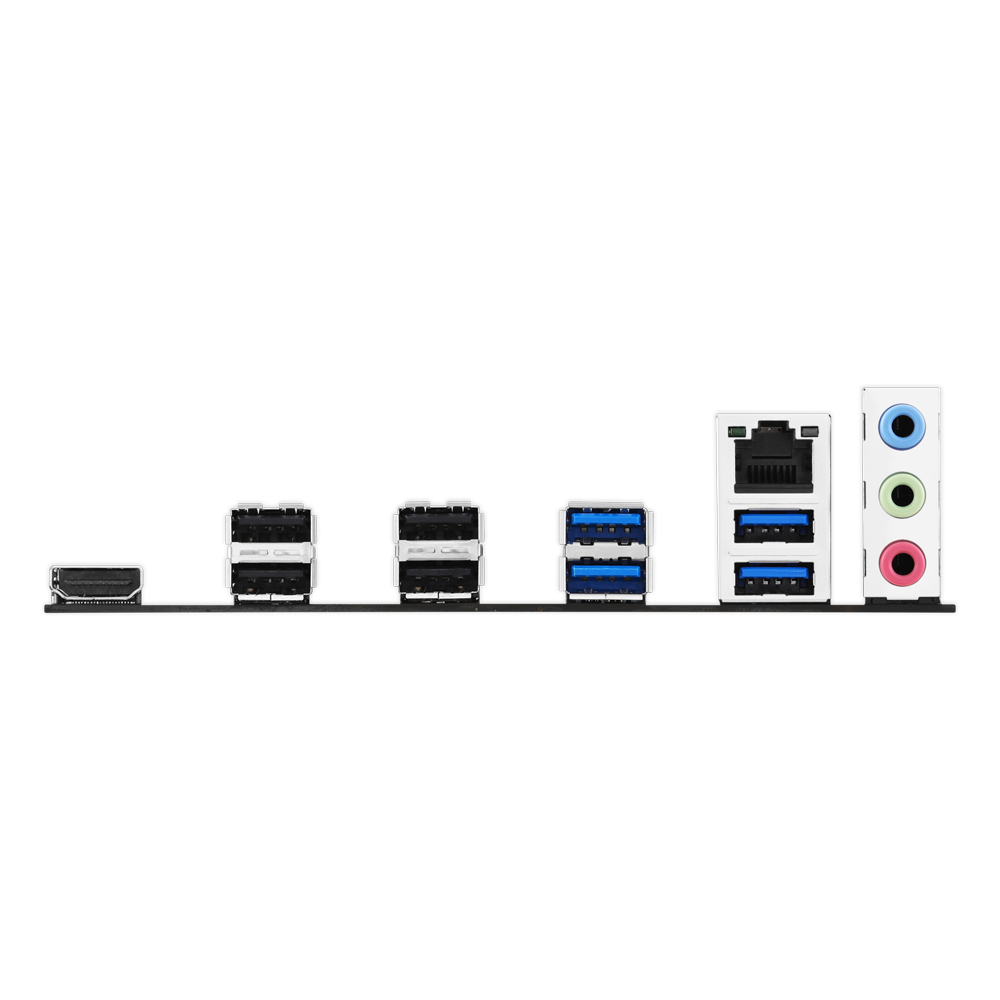

• Back Panel I/O Ports
  4 x USB 5Gbps ports (4 x Type-A)
  4 x USB 2.0 ports (4 x Type-A)
  1 x HDMITM port
  1 x Realtek 2.5Gb Ethernet port
  3 x Audio jacks
• Internal I/O Connectors
  Fan and Cooling Related
  1 x 4-pin CPU Fan header
  2 x 4-pin Chassis Fan headers
• Power Related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V Power connector
• Storage Related
  2 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
• USB
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
  Miscellaneous
  3 x Addressable Gen 2 headers
  1 x Clear CMOS header
  1 x COM Port header
  1 x Front panel audio header (F_AUDIO)
  1 x S/PDIF Out header
  1 x Speaker header
  1 x SPI TPM header (14-1pin)
  1 x 10-1 pin System Panel header
• Special Features
  ASUS 5X PROTECTION III
  - DIGI+ VRM
  - LANGuard
  - Overvoltage protection
  - SafeSlot Core
  - Stainless-steel back I/O
  ASUS Q-Design
  - Q-DIMM
  - Q-LED Core
  - Q-Slot
  ASUS EZ DIY
  - ProCool
  ASUS Thermal Solution
  - VRM heatsink design
  Aura Sync
  - Addressable Gen 2 headers
• Software Features
  ASUS Exclusive Software
  Armoury Crate
  - Aura Sync
  - Fan Xpert 2+
  - Power Saving
  - Two-Way AI Noise Cancelation
  AI Suite 3
  - DIGI+ VRM
  - PC Cleaner
  ASUS CPU-Z
  Norton 360 Deluxe (60 Days Free Trial)
  WinRAR (40 Days Free Trial)
  UEFI BIOS
  ASUS EZ DIY
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode
• BIOS :128 Mb Flash ROM, UEFI AMI BIOS
• Manageability :WOL by PME, PXE

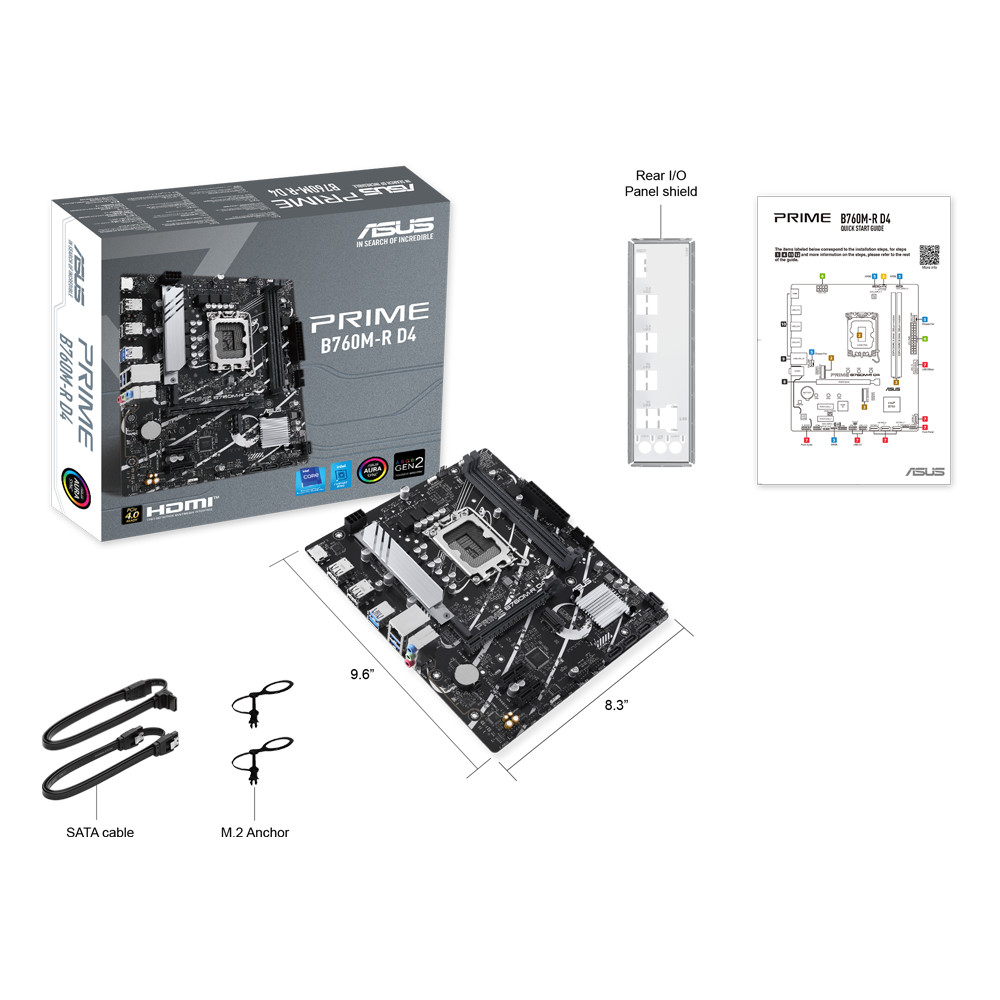

• Accessories
  Cables
  2 x SATA 6Gb/s cables
  Miscellaneous
  1 x I/O shield
  2 x M.2 anchors
  Documentation
  1 x Quick start guide
• Operating System :Windows® 11, Windows® 10 64-bit
• Form Factor micro-ATX Form Factor
  9.6 inch x 8.3 inch (24.4cm x 21.1cm)

• warranty : 1 year
