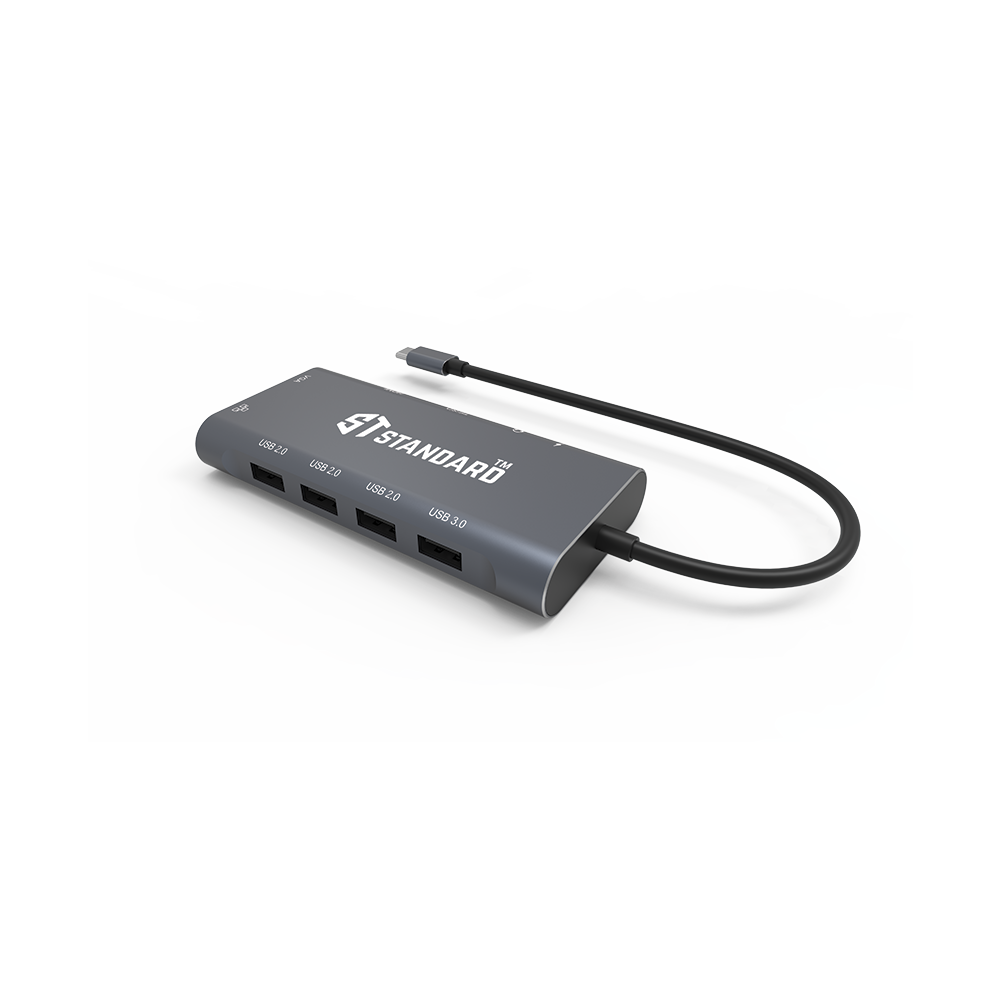

Description
(USB-C To Multi-Functional Docking Station)
PD*1+USB3.0*1+USB2*3+RJ45(1000M)*1+VGA*1+HDMI(4K 30Hz)*1+SD*1+TF*1+Audio*1
- PD3.0*1 (100W)
- USB3.0*1
- USB2*3
- RJ45*1 (1000m/100m/10m) Ethernet Port (Gigabit)
- VGA*1 (1080/30HZ)
- HDMI*1 (4K@30Hz) Full HD 1080p
- SD3.0*1
- TF*1
- Audio*1 3.55mm
Descriptions
- The C-type multifunctional docking station connects your laptop to USB peripherals, Ethernet, and monitors. The HDMI parent port supports up to 4K UHD video output resolution, the VGA port supports 2K output resolution USB parent port design to allow users to charge PDs, and the 100M network can be accessed through the Type-C port by including the RJ45 Ethernet port. This product contains three USB 2.0 interfaces, which can be used to connect USB devices such as mouse, keyboard, USB 3.0 interface can be used to connect U disk, mobile hard disk and other devices, TF/SD card slot can read and write TF/SD memory card, with 3.5mm Jack audio output. Overall, the Type multipurpose docking station is the ideal choice for you to expand the Type-C port
specifications
- 4K HDMI to USB C Hub: Mirrors or extends a screen to an HDTV, monitor or projector through an HDMI port. USB C to HDMI provides you with lifelike 4K 3840x 2160@30Hz HDMI images bring you an immersive 3D resolution experience.
1080P High Resolution: Connect monitor through VGA cable, output computer display content, support copy monitors and expand monitor function. 3.5mm Jack supports audio output. - USB C Ethernet Hub: The 100Mpbs Ethernet port provides a more stable and faster connection to the wired network, supporting 100/10M. The RJ45 port recognizes your Internet speed and automatically adjusts to * high levels, regardless of whether it is 10/100Mbps.
- SD supports SD / SDHC, TF supports Micro SD / SDHC. The USB 3.0 card reader can be used for data transmission between SD/Micro SD and various devices, and supports reading and writing two different memory cards.
Fast charging for PD: Supports up to 100W of PD charging with an output (charging) limit of 85W. This USB C Hub multi-port adapter provides a Type-C direct parent port, allowing you to charge your laptop while connecting multiple peripherals for data transfer and worry-free power storage.
1 USB 3.0 high speed port, 5Gbps data transfer rate, special large files can be easily transferred to the computer in a few seconds, and 3 USB 2.0 interfaces can be used to connect external devices such as keyboards and mice. -
Hardware
Input: USB-C *1
Output: HDMI(4K@30Hz), VGA(2K@60Hz), RJ45(100/10M), TF/SD, USB 3.0*1, USB 2.0*3,3.5mm Jack (Audio output), USB-C(PD2.0)
Downstream output port: HDMI(4K@30Hz), VGA(2K@60Hz),
RJ45(100/10M), TF/SD, USB 3.0*1, USB 2.0*3,
3.5mm Jack (Audio output), USB-C (P D2.0) -
System Requirement
Compatible with Mac OS, iPad OS, Windows, Android, Linux systems -
Dimensions
Product size: 119*56*17.5mm
Packaging material size: 160*90*25mm
Material: Aluminum alloy shell + ABS (plug)+PVC (wire) -
Environment
Operating Temperature: -5*C~45*C
Storage Temperature: -10~85*
Relative Humidity (Operational): -20%~70%, noncondensing
Relative Humidity (Storage): 5%~90%, noncondensing
Drop test (1 Meters): 5 st
Cycle work (hours): 24H - warranty : 6 months
