Description
Level 20 MT ARGB
- CA-1M7-00M1WN-00

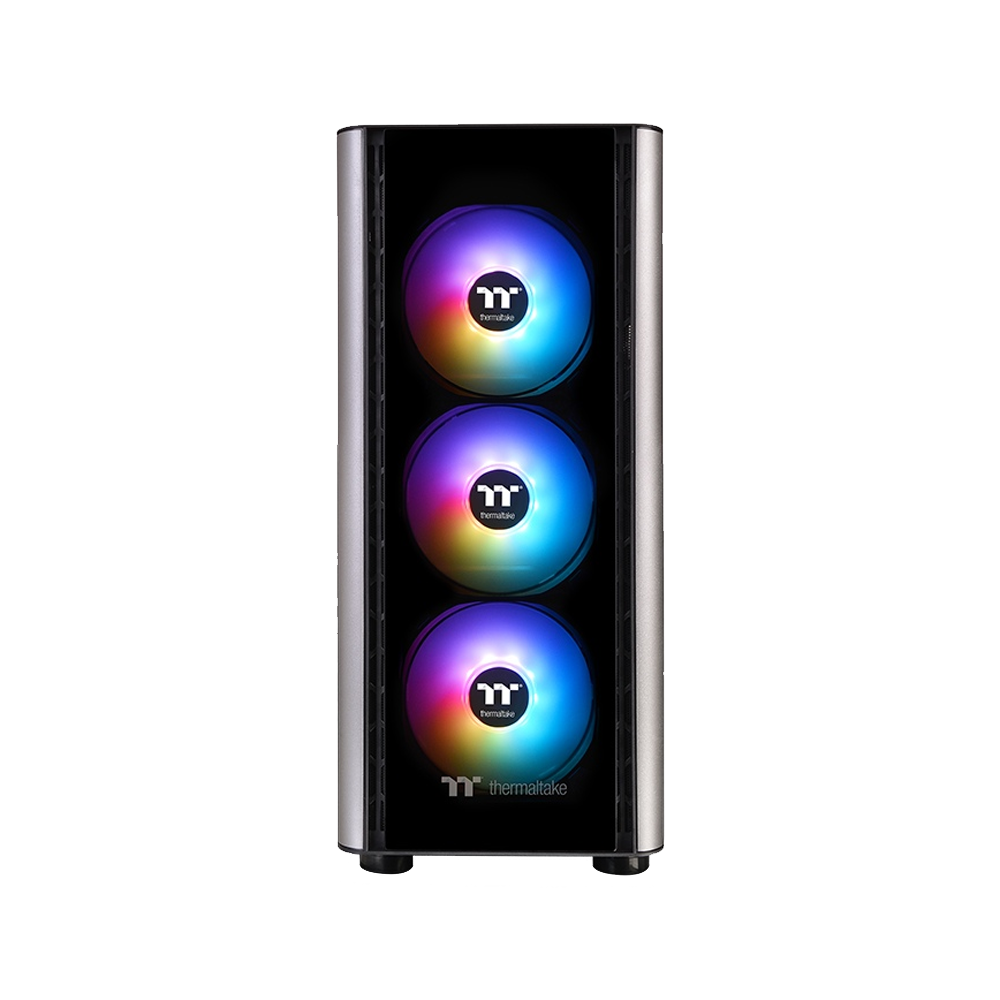

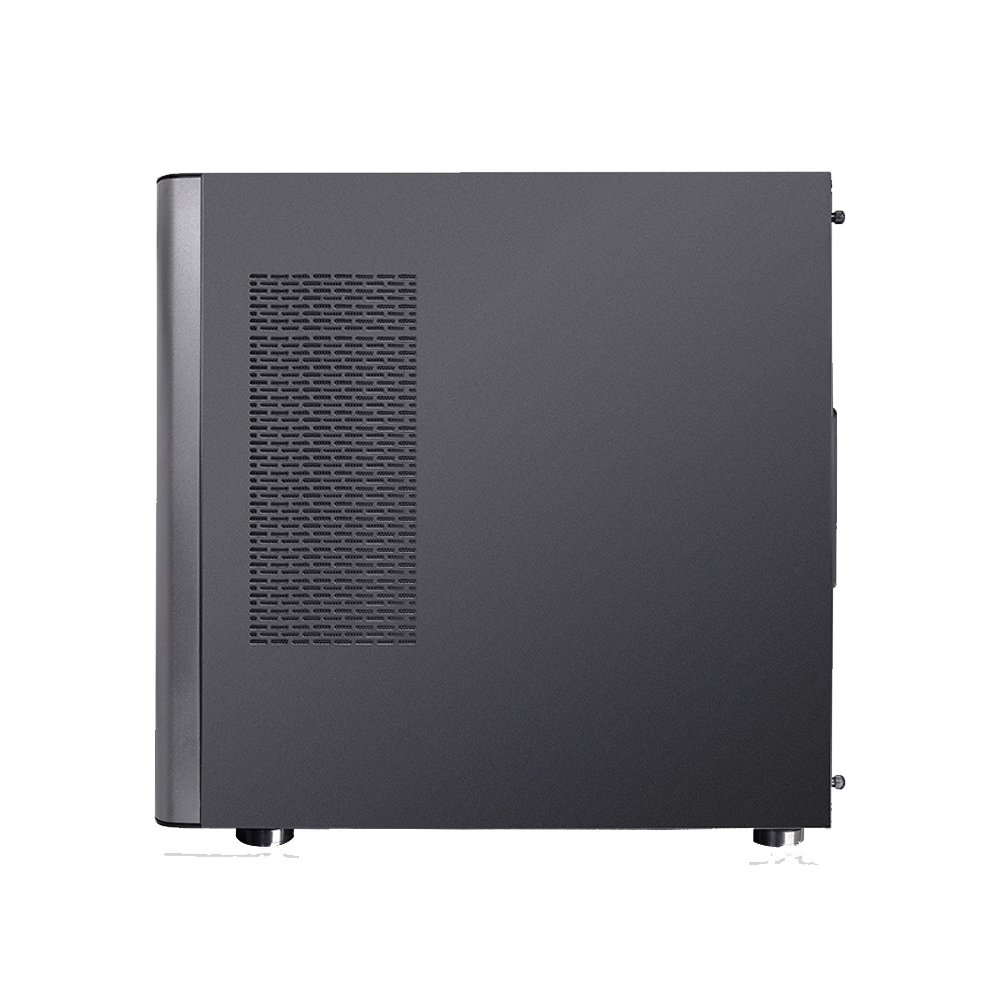

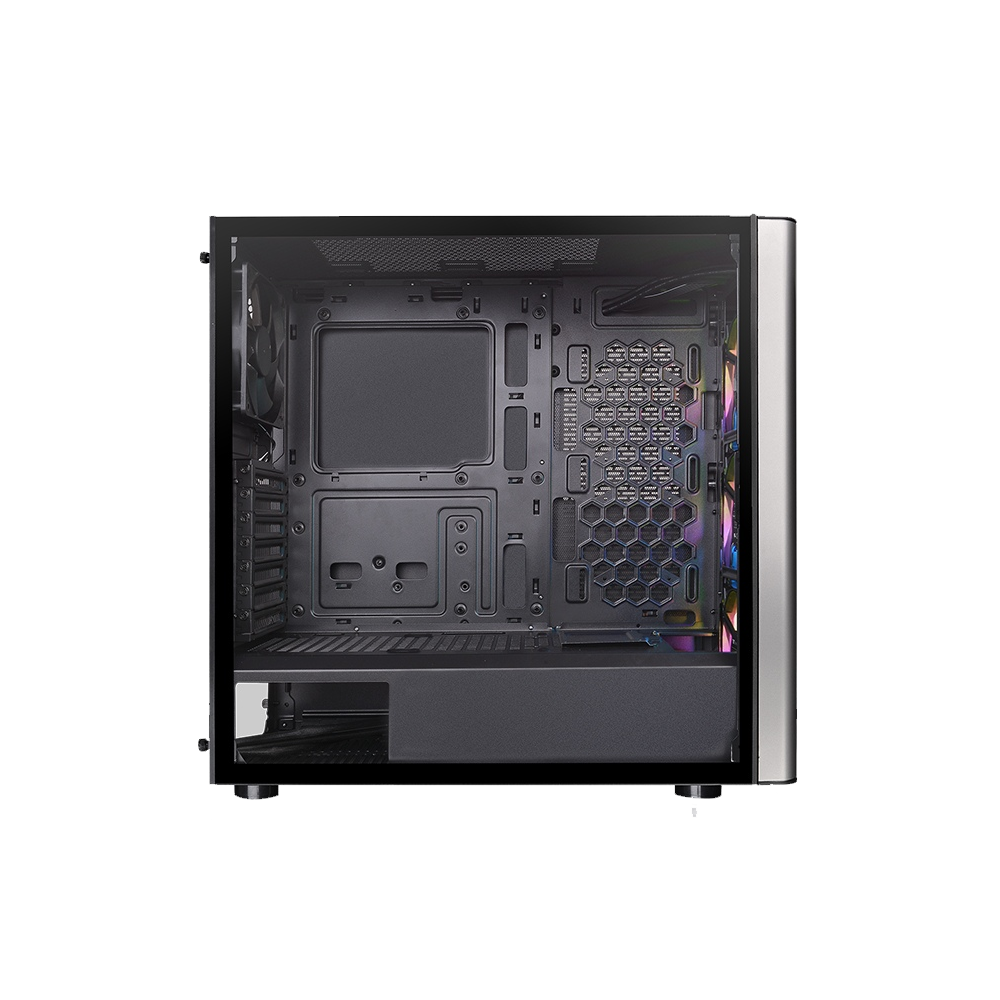

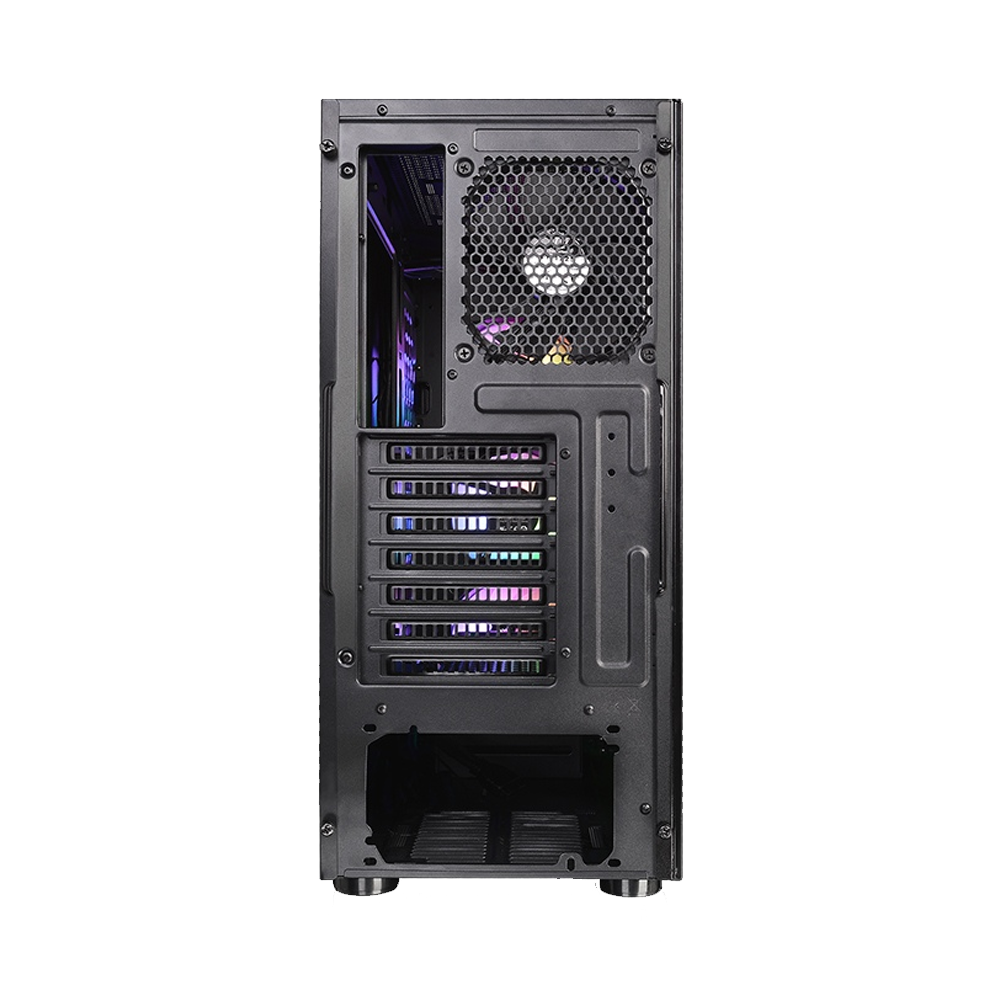

- ATX mid tower chassis with enlarge side panel window and three preinstalled 120mm 5V ARGB front fans and one standard 120mm rear fan.
specifications
- P/N :CA-1M7-00M1WN-00
- SERIES :Level 20
- CASE TYPE :Mid Tower
-
DIMENSION (H X W X D) :455 x 204 x 471mm
(17.9 x 8.0 x 18.54 inch) - NET WEIGHT :6.75 kg / 14.88 lb
- PANEL :4mm Tempered Glass x 2 (Left & Front)
- MATERIAL :SPCC
-
COOLING SYSTEM
Front (Intake): 120 x 120 x 25mm Addressable RGB fan
(1000rpm, 27.2 dBA) x 3
Rear (exhaust):
120 x 120 x 25 mm fan
(1000rpm, 26 dBA) x 1 -
DRIVE BAYS
ACCESSIBLE 1 x 2.5’’(HDD Bracket); 2 x 2.5”
HIDDEN 2 x 3.5’’ or 2.5”(HDD Cage); 1 x 2.5”(HDD Bracket) - EXPANSION SLOTS :7
- MOTHERBOARDS :6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
- I/O PORT :USB 3.0 x 2, HD Audio x 1, RGB Switch x 1
- PSU :Standard PS2 PSU (optional)
-
FAN SUPPORT
Front: 3 x 120mm
Top: 2 x 120mm, 1 x 140mm
Rear: 1 x 120mm
Right Side(In front of M/B Tray): 2 x 120mm
Bottom(On the power cover): 2 x 120mm
RADIATOR SUPPORT
Front: 1 x 360mm
Rear: 1 x 120mm
Right Side(In front of M/B Tray): 1 x 240mm
CLEARANCE
CPU cooler height limitation: 170mm
PSD length limitation: 170mm
VGA length limitation:
260mm(With radiator on the right side)
366mm(Without radiator on the right side) - warranty : 1 year
