Description

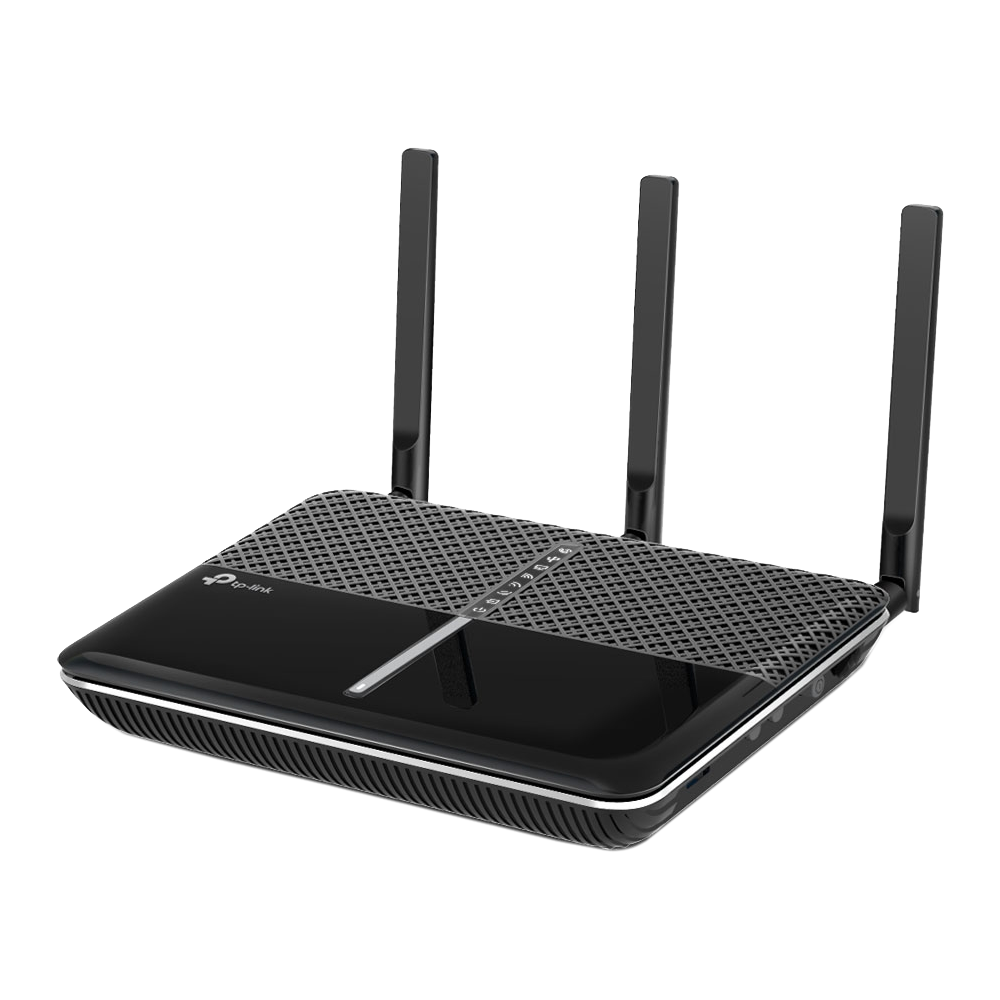

Archer VR2100
AC2100 Wireless MU-MIMO VDSL/ADSL Modem Router:
Description:
- Super VDSL – The Latest Super VDSL (VDSL2 Profile 35b) tech delivers internet speeds of up to 350 Mbps
- Ultra-Fast Speed –Surpasses the Wi-Fi speed limits of the previous generation, reaching up to 1733 Mbps on 5 GHz and 300 Mbps on 2.4 GHz
- 4×4 MU-MIMO – Simultaneously transfers data to multiple devices for 4x faster performance
- Whole-Home Coverage with OneMeshTM – Co-works with TP-Link OneMesh products to create a flexible and cost-efficient Mesh network
- Lightning-Fast Wired Connection – USB 3.0 port and four Gigabit Ethernet ports run up to 10x faster than the previous generation to unleash your home entertainment
- TP-Link Tether App – Easily access and manage your network, including remote control and automatic updates, using any iOS or Android mobile device.
Specifications
HARDWARE FEATURES:
Ports :
- 3 Gigabit LAN Ports 1 Gigabit LAN/WAN Port
- 1 RJ11 Port
- 1 USB Port
Button:
- WPS Button,
- Reset Button
- Power On/Off Button
- Wi-Fi Button, LED
- On/Off Button
External Power Supply:
- 12V/1.5A
IEEE Standards:
- IEEE 802.3
- IEEE 802.3u
- 802.3ab
VDSL2 Standards:
- ITU G.993.2, Up to 35b profile (POTS)
- ITU-T G.993.5 (G.vector)
- ITU-T G.998.4 (G.INP)
ADSL Standards:
- Full-rate ANSI T1.413 Issue 2,
- ITU-T G.992.1(G.DMT),
- ITU-T G.992.2(G.Lite),
ADSL2 Standards:
- ITU-T G.992.3 (G.DMT.bis),
ADSL2+ Standards:
- ITU-T G.992.5
Dimensions ( W x D x H ):
- 8.5 × 6.5 × 1.4 in (216 × 164 × 36.8 mm)
Antenna Type :
- 3 External Dual Band Antennas + 1 Internal 5 GHz Antenna
WIRELESS FEATURES:
Wireless Standards:
- IEEE 802.11ac/n/a 5 GHz
- IEEE 802.11b/g/n 2.4 GHz
Frequency:
- 2.4 GHz and 5 GHz
Signal Rate:
- 1733 Mbps on 5 GHz
- 300Mbps on 2.4 GHz
Transmit Power:
- <20dBm (2.4 GHz)
- <23dBm (5 GHz)
Wireless Functions:
- Enable/Disable Wireless Radio
- Wireless Statistics
Wireless Security:
- 64/128-bit WEP,
- WPA/WPA2
- WPA-PSK/WPA-PSK2
- encryptions
Wireless Schedule:
- Support 2.4 GHz and 5 GHz Wireless Schedule
SOFTWARE FEATURES:
Security :
- NAT Firewall
- SPI Firewall
- Access Control
- Service Filtering
- Denial of Service (DoS)
- SYN Flooding
- Ping of Death
- IP and MAC Address Binding
Operating Modes:
- VDSL/ADSL Modem Router
- 3G/4G Router
- Wireless Router
Management:
- Web-Based Configuration (HTTP / HTTPS)
- Remote management
- SSL for TR-069
- SNMP v1/2c
- Firmware Upgrade
- Diagnostic Tools
- Free Online Firmware Update
DHCP:
- Server, Client, DHCP Client List, Address Reservation, DHCP Relay
Port Forwarding:
- Virtual Server, Port Triggering, DMZ, ALG, UPnP
Dynamic DNS:
- DynDns, NO-IP, TP-Link
VPN:
- OpenVPN, PPTP VPN, IPSec VPN
Protocols:
- Supports IPv4 and IPv6
ATM/PPP Protocols:
- ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364) PPP over
Ethernet (RFC2516) - IPoA (RFC1577/2225)
- MER\IPoE (RFC 1483 Routed)
- Bridge (RFC1483 Bridge),
- PVC – Up to 8 PVCs
Advanced Features:
- Parental Controls
- Network Address Translation (NAT)
- Static Routing, DNS Relay, DDNS, IGMP V1/V2/V3
Guest Network:
- 2.4 GHz Guest Network
- 5 GHz Guest Network
IPSec VPN:
- Supports up to 10 IPSec VPN tunnels
Warranty: 1 year
