Description

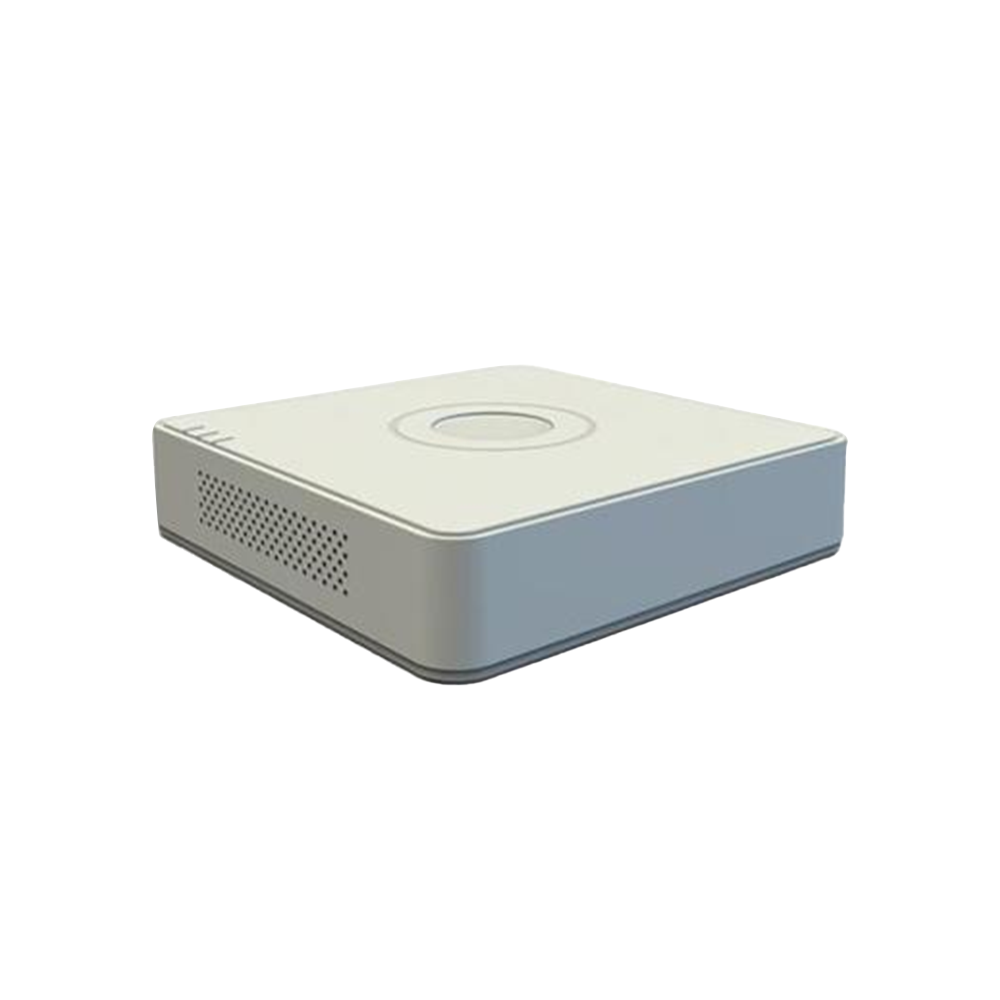

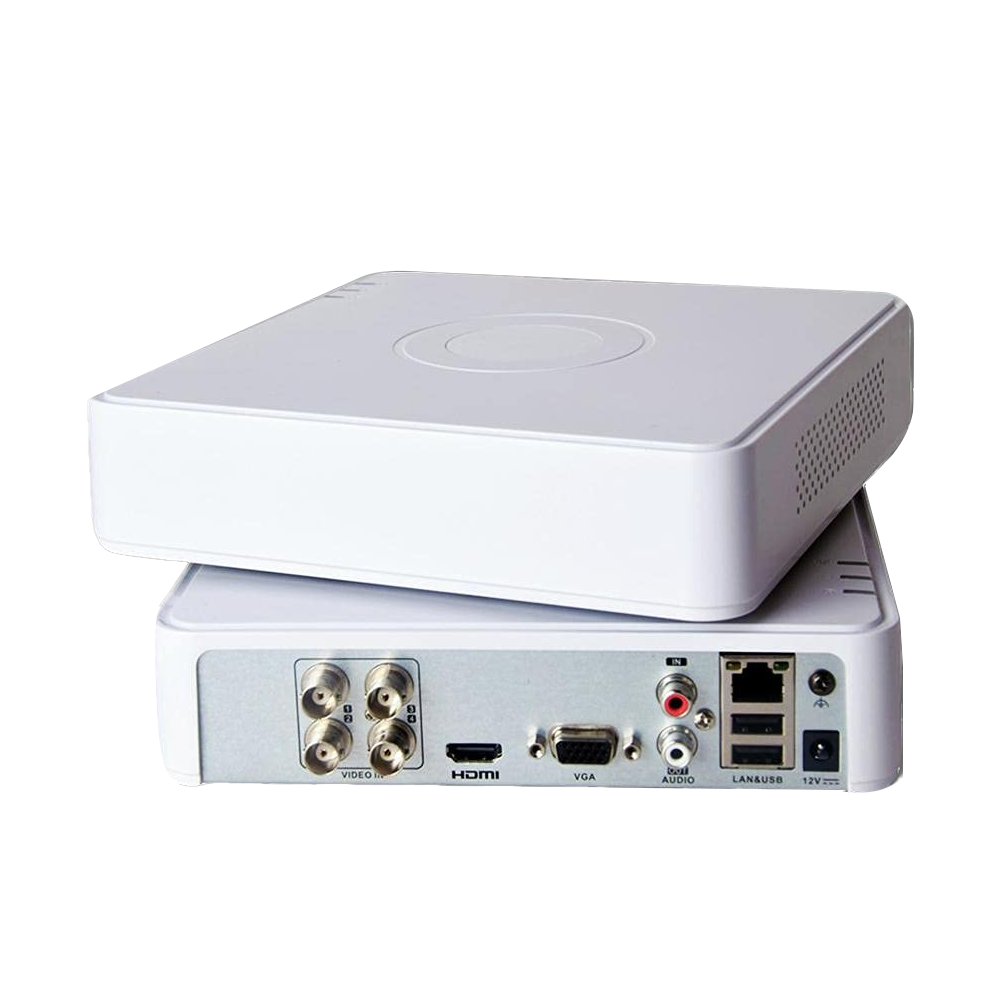

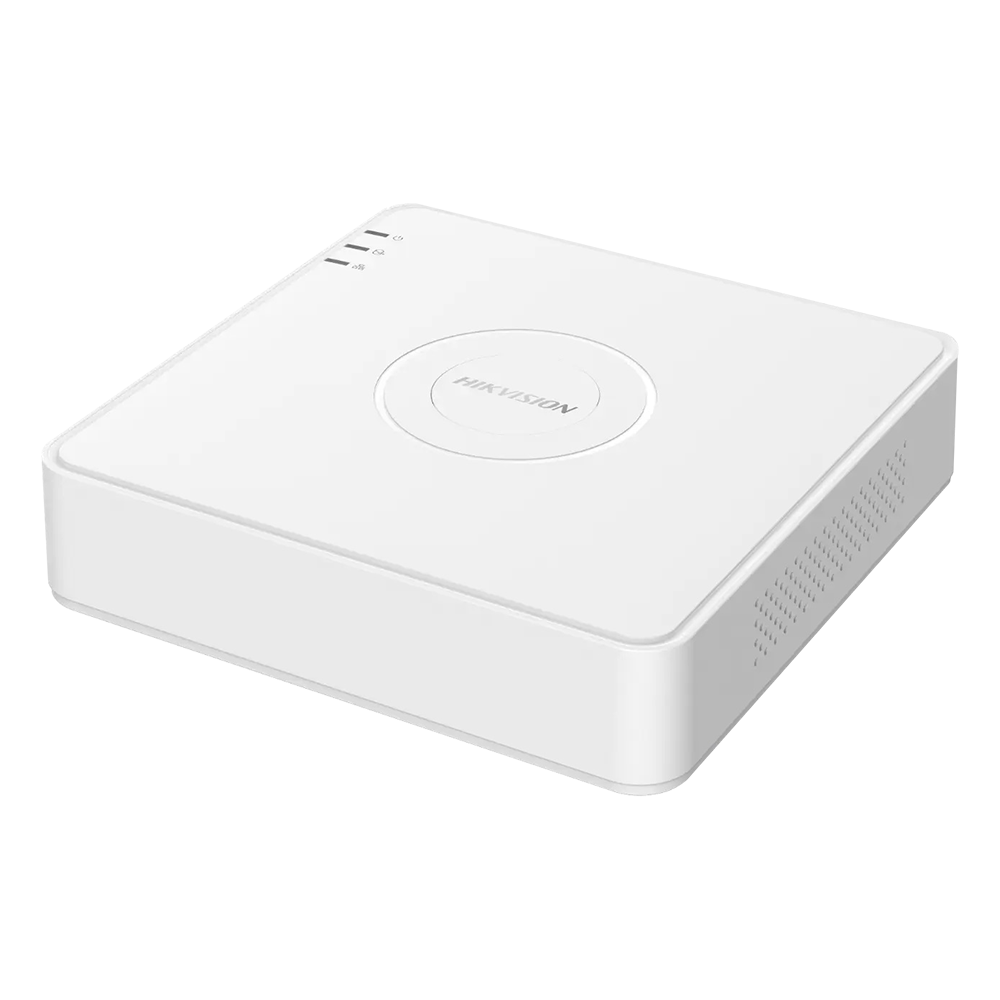

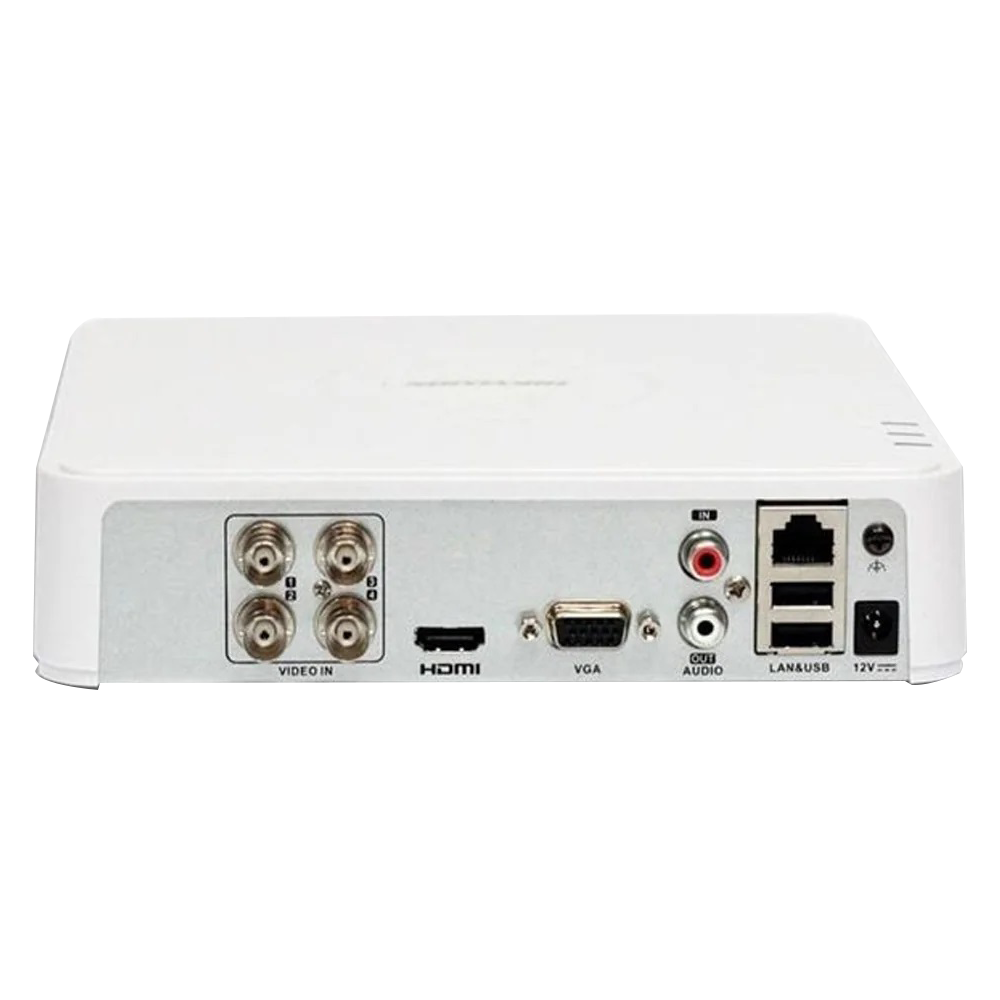

4-ch 1080p Mini 1U H.265 DVR
Specification
Recording
- Video Compression 265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution When 1080p Lite mode is not enabled: 4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF;
- When 1080p Lite mode is enabled: 4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
- Frame Rate Main stream:
- When 1080p Lite mode is not enabled:
- For 4 MP stream access:
- 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
- For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
- For 1080p stream access:
- 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
- For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
- When 1080p Lite mode is enabled:
- 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
- Sub-stream:
- WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
- Video Bitrate 32 Kbps to 6 Mbps
- Dual-Stream Support
- Stream Type Video, Video & Audio
- Audio Compression G.711u
- Audio Bitrate 64 Kbps
Video And Audio
- IP Video Input
- 1-ch (up to 5-ch)
- Enhanced IP mode on:
- 2-ch (up to 6-ch), each up to 4 Mbps
- Up to 6 MP resolution
- Support H.265+/H.265/H.264+/H.264 IP cameras
- Incoming Bandwidth 24 Mbps
- Analog Video Input 4-ch
- BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDTVI Input4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
- AHD Input 4 MP, 1080p25, 1080p30, 720p25, 720p30
- HDCVI Input 4 MP, 1080p25, 1080p30, 720p25, 720p30
- CVBS Input Support
- VGA Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- HDMI Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ)
- 4-ch via coaxial cable
- Audio Output 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Synchronous Playback 4-ch
Network
- Total Bandwidth 72 Mbps
- Remote Connection 32
- Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Network Interface 1, RJ45 10M/100M self-adaptive Ethernet interface
Auxiliary Interface
- SATA1 SATA interface
- Capacity Up to 6 TB capacity for each disk
- Alarm In/Out N/A
- USB Interface Real panel: 2 × USB 2.0
General
- Power Supply12 VDC, 1.5 A
- Consumption≤ 8 W
- Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H) 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
- Weight ≤ 1 kg (2.2 lb)
- Warranty: 1 Year
