Description

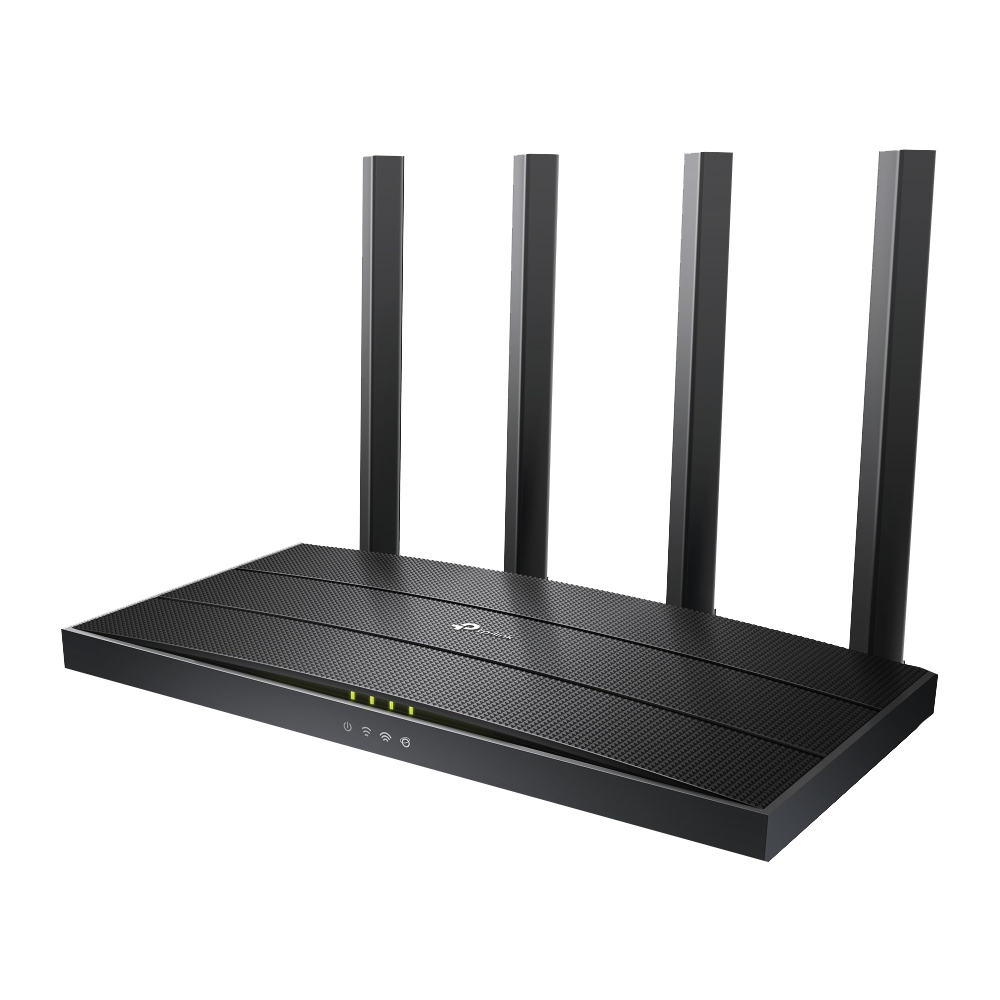

Archer AX12
AX1500 Wi-Fi 6 Router
- Wi-Fi 6 Technology: Archer AX12 comes equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity and reduced network congestion.
- Next-Gen 1.5 Gbps Speeds: Archer AX12 dual-band router reaches even faster speeds up to 1.5 Gbps (1201 Mbps on 5 GHz band and 300 Mbps on 2.4 GHz band)15
- Connect More Devices: Wi-Fi 6 technology communicates more data to more devices using revolutionary OFDMA and MU-MIMO technology while simultaneously reducing lag.24
- More Reliable Coverage: Achieve the strongest, most reliable WiFi coverage with Archer AX12 as it focuses signal strength to your devices using Beamforming technology and four antennas.
- Increased Battery Life: Target Wake Time technology reduces your devices' power consumption to extend their battery life.3
- Easy Setup: Set up your router in minutes with the powerful TP-Link Tether App.
- Backward Compatible: Archer AX12 supports all previous 802.11 standards and all WiFi devices.
specifications
-
WIRELESS
Standards :Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds : AX1500
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 300 Mbps (802.11n)
WiFi Range: 2-3 Bedroom Houses
4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas -
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity: High
Dual-Band
Allocate devices to different bands for optimal performance -
OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients -
Airtime Fairness
Improves network efficiency by limiting excessive occupation -
4 Streams
Connect your devices to more bandwidth -
Working Modes: Router Mode
Access Point Mode -
SECURITY
Network Security: SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
Guest Network:1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
VPN Server :OpenVPN
PPTP
WiFi Encryption: WPA2-PSK
WPA2-PSK/WPA-PSK
WPA3-Personal
WPA3-Personal/WPA2-PSK
WPA2-Enterprise
WPA/WPA2-Enterprise encryptions -
HARDWARE
Ethernet Ports: 1× Gigabit WAN Port
3× Gigabit LAN Ports
Buttons :WPS/Reset Button
Power:12 V ⎓ 1 A
SOFTWARE
Protocols: IPv4
IPv6
Parental Controls: URL Filtering
Time Controls
WAN Types :Dynamic IP
Static IP
PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
Quality of Service :QoS by Device
Cloud Service: Auto Firmware Upgrade
OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding: Port Forwarding
Port Triggering
DMZ
UPnP
IPTV :IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP: Address Reservation
DHCP Client List
Server
DDNS:TP-Link
NO-IP
Dyn DNS -
Management :Tether App
Webpage
Check Web Emulator> -
OTHER
System Requirements: Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10/11, MAC
OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Cable or DSL Modem
Subscription with an internet service provider (for internet access)
Certifications: FCC, CE, RoHS
Environment: Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~60℃ (-40℉ ~140℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power CE:<20dBm(2.4 GHz)
<23dBm(5.15 GHz~5.25 GHz)
FCC:
<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)
WiFi Reception Sensitivity 5 GHz:
11a 6Mbps:-95dBm, 11a 54Mbps:-79dBm
11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS8:-66dBm
11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-63dBm
11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS9:-60dBm
11ax HE20_MCS0:-95dBm, 11ax HE20_MCS11:-66dBm
11ax HE40_MCS0:-92dBm, 11ax HE40_MCS11:-65dBm
11ax HE80_MCS0:-89dBm, 11ax HE80_MCS11:-62dBm
2.4 GHz:
11g 6Mbps: -96 54Mbps: -80
HT20-MCS0: -97 MCS7: -78
HT40-MCS0: -94 MCS7: -75
PHYSICAL
Dimensions (W×D×H): 8.5 × 4.6 ×1.3 in (215 × 117 × 32 mm) - warranty : 1 year
