Description

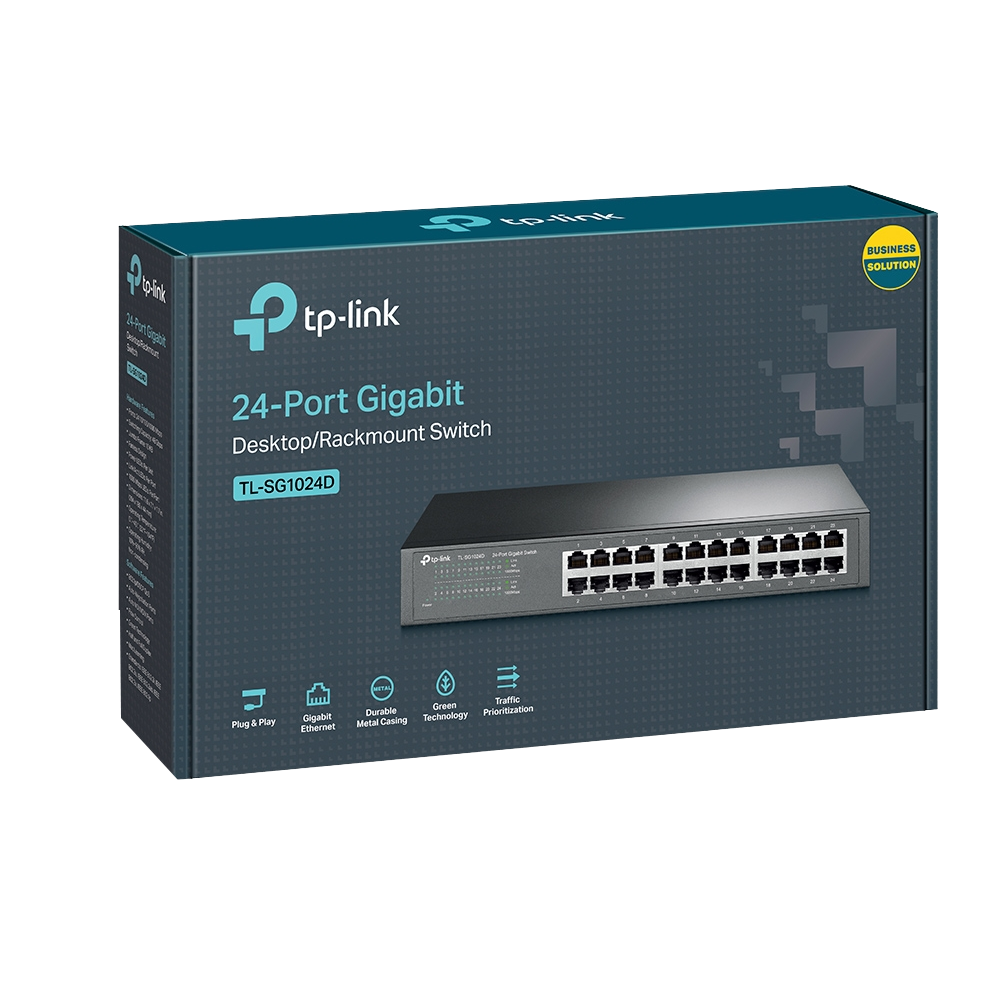

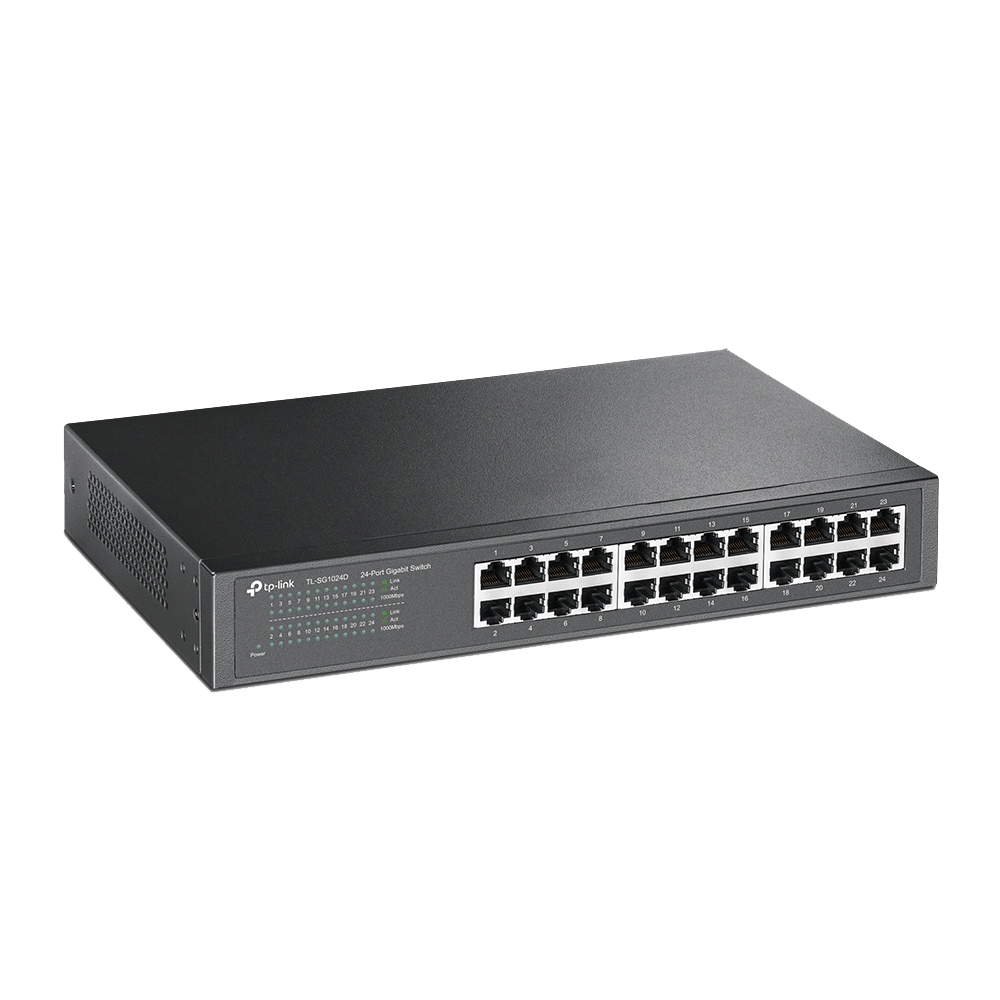

24-Port Gigabit Desktop/Rackmount Switch
TL-SG1024D
- 24 10/100/1000Mbps ports
- Innovative energy-efficient technology saves power consumption
- Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
- Plug & play design
specifications
- Interface :24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
- Network Media :
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
- Fan Quantity :Fanless
-
Physical Security Lock :No
- Power Supply :100-240VAC, 50/60Hz
- Dimensions ( W x D x H ) :11.6*7.1*1.7 in. (294*180*44 mm)
- Mounting :Rack Mountable
- Max Power Consumption:13.62W(220V/50Hz)
- Max Heat Dissipation:46.44BTU/h
- Standards and Protocols:IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
- Packet Forwarding Rate: 35.7Mpps
- Mac Address Table: 8K
- Jumbo Frame: 10KB
- Switching Capacity: 48Gbps
- Dimensions ( W x D x H ): 11.6*7.1*1.7 in. (294*180*44 mm)
- Green Technology :Yes
- Transmission Method: Store-And-Forward
- Warranty: 1 YEAR
