Description

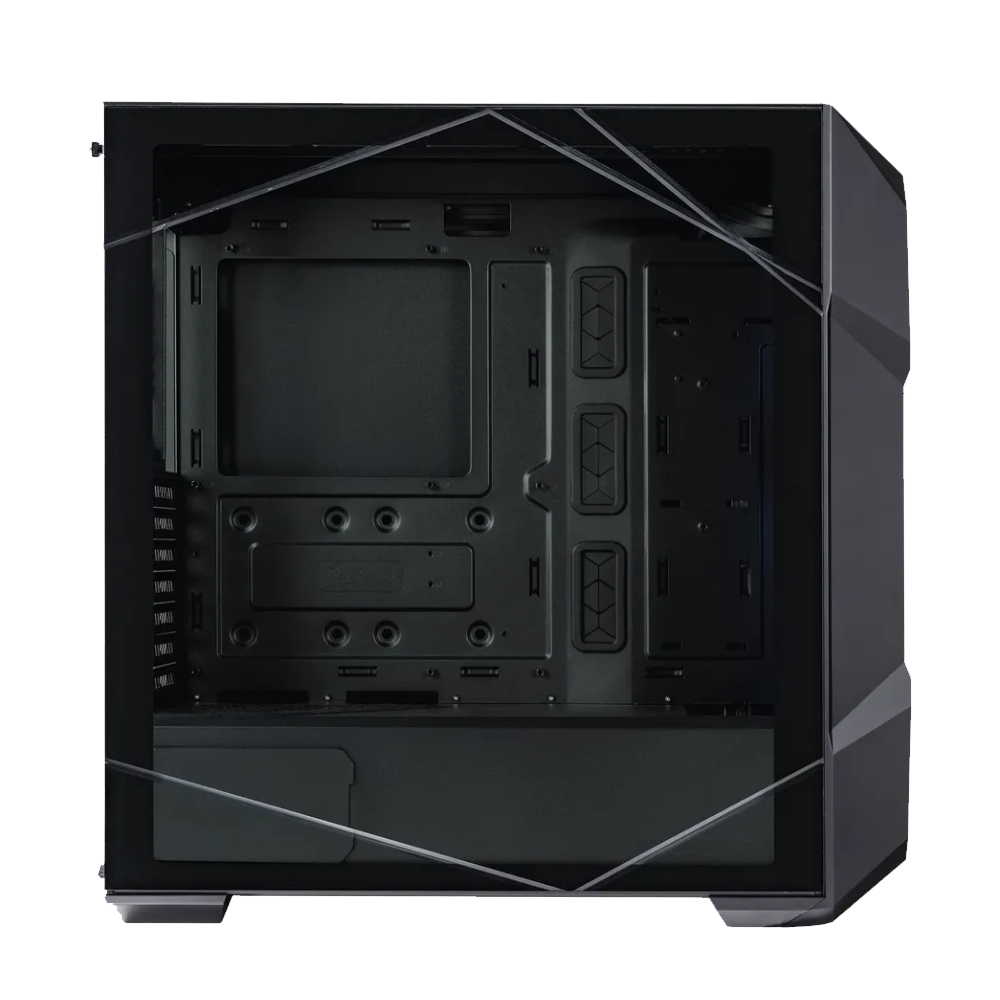

MasterBox TD500 Mesh V2
- MasterBox TD500 Mesh V2’s iconic polygonal design keeps your system looking unique and your gaming sessions streamlined.
Specifications
- Model Number TD500 Mesh V2: TD500V2-KGNN-S00, TD500 Mesh V2 White: TD500V2-WGNN-S00
- Exterior Color Black, White
- Materials - Exterior Steel, Mesh, Plastic
- Materials - Left Side Panel Tempered Glass
- Dimensions (L x W x H)499 x 210 x 500mm (incl. Protrusions), 430 x 210 x 477mm (excl. Protrusions)
- Motherboard Support Mini-ITX, Micro-ATX, ATX, SSI-CEB, E-ATX* (*up to 12" x 10.7" motherboards, may impact cable management feature)
- Expansion Slots 7
- 3.5" Drive Bays 2
- 2.5" Drive Bays 3
- I/O Panel - USB Ports 2x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 type C
- I/O Panel - Audio In / Out1x Audio Jack
- I/O Panel - Other 1x ARGB Fan Hub
- Pre-installed Fans - Top N/A
- Pre-installed Fans - Front 3x 120mm CF120 ARGB
- Pre-installed Fans - Rear N/A
- Fan Support - Top 3x 120mm, 2x 140mm
- Fan Support - Front 3x 120mm, 2x 140mm
- Fan Support - Rear 1x 120mm
- Radiator Support - Top120 / 140 / 240 / 280 / 360mm (recommended maximum thickness - 55mm)
- Radiator Support - Front 120 / 140 / 240 / 280 / 360mm
- Radiator Support - Rear 120mm
- Clearance - CPU Cooler 165mm
- Clearance - PSU200mm (Recommended up to 170mm)
- Clearance - GFX 410mm
- Cable Routing - Behind Motherboard Tray19mm / 0.74
- Dust Filters Front, Top, Bottom
- Power Supply Support Bottom Mount, ATX
- Size Mid Tower
- Series MasterBox Series
- Back Connector Motherboard Support No
- warranty : 1 year
