Description

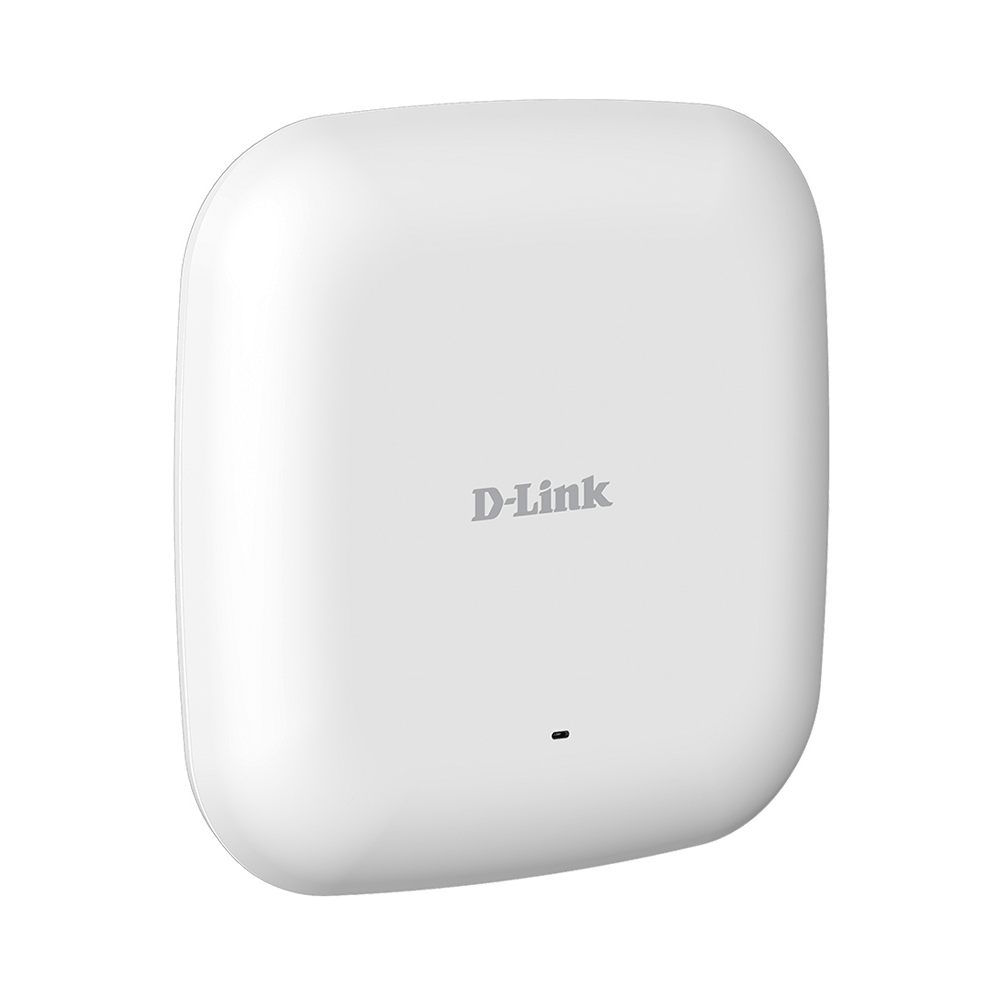

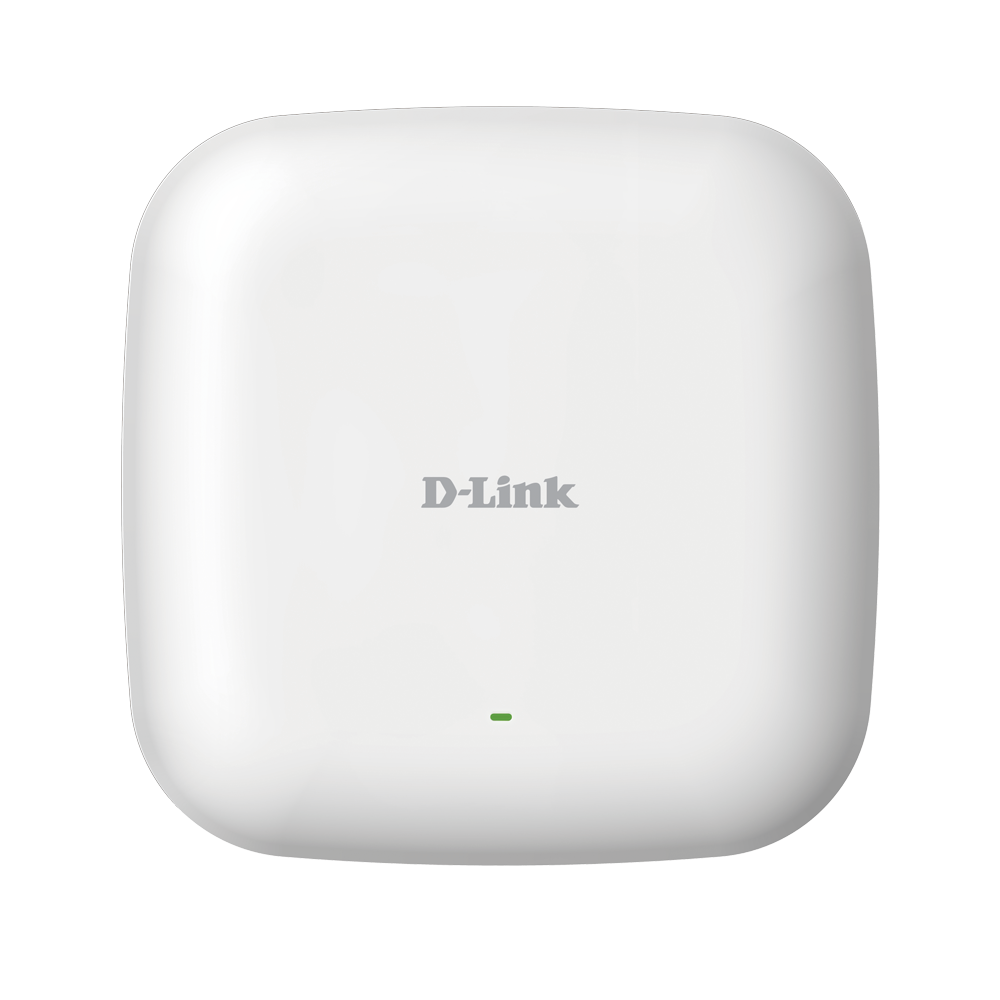

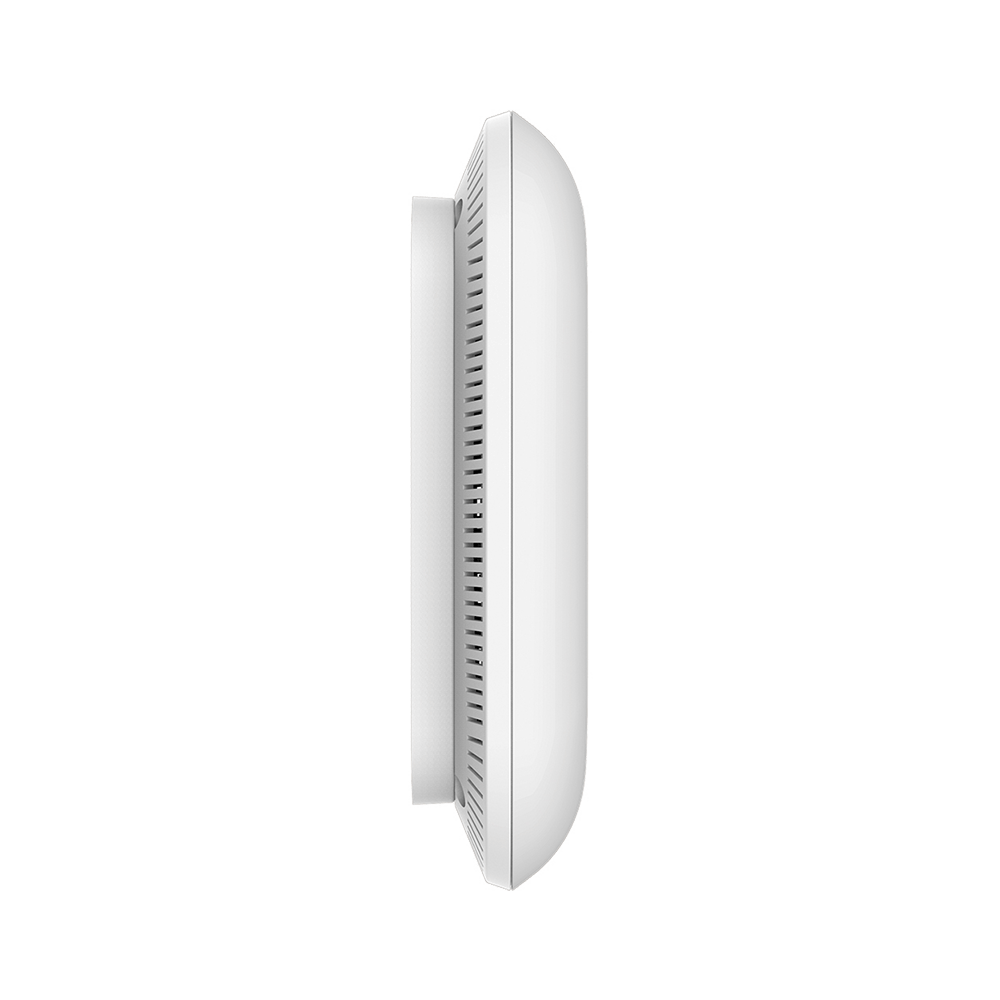

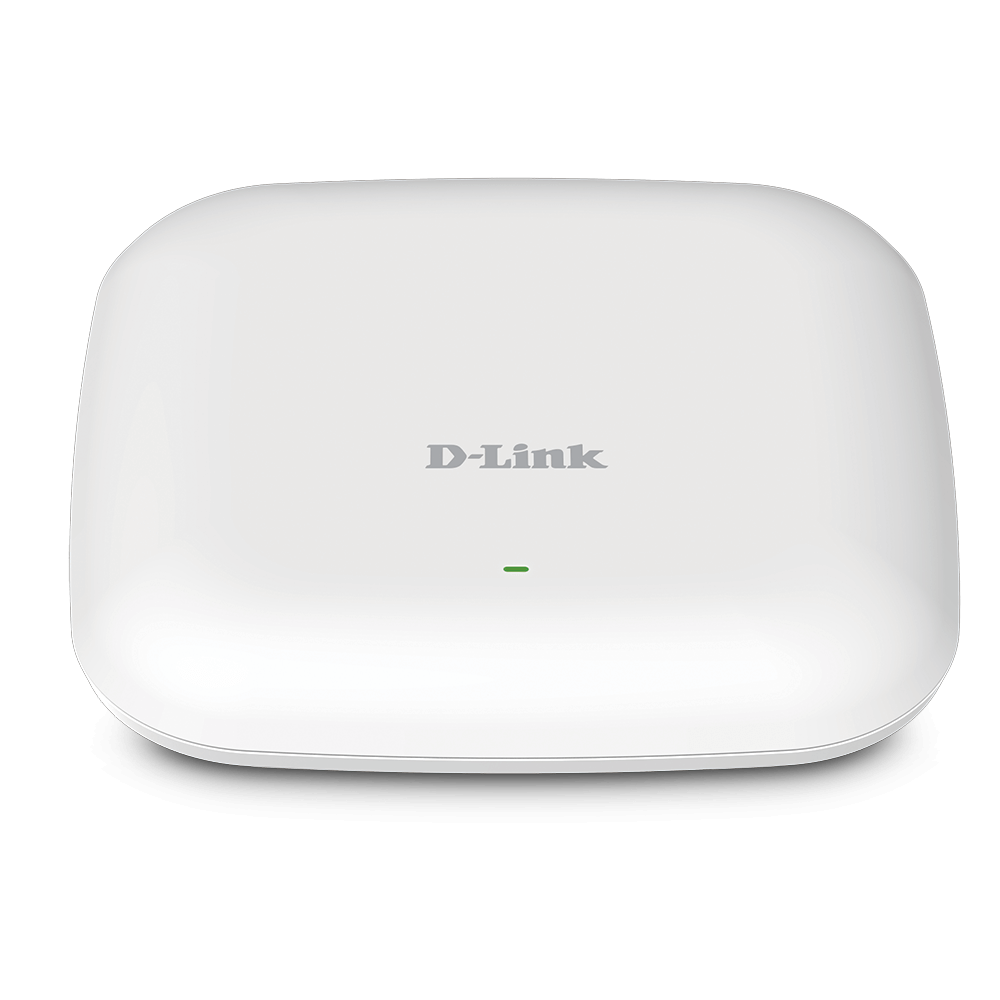

DAP-2610
Wireless AC1300 Wave 2 Dual-Band PoE Access Point
Features
- High-performance Connectivity
- IEEE 802.11ac Wave 2 wireless1
- Combined wireless speeds of up to 1,300 Mbps1
- MU-MIMO with beamforming
- Band steering
- Gigabit LAN port
- Multiple Operation Modes
- Access Point, Wireless Distribution System
- (WDS), WDS with AP, Wireless Client
- Extensive Management
- D-Link Nuclias Connect support for centralised
and additional configuration options - Web, SSL, SSH and Telnet management
- SNMP v1, v2c, v3
- Trusted Security Features
- WPA/WPA2 Personal/Enterprise
- 64/128-bit WEP
- MAC filter and WLAN partitioning
- Local/POP3/RADIUS/PassCode/LDAP
authentication for captive portal - Convenient Installation
- Small form factor design for easy placement
- Supports 802.3af Power over Ethernet for remote

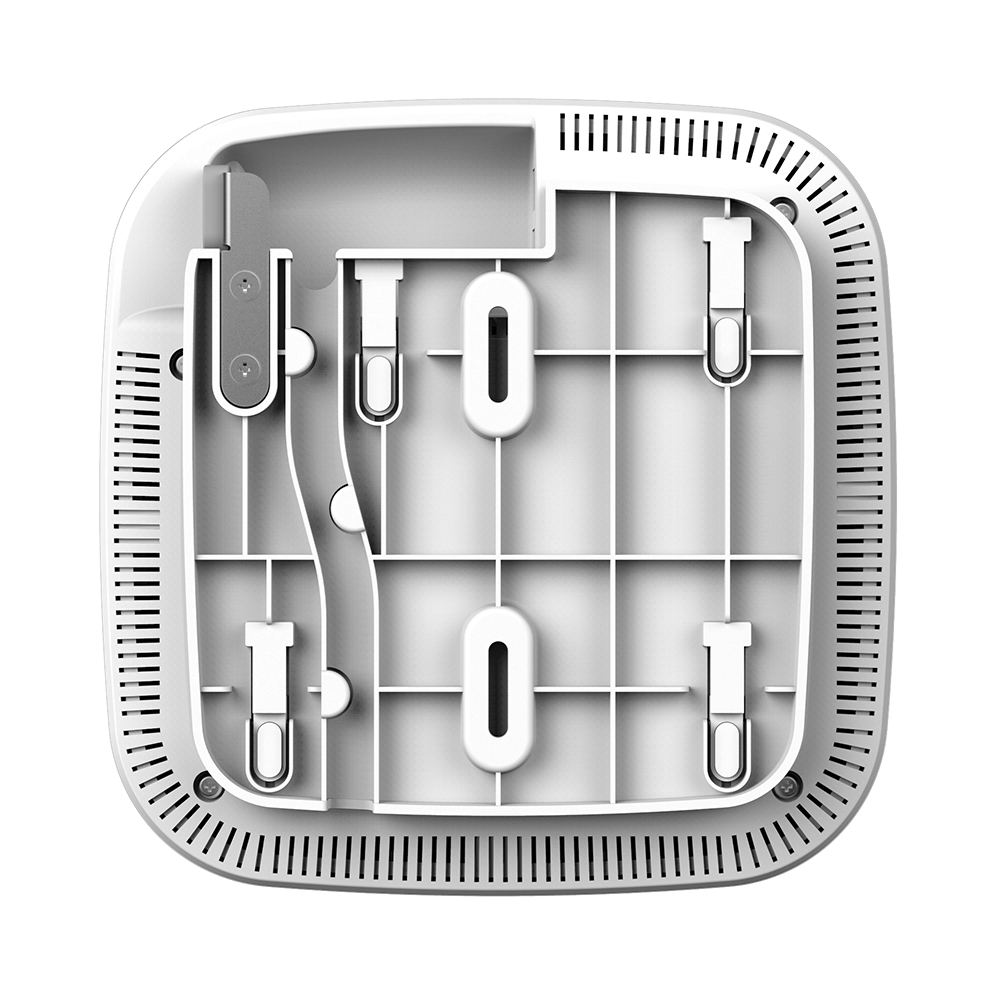

installation - Wall and ceiling mountable
Specifications
-
General
Device Interfaces - IEEE 802.11a/b/g/n/ac Wave 2 wireless1 • 1 Gigabit LAN (supports PoE)
- Standards
- IEEE 802.11a/b/g/n/ac1
- IEEE 802.3u/ab
- IEEE 802.3az Energy Efficient Ethernet (EEE)
- IEEE 802.3af Power over Ethernet
- Antennas
- 2 internal dual-band 3 dBi omni antennas
- Operating Frequency
- 2.4 GHz band: 2.4 to 2.4835 GHz • 5 GHz band: 5.15 to 5.35 GHz, 5.47 to 5.85 GHz
- Maximum Output Power
- 20 dBm for 2.4 GHz
- 20 dBm for 5 GHz
Data Signal Rate - 2.4 GHz
- Up to 400 Mbps1
- 5 GHz
- Up to 867 Mbps1
- Functionality
- Security
- WPA-Personal
- WPA-Enterprise
- WPA2-Personal
- WPA2-Enterprise
- WEP 64/128-bit encryption
- SSID broadcast disable
- MAC address access control
- Network Access Protection (NAP)
- Internal RADIUS server
- Network Management
- Telnet
- Secure Telnet (SSH)
- Web (HTTP)
- Secure Socket Layer (SSL)
- Traffic control
- SNMP v1/v2c/v3
- D-Link Nuclias Connect
- LEDs : Power/status
- Physical
- Dimensions :170 x 170 x 28 mm (6.69 x 6.69 x 1.1 inches)
-
Weight : 314 g (0.69 lbs) without mounting base • 370.6 g (0.82 lbs) with mounting base
Power Supply - External power adapter: 12 V/1 A (not included) • IEEE 802.3af PoE
- Maximum Power Consumption : 12 W
- Temperature • Operating: 0 to 40°C (32 to 104°F) • Storage: -20 to 65°C (-4 to 149°F)
- Humidity • Operating: 10% to 90% non-condensing • Storage: 5% to 95% non-condensing
-
Meantime Between Failure (MTBF) : > 30,000 hours
Certifications - FCC
- IC
- CE4
- UL
- Wi-Fi Certified
- warranty : 1 year
