Description

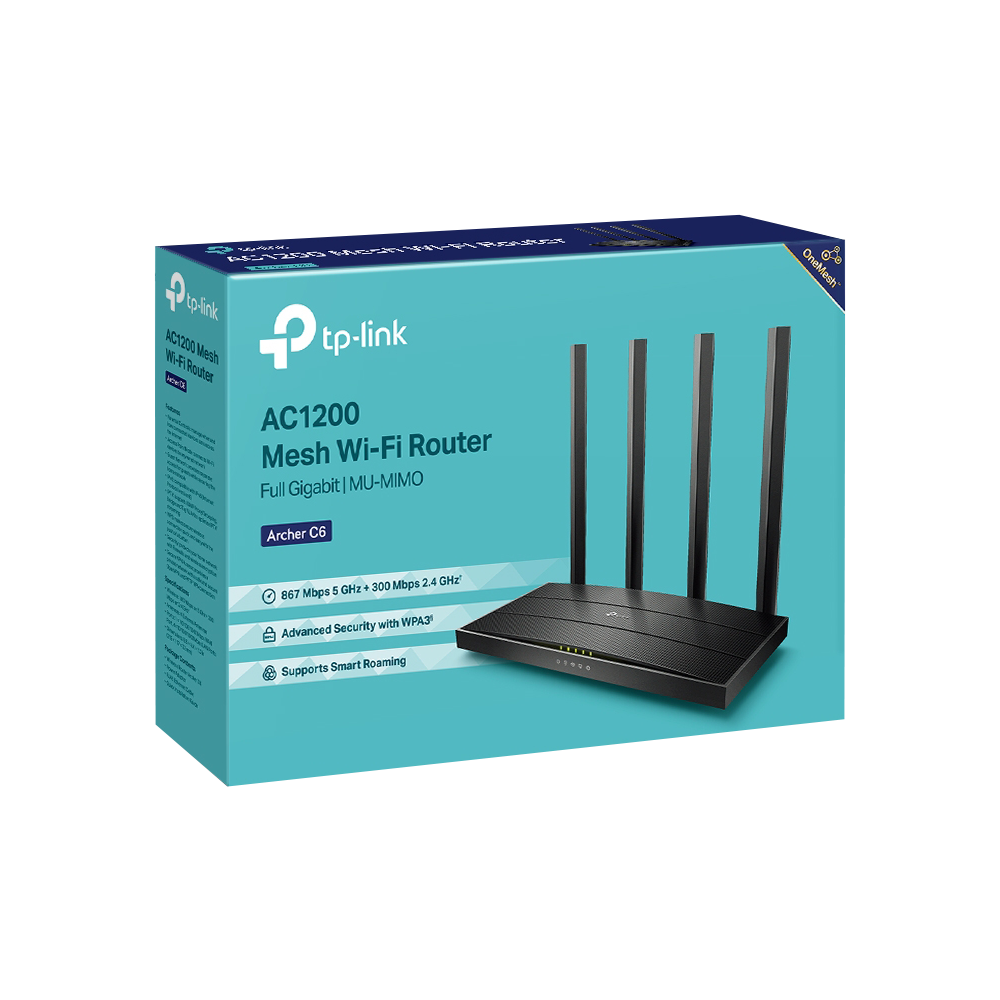

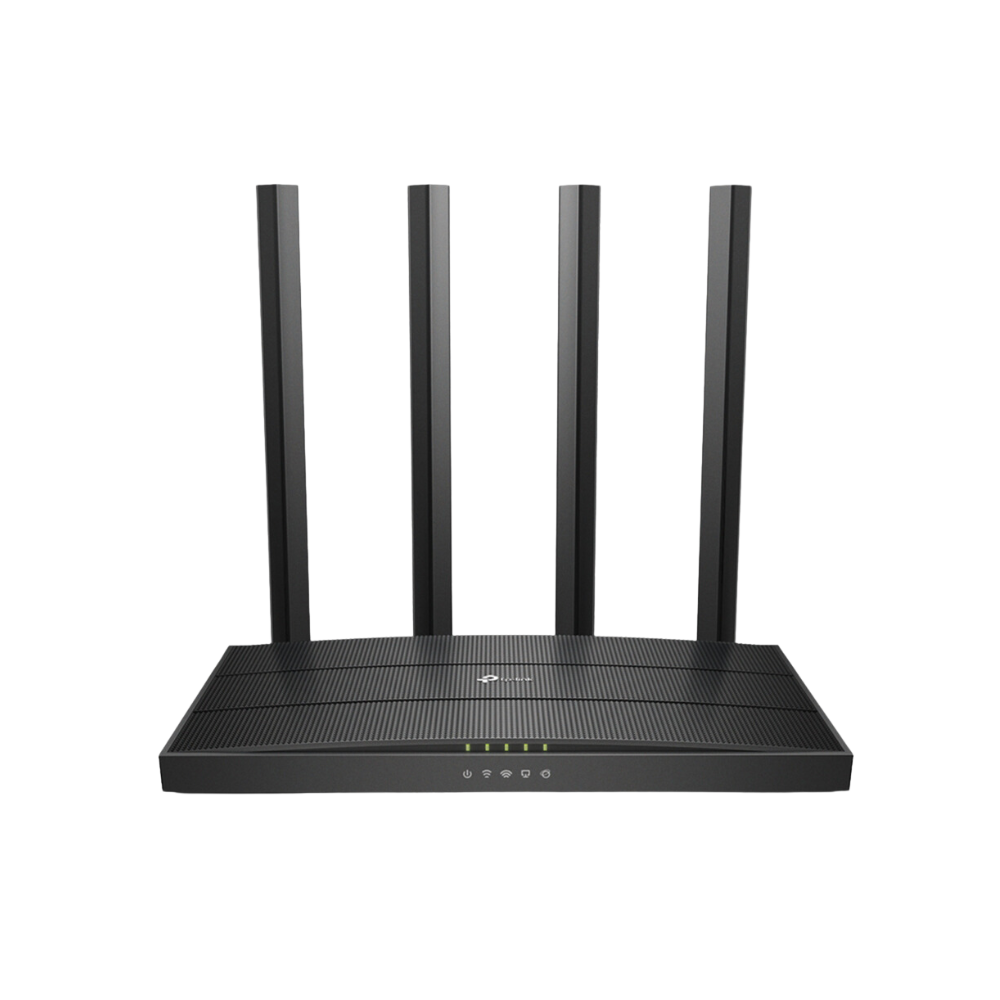

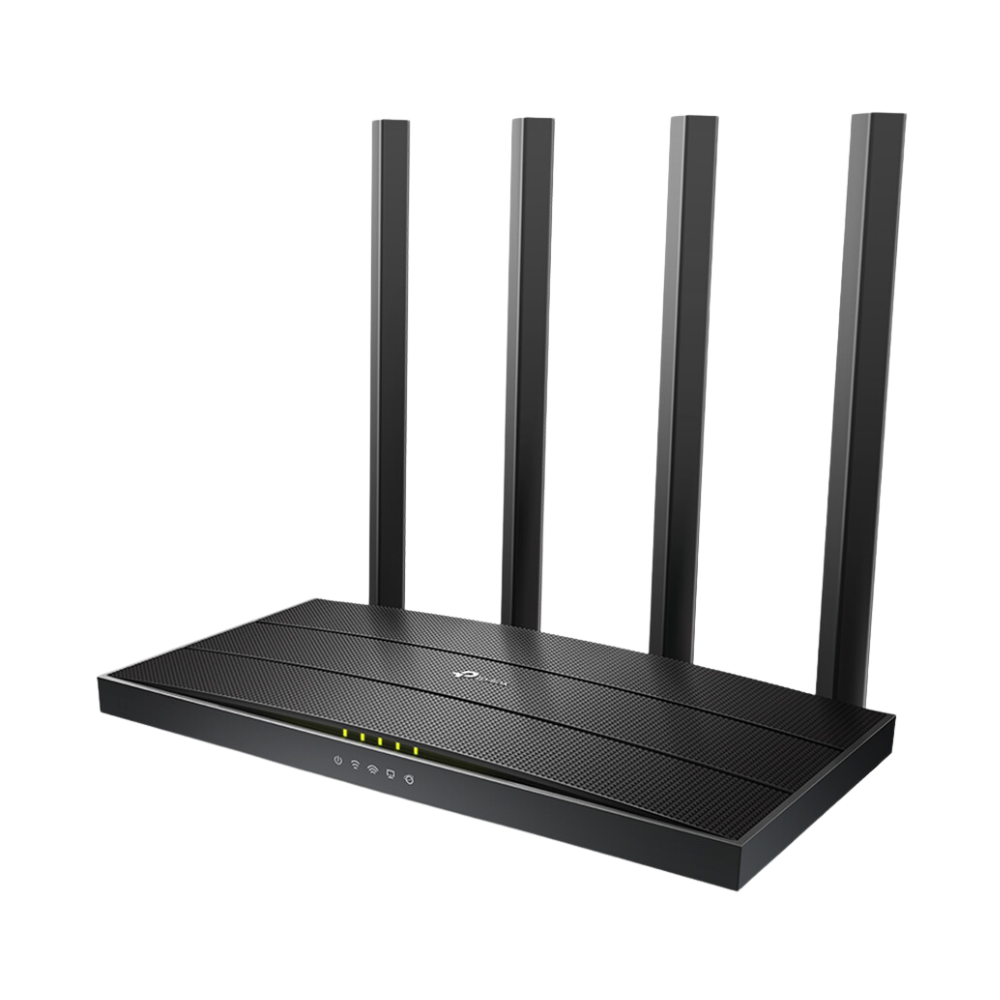

Archer C6
AC1200 Wireless MU-MIMO Gigabit Router
- AC1200 Dual-Band Wi-Fi – 867 Mbps at 5 GHz and 300 Mbps at 2.4 GHz band
- MU-MIMO Technology – Simultaneously transfers data to multiple devices for 2× faster performance
- Boosted Coverage – Four external antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals
- Access Point Mode –Supports AP Mode to transform your wired connection into wireless network
- Easy Setup – Set up your Wi-Fi in minutes with TP-Link Tether app.
Specifications:
WIRELESS:
- Standards: Wi-Fi 5: IEEE 802.11ac/n/a 5 GHz
- IEEE 802.11n/b/g 2.4 GHz
- WiFi Speeds: AC1200: 5 GHz: 867 Mbps (802.11ac)
- 2.4 GHz: 300 Mbps (802.11n)
- WiFi Range: 3 Bedroom Houses: (4× Fixed Antennas):Multiple antennas form a signal-boosting array to cover more directions and large areas
- Beamforming: Concentrates wireless signal strength towards clients to expand WiFi range
- WiFi Capacity: Medium :Dual-Band: Allocate devices to different bands for optimal performance
- MU-MIMO :Simultaneously communicates with multiple MU-MIMO clients
- Airtime Fairness :Improves network efficiency by limiting excessive occupation
- Working Modes:
- Router Mode
- Access Point Mode
HARDWARE:
- Processor: Dual-Core CPU

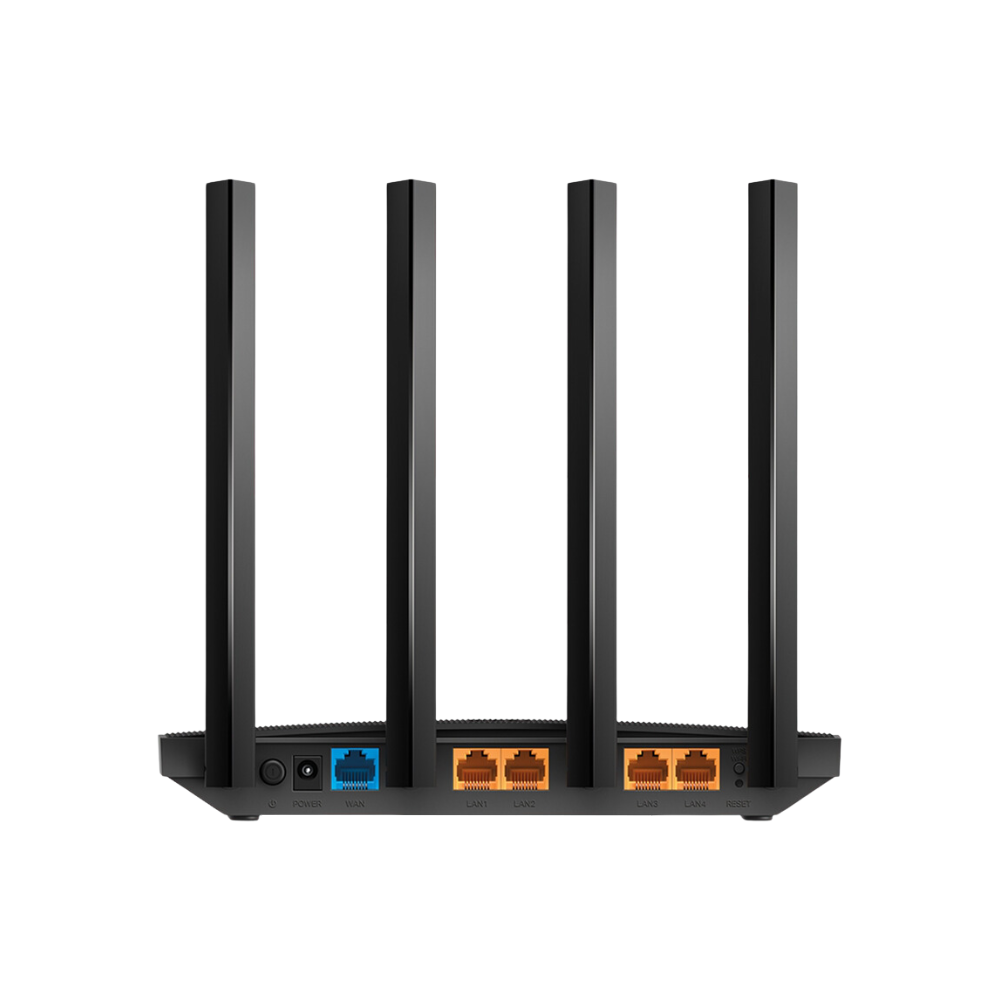

- Ethernet Ports: 1× Gigabit WAN Port
- 4× Gigabit LAN Ports
- Buttons:
- WPS/Wi-Fi Button
- Power On/Off Button
- Reset Button
- Power: 12 V = 1 A
SECURITY:
- WiFi Encryption:
- WPA
- WPA2
- WPA3
- WPA/WPA2-Enterprise (802.1x)
- Network Security:
- SPI Firewall
- Access Control
- IP and MAC Binding
- Application Layer Gateway
- Guest Network:
- 1× 2.4 GHz Guest Network
- 1× 5 GHz Guest Network
- VPN Server:
- OpenVPN
- PPTP
SOFTWARE:
- Protocols:
- IPv4
- IPv6
- OneMesh™:
- OneMesh™ Supported
- Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
- Parental Controls:
- URL Filtering
- Time Controls
- WAN Types:
- Dynamic IP
- Static IP
- PPPoE
- PPTP
- L2TP
- Quality of Service: QoS by Device
- Cloud Service:
- OTA Firmware Upgrade
- TP-Link ID
- DDNS
- NAT Forwarding:
- Virtual Servers
- Port Forwarding
- Port Triggering
- UPnP
- DMZ
- IPTV:
- IGMP Proxy
- IGMP Snooping
- Bridge
- Tag VLAN
- DHCP:
- Server
- DHCP Client List
- Address Reservation
- DDNS:
- TP-Link
- NO-IP
- DynDNS
- Management:
- Tether App
- Webpage
- TEST DATA: WiFi Transmission Power: CE:<20dBm(2.4GHz)<23dBm(5GHz)
- FCC:<30dBm(2.4GHz & 5GHz)
- WiFi Reception Sensitivity: 5 GHz: 11a 6Mbps:-93dBm;11a 54Mbps:-78dBm;
- 11ac HT20 mcs8:69dBm;11ac HT40 mcs9:-65dBm;
- 11ac HT80 mcs9:-62dBm;
- 2.4 GHz: 11g 54Mbps:-78dBm;
- 11n HT20 mcs7:-74dBm;
- 11n HT40 mcs7:-71dbm;
PHYSICAL:
- Dimensions (W×D×H): 8.5 × 4.6 × 1.2 in(215 × 117 × 32 mm)
- Warranty: 1year
