Description

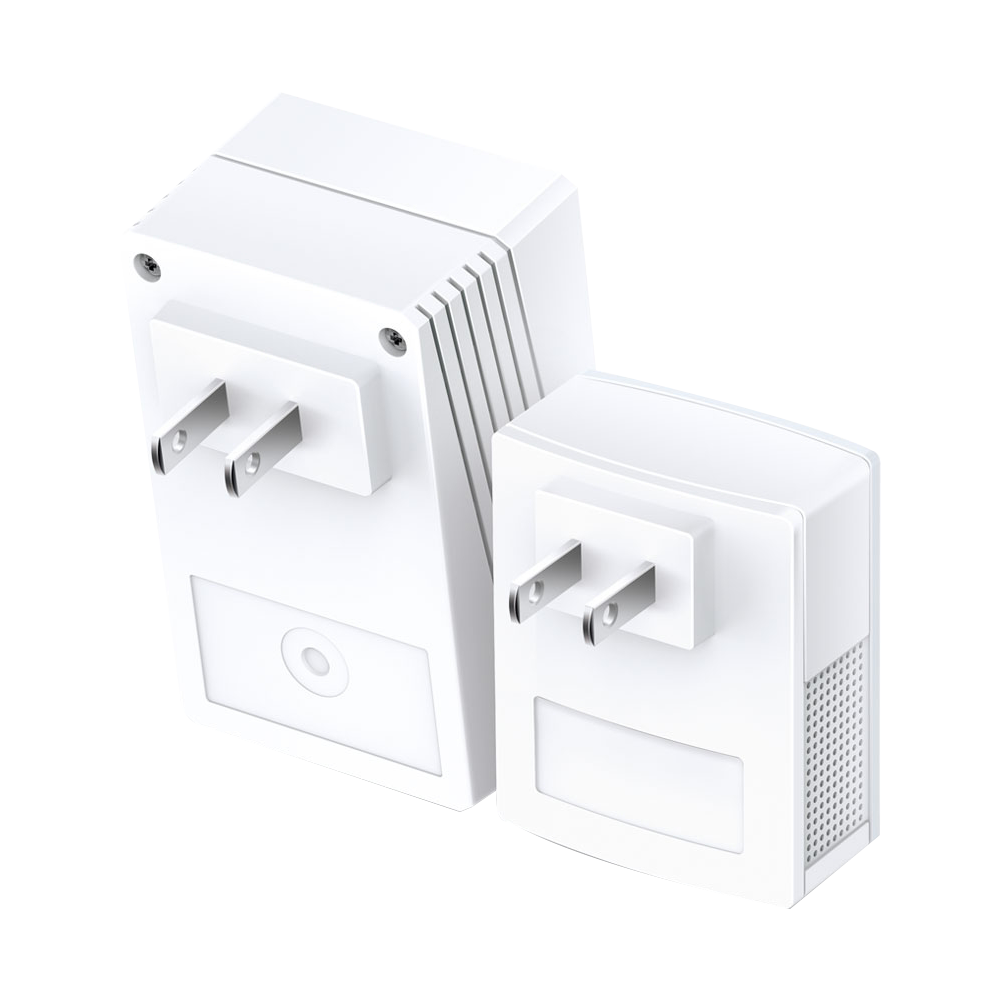

TL-WPA4220KIT
300Mbps Wi-Fi Range Extender, AV600 Powerline Edition.
- Home Plug AV2 Standard - Provides fast powerline transfer speeds of up to 600 Mbps*
- 300Mbps Wi-Fi - Extend 300 Mbps wireless connections to previously hard-to-reach areas of your home and office*

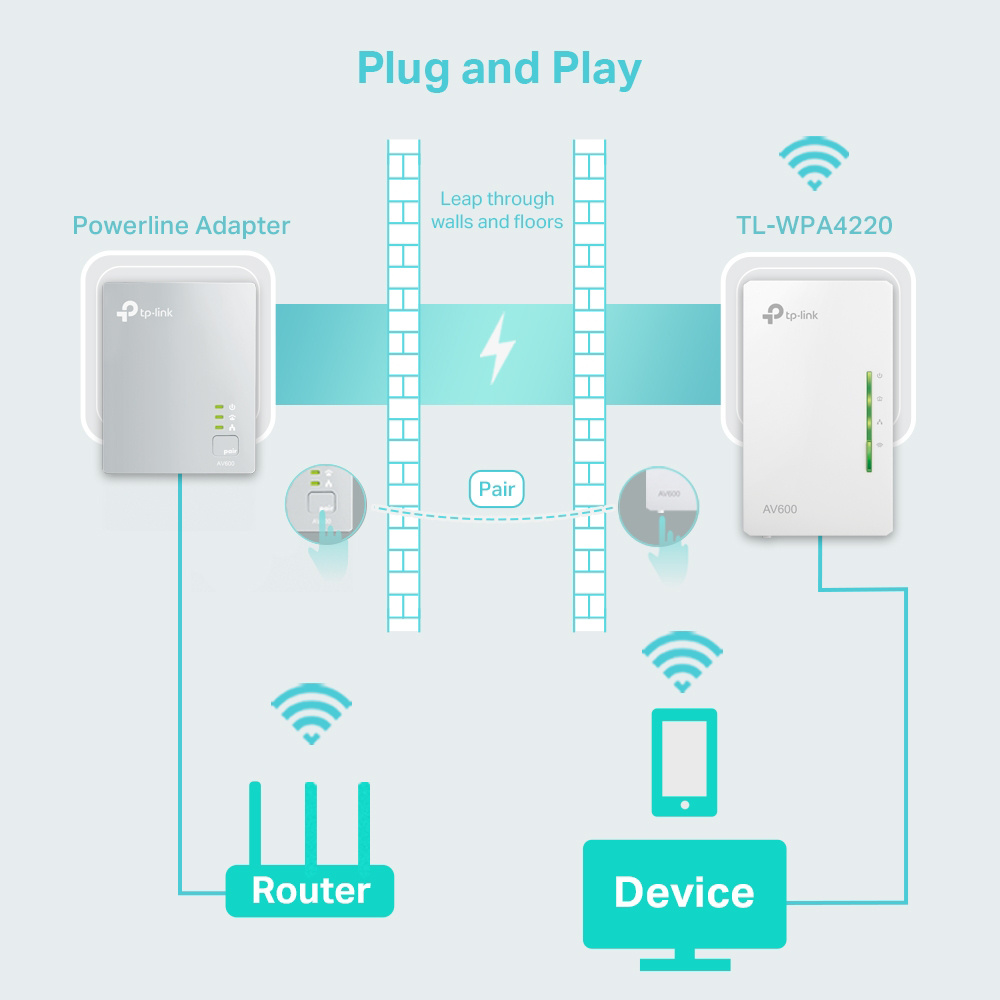

- Plug and Play - Set up your powerline network and start enjoying fast, seamless wired/wireless connections in minutes.
- 2 Ethernet Ports - The TL-WPA4220 (Wi-Fi extender) provides reliable high-speed wired connection for game consoles, smart TVs and more.
- One-Touch Wi-Fi Configuration - One press of the Wi-Fi button copies the network name and password from your router. Any setting changes will be automatically applied to the entire Powerline network.
- Wi-Fi Auto-Sync - Add additional extenders to your powerline network by pair button, uniformly sync settings such as SSID, password, Wi-Fi Schedule and LED Schedule for all network devices
- Easy Management - Gives you easy control of your network through a powerful web interface, the user-friendly tpPLC Utility and the intuitive tpPLC mobile app
Specifications
HARDWARE
-
Plug Type: EU
Standards and Protocols: HomePlug AV2, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.11b/g/n -
Interface:
- TL-WPA4220: 2 Ethernet Ports
- TL-PA4010: 1 Ethernet Port
- Button: Pair, Reset, Wi-Fi/Wi-Fi Clone
- Power Consumption:
-
TL-WPA4220: Maximum: 5.6W, Typical: 5.2W
TL-PA4010: Maximum: 2.6W, Typical: 2.3W - LED Indicator:
- Power, Powerline, Ethernet, Wi-Fi
- Dimensions ( W x D x H ):
- TL-WPA4220: 2.1 × 1.6 ×3.7 in (54 × 40 × 94 mm)
- TL-PA4010: 2.0 × 1.1 × 2.6 in (52 × 28.5 × 65 mm)
- Range: Up to 300 meters/1000 feet over existing electrical wiring
- Compatibility: Compatible with all HomePlug AV & AV2 standard powerline adapters
- Transmission Speeds:
- Powerline: up to 600 Mbps
- Ethernet: 10/100 Mbps
WIRELESS
- Wireless Security: WPA-PSK / WPA2-PSK, WEP Encrptions
SOFTWARE
- Modulation Technology: OFDM (PLC)
- Encryption:
- Powerline Security:
- 128-bit AES
- Wireless Security:
- WEP, WPA/WPA2, WPA-PSK/WPA2-PSK Encryption
