Description
Archer C54
AC1200 Dual Band Wi-Fi Router
- Faster AC Wi-Fi—AC1200 dual-band is ideal for 4K video streaming and high-speed downloading.
- Far-Reaching Coverage—4× antennas and Beamforming delivers extensive Wi-Fi coverage and reliable connections.
- Multi-Mode 3-in-1—Supports Router, Access Point, and Range Extender modes for added flexibility.
- Parental Controls—Manages when and how connected devices can access the internet.
- Guest Network—Provides separate access for guests in order to secure the host network.
- Smooth HD Streaming—Supports IGMP Proxy/Snooping, Bridge, and Tag VLAN to optimize IPTV streaming.
- IPv6 Supported—Compatible with the IPv6 (the latest Internet Protocol version 6).
- Compact and Mountable—Designed to conserve space and complement any décor.
Specifications:
WIRELESS:
- Standards: Wi-Fi 5: IEEE 802.11ac/n/a 5 GHz
- IEEE 802.11n/b/g 2.4 GHz
- WiFi Speeds: AC1200: 5 GHz: 867 Mbps (802.11ac)
- 2.4 GHz: 300 Mbps (802.11n)
- WiFi Range: 3 Bedroom Houses: (4× Fixed Antennas):
- Multiple antennas form a signal-boosting array to cover more directions and large areas
- Beamforming: Concentrates wireless signal strength towards clients to expand WiFi range
- WiFi Capacity: Medium : Dual-Band: Allocate devices to different bands for optimal performance
- MU-MIMO
- Simultaneously communicates with multiple MU-MIMO clients
- Working Modes:
- Router Mode
- Access Point Mode
- Range Extender Mode
HARDWARE:
- Processor: Single-Core CPU

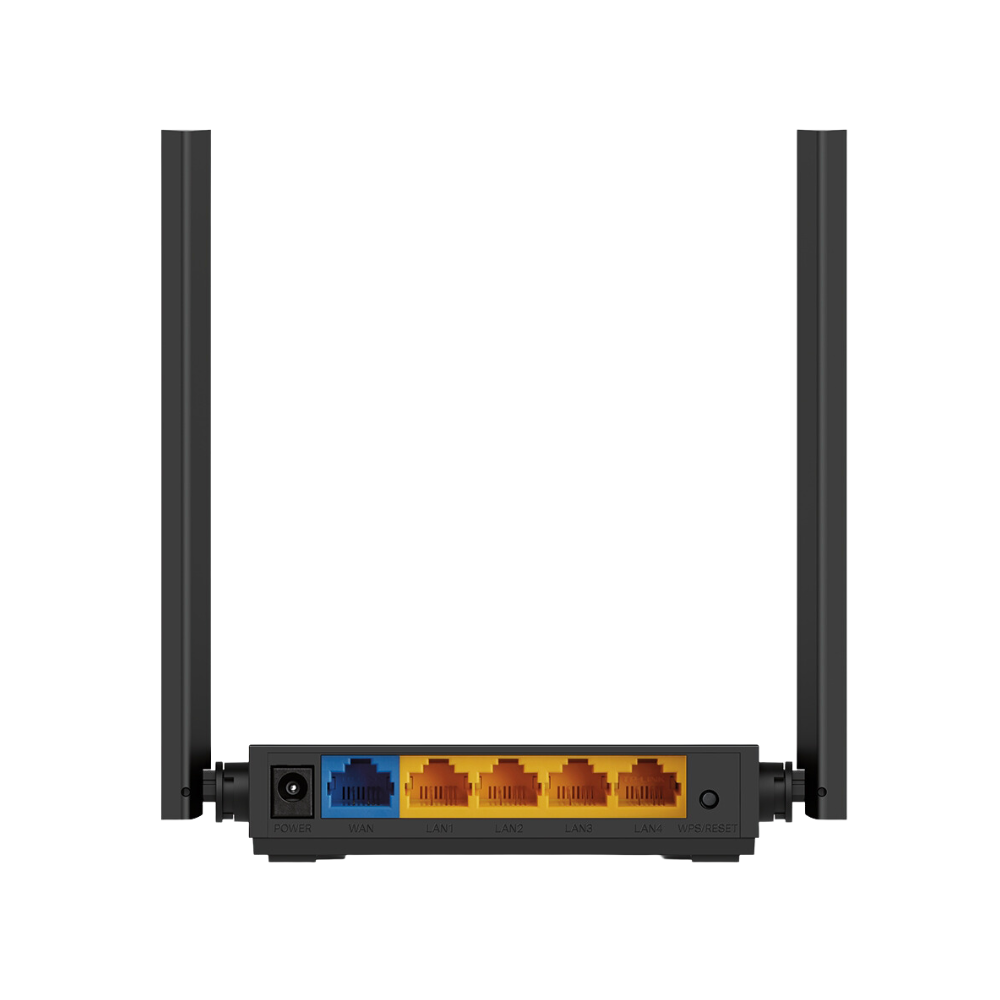

- Ethernet Ports: 1× 10/100 Mbps WAN Port
- 4× 10/100 Mbps LAN Ports
- Buttons: WPS/Wi-Fi Button
- Power: 9 V = 0.85 A
SECURITY:
- WiFi Encryption:
- WEP
- WPA
- WPA2
- WPA/WPA2-Enterprise (802.1x)
- Network Security:
- SPI Firewall
- Access Control
- IP and MAC Binding
- Application Layer Gateway
- Guest Network:
- 1× 2.4 GHz Guest Network
- 1× 5 GHz Guest Network
SOFTWARE:
- Protocols:
- IPv4
- IPv6
- Parental Controls:
- URL Filtering
- Time Controls
- WAN Types:
- Dynamic IP
- Static IP
- PPPoE
- PPTP
- L2TP
- Quality of Service: QoS by Device
- NAT Forwarding:
- Port Forwarding
- Port Triggering
- UPnP
- DMZ
- IPTV:
- IGMP Proxy
- IGMP Snooping
- Bridge
- Tag VLAN
- DHCP:
- Server
- DHCP Client List
- Address Reservation
- DDNS:
- NO-IP
- DynDNS
- Management:
- Tether App
- Webpage
TEST DATA:
- WiFi Transmission Power: CE: <20dBm(2.4GHz) <23dBm(5GHz)
- FCC:<30dBm(2.4GHz & 5GHz)
- WiFi Reception Sensitivity: 5 GHz: 11a 6Mbps:-93dBm;
- 11a 54Mbps:-78dBm;
- 11ac HT20 mcs8:69dBm;
- 11ac HT40 mcs9:-66dBm;
- 11ac HT80 mcs9:-62dBm;
- 2.4 GHz: 11g 54M: -78dBm
- 11n HT20 MCS7: -74dBm
- 11n HT40 MCS7: -71dBm
PHYSICAL:
- Dimensions (W×D×H): 4.5 × 4.2 × 1.0 in (115 × 106.7 × 24.3 mm)
- Warranty: 1year
