Description
LM24-E231

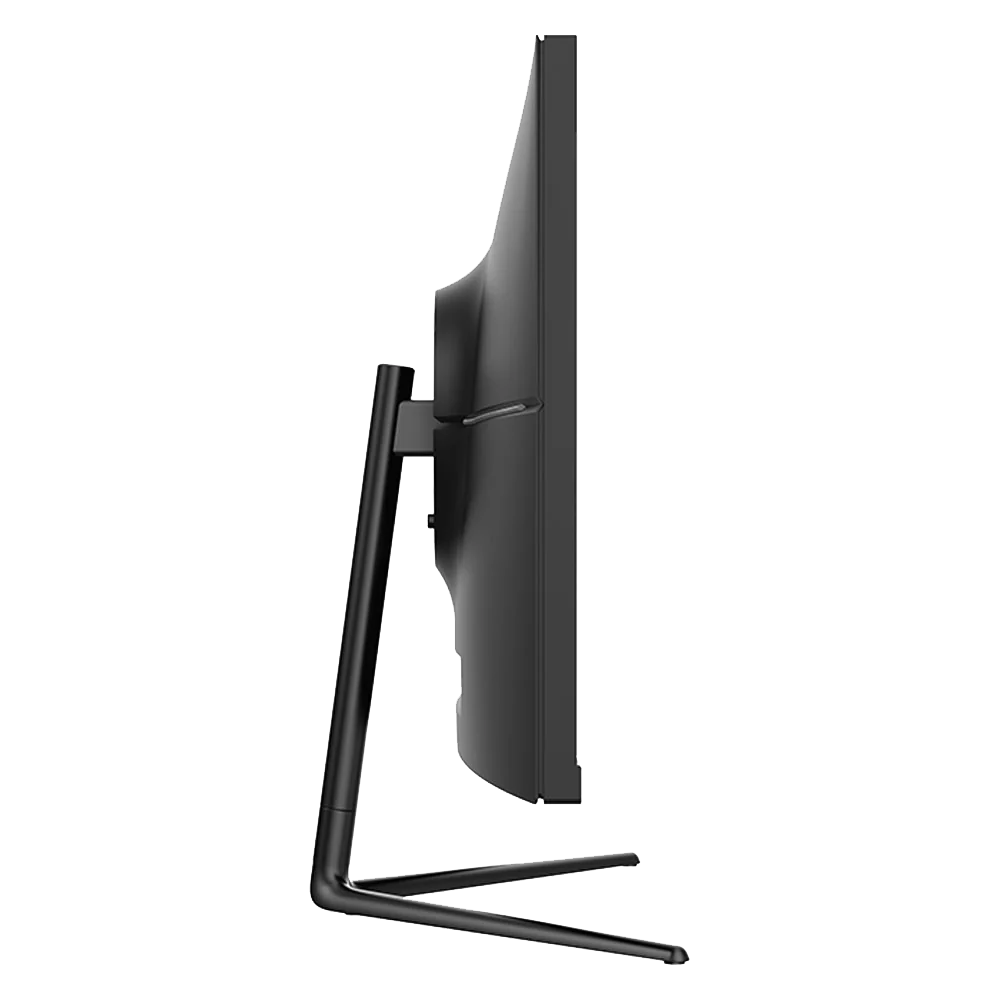

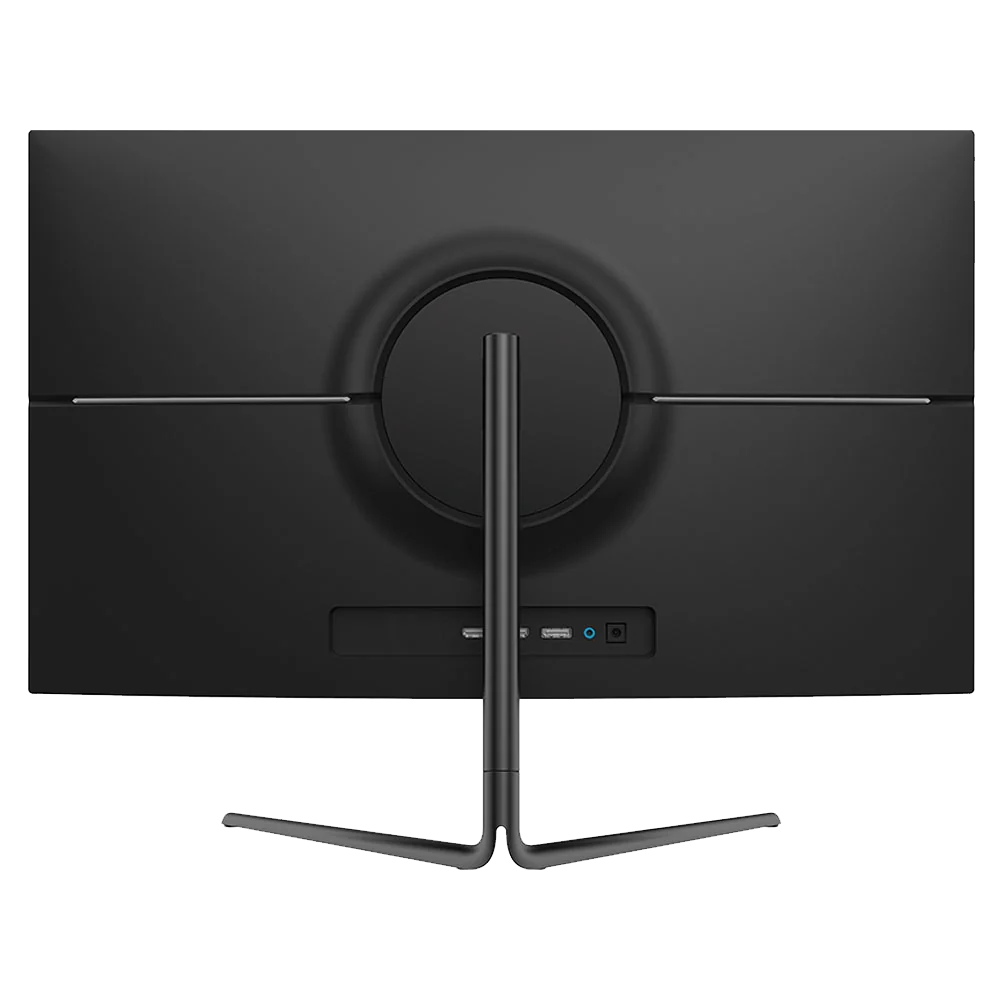

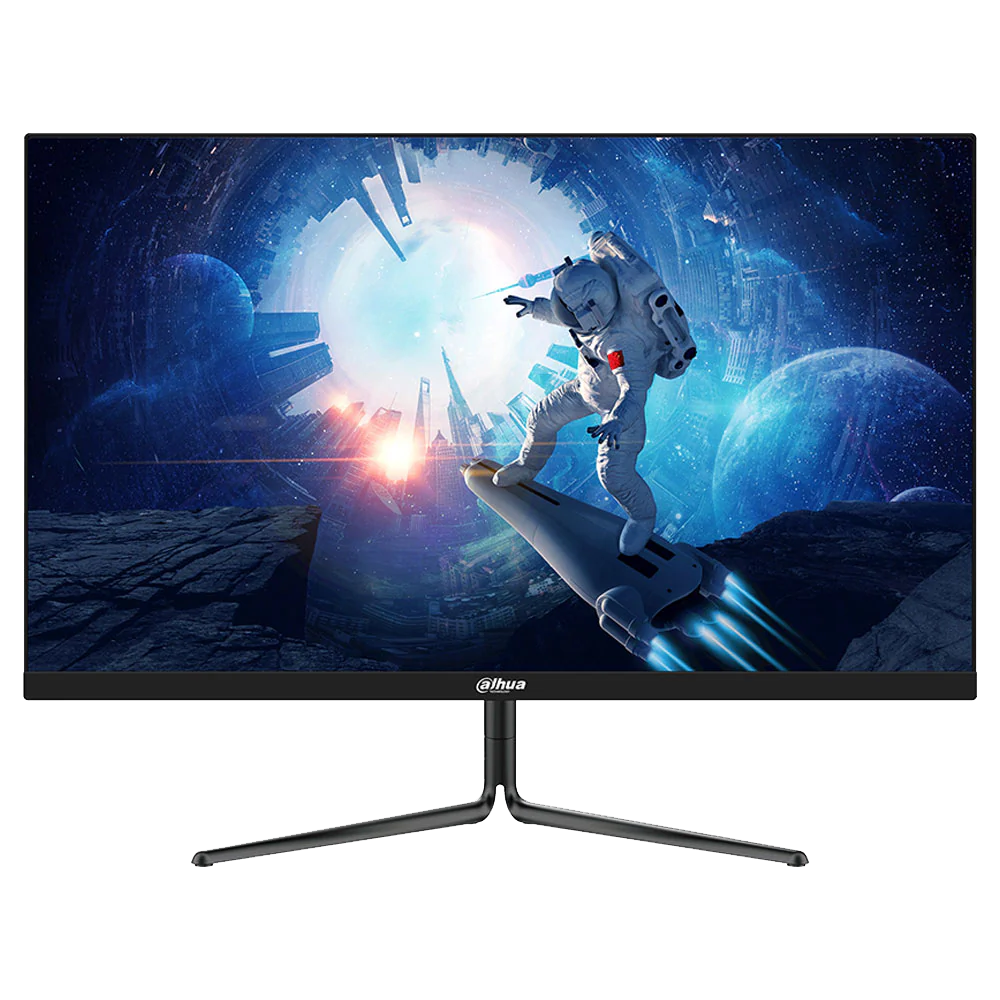

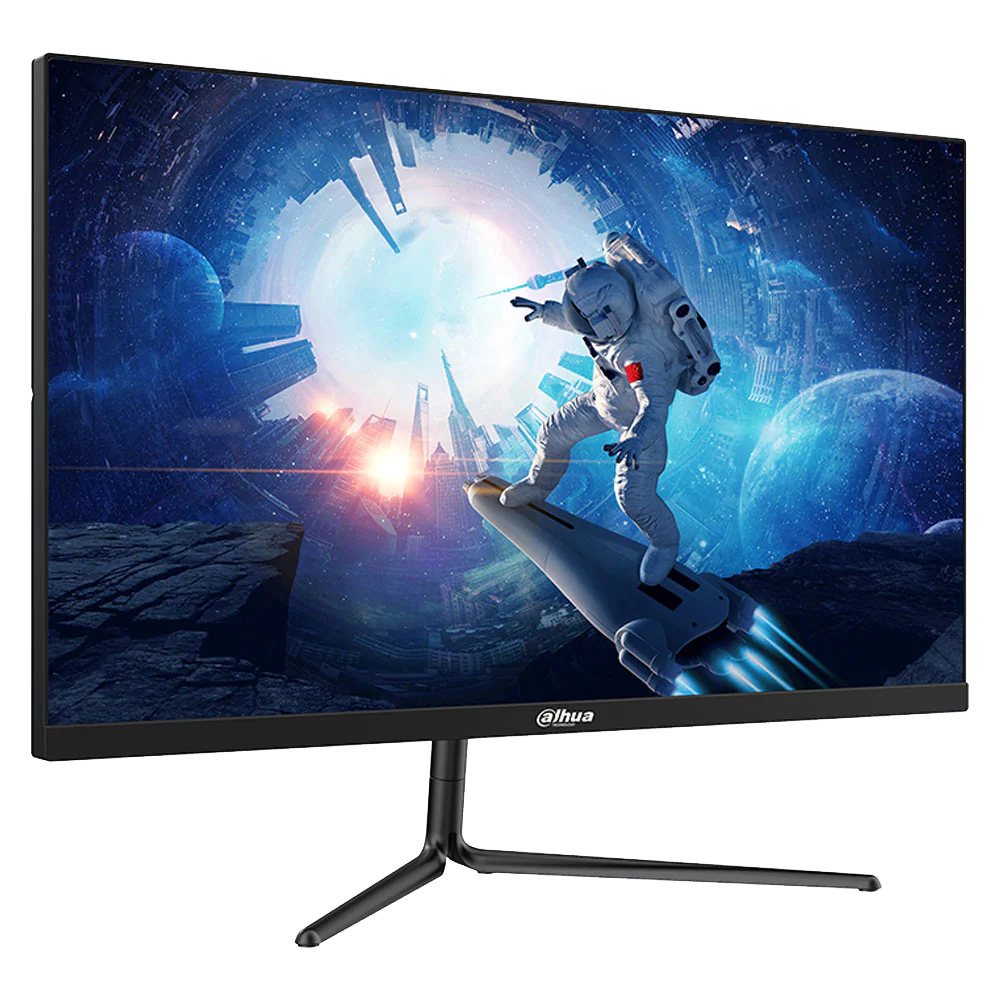

- 23.8’’ FHD IPS Monitor
- The 1920*1080 resolution produces clearer and more vivid pictures;
- IPS panel for wide viewing angles with 3-sided frameless design;
- Wide color gamut, 100% sRGB, 85% NTSC, 85% DCI-P3, 80% Adobe RGB. It meets the designer's demand of image texture;
- 178°H/178°V extra-wide viewing angle for all-round viewing performance;
- Adaptive sync can effectively solve picture lagging and tearing problems;
- 1ms fast response time with no image blurring or ghosting;
Specifications
- Model : DHI-LM24-E231
- Display
- Screen Size : 23.8"
- Panel type : IPS
- Aspect Ratio : 16:9
- Resolution : 1920x1080
- Backlight : E-LED
- Brightness/Luminance : 300nits(typ)
- Contrast Ratio :1000:1
- Color Support : 100% sRGB, 85% NTSC, 85% DCI-P3, 80% Adobe RGB
- Viewing Angle(H/V) : 178°(H)/178°(V)
- Response time : 1ms(OD)-Fast IPS
- Refresh Rate :165Hz
- Signals
- Interface : DP1.2×1，HDMI 1.4×2，Audio out×1
- General
- Power Supply : DC 12V 2.5A
- Power Type : Adapter
- Consumption (Standard) :TYP. 23W, MAX. 33 W
- Consumption (Standby) :<0.5W
- Net Weight : 3.9kg
- Gross Weight : 5.6kg
- Tilt Angles : -5°±2°/15°±2°
- Swivel(angle) : N/A
- Pivot(angle/direction) : N/A
- Height Adjustment : N/A
- VESA : 75x75mm
- Dimension(W×H×D) : 539.6*321.3*64.6mm(without stand)
- Package(W×H×D) : 649*172*443mm
- Work Environment :Temperature :0°~40°(32°F~104°F)
- Humidity :10%~85%
- Accessory
- Standard : DP cable,Adapter,Stand,Base
- warranty : 1 year
