Description

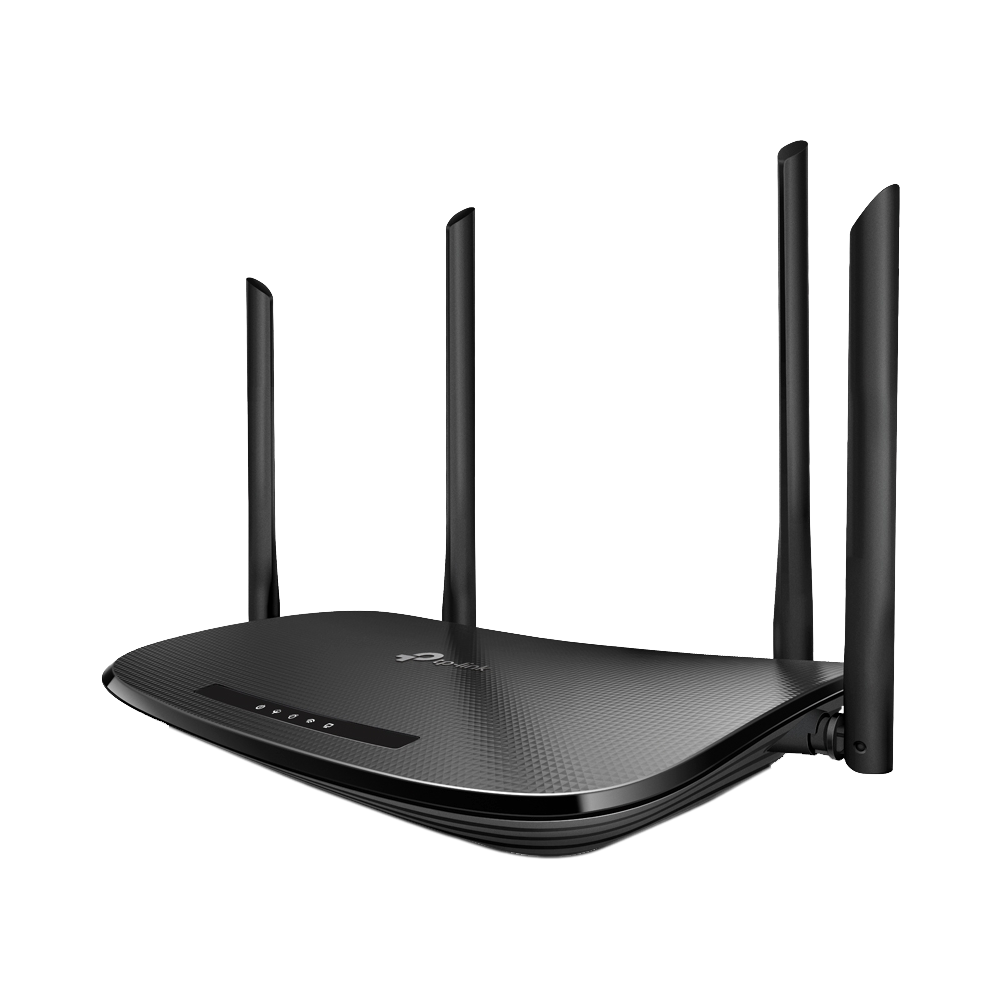

Archer VR300
AC1200 Wireless VDSL/ADSL Modem Router
- Parental Controls: manage responsible internet access for your children
- Guest Network|: provides separate access for guests while securing the home network
- Firewall Security: supports DoS, SPI Firewall, IP Addressing/Domain Filter, IP/MAC Address Binding
- IPTV IGMP Proxy/Snooping: supports Bridge and Tag VLAN for smooth IPTV application
- IPv6: compatible with IPv6 (Internet Protocol version 6)
- Multilingual Interface: provides hassle-free configuration in six languages (EN/DE/IT/TR/RU/PO)
Specifications:
HARDWARE
- Interface:
- 3 10/100 RJ45 LAN Ports
- 1 10/100 RJ45 LAN/WAN Port
- 1 RJ11 Port
- Button:
- WPS Button
- Power On/Off Button
- Reset Button
- Power Supply:12V/1A
- VDSL2 Standards:
- ITU G.993.2, Up to 17a pro¬le (POTS)
- ITU-T G.993.5 (G.vector)
- ITU-T G.998.4 (G.INP)
- ADSL Standards:
- Full-rate ANSI T1.413 Issue 2,
- ITU-T G.992.1(G.DMT),
- ITU-T G.992.2(G.Lite),
- ITU-T G.994.1 (G.hs),
- ITU-T G.995.1
- ADSL2 Standards:
- ITU-T G.992.3 (G.DMT.bis),
- ITU-T G.992.4 (G.lite.bis)
- ADSL2+ Standards:ITU-T G.992.5
- Dimensions ( W x D x H ): 230*144*37 mm
- Antenna Type: 4 fixed external antennas
WIRELESS
- Wireless Standards:
- IEEE 802.11a/n/ac 5GHz,
- IEEE 802.11b/g/n 2.4GHz
- Wireless Speeds:
- 867Mbps at 5GHz
- 300Mbps at 2.4GHz
- Transmit Power:
- 2.4GHz <20dBm(EIRP)
- 5GHz <23dBm(EIRP)
- Wireless Functions:Access Point / Wireless Bridge, Wireless Enable\Disable, SSID Broadcast Enable\Disable
- Wireless Security:
- WEP, WPA/WPA2, WPA-PSK/WPA-PSK2
- encryptions, QSS(WPS)
- Security: NAT Firewall, Access Control, IP and MAC Address Binding
- Operating Modes: VDSL/ADSL Modem Router, Wireless Router
- Management:
- Web Based Con¬guration(HTTP), Remote management
- command Line Interface, SSL for TR-069, SNMP v1/2c, Web Based Firmware
- Upgrade, Diagnostic Tools
- DHCP: Server, Client, DHCP Client List, Address Reservation, DHCP Relay
- Port Forwarding: Virtual Server, Port Triggering, DMZ, ALG, UPnP
- Dynamic DNS: DynDns, NO-IP
- VPN Pass-Through: PPTP, L2TP, IPSec Passthrough
- Protocols: Supports IPv4 and IPv6
- ATM/PPP Protocols:
- ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364),
- PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MER\IPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs
- Advanced Functions:
- Parental Control, Network Address Translation(NAT),
- Port Mapping(Grouping), Static Routing, DNS Relay,
- DDNS, IGMP V1/V2/V3
- Guest Network: 2.4GHz guest network, 5GHz guest network
- Warranty: 1 Year
