Description

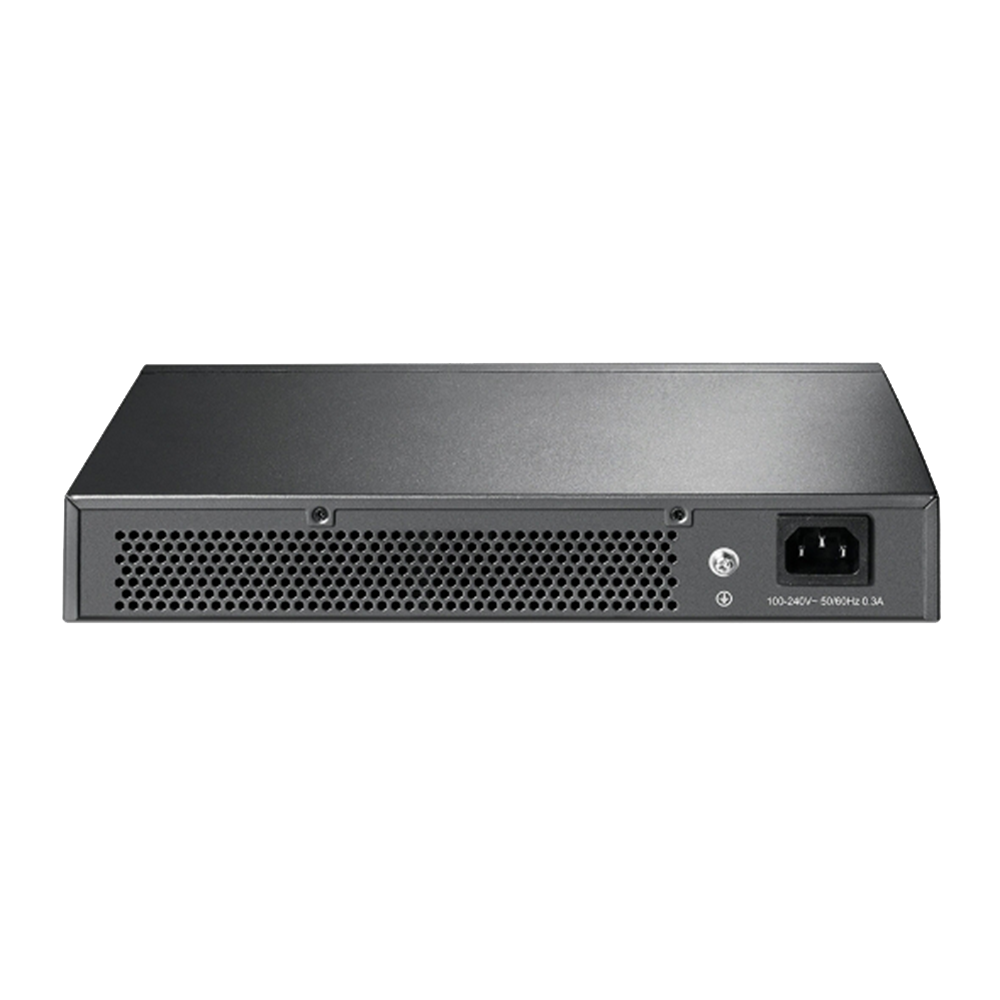

16-Port Gigabit Desktop/Rackmount Switch
TL-SG1016D
- 16 10/100/1000Mbps ports
- Innovative energy-efficient technology saves power consumption
- Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
- Plug & play design
Specifications
HARDWARE
- Standards and Protocols :IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
- Interface
- 16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
- Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
- Fan Quantity :Fanless
- Physical Security Lock :No
- Power Supply:100-240VAC, 50/60Hz
- Power Consumption:Maximum: 9.26W (220V/50Hz)
- Dimensions ( W x D x H ) : 11.6*7.1*1.7 in. (294*180*44 mm)
- Max Power Consumption :9.95W(220V/50Hz)
- Max Heat Dissipation
- 33.93BTU/h
- Switching Capacity 32Gbps
- Packet Forwarding Rate: 23.8Mpps
- MAC Address Table 8K
- Jumbo Frame10KB
- Green Technology Yes
- Transfer Method :Store-and-Forward
- Warranty:1 year
