Description

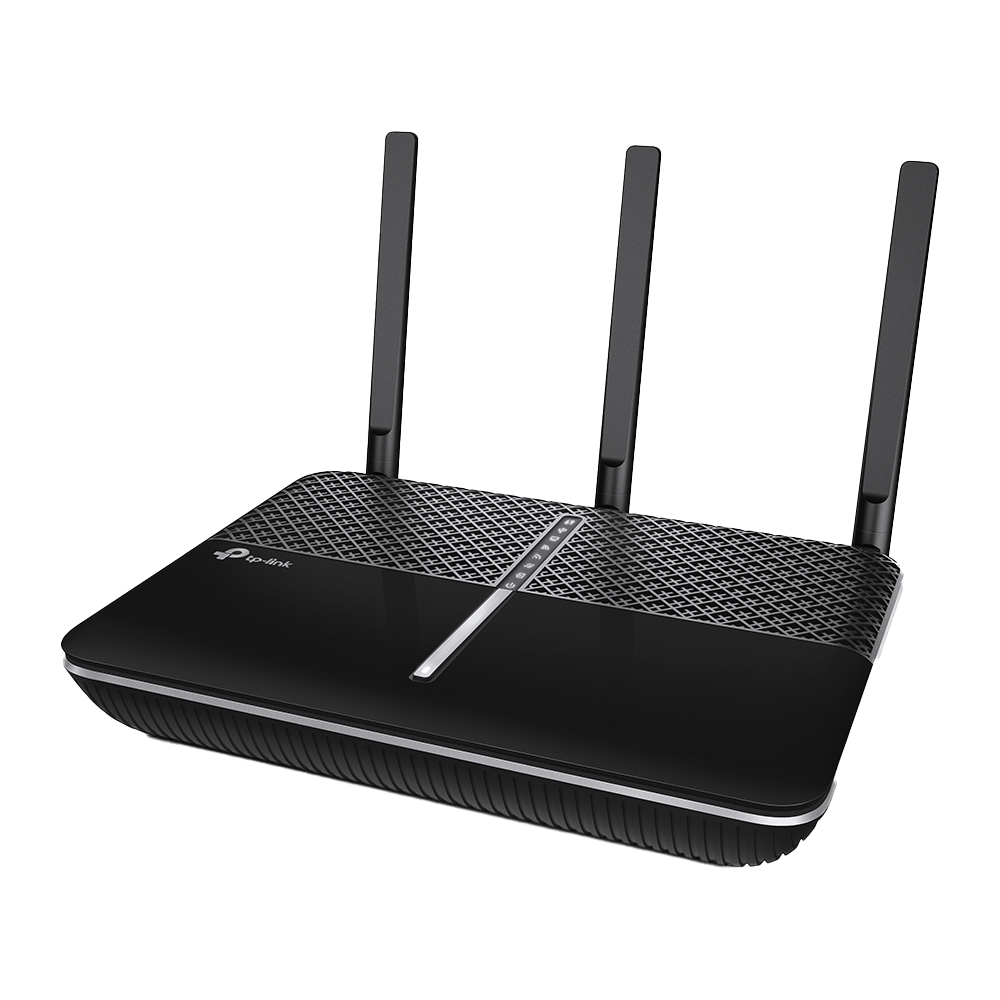

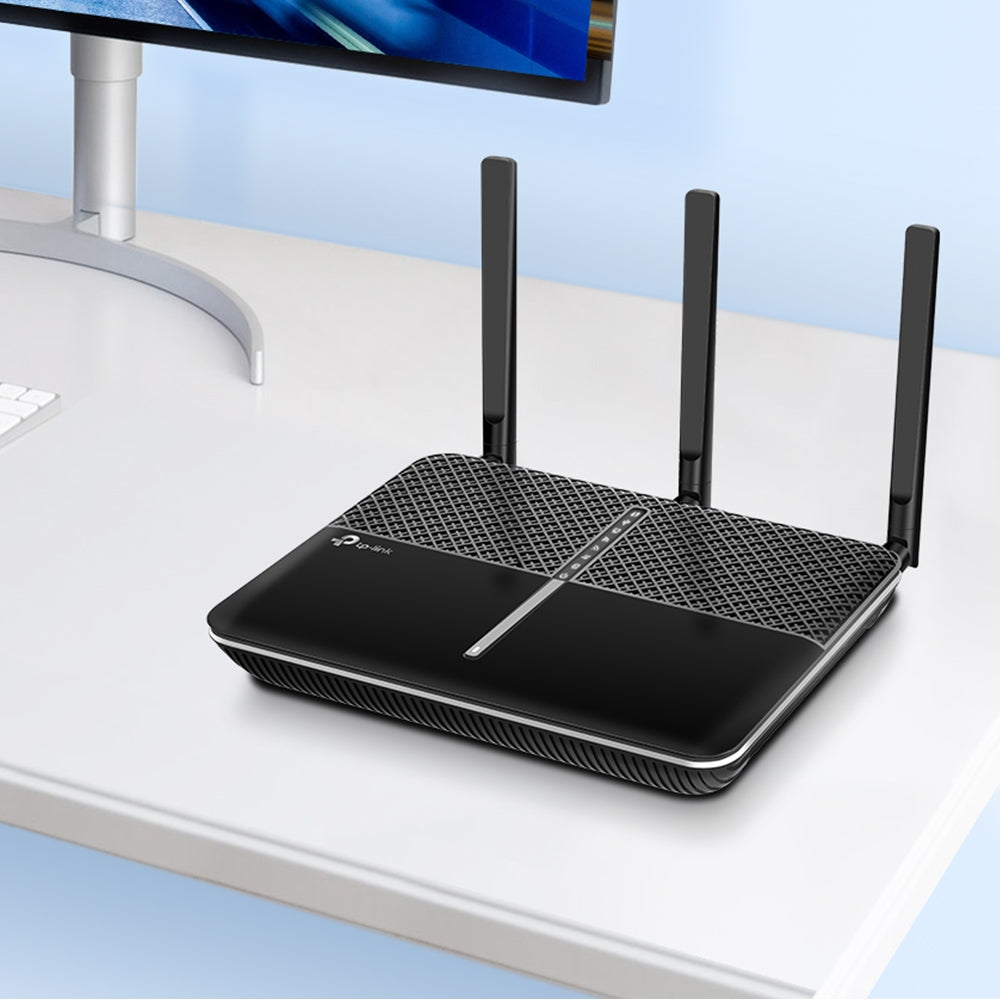

AC2100 Wireless MU-MIMO VDSL/ADSL Modem Router
Archer VR600
- Super VDSL – The Latest Super VDSL (VDSL2 Profile 35b) tech delivers internet speeds of up to 350 Mbps
- Ultra-Fast Speed –Surpasses the Wi-Fi speed limits of the previous generation, reaching up to 1733 Mbps on 5 GHz and 300 Mbps on 2.4 GHz
- 4×4 MU-MIMO – Simultaneously transfers data to multiple devices for 4x faster performance
- Whole-Home Coverage with OneMeshTM – Co-works with TP-Link OneMesh products to create a flexible and cost-efficient Mesh network
- Lightning-Fast Wired Connection – USB 3.0 port and four Gigabit Ethernet ports run up to 10x faster than the previous generation to unleash your home entertainment
- TP-Link Tether App –Easily access and manage your network, including remote control and automatic updates, using any iOS or Android mobile device.
Specifications:
HARDWARE
-
Ports 3 Gigabit LAN Ports, 1 Gigabit LAN/WAN Port, 1 RJ11 Port,
1 USB Port -
Button WPS Button, Reset Button, Power On/Off Button, Wi-Fi Button, LED
On/Off Button - External Power Supply 12V/1.5A
- IEEE Standards IEEE 802.3, IEEE 802.3u, 802.3ab
- VDSL2 Standards
- ITU G.993.2, Up to 35b profile (POTS)
- ITU-T G.993.5 (G.vector)
- ITU-T G.998.4 (G.INP)
- ADSL Standards
- Full-rate ANSI T1.413 Issue 2,
- ITU-T G.992.1(G.DMT),
- ITU-T G.992.2(G.Lite),
- ITU-T G.994.1 (G.hs),
- ADSL2 Standards :ITU-T G.992.3 (G.DMT.bis)
- ADSL2+ Standards ITU-T G.992.5
- Dimensions ( W x D x H ) 8.5 × 6.5 × 1.4 in (216 × 164 × 36.8 mm)
- Antenna Type 3 External Dual Band Antennas + 1 Internal 5 GHz Antenna
WIRELESS
- Wireless Standards :IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4GHz
- Frequency: 2.4 GHz and 5 GHz
- Signal Rate :1733 Mbps on 5 GHz, 300 Mbps on 2.4 GHz
- Wireless Functions: Enable/Disable Wireless Radio, WMM, Wireless Statistics
- Wireless Security :64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
- Transmission Power: <20dBm (2.4 GHz), <23dBm (5 GHz)
- Wireless Schedule: Support 2.4 GHz and 5 GHz Wireless Schedule
SOFTWARE
- Security NAT Firewall, SPI Firewall, Access Control, Service Filtering, Denial of Service (DoS), SYN Flooding, Ping of Death, IP and MAC Address Binding
- Operating Modes VDSL/ADSL Modem Router, Wireless Router, 3G/4G Router
- Management
- Web-Based Configuration (HTTP / HTTPS ), Remote management,
- Command Line Interface, SSL for TR-069, SNMP v1/2c, Firmware Upgrade, Diagnostic Tools, Free Online Firmware Update
- DHCP Server, Client, DHCP Client List, Address Reservation, DHCP Relay
- Port Forwarding Virtual Server, Port Triggering, DMZ, ALG, UPnP
- Dynamic DNS DynDns, NO-IP, TP-Link
- VPN OpenVPN, PPTP VPN, IPSec VPN
- Protocols Supports IPv4 and IPv6
- ATM/PPP Protocols ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MER\IPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs
- Advanced Features
- Parental Controls, Network Address Translation (NAT),
- Static Routing, DNS Relay, DDNS, IGMP V1/V2/V3
- Guest Network 2.4 GHz Guest Network, 5 GHz Guest Network
- Warranty 1 Year
