Description

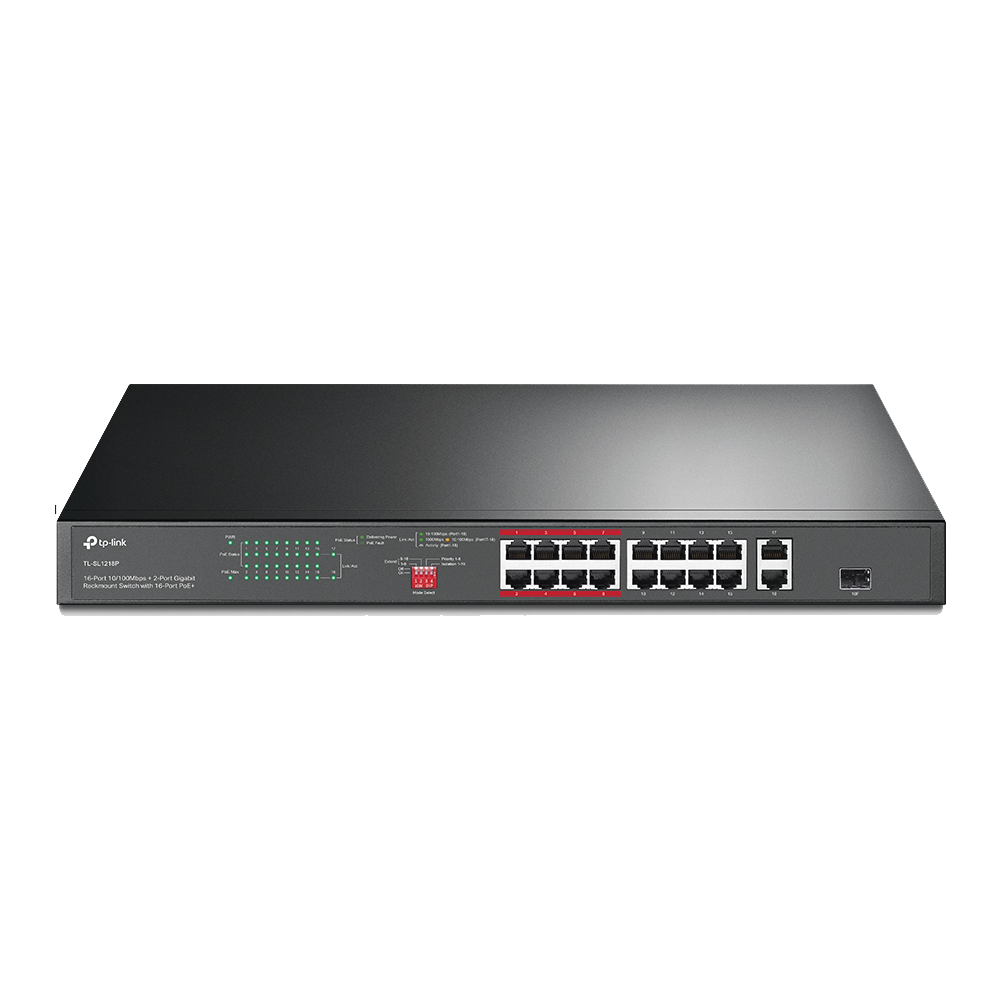

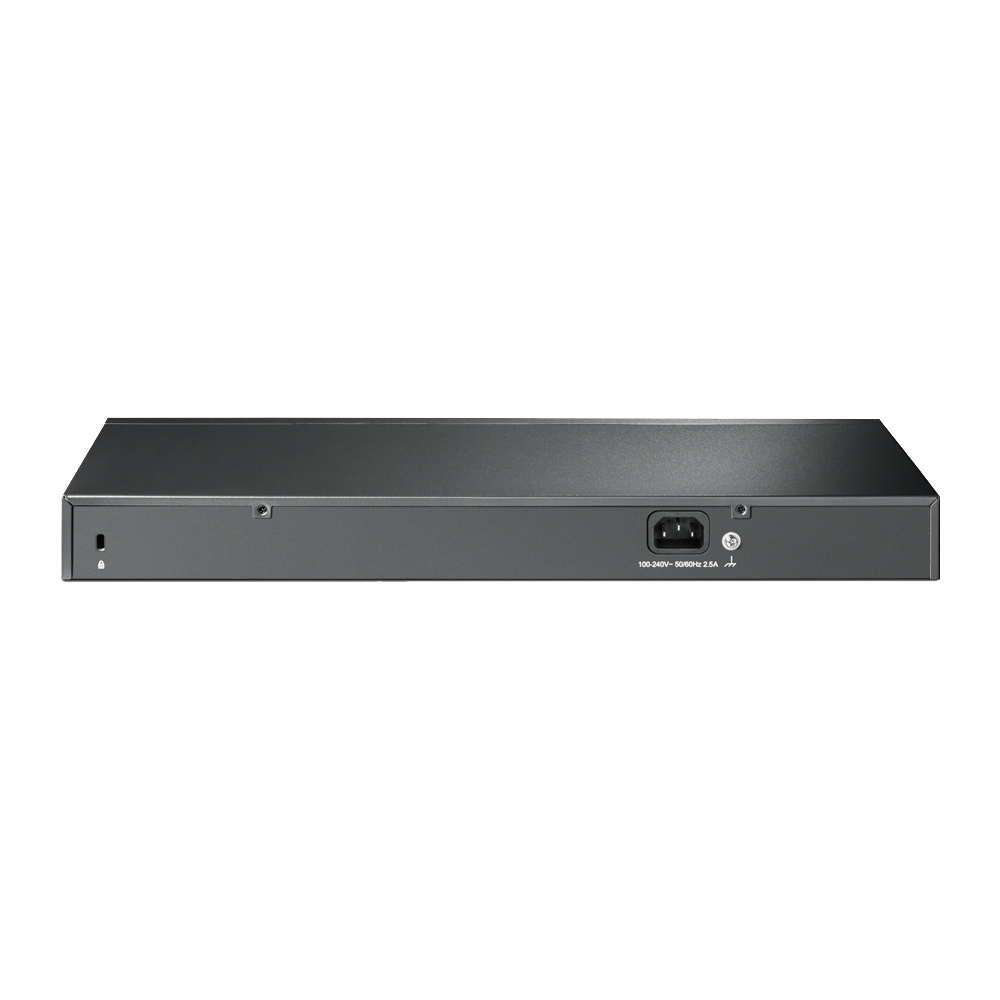

16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+
TL-SL1218P
- 16× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 1× combo Gigabit SFP slot.
- High PoE power budget with up to 30 W for each PoE port and 150 W for all PoE ports.
- Up to 250 m data and power transmission under extend mode specially designed for surveillance system.
- Priority mode for ports 1–8 to guarantees the quality of sensitive applications like video monitor.
- Isolation Mode allows one-click client traffic separation for higher security and performance.
- Easy to use, with no configuration and installation needed.
specification
HARDWARE FEATURES
Interface
- 16× PoE+ 10/100 Mbps RJ45 Ports
- 2× 10/100/1000 Mbps RJ45 Ports
- 1× Combo Gigabit SFP Slot
Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 1000BASE-X MMF, SMF
Fan Quantity 2 Fans
Physical Security Lock Yes
Power Supply
- 100–240V AC, 50/60 Hz
- Standard: 802.3at/802.3af compliant
- PoE Ports: Ports 1–16
- PoE Power Budget: 150 W
Dimensions ( W x D x H )
- 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Max Power Consumption
- 12.7 W (no power device connected)
- 172.8 W (with 150W power devices connected)
Max Heat Dissipation
- 43.3 BTU/h (no power device connected)
-
589.3 BTU/h (with 150W power devices connected)
PERFORMANCE
- Switching Capacity 7.2 Gbps
- Packet Forwarding Rate 5.36 Mpps
- MAC Address Table 8K
- Jumbo Frame 10 KB
SOFTWARE FEATURES
Advanced Features
- Compatible With IEEE 802.3at/af Compliant PDs
- Extend Mode (Up to 250m PoE power supply and data transmission)
- Priority Mode
- Isolation Mode
- Mac Address Auto-Learning And Auto-Aging
- IEEE802.3x Flow Control
- Store-And-Forward
WARRANTY
- 1 YEAR
