Description
Specifications
- Mic Sensitivity :-37 dBV ± 2dB @ 1 KHz, 94dB SPL
- Wireless Modulation Mode :GFSK 2 Mbps
- Wireless Transmission :2.4 GHz Adaptive Frequency Hopping (AFH)
- Transmission Range
- Mobile Version: Up to 1000ft (300m) for LOS/200ft (60m) for NLOS
Camera Version: Up to 1000ft (300m) for LOS/130ft (40m) for NLOS - Mic Polar Pattern :Omnidirectional
- Frequency Response :20 Hz–20 kHz
- Signal-to-Noise Ratio :> 70dB
- Sound Pressure Level : 115dB SPL
- Bit Depth :24-bit
- Sample Rate :48 kHz
- Battery Voltage :TX: 3.87V
- Camera Version RX: 3.87V
Mobile Version Charging Case: 3.8V
Camera Version Charging Case: 3.8V - Battery Capacity
- TX: 97 mAh
Camera Version RX: 145 mAh

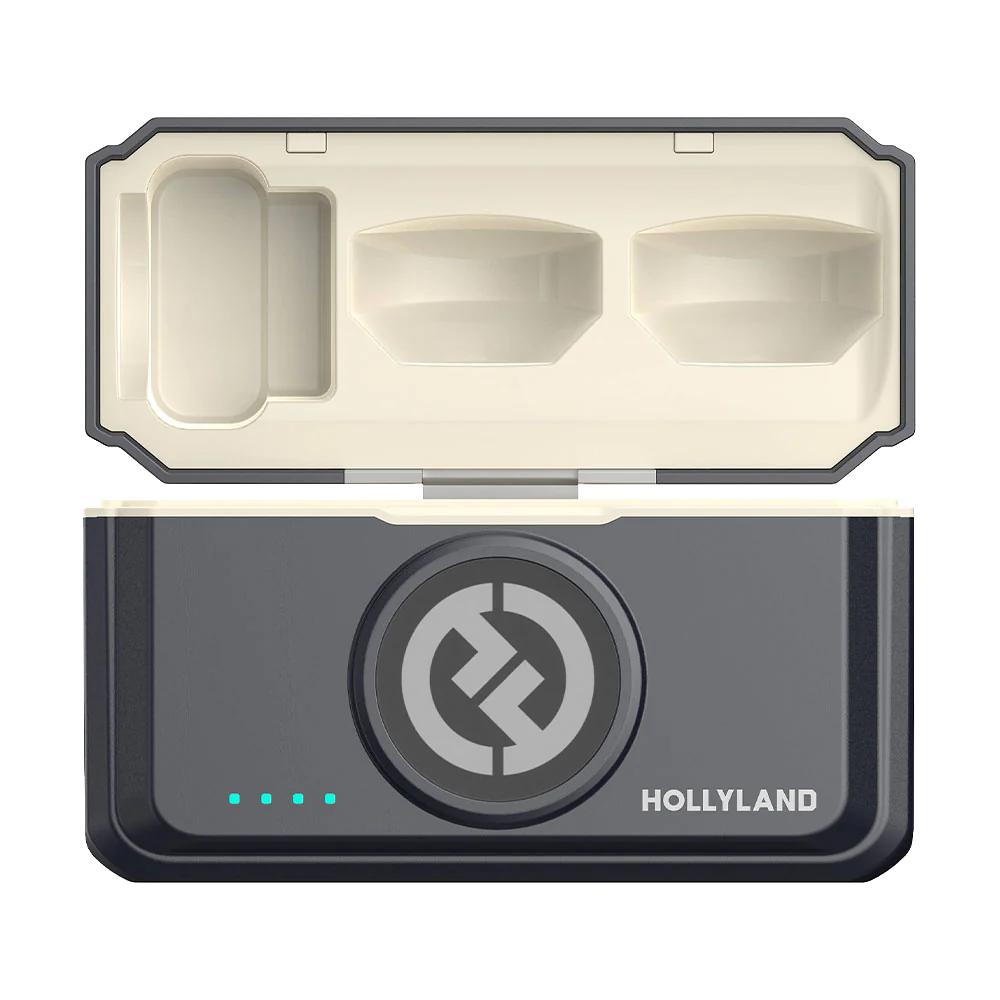

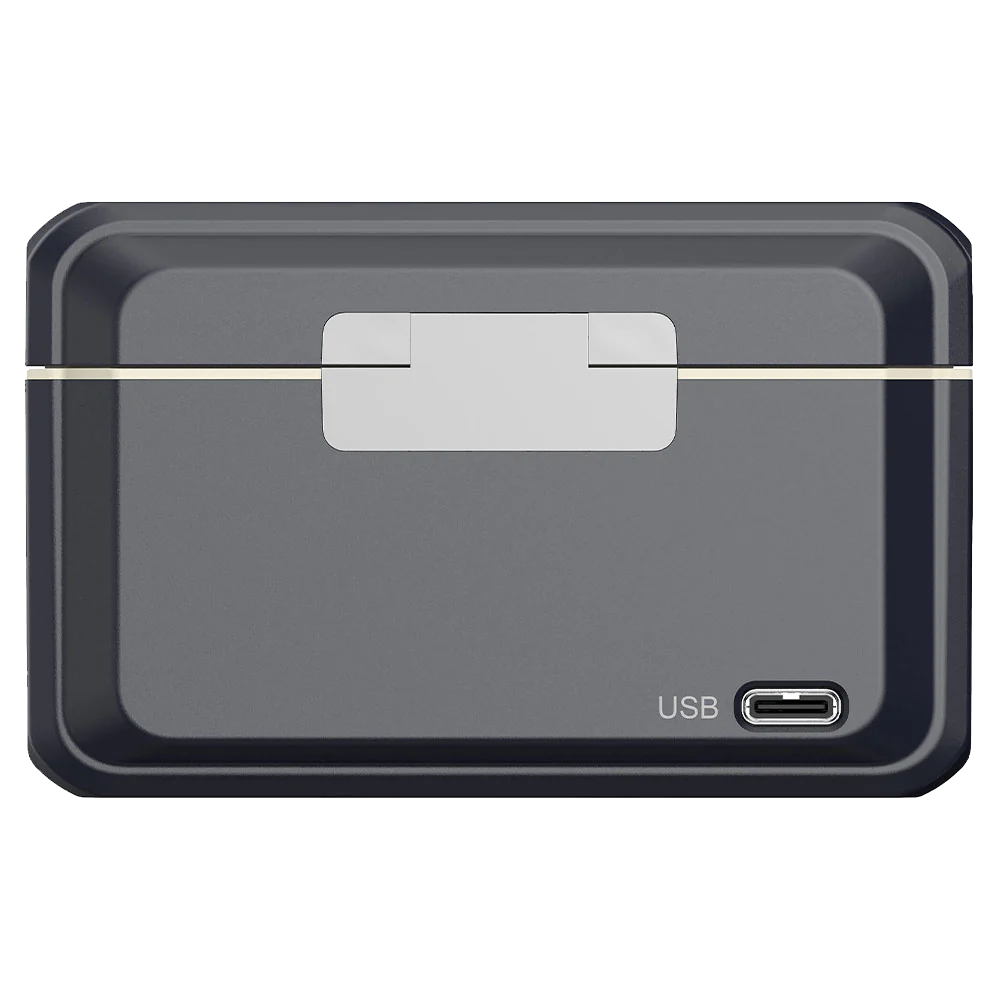

Mobile Version Charging Case: 750 mAh
Camera Version Charging Case: 1950 mAh - Operating Time
- TX: About 10 hours
Camera Version RX: About 9 hours
Mobile Version Charging Case: > 2 times charging for 2 TX at the same time
Camera Version Charging Case: > 3 times charging for all TX and RX at the same time - Charging Time
- TX: About 1.5 hours
Camera Version RX: About 1.5 hours
Mobile Version Charging Case: < 1.5 hours
Camera Version Charging Case: < 2 hours - Charging Temperature
- 0° C to 45° C
- Operating Temperature
- –10° C to 45° C
- Dimensions

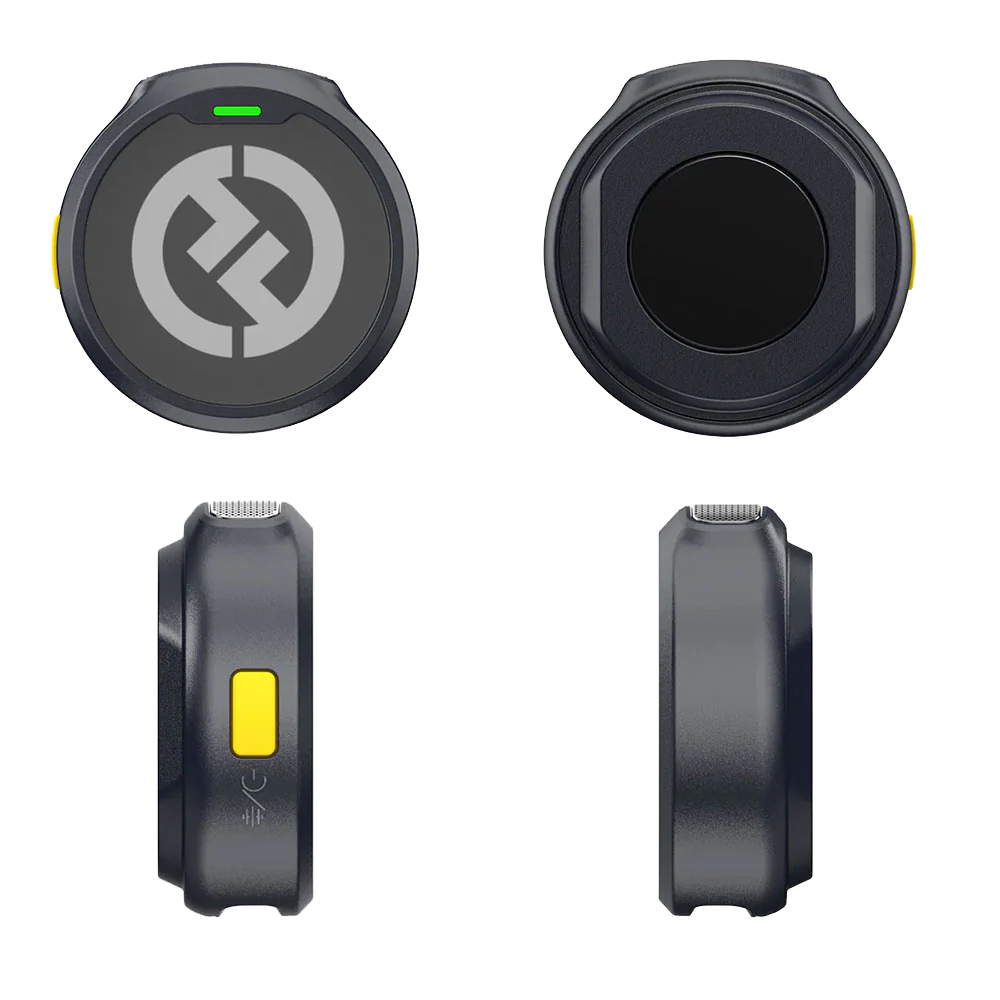

- TX: Approx. D26mm x 9.9mm (1.0” x 0.4”)

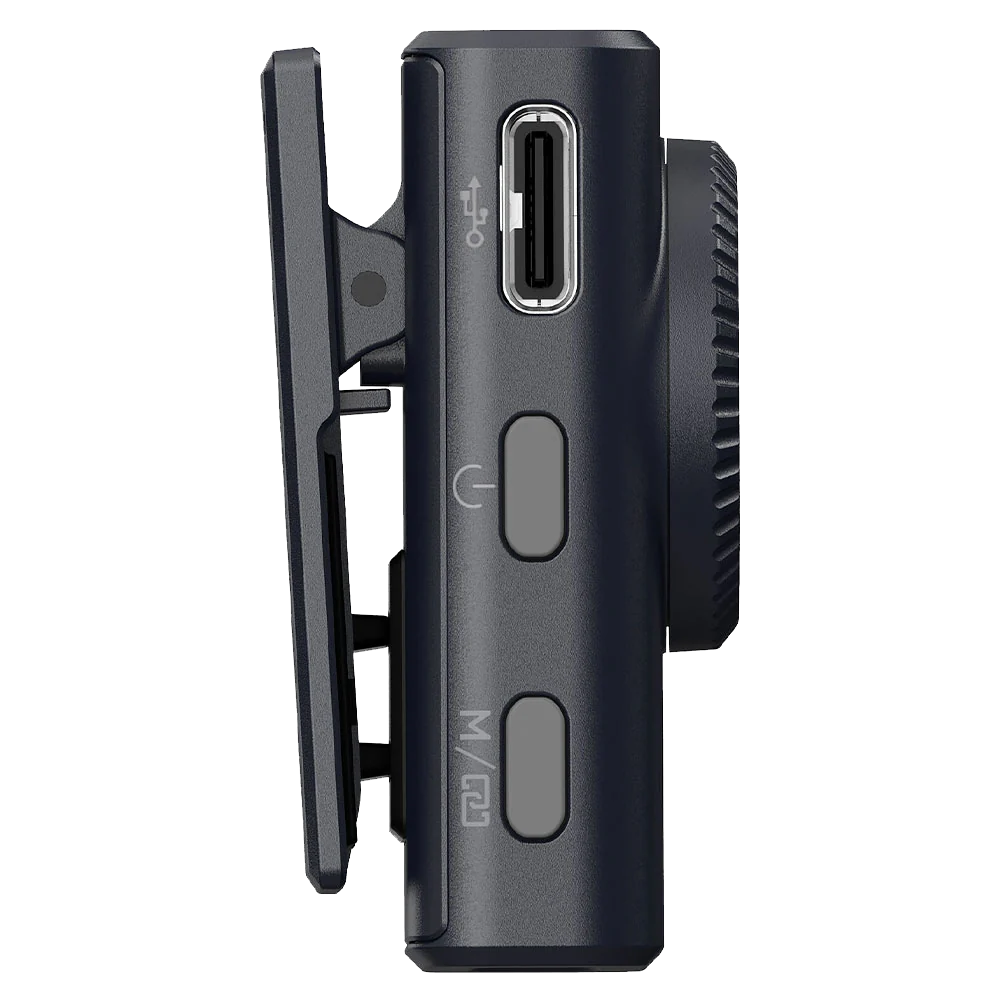

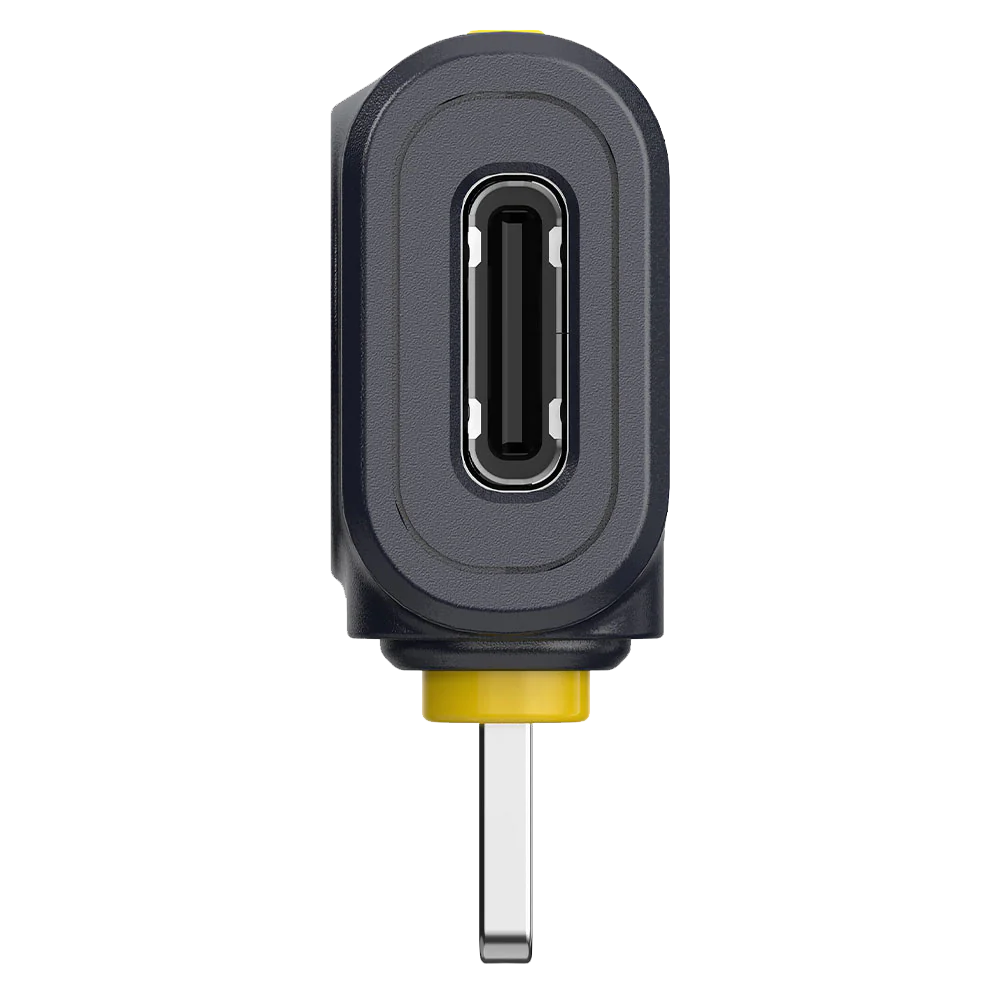

Mobile Version RX: Approx. 40mm x 16.5mm x 9mm (1.6” x 0.6” x 0.4”)
Camera Version RX: Approx. 40mm x 25.7mm x 20.5mm (1.6” x 1.0” x 0.8”)
Mobile Version Charging Case: Approx. 75.8mm x 49.8mm x 35mm (3.0” x 2.0” x 1.4”)
Camera Version Charging Case: Approx. 86mm x 54mm x 39mm (3.4” x 2.1” x 1.5”) - Weight
- TX: Approx. 9g (0.3oz)
Mobile Version RX: Approx. 6g (0.2oz)
Camera Version RX: Approx. 14.8g (0.5oz)
Mobile Version Charging Case: Approx. 65.6g (2.3oz)
Camera Version Charging Case: Approx. 111g (3.9oz) - warranty : 3 months
