Description
(USB-C To Multi-Functional Docking Station)
PD*1+USB3.0*4+RJ45(1000M)*1+HDMI(4K30Hz)*1
+SD*1+TF*1+Audio*1
- PD3.0*1 (100W)
- USB3.0*4
- RJ45*1 (1000m/100m/10m) Ethernet Port (Gigabit)
- HDMI*1 (4K@30Hz) Full HD 1080p
- SD3.0*1
- TF3.0*1
- Audio*1 3.55mm
- USB C*1
- Material: aluminum alloy
Descriptions

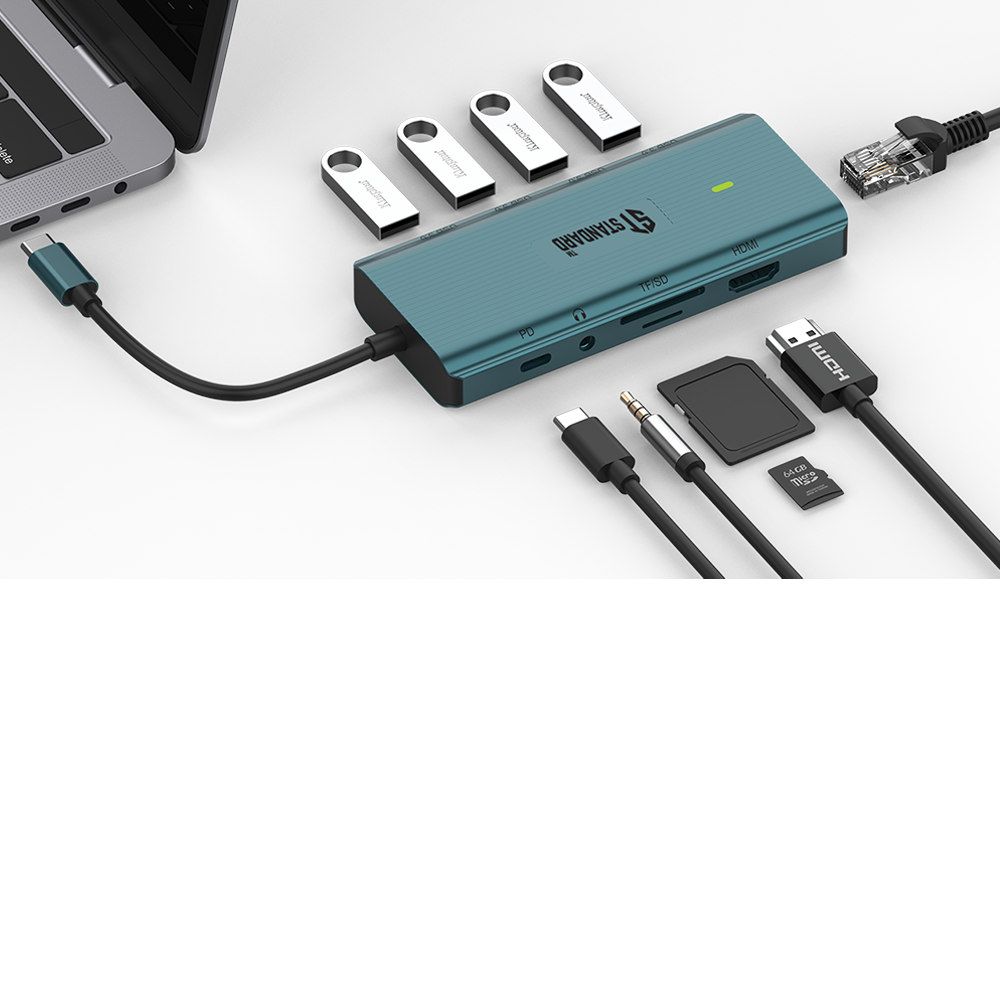

- The USB-C multi-function docking station can connect a laptop to USB peripherals, Ethernet, and displays. HDMI mother port supports up to 4K UHD video output resolution, and can access gigabit network through Type-C port by including RJ45 Ethernet port. TF 3.0/SD 3.0 card slot read-write TF/SD storage card, with 3.5mm Jack audio output and microphone input, this product includes Four USB 3.0 interfaces, which can be used to connect USB devices such as mouse and keyboard, and another USB-C interface design allows users to charge PD 3.0. In general, USB-C multi-function docking station is an ideal choice for you to expand the USB-C interface.
specifications
- 4K HDMI to USB C hub: Mirror or expand the screen to HDTV, monitor or projector through the HDMI port. USB C-to-HDMI provides you with realistic 4K 3840 x 2160@30Hz HDMI images bring you an immersive 3D resolution experience.
- 3.5mm Jack supports audio output and microphone input.
- USB C Ethernet hub: 1000Mpbs Ethernet port provides more stable and faster connection to wired network, and supports 100/10M. RJ45 port can recognize your Internet speed and automatically adjust it to the highest level.
- Support SD card type: support SD card with SD/SDHC/SDXC/UHS-I/UHS-II
SD card maximum reading speed: 104Mbps, maximum writing speed: 104Mbps
Support TF card type: Support TF card with Micro SD/SDHC/SDXC/MMC/RS-MMC/UHS-I/UHS-II
Maximum reading speed of TF card: 104Mbps, maximum writing speed: 104Mbps
PD fast charging: support up to 100W PD charging, This USB C hub multi-port adapter provides a Type-C pass through female port. - You can charge your laptop when connecting multiple peripherals for data transmission and worry-free power storage.

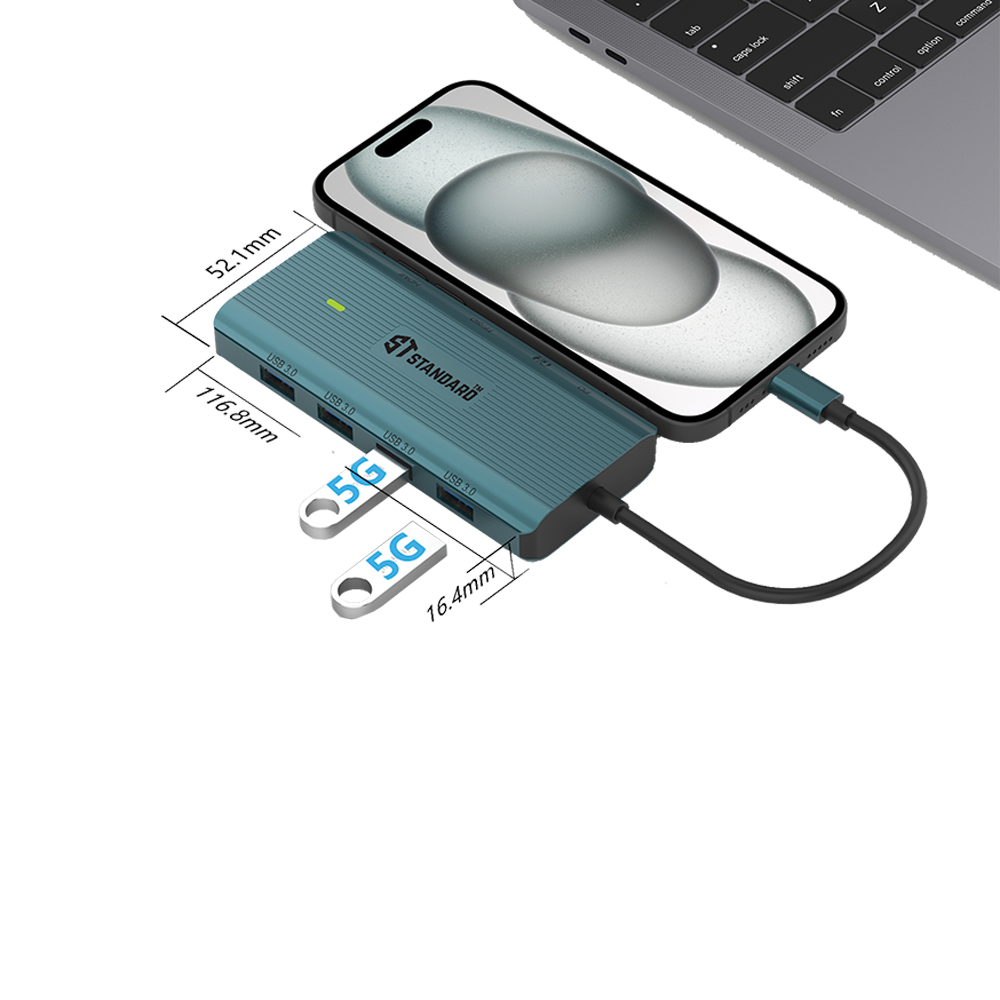

- Four USB 3.0 ports, which can be used to connect keyboard, mouse, printer and other external devices, and can also be connected to U disk, mobile hard disk and other data transmission.
- Hardware
- Upward exit: USB-C *1
Downward exit: HDMI(4K@30Hz), RJ45(1000/100/10M), TF 3.0/SD 3.0, USB 3.0*4,3.5mm Jack (Audio output & Mic input), USB-C(PD3.0) - System Requirement :Compatible with Mac OS, iPad OS, Windows, Android, Linux systems
-
Dimensions
Product Size:116.8*52.1*16.4mm
Packing Size:160*90*25mm
Material: Aluminum alloy shell + ABS (plug)+PVC (wire) -
Environment
Operating Temperature: -5*C~45*C
Storage Temperature: -10~85*
Relative Humidity (Operational): -20%~70%, noncondensing
Relative Humidity (Storage): 5%~90%, noncondensing
Drop test (1 Meters): 5 st
Cycle work (hours): 24H - warranty : 6 Months
