Description

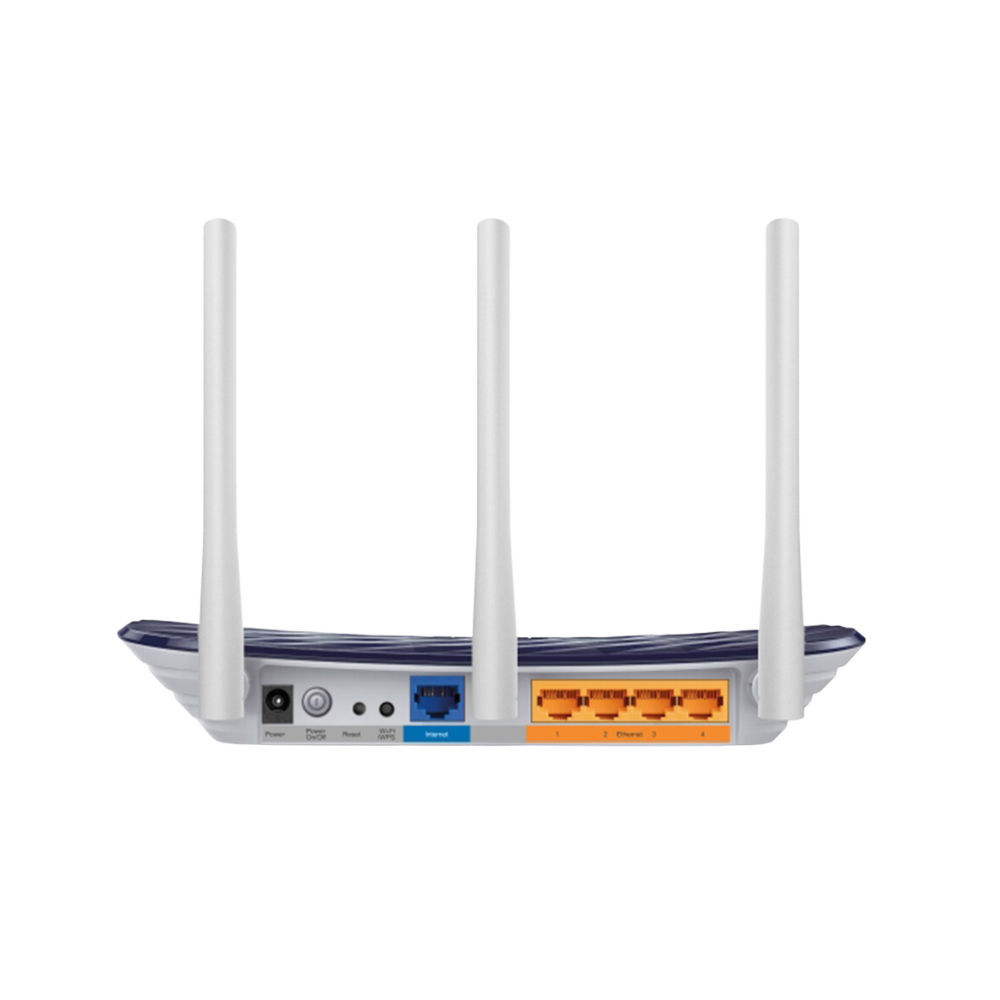

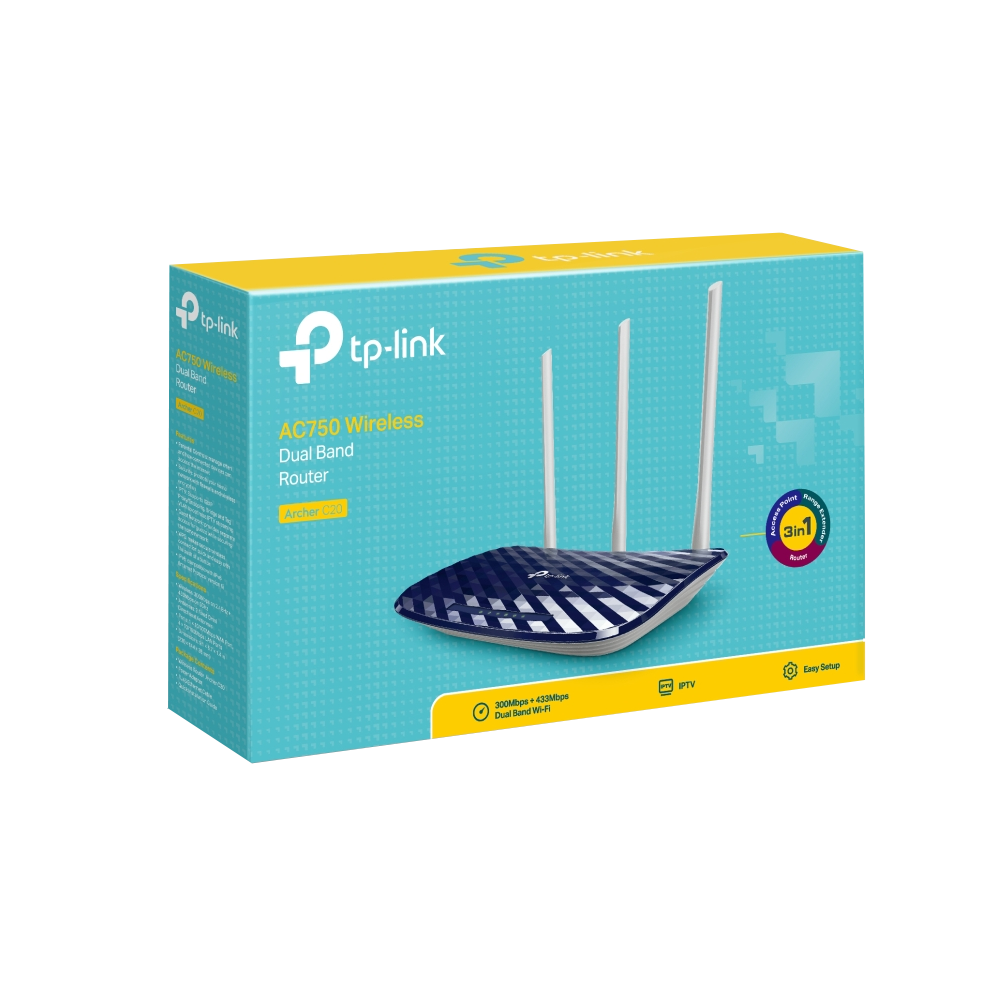

Archer C20 AC750 Wireless Dual Band Router
- Simultaneous 300 Mbps at 2.4 GHz and 433 Mbps at 5 GHz for 733 Mbps total available bandwidth
- Three external antennas provide stable omnidirectional signal and superior wireless coverage
- Supports three modes:Router,Range Extender and Access Point Modes
- IPTV supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize HD streaming
- Parental Controls manage when and how connected devices can access the internet
- Guest Network provides separate access for guests while securing the host network
Specifications
- WIRELESS:
- Standards: Wi-Fi 5: IEEE 802.11ac/n/a 5 GHz ,IEEE 802.11n/b/g 2.4 GHz
- WiFi Speeds: AC750: 5 GHz: 433 Mbps (802.11ac) , 2.4 GHz: 300 Mbps (802.11n)
- WiFi Range: 2 Bedroom Houses: (3× Fixed Antennas):Multiple antennas form a signal-boosting array to cover more directions and large areas
- WiFi Capacity: Medium :Dual-Band: Allocate devices to different bands for optimal performance
- Working Modes:
- Router Mode
- Access Point Mode
- Range Extender Mode
HARDWARE:
- Processor: Single-Core CPU
- Ethernet Ports:
- 1× 10/100 Mbps WAN Port
- 4× 10/100 Mbps LAN Ports
- Buttons:
- WPS/Wi-Fi Button
- Power On/Off Button
- Reset Button
- Power: 12V = 0.6 A
SECURITY:
- WiFi Encryption:
- WPA
- WPA2
- WPA3
- WPA/WPA2-Enterprise (802.1x)
- Network Security:
- SPI Firewall
- Access Control
- IP and MAC Binding
- Application Layer Gateway
- Guest Network:
- 1× 2.4 GHz Guest Network
- 1× 5 GHz Guest Network
SOFTWARE:
- Protocols:
- IPv4
- IPv6
- Parental Controls:
- URL Filtering
- Time Controls
- WAN Types:
- Dynamic IP
- Static IP
- PPPoE
- PPTP
- L2TP
- Quality of Service:
- QoS by Device
- NAT Forwarding:
- Virtual Servers
- Port Forwarding
- Port Triggering
- UPnP
- DMZ
- IPTV:
- IGMP Proxy
- IGMP Snooping
- DHCP:
- Server
- DHCP Client List
- Address Reservation
- DDNS:
- Comex
- NO-IP
- DynDNS
- Management:
- Tether App
- Webpage
TEST DATA:
- WiFi Transmission Power: CE: <20dBm(2.4GHz) <23dBm(5GHz)
- WiFi Reception Sensitivity:5 GHz:11a 54M: -76dBm; 11ac VHT20 MCS8: -71dBm;
- 11ac VHT40 MCS9: -66dBm; 11ac VHT80 MCS9:-62dBm
- 2.4 GHz: 11g 54M: -76dBm11n; HT20 MCS7: -73dBm;
- 11n HT40 MCS7: -71dBm
PHYSICAL:
- Dimensions (W×D×H): 9.1 × 5.7 × 1.4 in (230 × 144 × 35 mm)
- Warranty: 1year
