CPU Compatibility
-
Socket: LGA1700
-
Supported Processors: Intel 14th, 13th, and 12th Gen Core™, Pentium® Gold, and Celeron®.
-
Cache: L3 cache varies by CPU.
- Chipset
- Intel® H610 Express Chipset.
-
Memory
-
Type: DDR4 (3200/3000/2933/2666/2400/2133 MT/s).
-
Slots: 2 x DIMM sockets.
-
Max Capacity: Up to 64GB (32GB per slot).
-
Features:
- Dual-channel architecture.
- XMP support.
- ECC and non-ECC un-buffered DIMMs (ECC operates in non-ECC mode).
-
Graphics
- Integrated Graphics: Intel® HD Graphics (CPU-dependent).
-
Ports:
- 1 x D-Sub (1920x1200@60Hz).
- 1 x HDMI 2.1 (4096x2160@60Hz, HDCP 2.3).
-
Audio
- Realtek® Audio CODEC: High Definition Audio with 2/4/5.1/7.1-channel support.
-
Networking
- Intel® GbE LAN chip (1 Gbps).
-
Expansion Slots
- 1 x PCIe 4.0 x16 (graphics card).
- 1 x PCIe 3.0 x1.
-
Storage
-
M.2 Slot: 1 x PCIe 3.0 x4/x2 (Type 2260/2280).
-
SATA Ports: 4 x SATA 6Gb/s.
-
USB
- USB 3.2 Gen 1: 4 ports (2 rear, 2 internal).
- USB 2.0/1.1: 8 ports (4 rear, 4 internal).
-
Internal I/O Connectors
- 1 x 24-pin ATX power, 1 x 8-pin CPU power.
- 1 x M.2, 4 x SATA 6Gb/s.
- 2 x fan headers (1 CPU, 1 system).
- 1 x RGB LED header, TPM header, and front panel/audio headers.
-

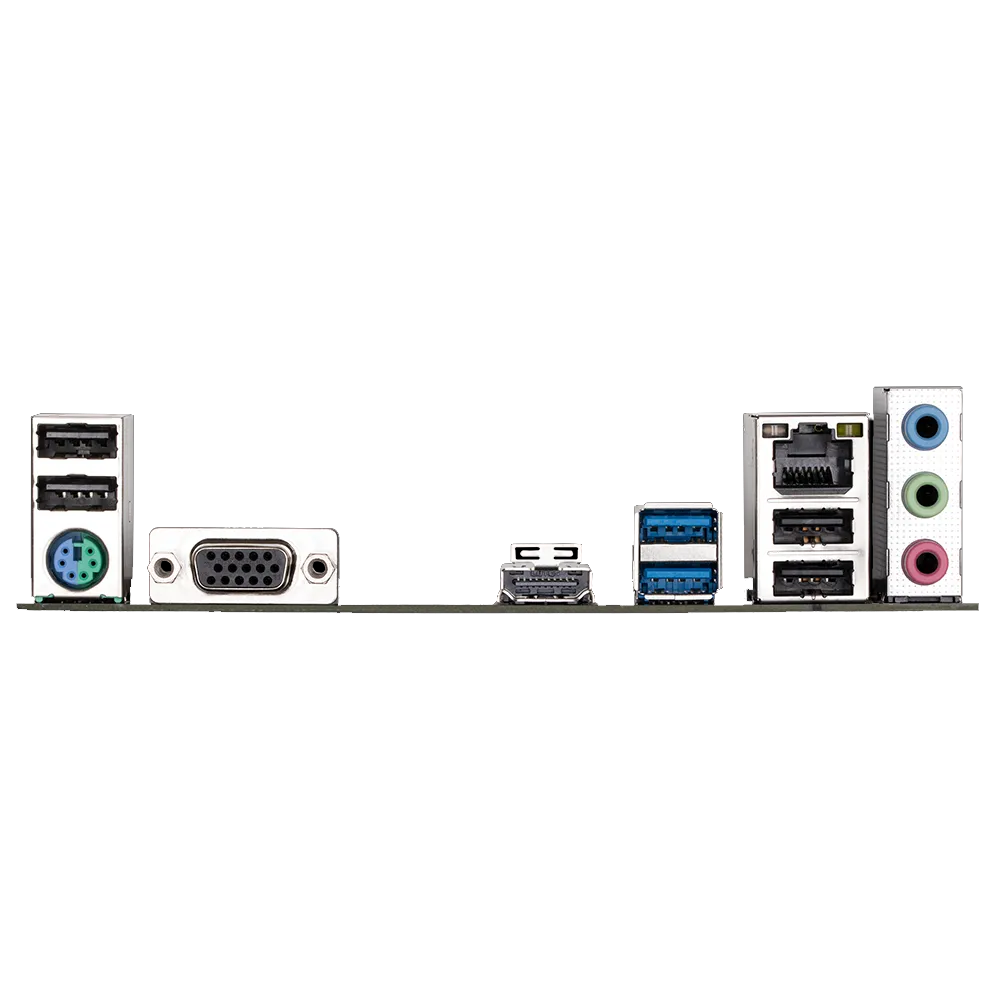

Back Panel Connectors
- 1 x PS/2 for keyboard/mouse.
- 1 x HDMI 2.0, 1 x D-Sub.
- 2 x USB 3.2 Gen 1, 4 x USB 2.0.
- 1 x RJ-45 LAN, 3 x audio jacks.
-
BIOS
- 256 Mbit flash with AMI UEFI BIOS.
-
Unique Features
- APP Center: @BIOS, EasyTune, Smart Backup, etc.
- Q-Flash for BIOS updates.
-
Form Factor
- Micro ATX (23.0cm x 21.5cm).
- Operating System Support
- Windows 10/11 (64-bit).
- warranty : 1 year
