Description

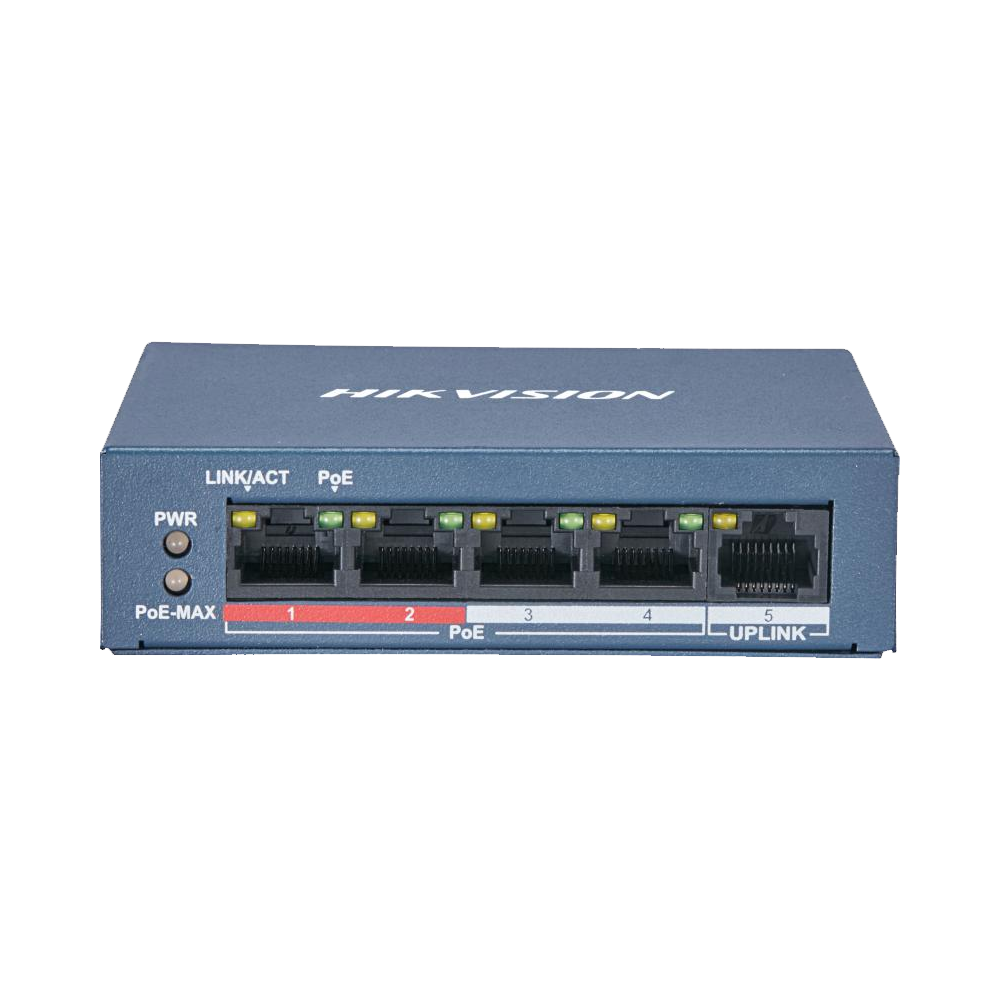

DS-3E0105P-E/M(B)
4 Port Fast Ethernet Unmanaged POE Switch
- Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.
- Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters.
- 4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables.
- 6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.
- Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.
Specifications
- Model :DS-3E0105P-E/M(B)
-
General
Shell : Metal material
Net Weight : 0.2 kg (0.4 lb)
Gross Weight : 0.48 kg (1.06 lb)
Dimensions (W × H × D): 105 mm × 27.6 mm × 83.1 mm (4.1'' × 1.1'' × 3.3'')
Operating Temperature :0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature: –40 °C to 85 °C (–40 °F to 185 °F)
Operating Humidity: 5% to 95% (no condensation)
Relative Humidity: 5% to 95% (no condensation)
Power Supply: 48 V DC, 0.8 A
Max. Power Consumption :38 W
Power Consumption in Idle: 3 W
Installation Mode : Desk-Mounted,Wall-Mounted
Surge Protection : 6 kV -
Network Parameters
Ports: 4 x 10/100 Mbps PoE port,1× 10/100 Mbps RJ45 port
MAC Address Table :2 K
Switching Capacity :1 Gbps
Packet Forwarding Rate: 0.74 Mpps
Internal Cache: 768 Kbits -
PoE Power Supply
PoE Standard: IEEE 802.3af;IEEE 802.3at
PoE Power: Pin 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port PoE: Ports 1 to 4
Max. Port Power: 30 W
PoE Power Budget :35 W -
Dialing Function: Long Range
Ports 1 to 4: up to 300 m. -
Long range: performance may vary depend on camera model or cable condition.
Approval
EMC
FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC
61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN
55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32:
2015) -
Safety UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second
Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) -
Chemistry
CE-RoHS (201165EU);
WEEE (201219EU);
Reach (Regulation (EC) No.19072006) - warranty : 1year
