Description

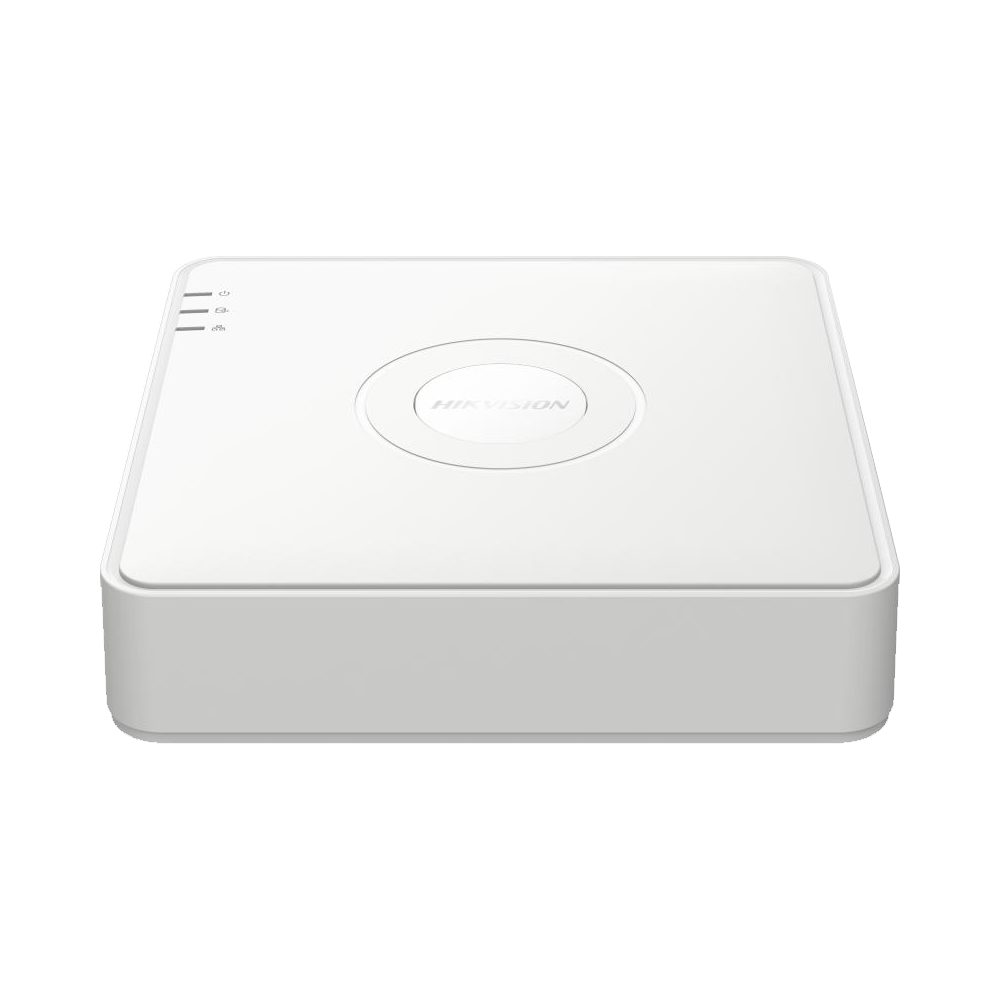

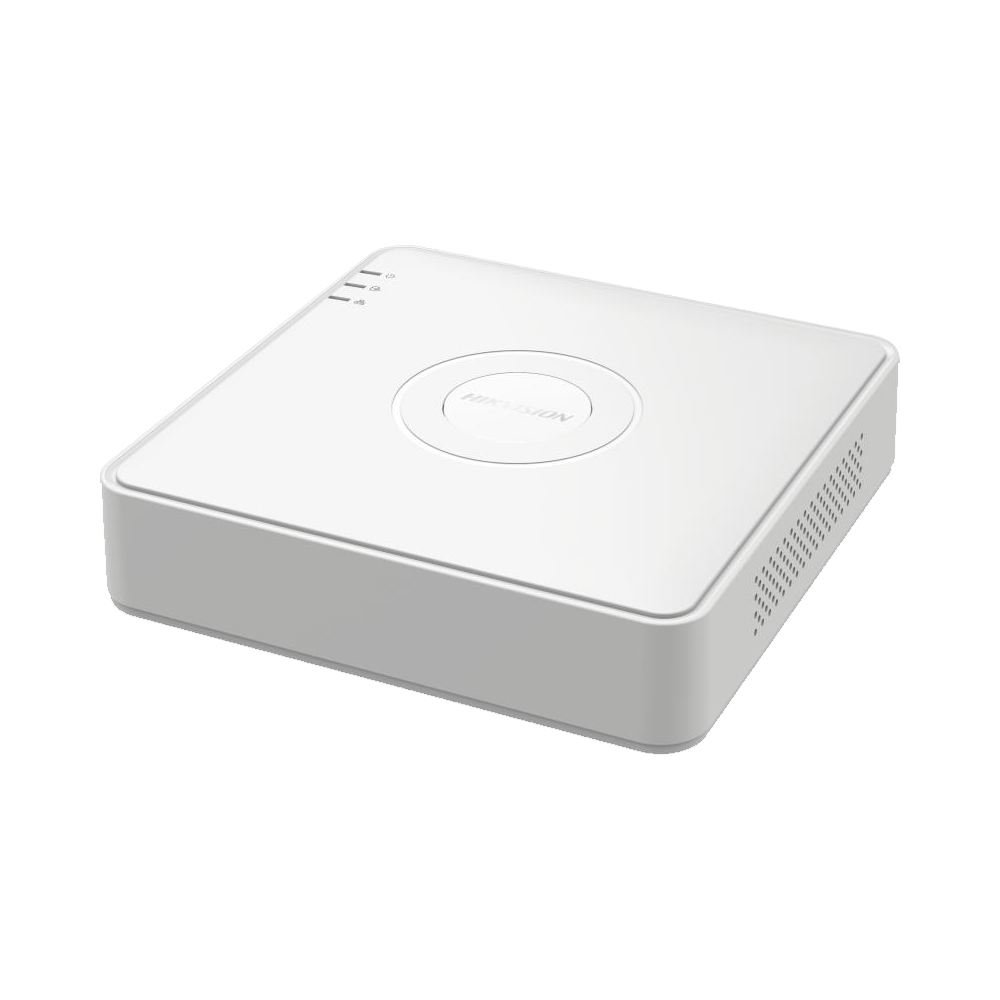

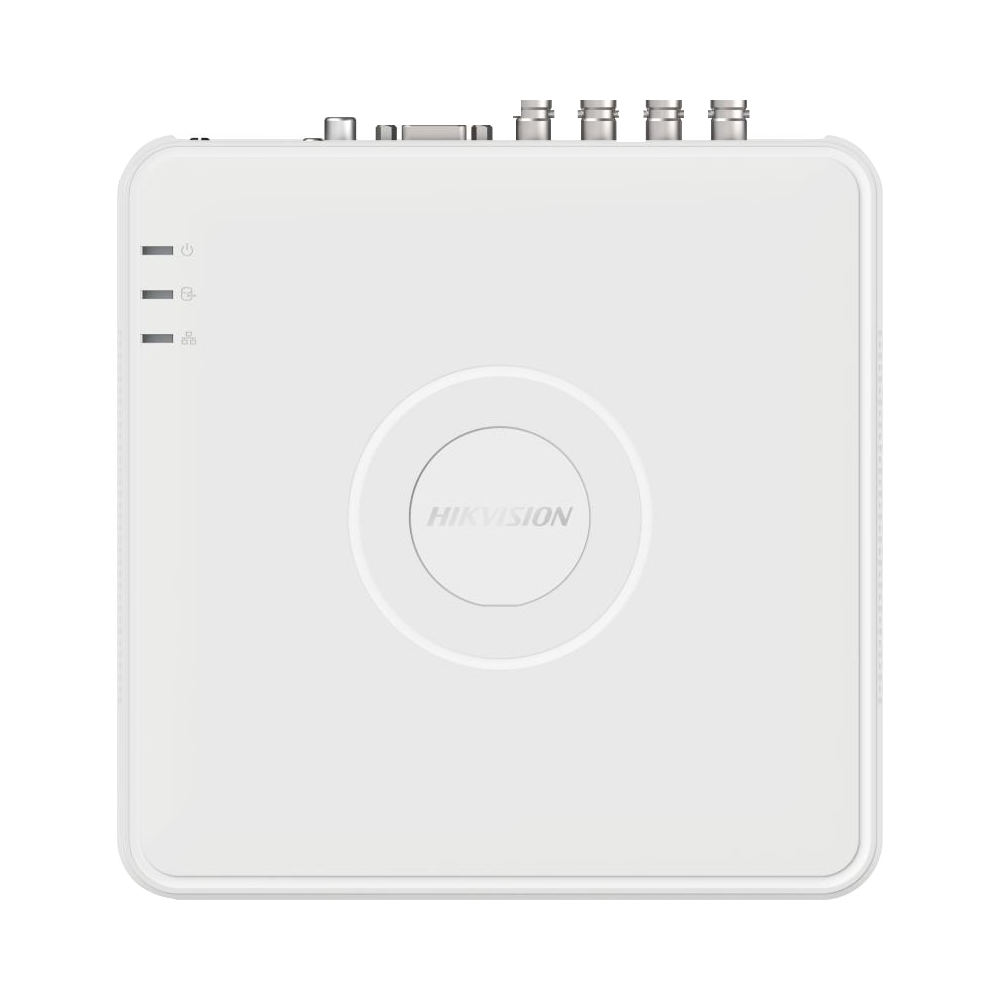

DS-7108HGHI-M1/T
8-ch 1080p Lite Mini 1U H.265 DVR
- Support all channels motion detection technology
- H.265 Pro+/H.265 Pro/H.265 video compression
- HDTVI/CVI/AHD/IP/CVBS video inputs
- Audio over coaxial cable
- Support all channels HDTVI two-way audio technology
- Up to 10-ch IP camera inputs
Specification
-
Motion Detection 2.0
Human/Vehicle Analysis :Deep learning based motion detection 2.0 is enabled by default for all analog channels,
it can classify human and vehicle, and extremely reduce false alarms caused by objects
like leaves and lights;
Quick search by object or event type is supported; - Video and Audio
-
IP Video Input
2-ch (up to 10-ch)
Up to 5MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras -
Analog Video Input
8-ch

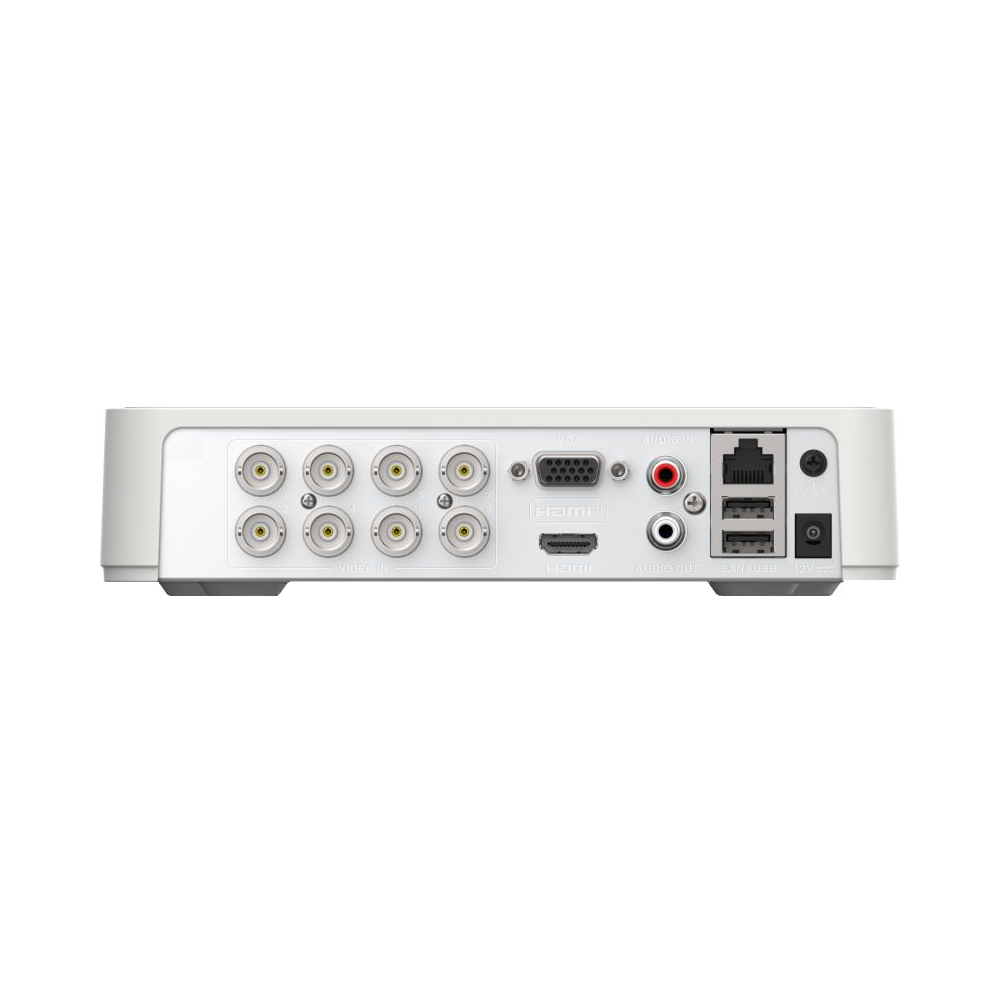

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection - HDTVI Input 1080p25, 1080p30, 720p25, 720p30
- AHD Input 1080p25, 1080p30, 720p25, 720p30
- HDCVI Input 1080p25, 1080p30, 720p25, 720p30
- CVBS Input Support
- HDMI Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- VGA Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- Video Output Mode HDMI/VGA simultaneous output
-
Audio Input
1-ch RCA (2.0 Vp-p, 1 KΩ)
8-ch via coaxial cable -
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio Reuse the first audio input - Synchronous playback 8-ch
- Recording
- Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
-
Encoding Resolution
For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
For 720p stream access: 720p/WD1/4CIF/VGA/CIF
For SD stream access: WD1/4CIF/VGA/CIF - Frame Rate
-
Main stream:
For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps
For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps
For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) -
Sub-stream:
For 1080p and 720p stream access CIF/QVGA@15 fps
For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)
Video Bitrate 32 Kbps to 4 Mbps
Stream Type Video, Video & Audio
Audio Compression G.711u
Audio Bitrate 64 Kbps -
Network
Total Bandwidth 72 Mbps
Remote Connection 64
Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™, HTTPS
Network Interface 1, RJ45 10/100 Mbps self-adaptive Ethernet interface -
Auxiliary Interface
SATA 1 SATA interface
Capacity Up to 4 TB capacity for each disk
USB Interface Rear panel: 2 × USB 2.0
Alarm In/Out N/A -
General
Power Supply 12 VDC, 1.5 A
Consumption ≤ 10 W (without HDD)
Working Temperature -10 °C to 55 °C (14 °F to +131 °F)
Working Humidity 10% to 90%
Dimension (W × D × H) 200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch)
Weight ≤ 1 kg (without HDD, 2.2 lb.) - warranty : 1 year
