Description

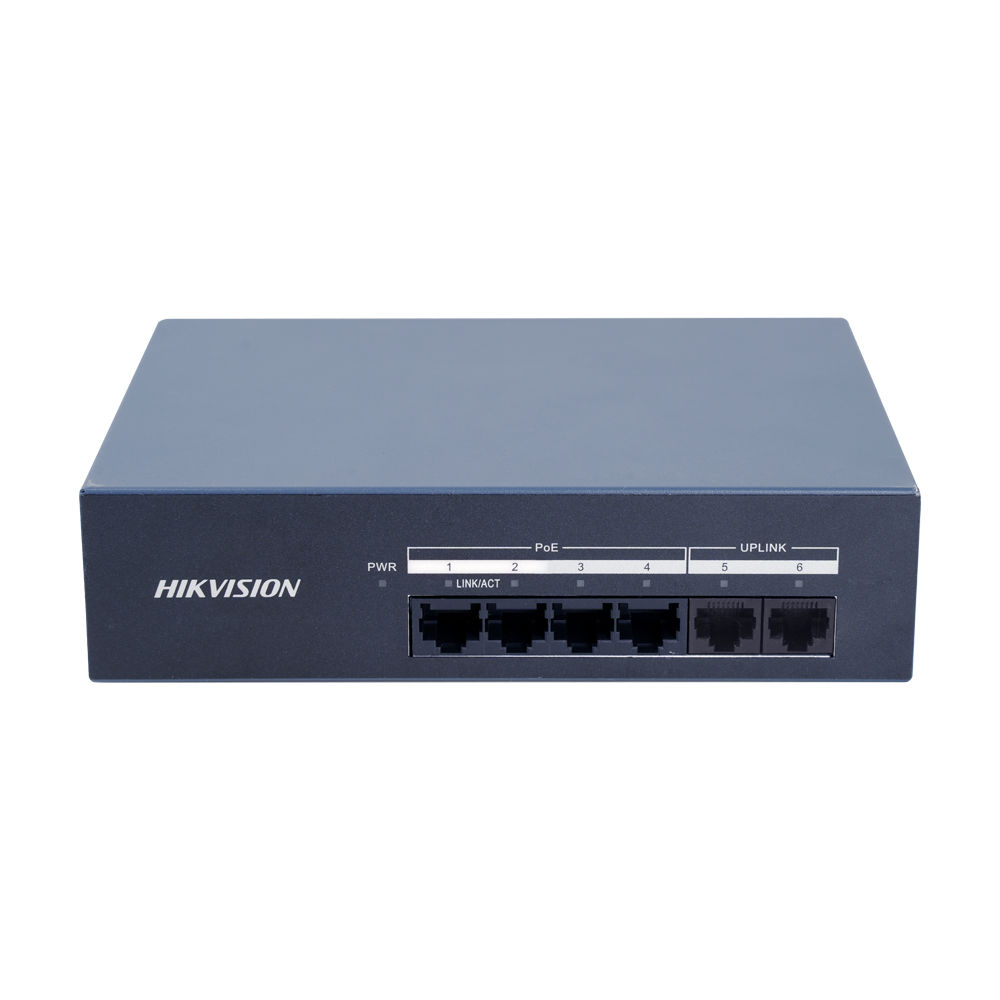

DS-XS06G-P
4 Port Gigabit Unmanaged POE Switch
- 4× 10/100/1000 Mbps PoE RJ45 port and 2 × 10/100/1000 Mbps RJ45 port
- Whole-device PoE power of 35 W
- Support up to 30 W power for a single port and 35 W for all ports
- Support desktop placement or wall-mounted installation
- Plug and Play
Specifications
- General
- Shell Metal
- Net Weight 0.54 kg (1.19 lb)
- Gross Weight 0.58 kg (1.28 lb)
- Dimensions (W × H × D)175.0 mm × 44.0 mm × 124.0 mm (6.89'' × 1.73'' × 4.88'')
- Operating Temperature :0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature :–40 °C to 85 °C (–40 °F to 185 °F)
- Operating Humidity :5% to 95% (no condensation)
- Relative Humidity: 5% to 95% (no condensation)
- Power Supply : 220 VAC, 50 Hz, 0.8 A
- Max. Power Consumption: 38 W
- Power Consumption in Idle: 3 W
- Installation Mode :Desk-Mounted,Wall-Mounted
- Surge Protection : 2 KV
- Network Parameters
- Ports :4 × Gigabit PoE port,2 × Gigabit RJ45 port
- MAC Address Table :2 K
- Switching Capacity :12 Gbps
- Packet Forwarding Rate :8.93 Mpps
- Internal Cache: 1 Mbits
- PoE Power Supply
- PoE StandardIEEE 802.3at,IEEE 802.3af
- PoE Power PinEnd-span: 1/2(-), 3/6(+)
- PoE PortPoE: Ports 1 to 4
- Max. Port Power30 W
- PoE Power Budget35 W
- Approval
- EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
- Safety CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
- Chemistry CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2018)
- warranty
