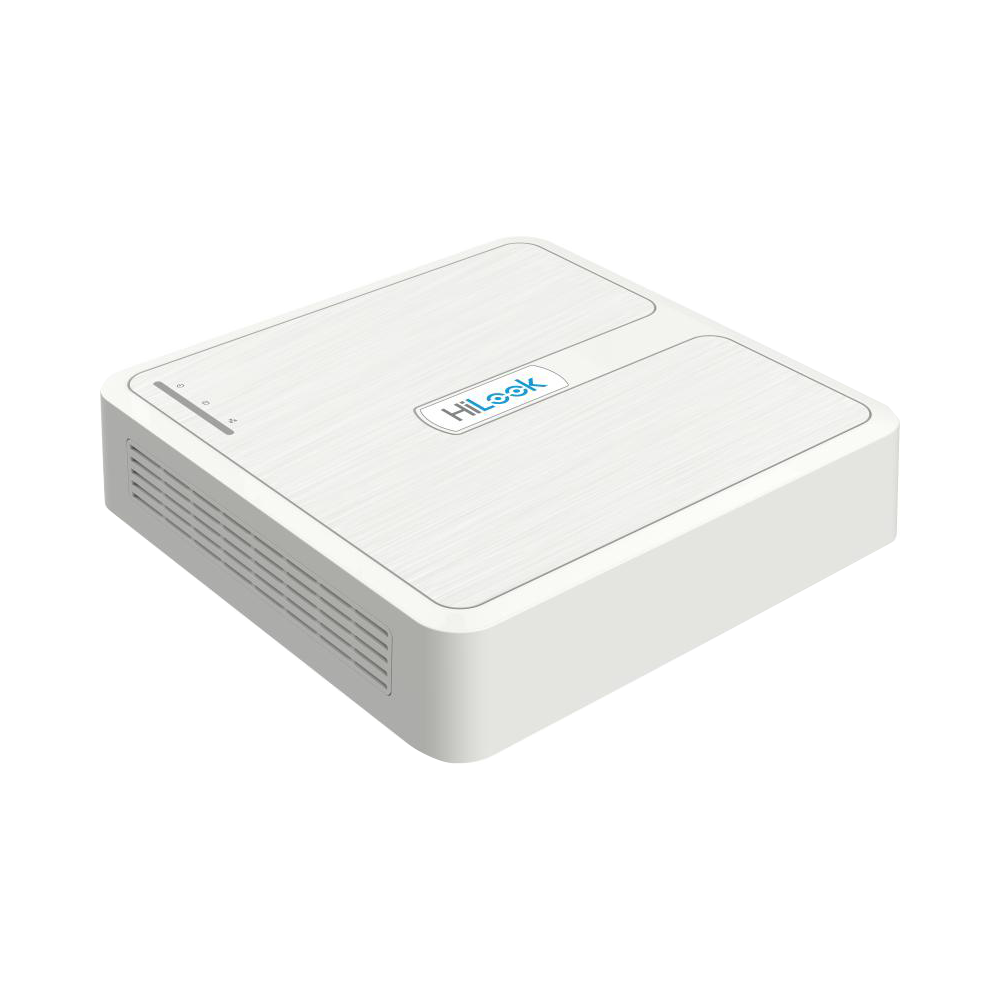

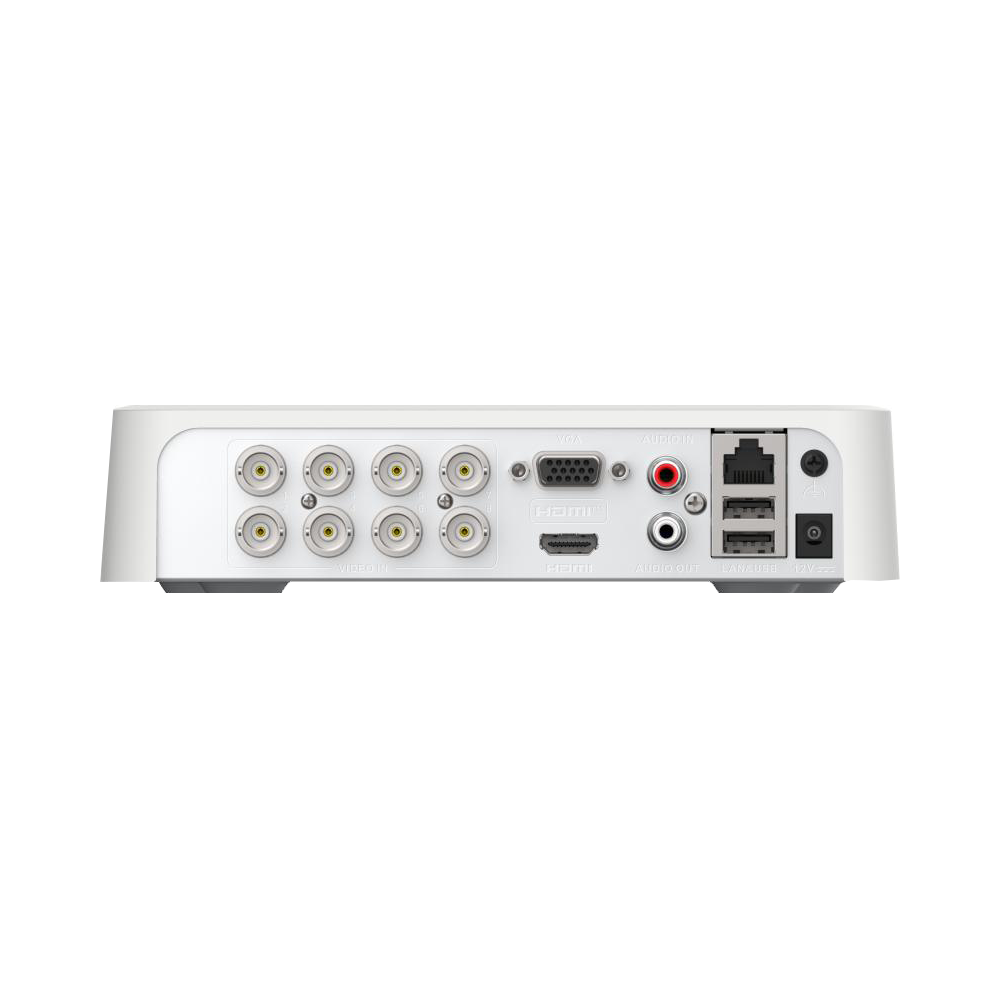

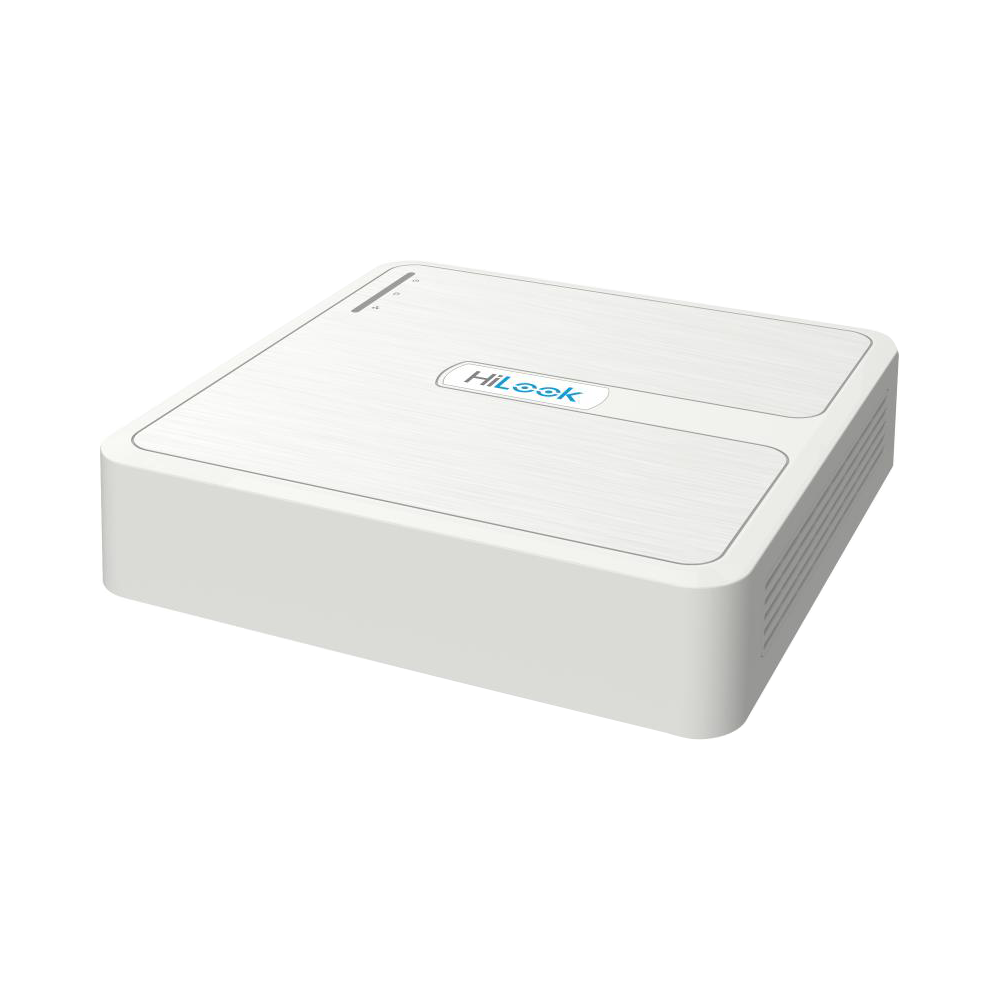

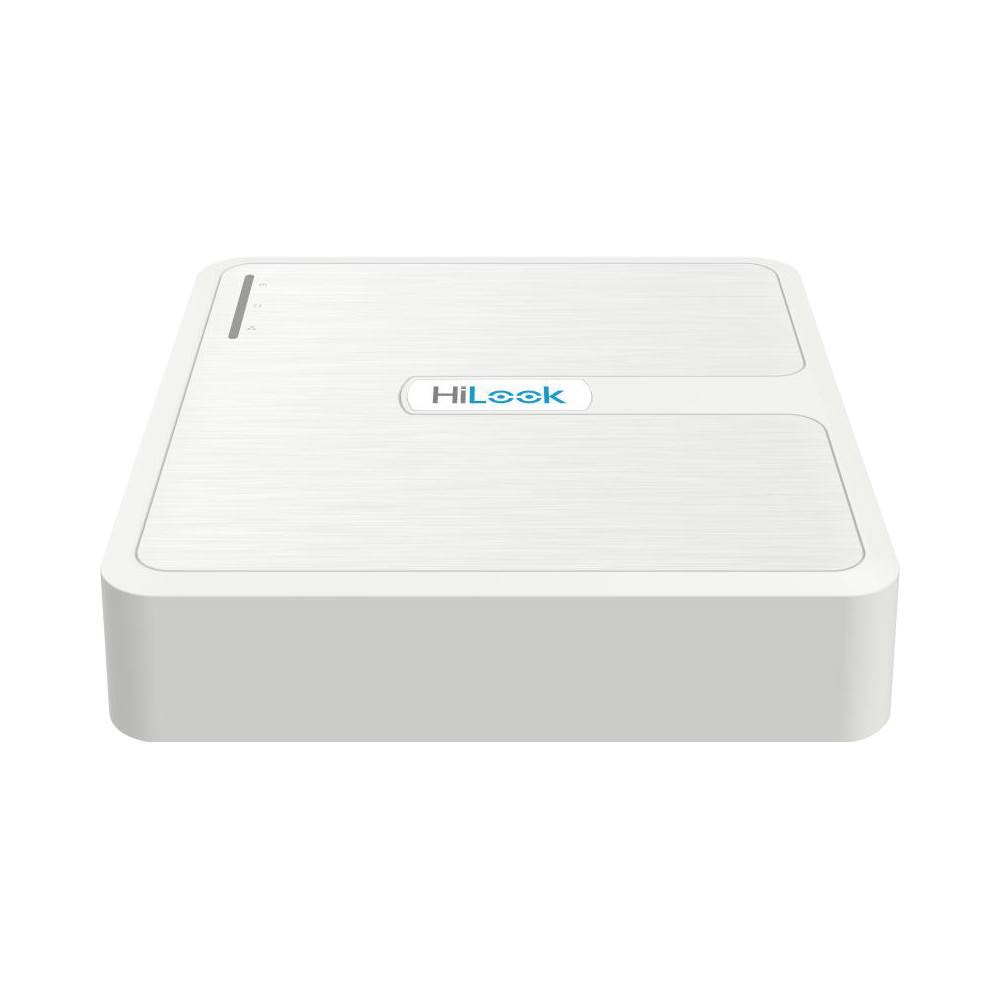

HiLook 108G-M1/T 1080p 8-Channel DVR

• Support all channels motion detection technology
• H.265 Pro+/H.265 Pro/H.265 video compression
• HDTVI/CVI/AHD/IP/CVBS video inputs
• Audio over coaxial cable
• Support all channels HDTVI two-way audio technology
• Up to 10-ch IP camera inputs

Specification

• Motion Detection 2.0
  Human/Vehicle Analysis
  Deep learning based motion detection 2.0 is enabled by default for all analog channels,
  it can classify human and vehicle, and extremely reduce false alarms caused by objects
  like leaves and lights;
  Quick search by object or event type is supported;
• Video and Audio
  IP Video Input
  2-ch (up to 10-ch)
  Up to 5MP resolution
  Support H.265+/H.265/H.264+/H.264 IP cameras
  Analog Video Input
  8-ch
  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  HDTVI Input 1080p25, 1080p30, 720p25, 720p30
  AHD Input 1080p25, 1080p30, 720p25, 720p30
  HDCVI Input 1080p25, 1080p30, 720p25, 720p30
  CVBS Input Support
  HDMI Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  VGA Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  Video Output Mode HDMI/VGA simultaneous output
  Audio Input
  1-ch RCA (2.0 Vp-p, 1 KΩ)
  8-ch via coaxial cable
  Audio Output 1-ch, RCA (Linear, 1 KΩ)
  Two-Way Audio Reuse the first audio input
  Synchronous playback 8-ch

• Recording
  Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  Encoding Resolution
  For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
  For 720p stream access: 720p/WD1/4CIF/VGA/CIF
  For SD stream access: WD1/4CIF/VGA/CIF
  Frame Rate
  Main stream:
  For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps
  For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps
  For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
  Sub-stream:
  For 1080p and 720p stream access CIF/QVGA@15 fps
  For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)
  Video Bitrate 32 Kbps to 4 Mbps
  Stream Type Video, Video & Audio
  Audio Compression G.711u
  Audio Bitrate 64 Kbps
• Network
  Total Bandwidth 72 Mbps
  Remote Connection 64
  Network Protocol TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS
  Network Interface 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
• Auxiliary Interface
  SATA 1 SATA interface
  Capacity Up to 4 TB capacity for each disk
  USB Interface Rear panel: 2 × USB 2.0
  Alarm In/Out N/A
• General
  Power Supply 12 VDC, 1.5 A
  Consumption ≤ 10 W (without HDD)
  Working Temperature -10 °C to 55 °C (14 °F to +131 °F)
  Working Humidity 10% to 90%
  Dimension (W × D × H) 200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch)
  Weight ≤ 1 kg (without HDD, 2.2 lb.)
• warranty : 1 year
