Description
Specifications
- Mic Sensitivity : -37 dBV ± 2dB @1 KHz, 94dB SPL
- Wireless Modulation Mode : GFSK 2 Mbps
- Wireless Transmission : 2.4 GHz Adaptive Frequency Hopping (AFH)
- Transmission Range
- Mobile Version: Up to 300m (1,000ft) for LOS / 60m (200ft) for NLOS
- Camera Version: Up to 300m (1,000ft) for LOS / 40m (130ft) for NLOS
- Mic Polar Pattern :Omnidirectional
- Frequency Response :20 Hz – 20 kHz

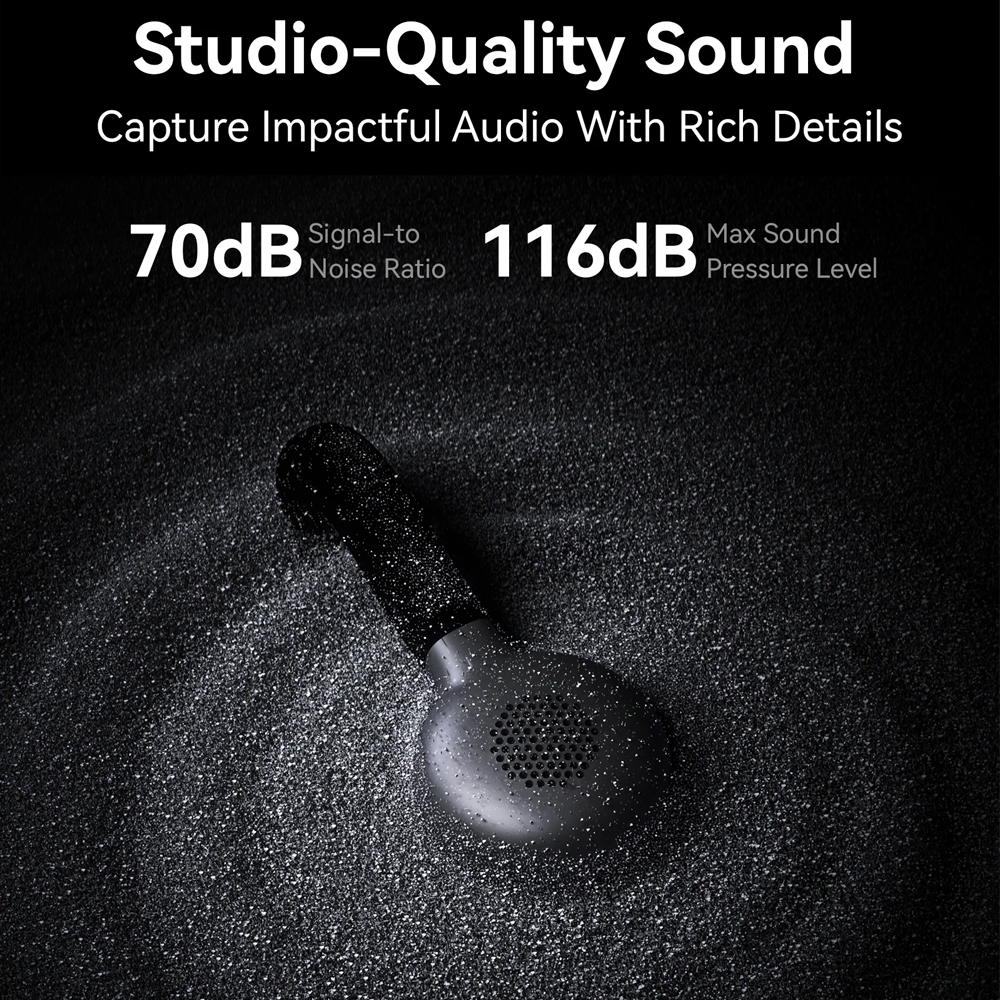

- Signal-to-Noise Ratio : > 70dB
- Max Sound Pressure Level :116dB SPL
- Sample Rate and Bit Depth : 48 kHz, 24-bit
- Battery Voltage
- TX: 3.87V
- Camera Version RX: 3.87V
- Mobile Version Charging Case: 3.8V
- Combo Version Charging Case: 3.8V
- Battery Capacity
- TX: 85 mAh
- Camera Version RX: 145 mAh
- Mobile Version Charging Case: 680 mAh
- Combo Version Charging Case: 1300 mAh
- Operating Time
- TX: Approx. 9 hours
- Camera Version RX: Approx. 8.5 hours
- Mobile Version Charging Case: > 2 times charging for 2 TX at the same time
- Combo Version Charging Case: > 2.5 times charging for all TX and RX at the same time
- Charging Time
- TX: Approx. 1 hour
- Camera Version RX: Approx. 1 hour
- Mobile Version Charging Case: < 1.5 hours
- Combo Version Charging Case: < 1.5 hours
- Charging Temperature : 0 ~ 45° C
- Operating Temperature : –10 ~ 45° C
- Dimensions
- TX: (Main Body – Front) 13 x 6.3mm (0.5″ x 0.2″) (Main Body – Rear) 24 x 9mm (0.9″ x 0.4″)
Mobile Version RX: Approx. 40 x 16.7 x 9mm (1.6″ x 0.7″ x 0.4″)
Camera Version RX: Approx. 40.5 x 25.5 x 13mm (1.6″ x 1.0″ x 0.5″) (excluding cold shoe)
Mobile Version Charging Case: Approx. 55.2 x 75 x 36.5mm (2.2″ x 3.0″ x 1.4″)
Combo Version Charging Case: Approx. 86 x 39 x 60.5mm (3.4″ x 1.5″ x 2.4″) - Weight
- TX: Approx. 7g (0.25oz)
- Mobile Version RX: Approx. 6g (0.21oz)
- Camera Version RX: Approx. 12g (0.42oz)
- Mobile Version Charging Case: Approx. 80g (2.82oz)
- Combo Version Charging Case: Approx. 110g (3.88oz)
- warranty : 3 months
