Description
MS116GS
16-Port Gigabit Desktop/Rackmount Switch

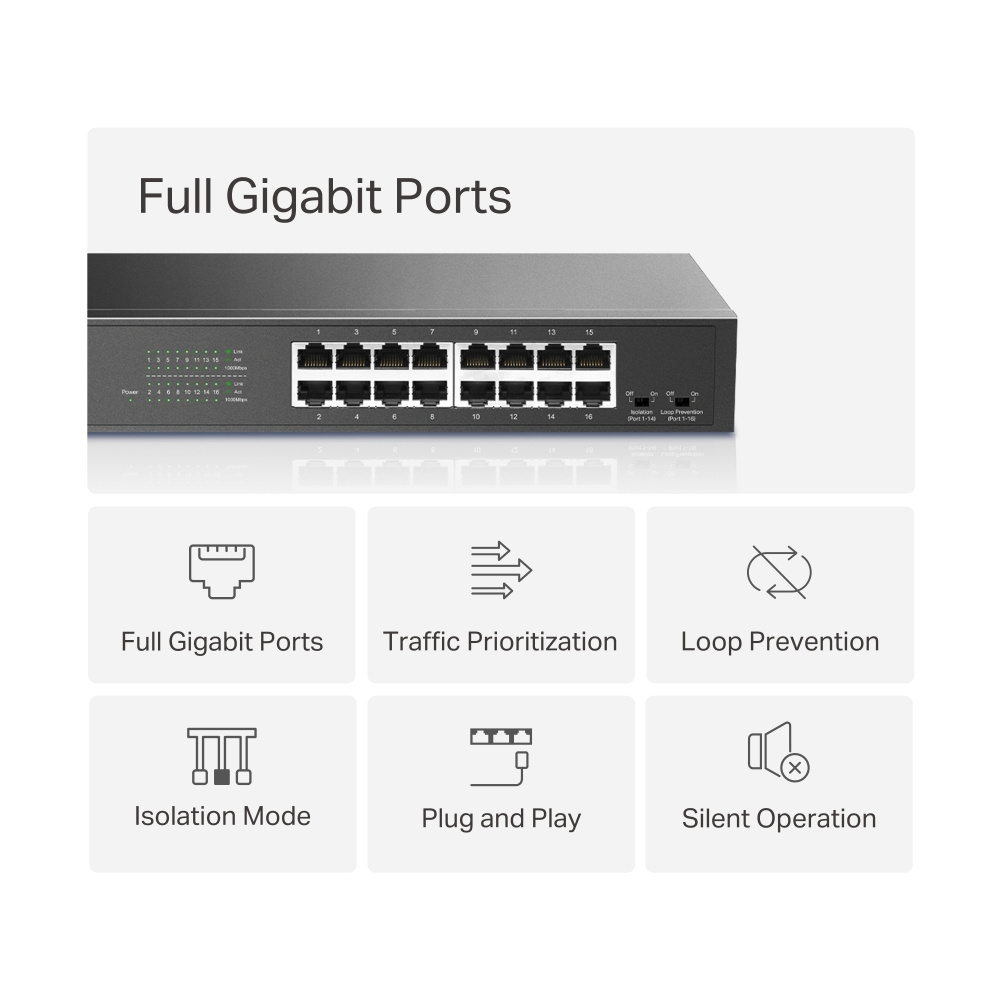

- Full Gigabit Ports: 16× 10/100/1000 Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
- Plug and Play: Simple to use and saves time and effort

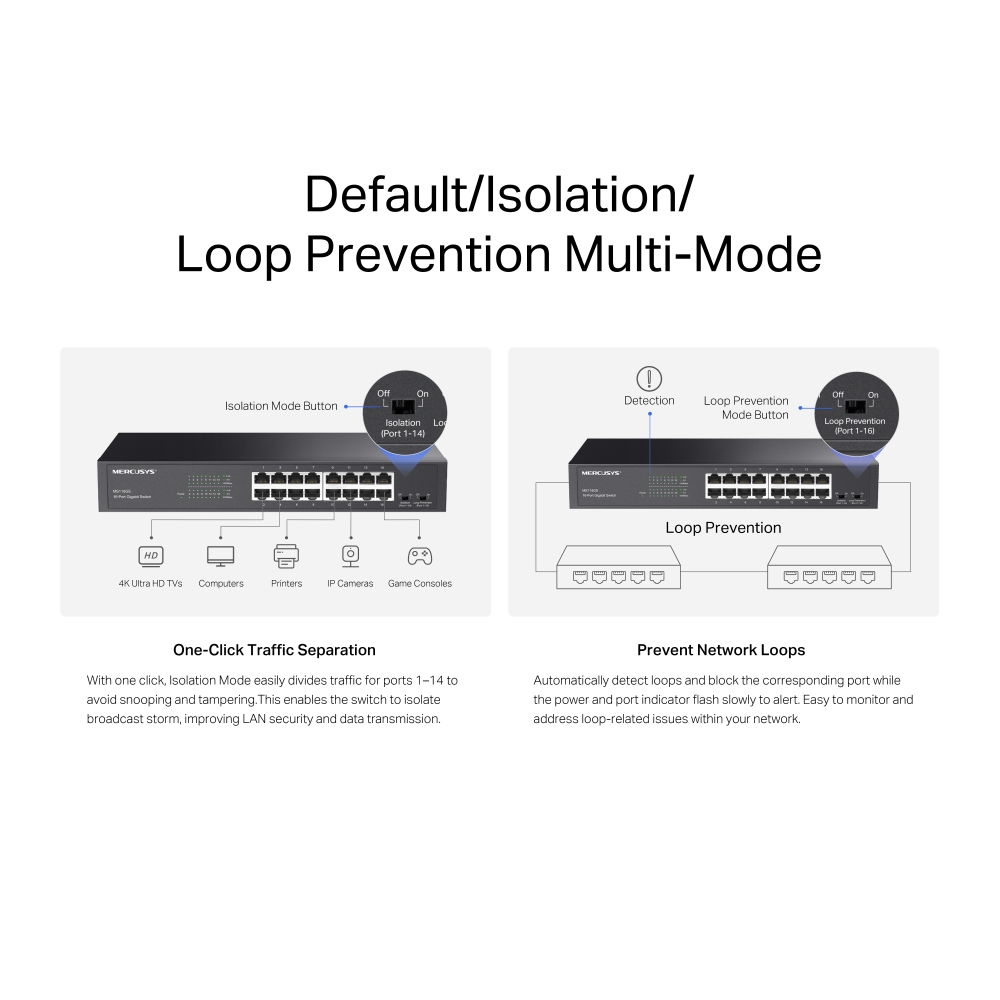

- Isolation Mode: Isolation Mode allows one-click client traffic separation for higher security and performance
- Loop Prevention: Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping
- Durable Metal Casing: Allows for efficient heat dissipation and long network life
Specifications
- HardwareStandards and Protocols :IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p
- Dimensions : 294*140*44mm (11.6*5.5*1.7 in)
- Interfaces :16×10/100/1000Mbps RJ45 Ports, Auto-Negotiation, Auto MDI/MDIX

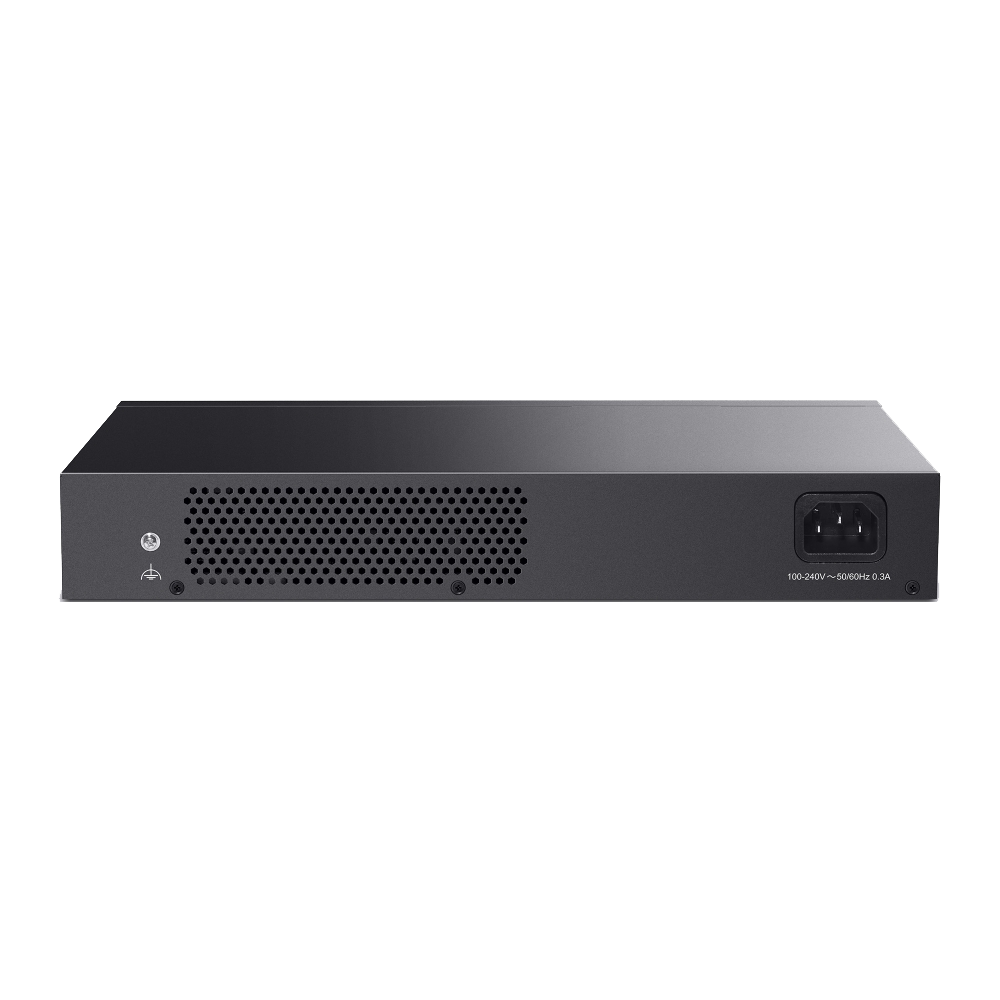

- External Power Supply :100-240VAC, 50/60Hz
- Switching Capacity :32 Gbps
- LED :Power, Link/Act, 1000Mbps
- MAC Address Table :8K
- SoftwareTransfer Method :Store and Forward
- Advanced Features : 802.3X Flow Control, 802.1P/DSCP QoS, Loop Prevention, Isolation
- OthersCertifications :CE, RoHS
- Environment
Operating Temperature: 0˚C to 40˚C (32˚F to 104˚F)
Storage Temperature: -40˚C to 70˚C (-40˚F to 158˚F)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing
