Description
features
- Dual Fan Two fans and a huge heatsink ensure a cool and quiet experience for you.
- TORX FAN 5.0 Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.

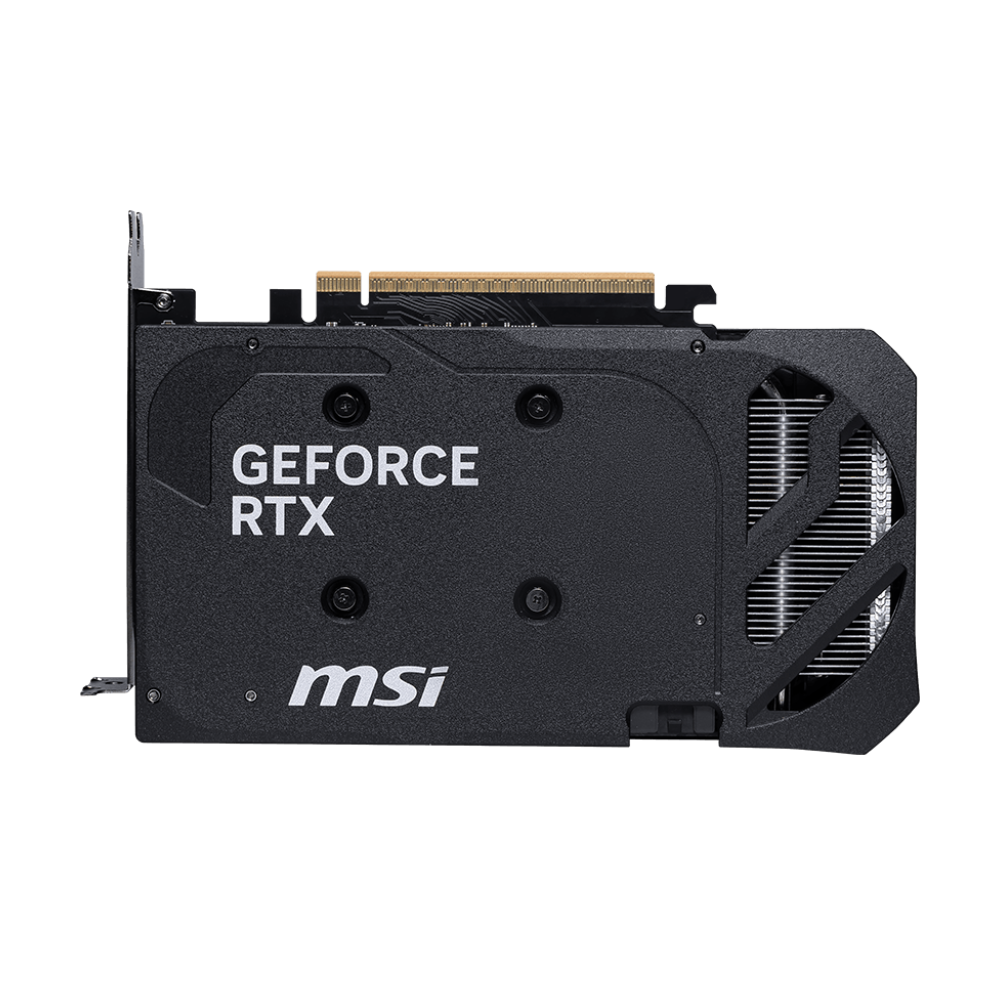

- Reinforcing Backplate The reinforcing backplate features a flow-through design that provides additional ventilation.
- Zero Frozr The fans completely stop when temperatures are relatively low, eliminating all noise.
- Fuse Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
- DrMOS DrMOS power stage solutions provide great efficiency with low power loss and enhanced voltage controls.
- MSI Center The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner Take full control with the most recognized and widely used graphics card overclocking software in the world.
Specifications

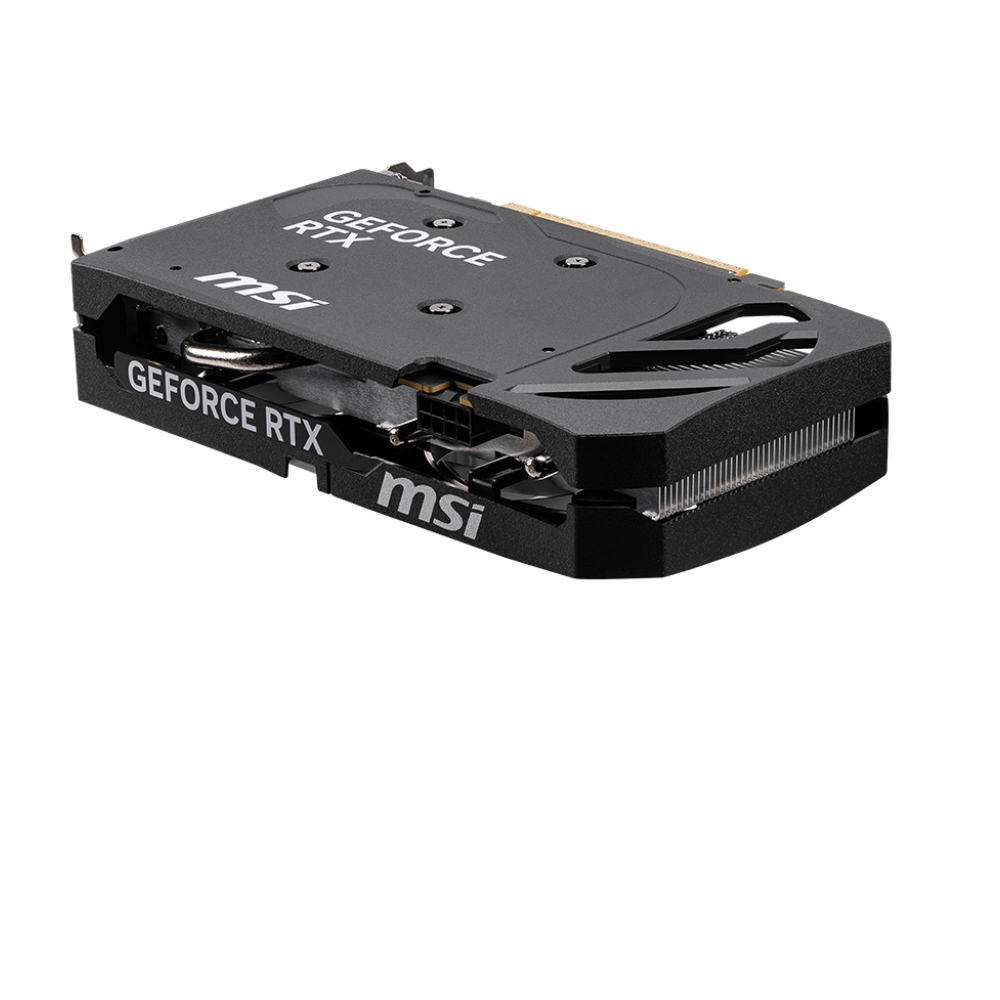

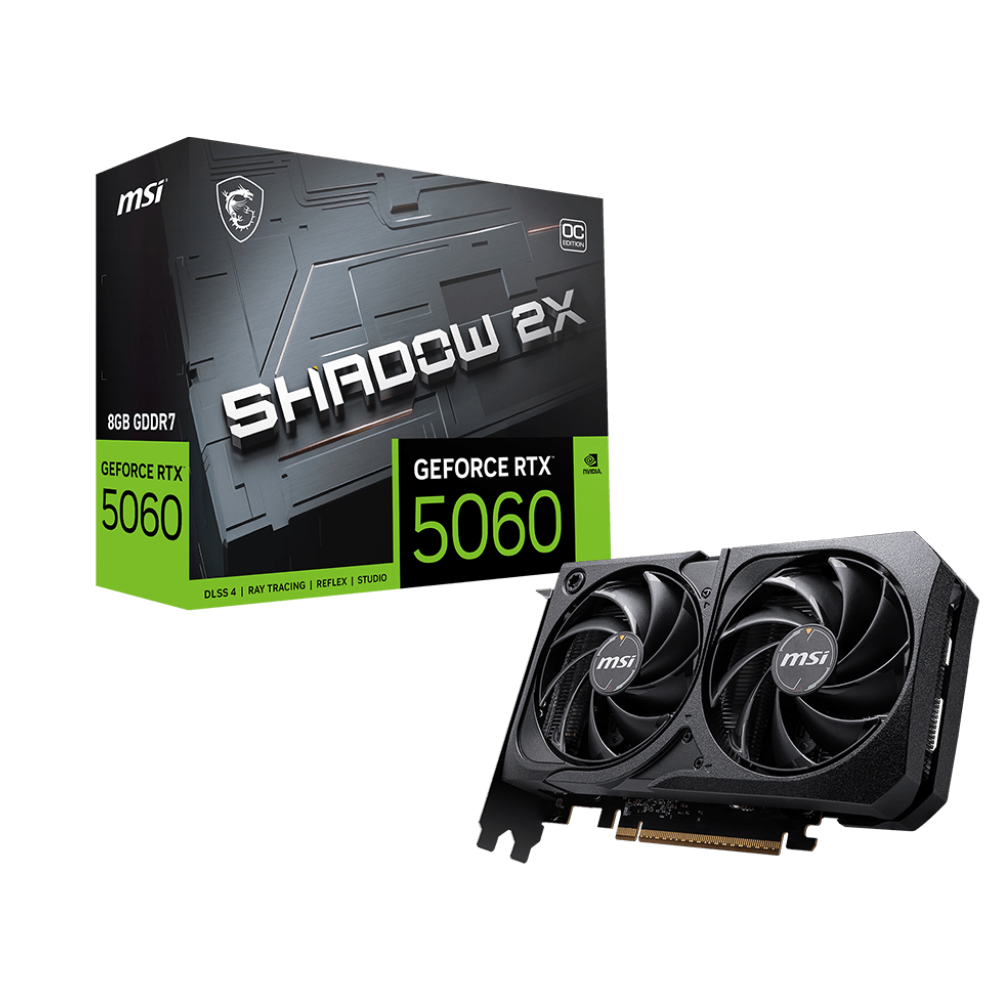

- Marketing Name GeForce RTX™ 5060 8G SHADOW 2X OC
- Model Name G5060-8S2C
- Graphics Processing Unit NVIDIA® GeForce RTX™ 5060
- Interface PCI Express® Gen 5 x16 (uses x8)
- Core Clocks
-
Extreme Performance: 2535 MHz (MSI
Center) Boost: 2527 MHz - CUDA® CORES 3840 Units
- Memory Speed 28 Gbps
- Memory 8GB GDDR7
- Memory Bus 128-bit
-

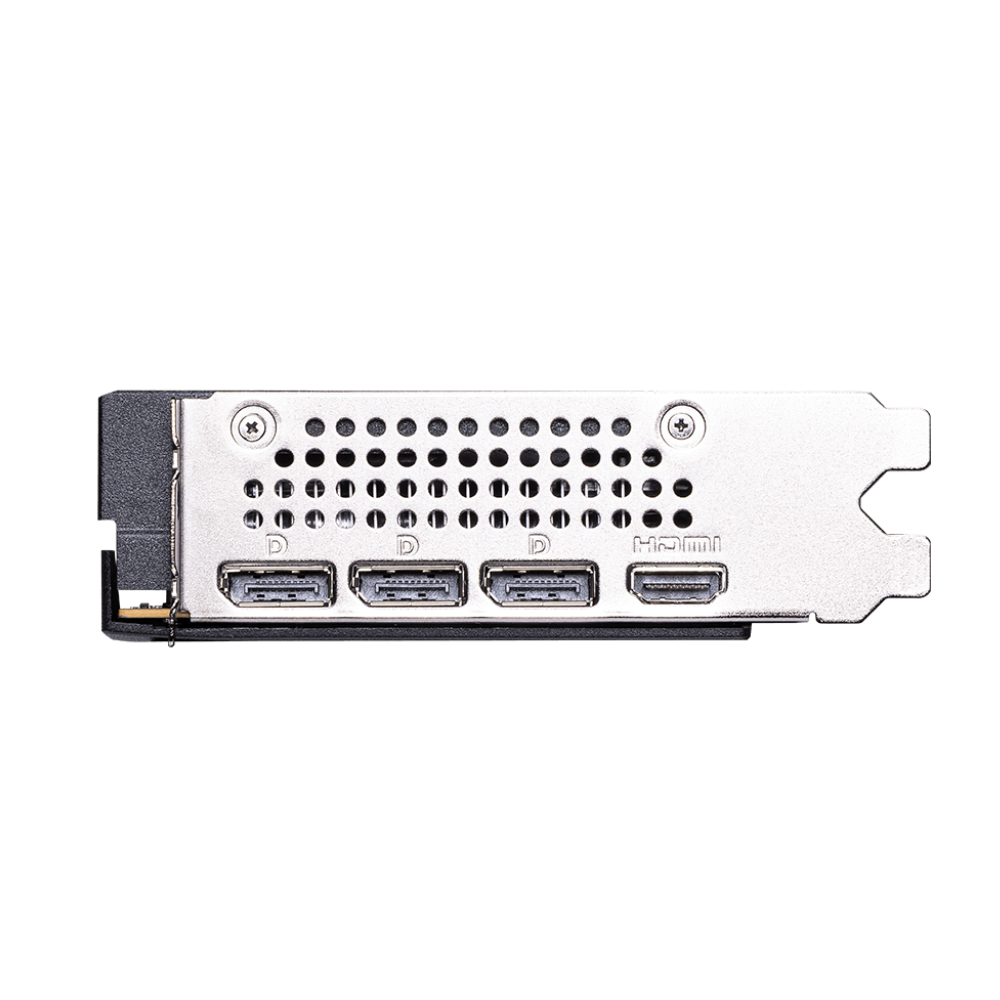

Output
DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up
to 4K 480Hz or 8K 120Hz with DSC, Gaming
VRR, HDR) - HDCP Support :Y
- Power consumption :145 W
- Power connectors: 8-pin x 1
- Recommended PSU: 550 W
- Card Dimension (mm) 197 x 120 x 40 mm
- Weight (Card / Package) 493 g / 814 g
- DirectX Version Support 12 Ultimate
- OpenGL Version Support 4.6
- Maximum Displays 4
- G-SYNC® technology Y
- Digital Maximum Resolution 7680 x 4320
- warranty : 1 year
