Description

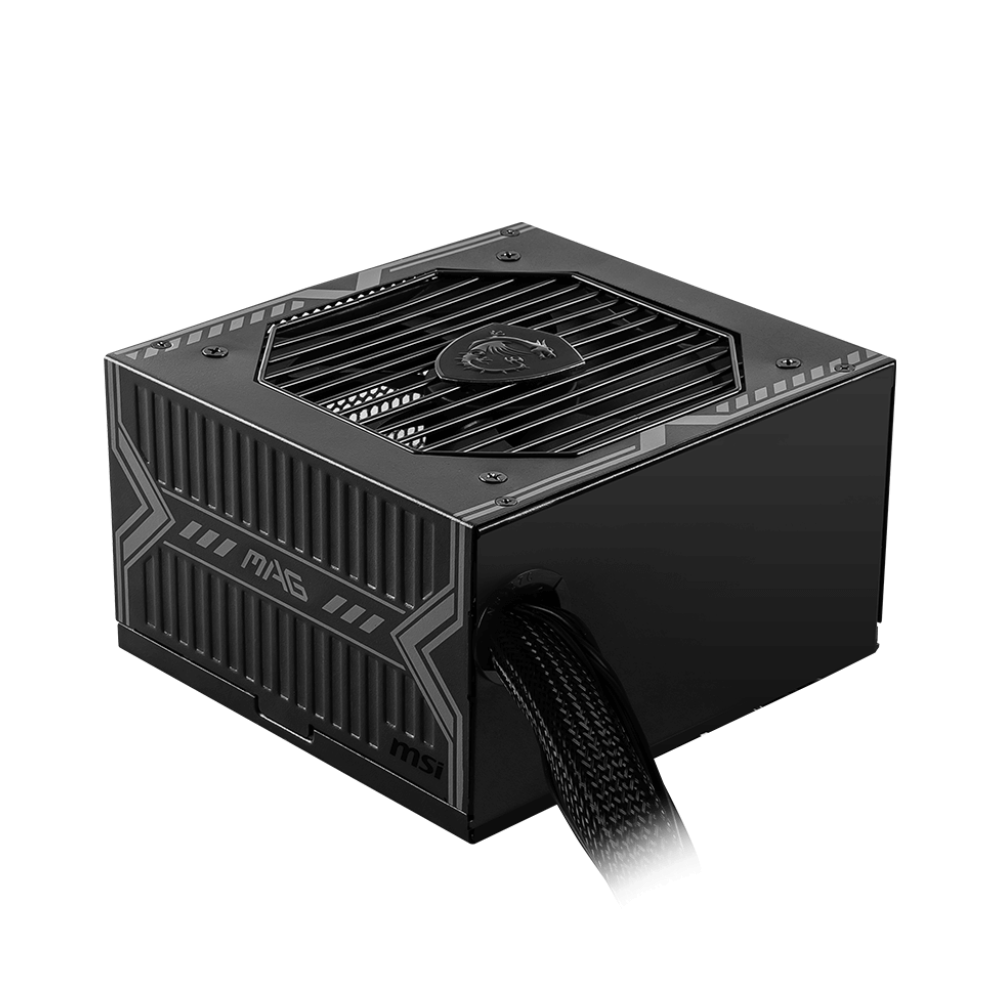

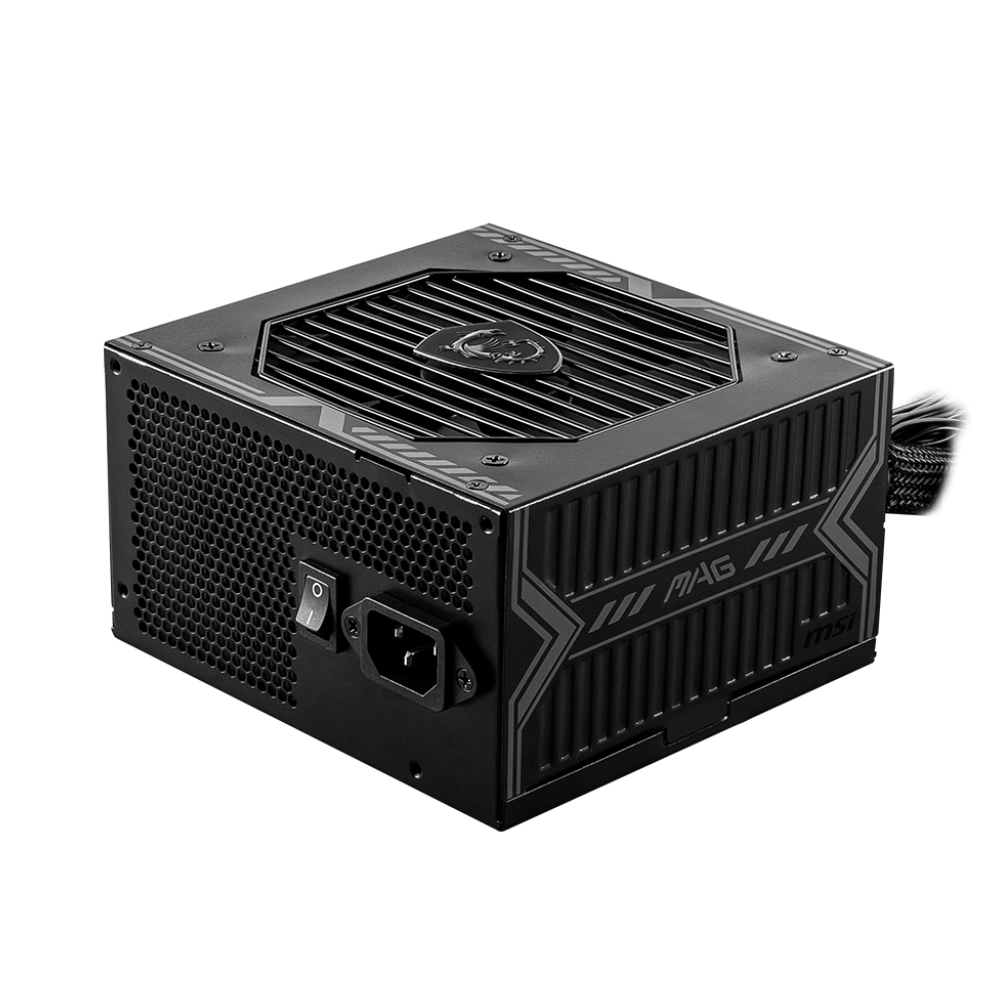

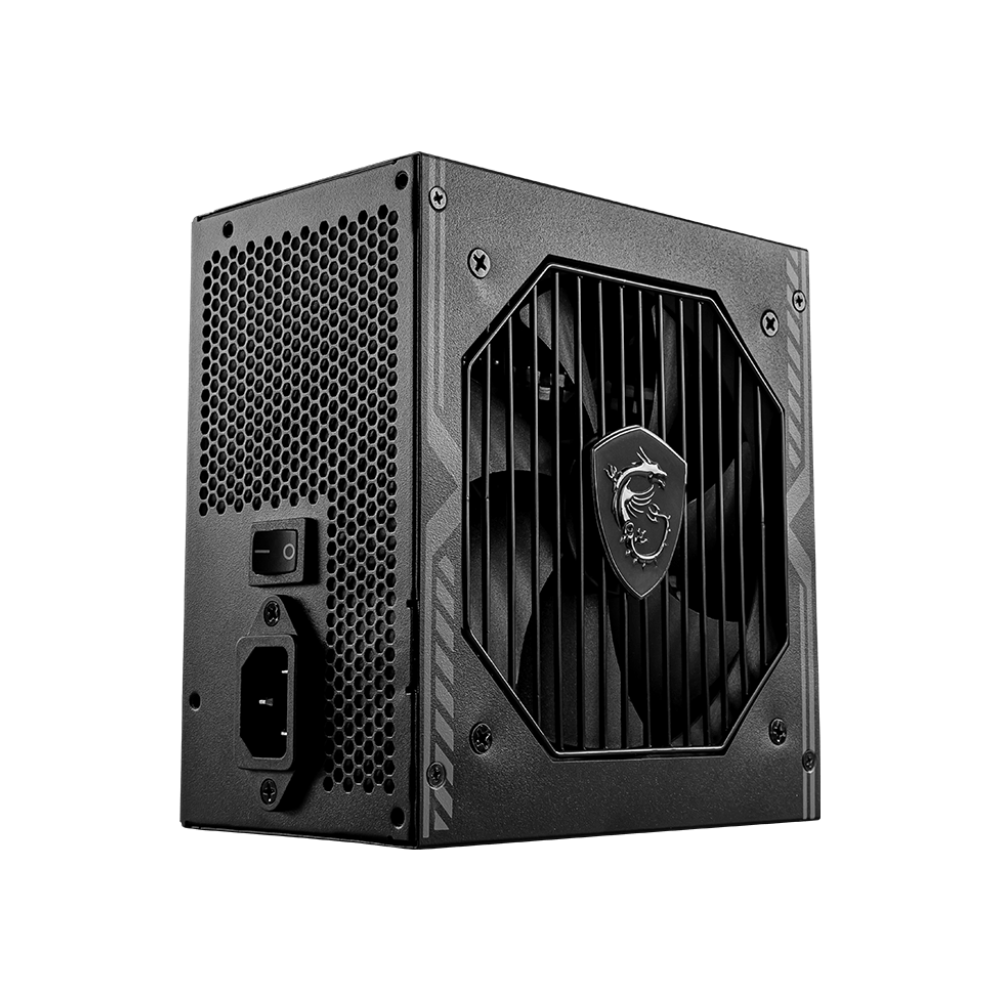

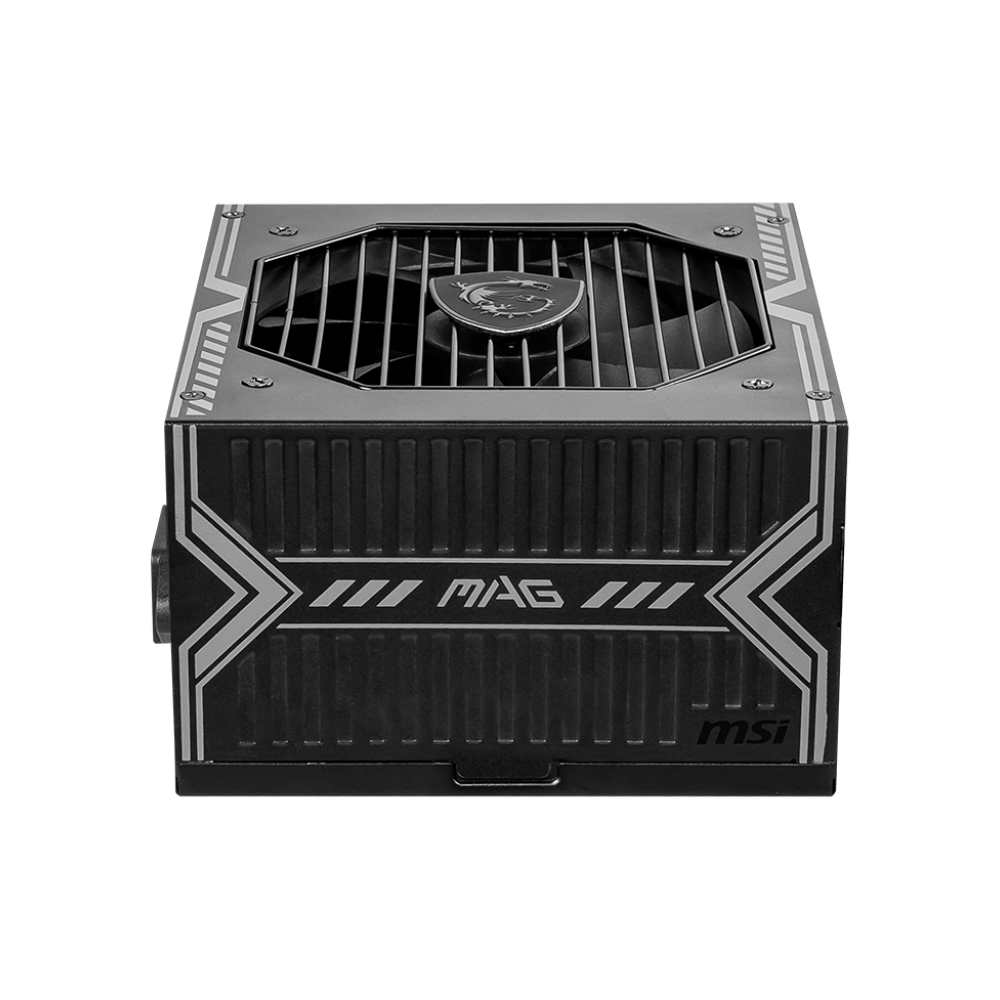

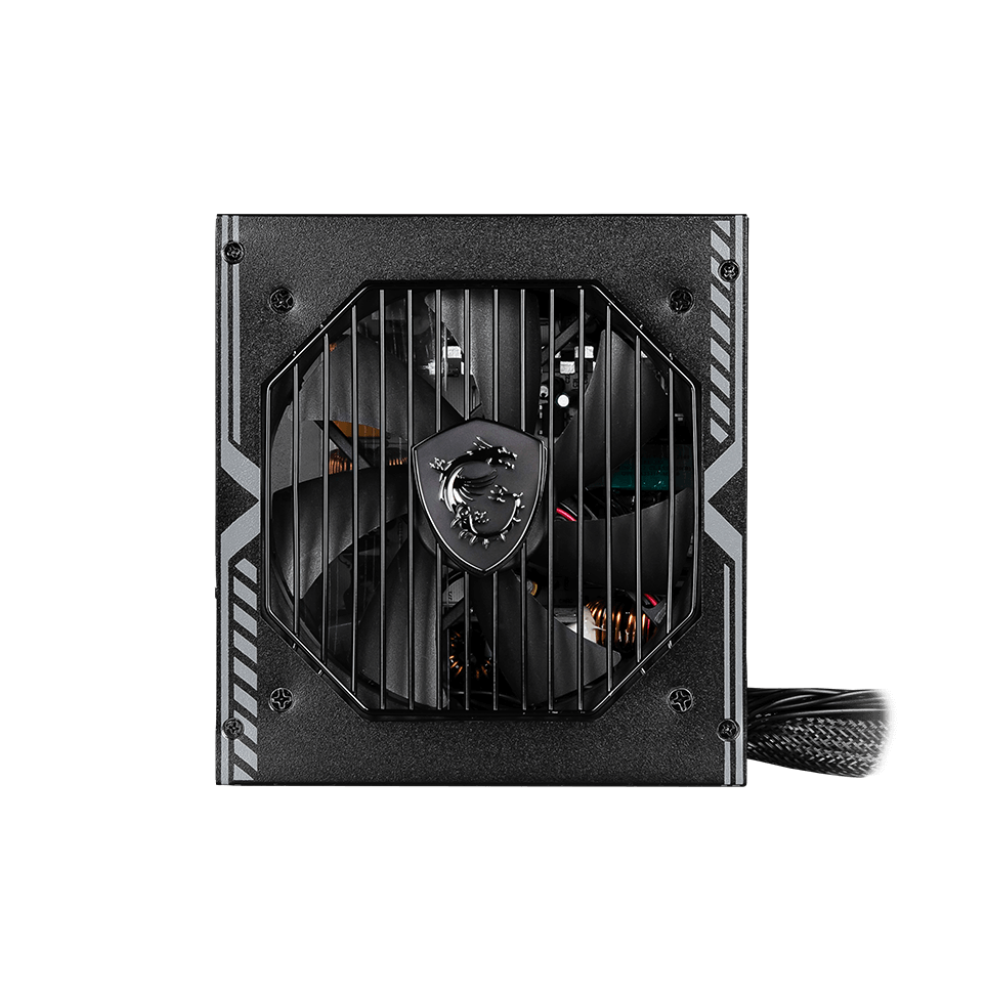

MAG A750BN PCIE5
- PCIe 5.0 Ready (300W)
- 120mm Fan
- DC to DC power Design
- Active PFC Design
- Industrial level protection with OVP, OCP,
SCP, OPP, OTP
Specifications
- Efficiency Rating: 80 PLUS Bronze (up to 85%)
- Modular : No
- Fan Size :120 mm
- Fan Bearing :Sleeve Bearing
- Dimensions (DxWxH) :140mm x 150mm x 86mm / 5.51 x 5.9 x 3.38 inches
- PFC Type : Active PFC
- Input Voltage Range :100-240~
- Power : Watt 750W
- Input Frequency Range : 50~60Hz
- Protection : OCP, OVP, OPP, OTP, SCP
- ATX (24 pin) :1
- EPS (4+4 pin) :2
- PCI-E 5.0 (16 pin) :1(300W)
- PCI-E (6+2 pin): 2
- SATA (15 pin) :5
- PERIPHERAL (4 pin) :2
- FDD (4 pin) :1
- warranty : 1 year
