Description
features
- Latest DDR5 Memory A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
-
Lightning Gen4 Solution The latest Gen4 PCI-E and M.2 solution with up to 64GB/s
bandwidth for maximum transfer speed. -
2.5G Network Solution Featuring premium 2.5G LAN to deliver better network
experience. - EZ Debug LED Easiest way to troubleshoot.
-
Frozr AI Cooling Detect CPU & GPU temperatures and automatically adjust system
fan duty to a proper value.
Memory Boost Advanced technology to deliver pure data signals for the best
performance, stability and compatibility. -
Core Boost
With premium layout and fully digital power design to support
more cores and provide better performance.
Specifications

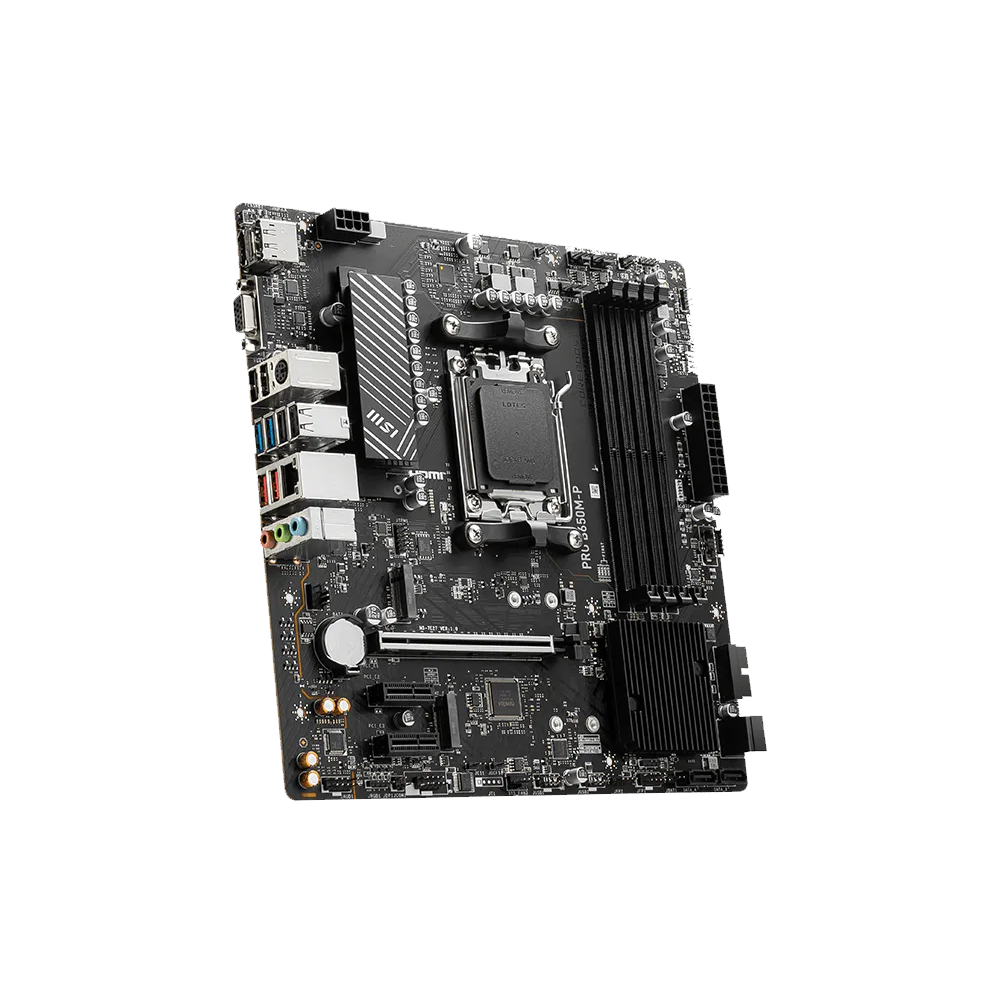

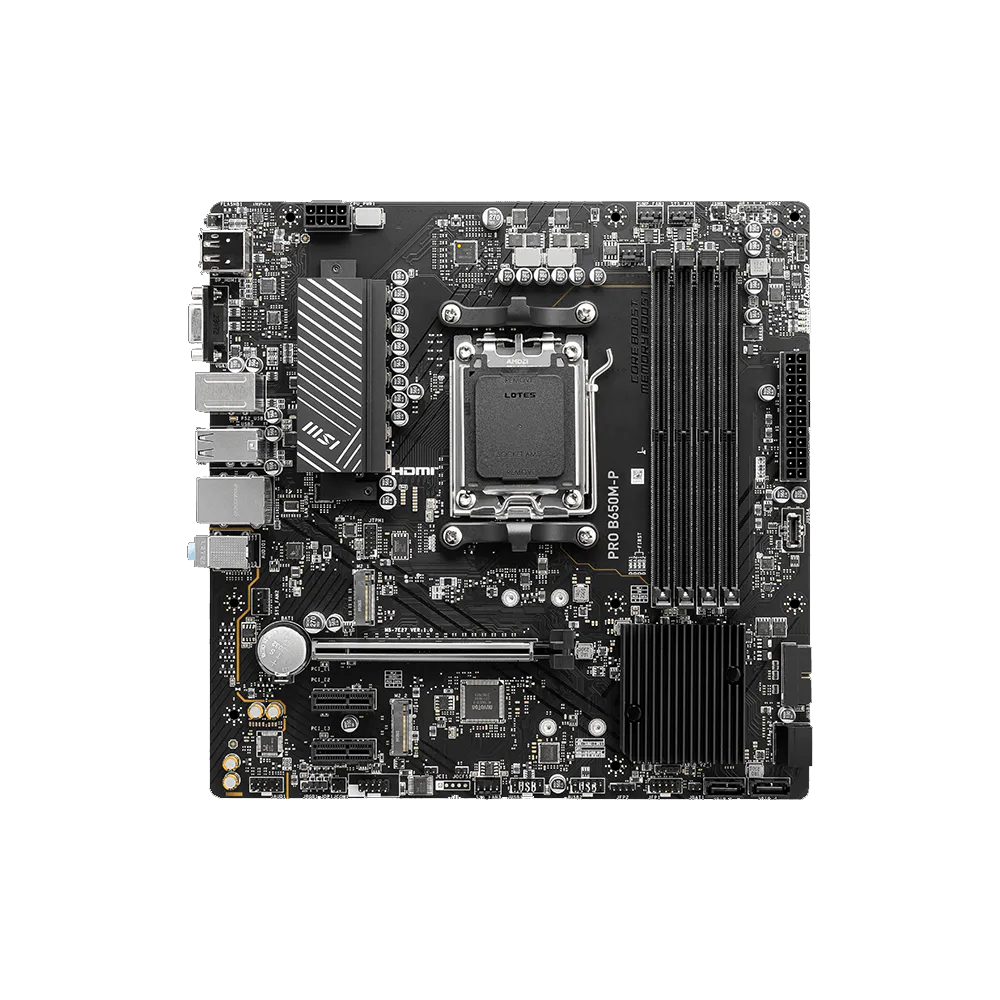

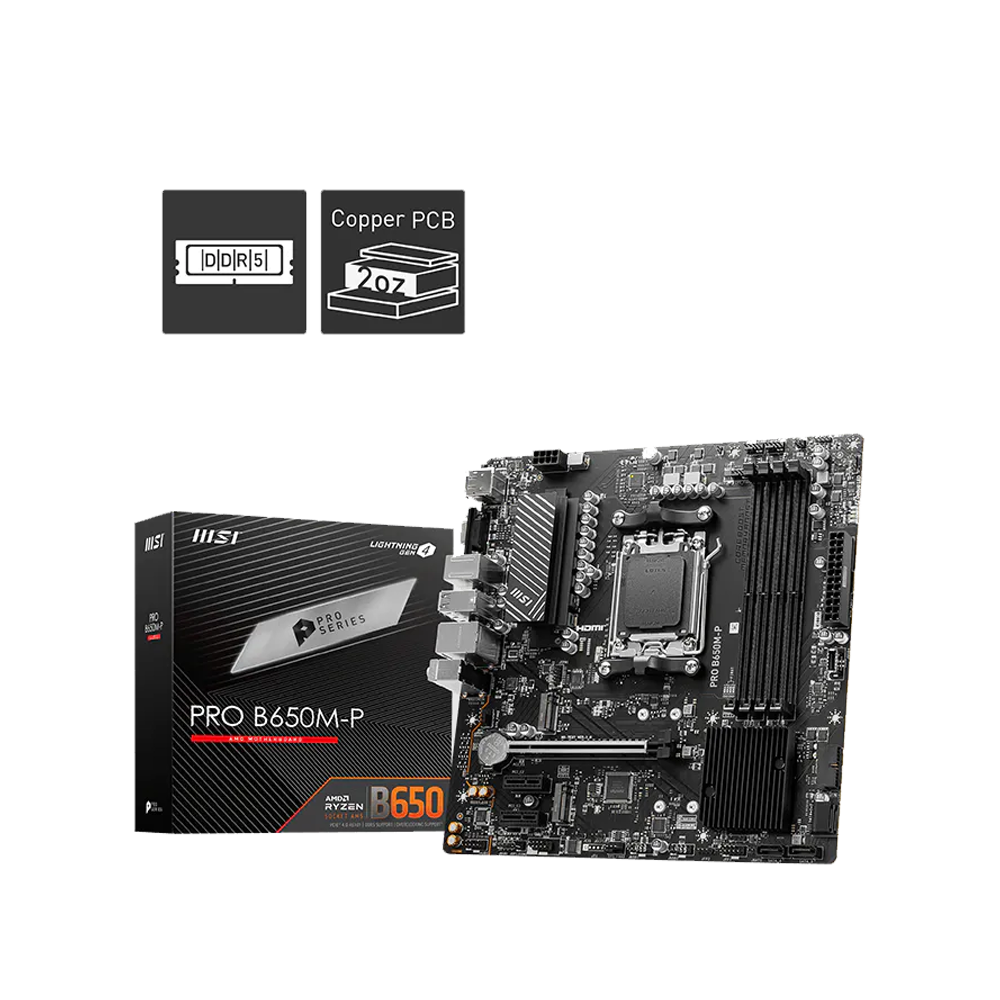

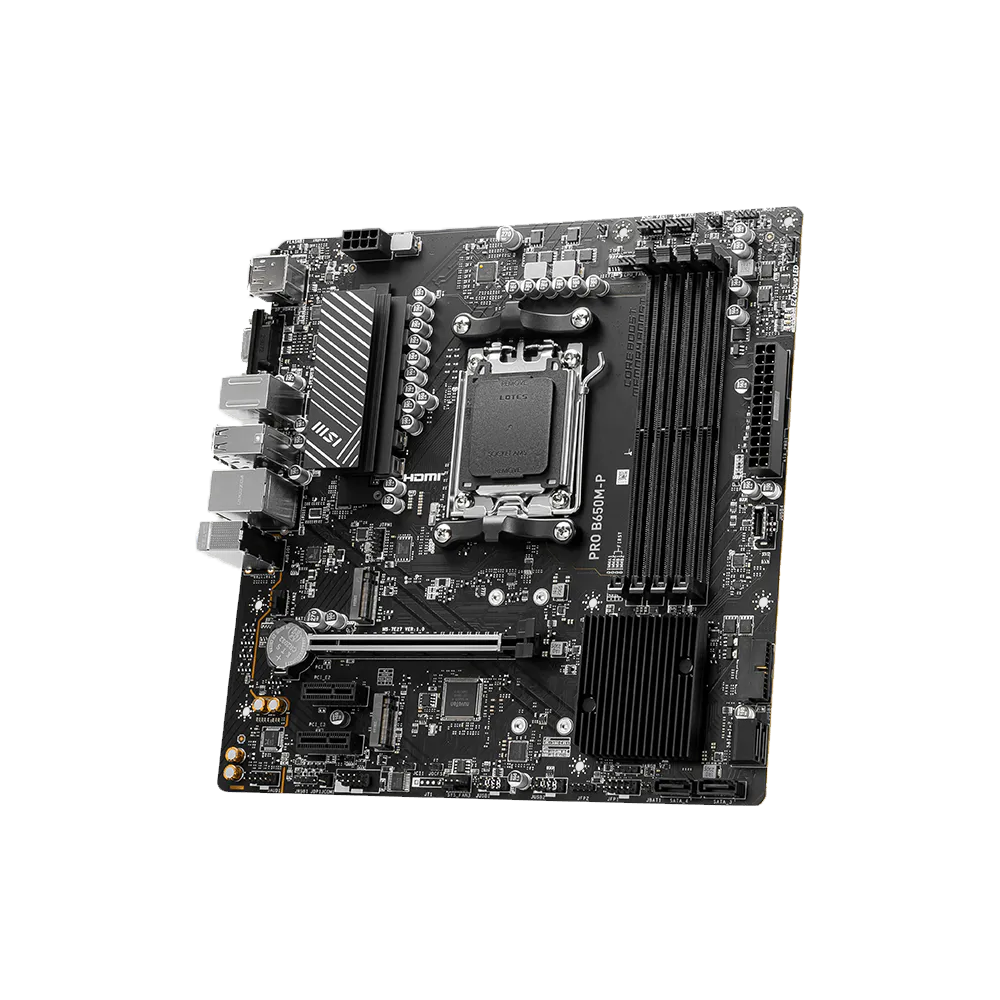

- Model Name PRO B650M-P
-
CPU Support Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop
Processors - CPU Socket Socket AM5
- Chipset AMD B650 Chipset
-
Expansion Slots 1x PCIe 4.0 x16 slot
2x PCIe 3.0 x1 slots -
Display Interface Support 4K@60Hz as specified in HDMI™ 2.1, DisplayPort
1.4, VGA – Requires Processor Graphics - Memory Support 4 DIMMs, Dual Channel DDR5-7200+MHz (OC)
-
Storage 2x M.2 Gen4 x4 64Gbps slots
4x SATA 6Gbps ports -

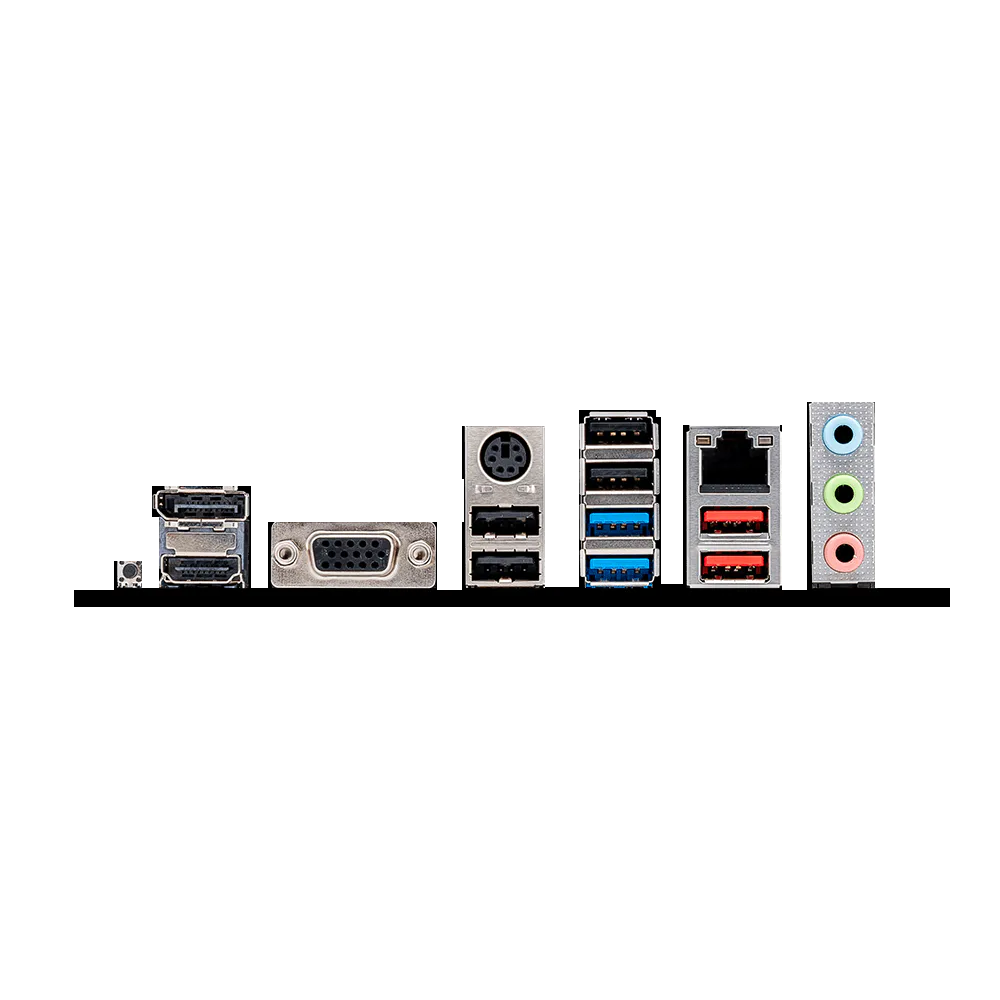

USB ports 3x USB 3.2 Gen 2 10Gbps (2 Type-A + 1 Type-C)
4x USB 3.2 Gen 1 5Gbps (4 Type-A) - 8x USB 2.0
- LAN Realtek® 8125BG 2.5G LAN
- Audio 8-Channel (7.1) HD Audio with Audio Boost
- warranty : 1 year
