Description

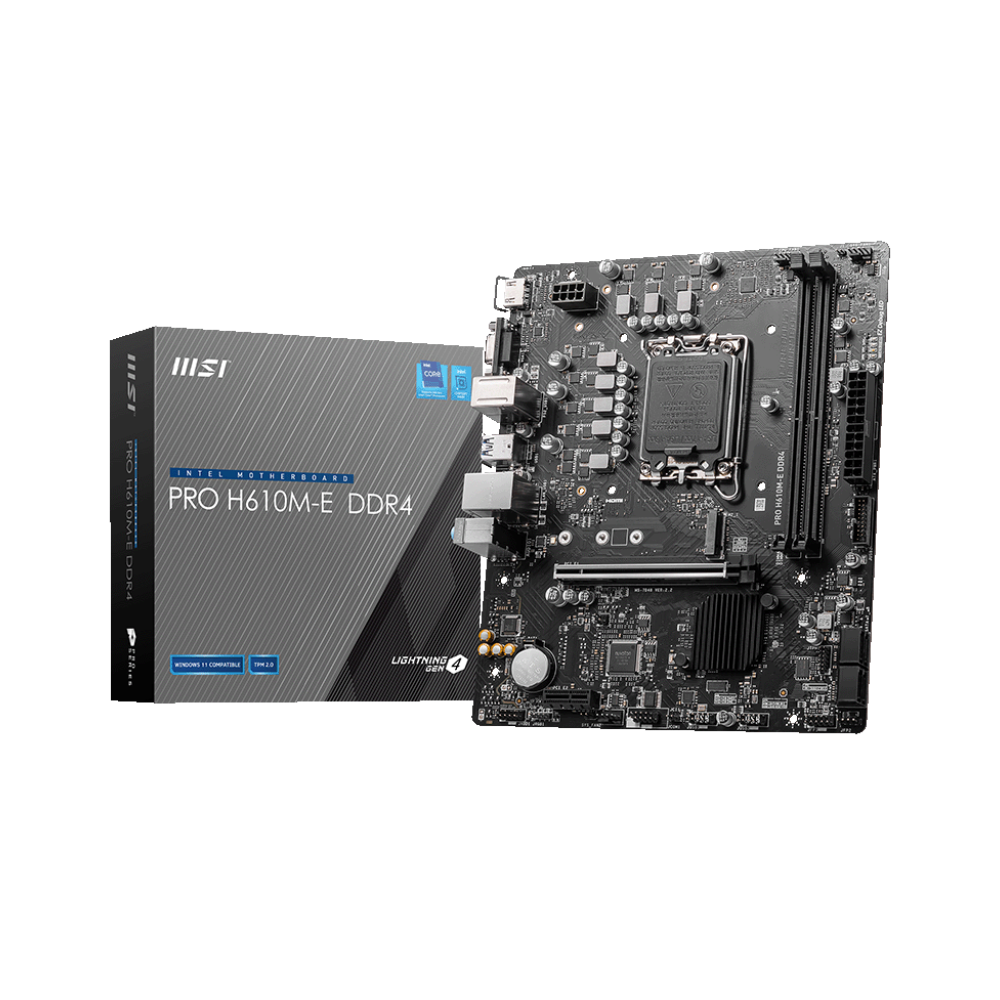

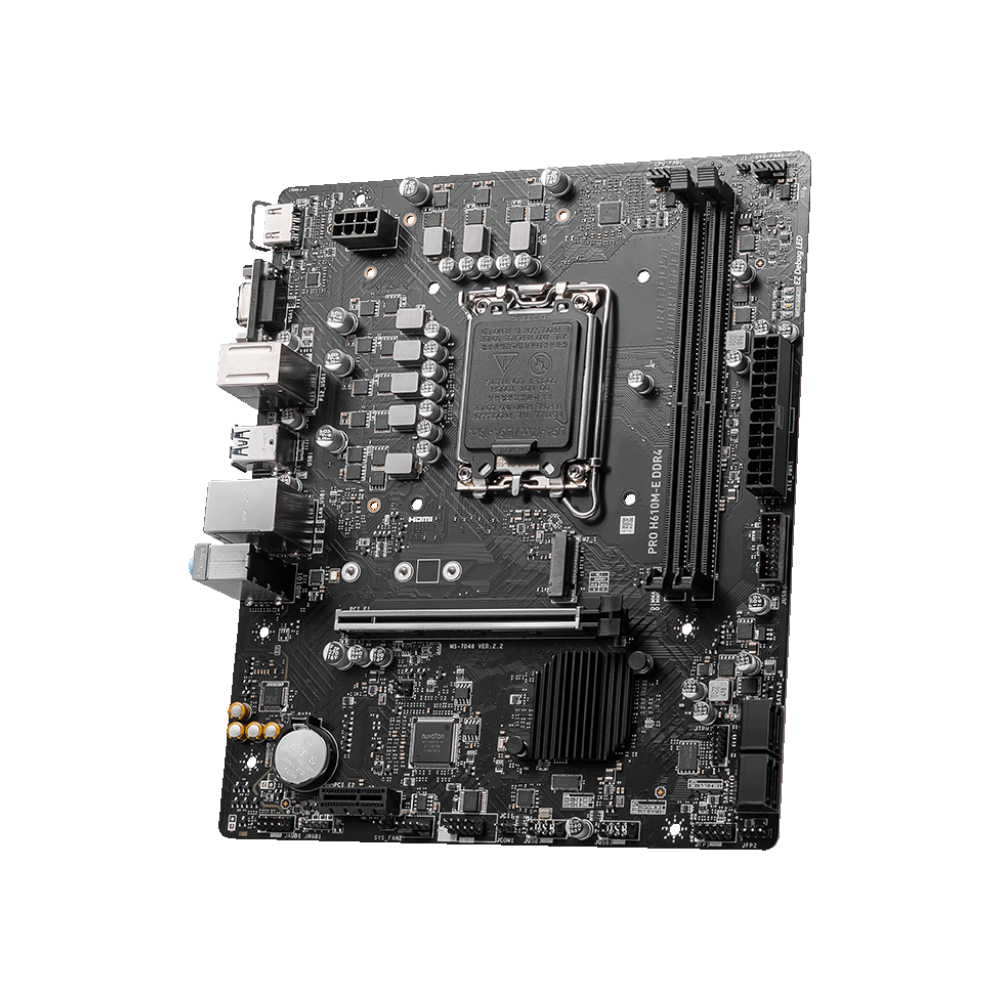

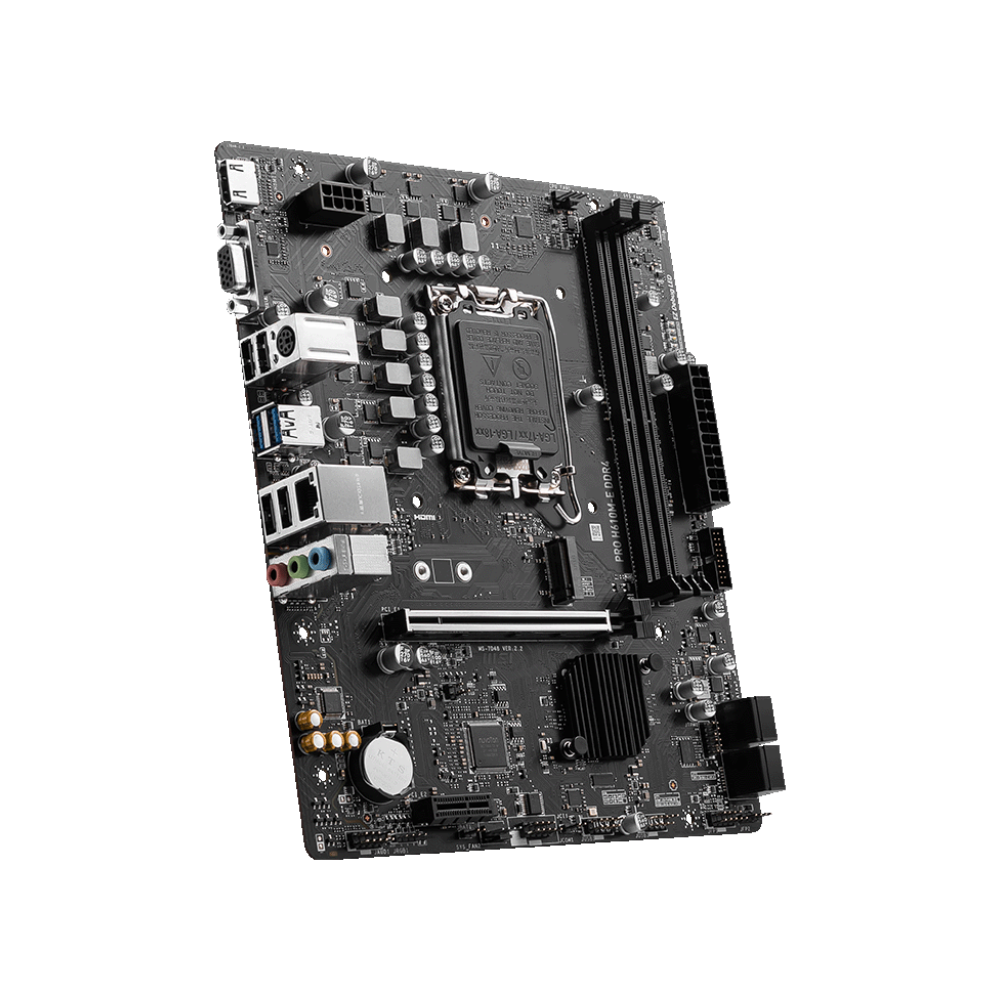

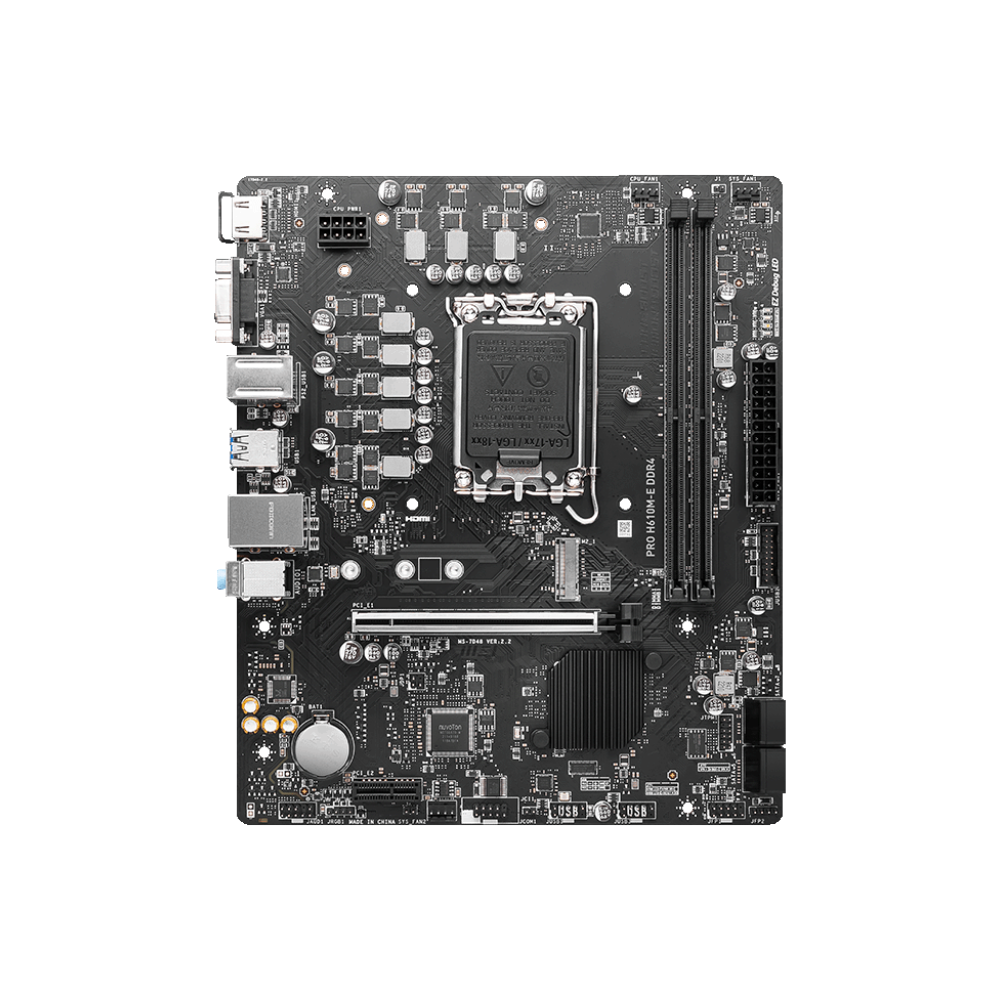

PRO H610M-E DDR4
features
- Lightning Gen4 Solution :The latest Gen4 PCI-E solution with up to 64GB/s bandwidth for maximum transfer speed.
- Core Boost :With premium layout and fully digital power design to support more cores and provide better performance.
-
Memory Boost :Advanced technology to deliver pure data signals for the best
performance, stability and compatibility. - PCI-E Steel Armor :Protecting VGA cards against bending and EMI.
- EZ Debug LED : Easiest way to troubleshoot.
-
Frozr AI Cooling :Detect CPU & GPU temperatures and automatically adjust system
fan duty to a proper value. -
Audio Boost: Reward your ears with studio grade sound quality for the most
immersive audio experience.
Specifications
Model Name PRO H610M-E DDR4
- CPU Support: Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel®Pentium® Gold and Celeron® Processors
- CPU Socket :LGA 1700
- Chipset: Intel® H610 Chipset
- Graphics Interface :1x PCIe 4.0 x16 slot
-
Display Interface : Support 4K@60Hz as specified in HDMI™ 1.4, VGA –
Requires Processor Graphics - Memory Support: 2 DIMMs, Dual Channel DDR4-3200 MHz (MAX)
- Expansion Slots :1x PCIe 3.0 x1 slot
-
Storage: 1x M.2 Gen3 x4 32Gbps slot,

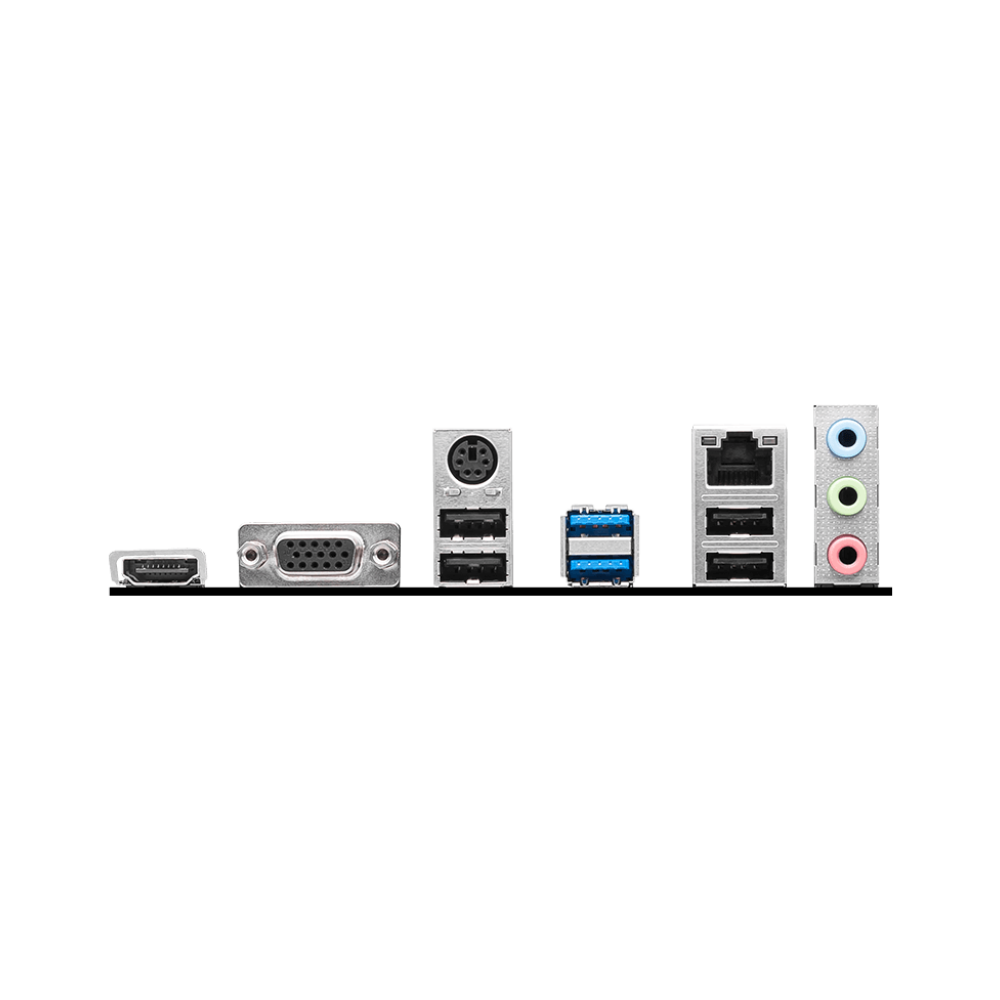

4x SATA 6Gbps ports - USB ports :4x USB 3.2 Gen 1 5Gbps (4 Type-A) 8x USB 2.0
- LAN: Realtek® RTL8111H Gigabit LAN
- Audio: 8-Channel (7.1) HD Audio with Audio Boost
- warranty : 1 year
