Description
features
-
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest
DDR5 memory and MSI Memory Boost technology. -
Lightning Gen4 Solution
The Gen4 PCI-E solution with up to 64GB/s bandwidth for
maximum transfer speed. - PCI-E Steel Armor Protecting VGA cards against bending and EMI.
- EZ Debug LED Easiest way to troubleshoot.
-
Frozr AI Cooling
Detect CPU & GPU temperatures and automatically adjust system
fan duty to a proper value. -
Memory Boost Advanced technology to deliver pure data signals for the best
performance, stability and compatibility. -
Core Boost With premium layout and fully digital power design to support
more cores and provide better performance. -
Audio Boost Reward your ears with studio grade sound quality for the most
immersive audio experience.
Specifications

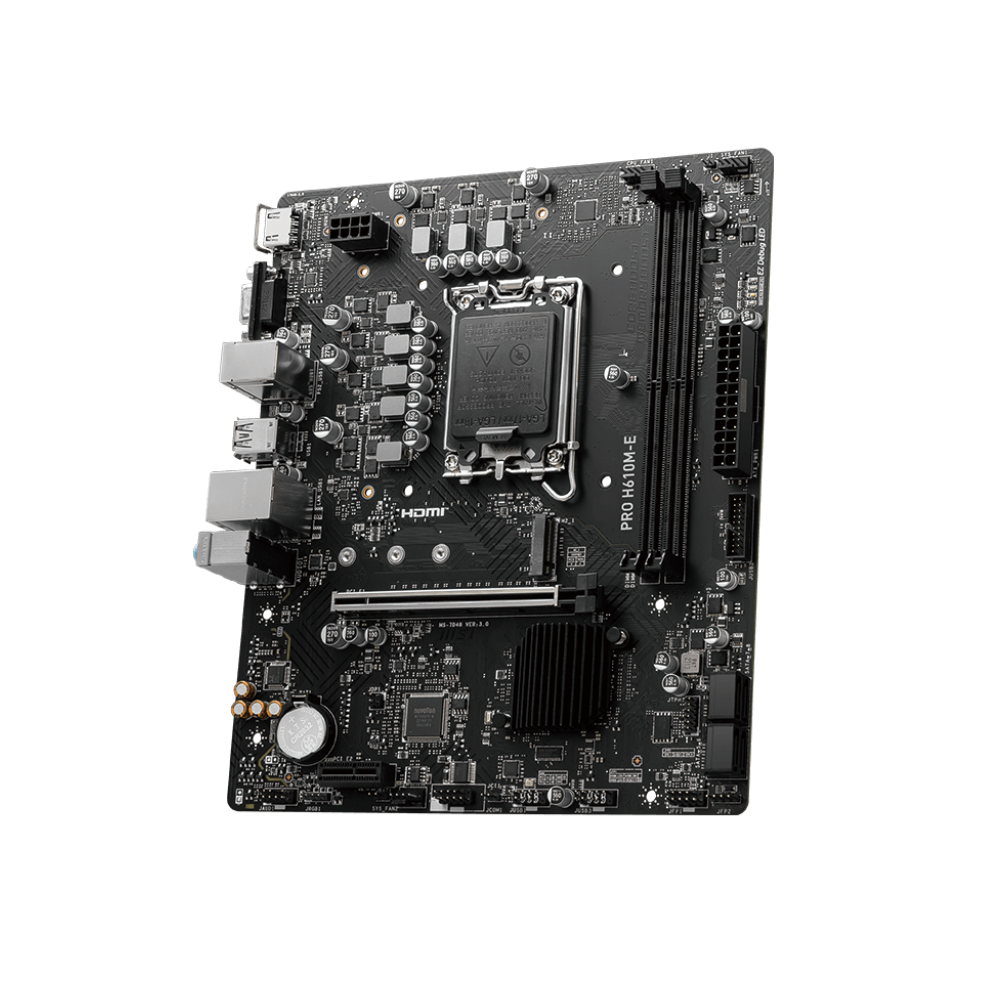

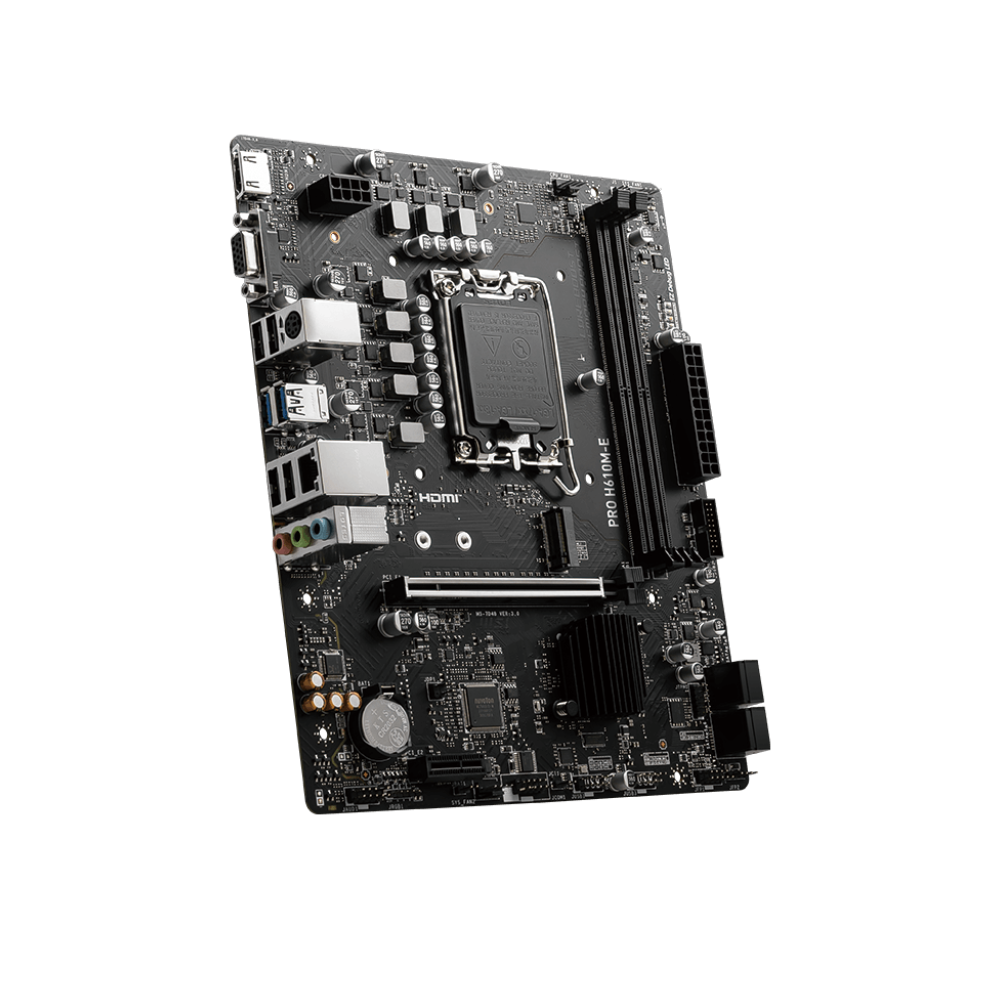

- Model Name PRO H610M-E
- CPU Support Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel®Pentium® Gold and Celeron® Processors
- CPU Socket LGA 1700
- Chipset Intel® H610 Chipset
-
Expansion Slots 1x PCIe 4.0 x16 slot
1x PCIe 3.0 x1 slot - Display Interface Support 4K@30Hz as specified in HDMI™ 1.4, VGA– Requires
- Processor Graphics
- Memory Support 2 DIMMs, Dual Channel DDR5-5600MHz(MAX)
-
Storage 1x M.2 Gen3 x4 32Gbps slot,
4x SATA 6Gbps ports -

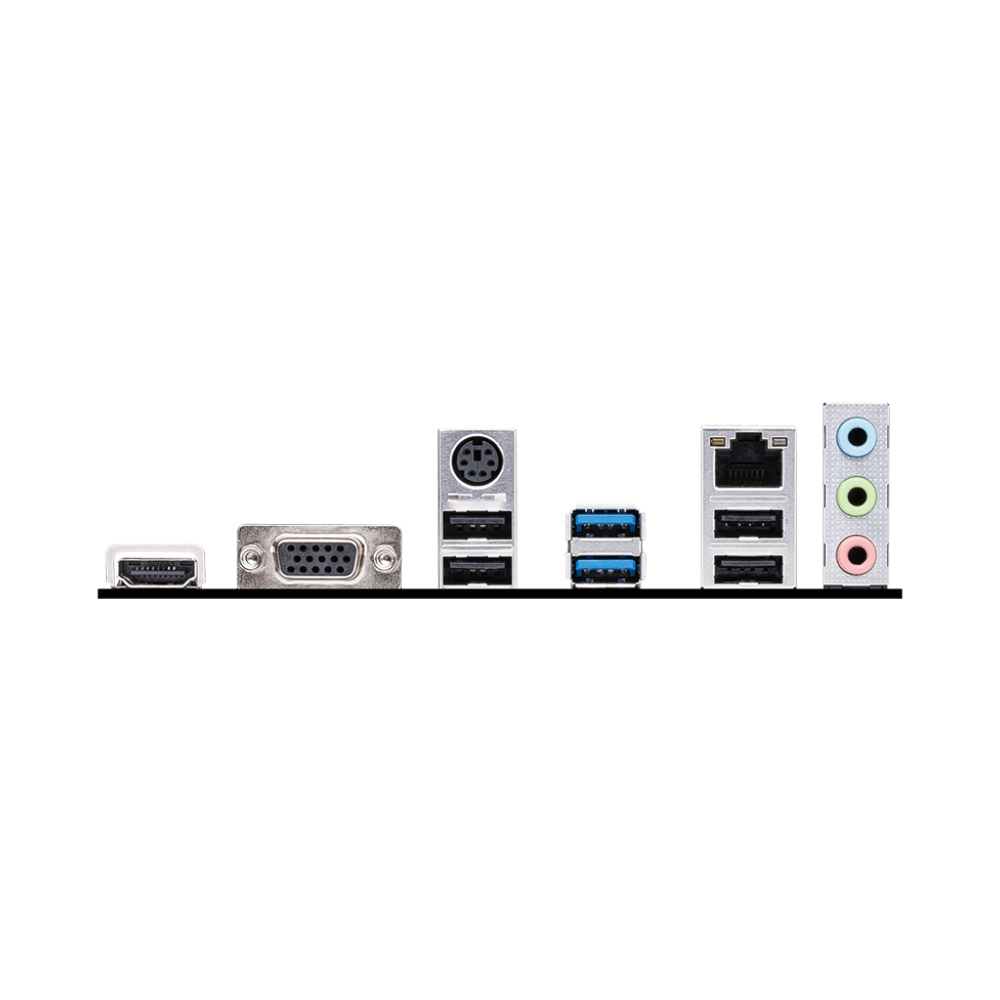

USB ports 4x USB 3.2 Gen 1 5Gbps (4 Type-A),
8x USB 2.0 -
LAN Realtek®
RTL8111H Gigabit LAN - Audio 8-Channel (7.1) HD Audio with Audio Boost
- warranty : 1 year
