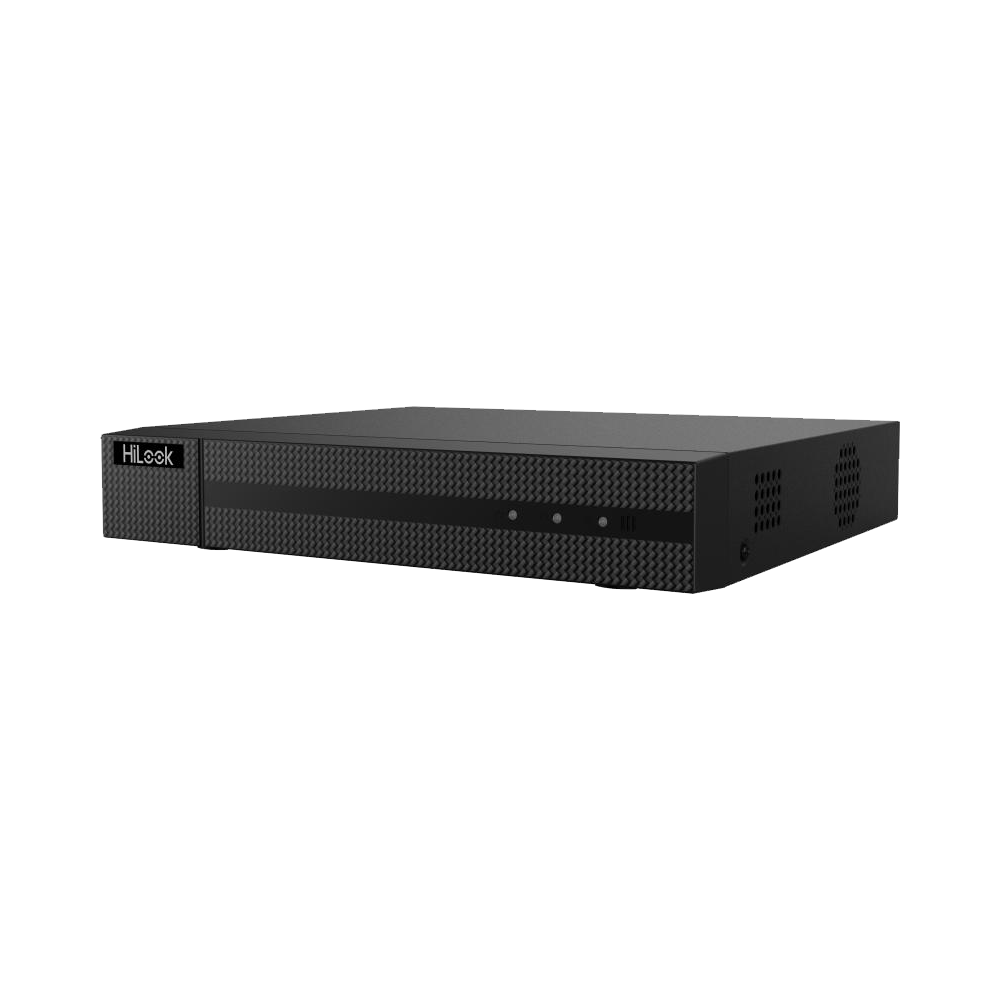

NVR-116MH-C
16-ch 1U 4K NVR
- Up to 16-ch IP camera inputs
- H.265+/H.265/H.264+/H.264 video formats
- Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
- Up to 160 Mbps incoming bandwidth
Specifications
-
Motion Detection 2.0
Human/Vehicle Analysis : 4-ch
Video and Audio
IP Video Input: 16-ch
Incoming Bandwidth :160 Mbps
Outgoing Bandwidth :80 Mbps
HDMI Output
1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x
1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
VGA Output :1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video Output :Mode HDMI/VGA simultaneous output
Audio Output: 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1kΩ)
Decoding
Decoding Format: H.265+/H.265/H.264+/H.264
Recording Resolution :8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback :16-ch
Decoding Capability: 1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)
Stream Type: Video, Video & Audio
Audio Compression: G.711ulaw/G.711alaw/G.722/G.726
Network
Remote Connection :32
Network Protocol
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP,
UPnP™, HTTP, HTTPS
Network Interface 1 RJ-45 10 /100/1000 Mbps self-adaptive Ethernet interface
Auxiliary Interface: SATA 1 SATA interface
Capacity :Up to 8 TB capacity for each disk
USB Interface: 2 × USB 2.0
Alarm In/Out :N/A
General
Power Supply: 12 VDC, 1.5 A
Consumption :≤ 10 W (without HDD)
Working Temperature :-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity :10% to 90%
Dimension (W × D × H) 265 × 225 × 48 mm (10.2" × 8.9" × 1.9") - warranty : 1 year
