Description

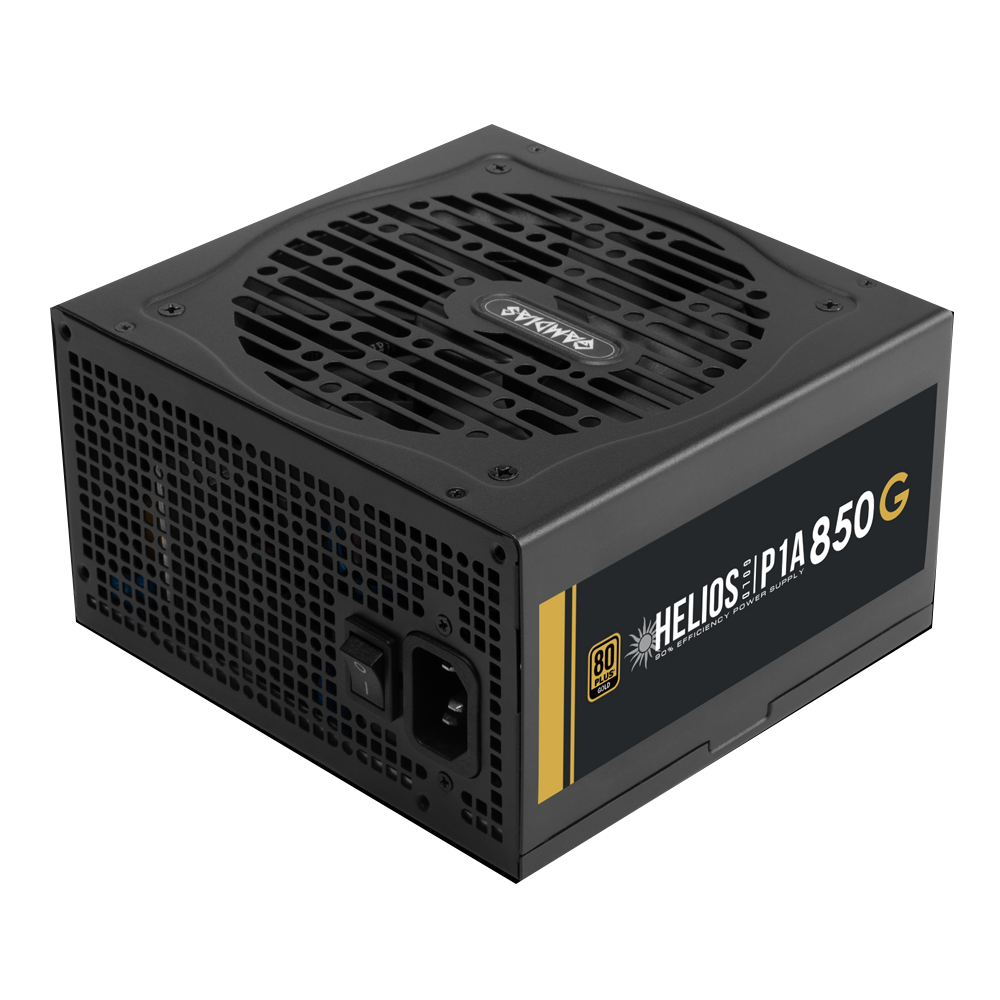

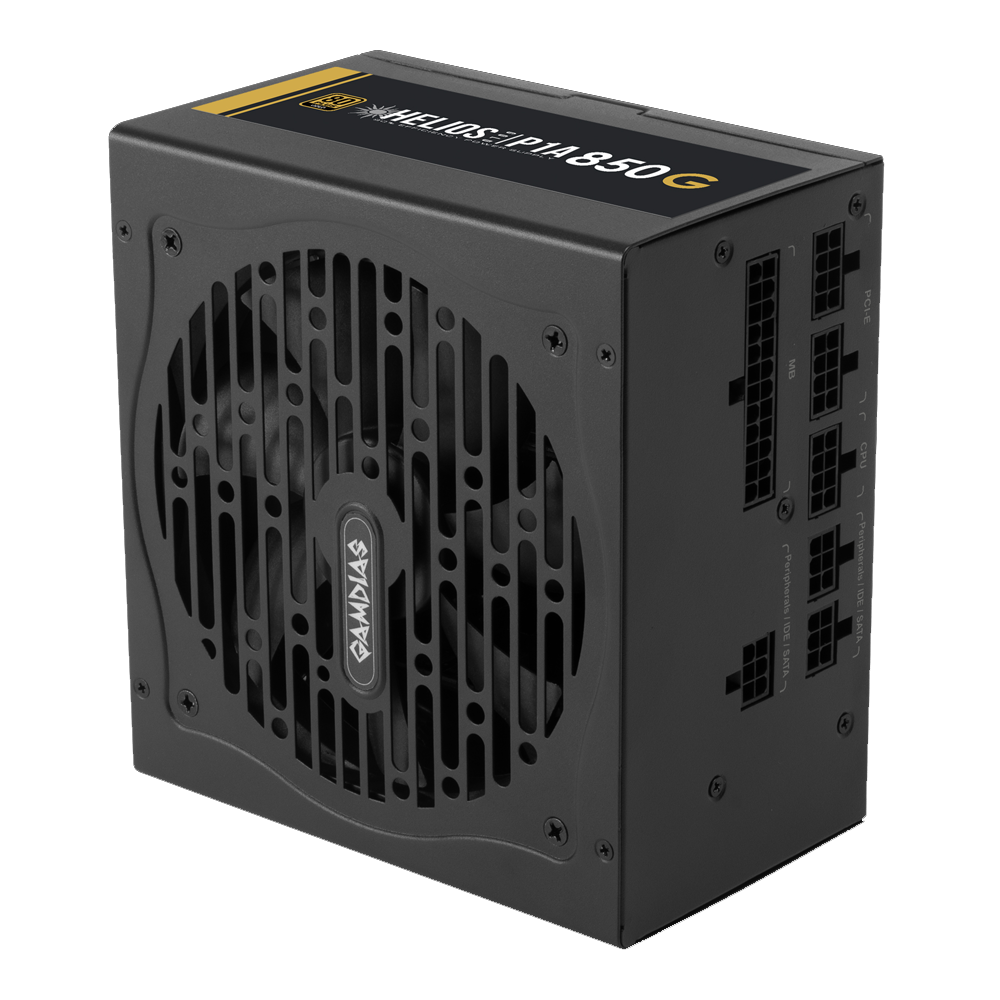

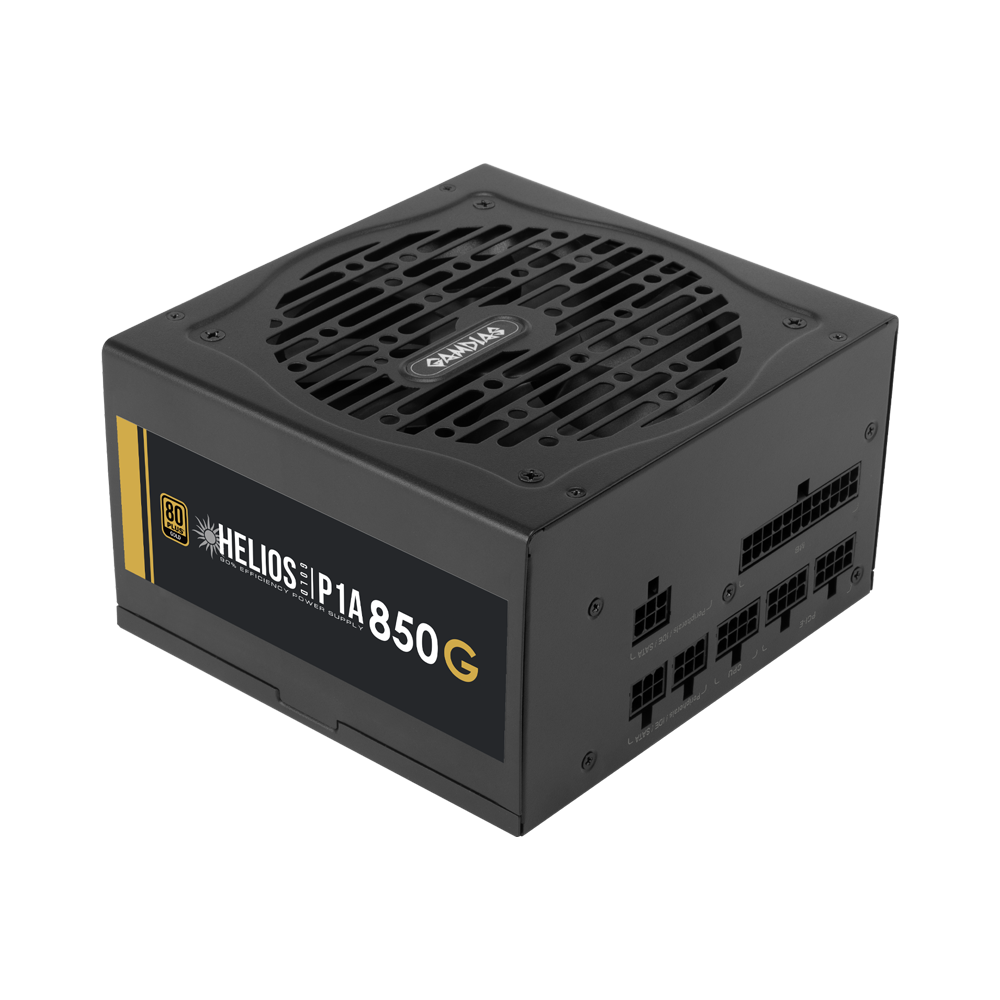

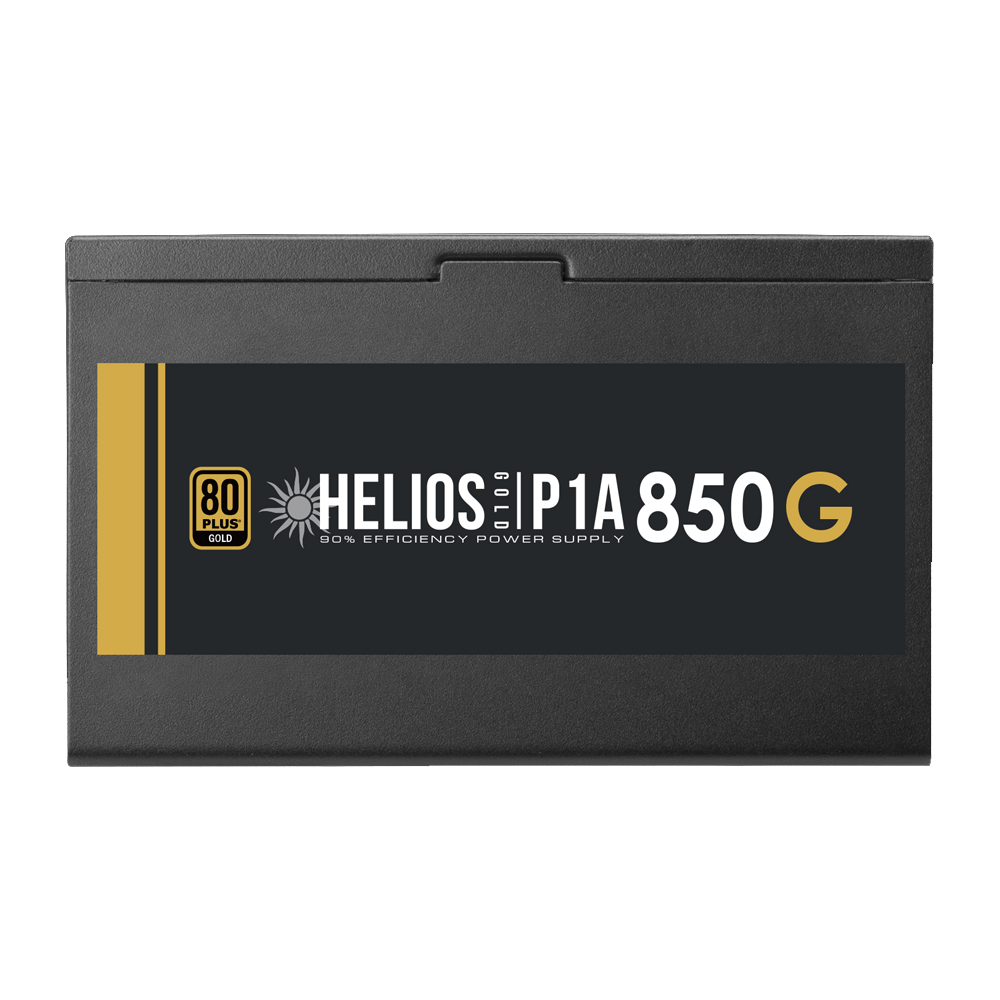

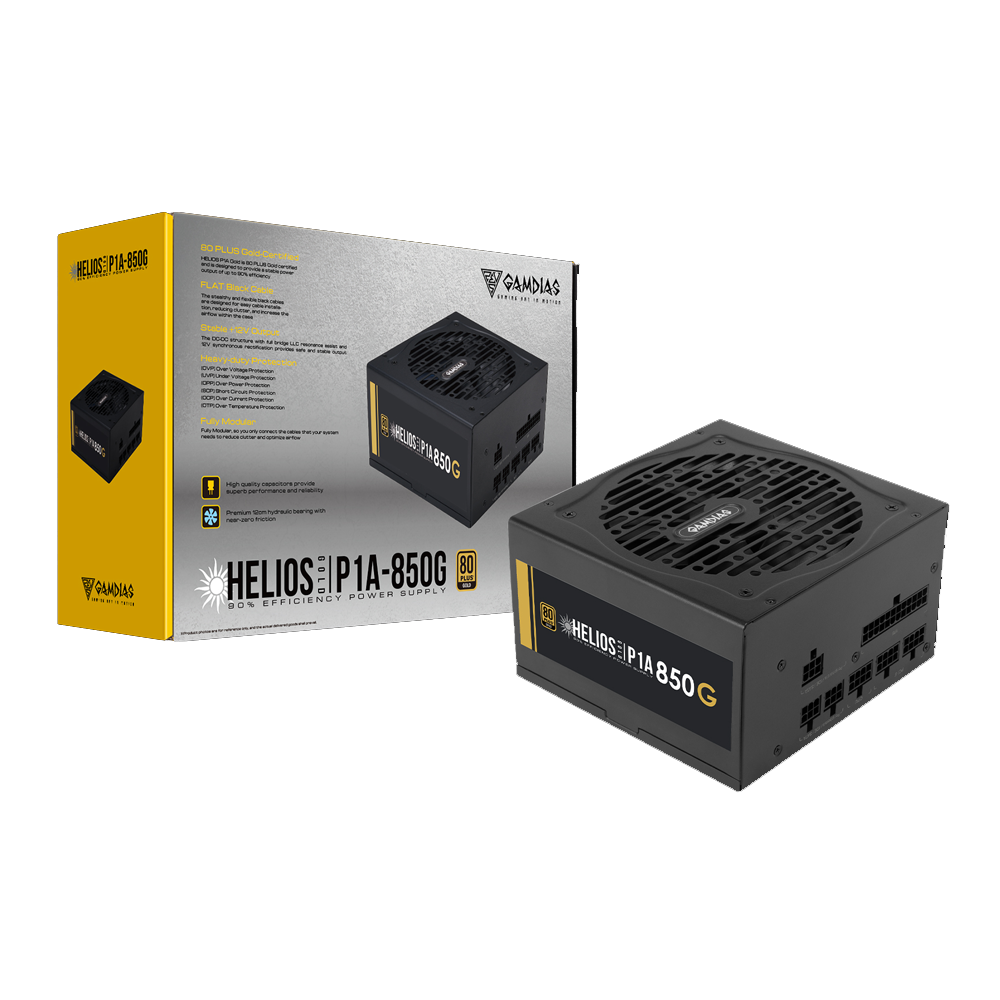

HELIOS P1A-850G Fully Modular
- Fully Modular
- 850W 80 Plus Gold
- High Quality Capacitors
- 120mm Hydraulic Bearing Fan
- Compatible with ATX12V v2.52
- Support C6/C7 Power State
- Automatic Fan Speed Optimizing According to Temperature
- Full DC-DC, LLC Resonant Circuit Design
- Heavy-duty Protection: OVP/UVP/OPP/SCP/OCP/OTP
Specifications
- Type: ATX12V v2.52
- Efficiency: Meet 80 PLUS Gold efficiency
- Power Factor Correction: APFC with PF value of 0.99
- Support MB Sync: No
- Dimension (L x W x H):140 x 150 x 86 mm
- Support C6/C7 power state: Yes

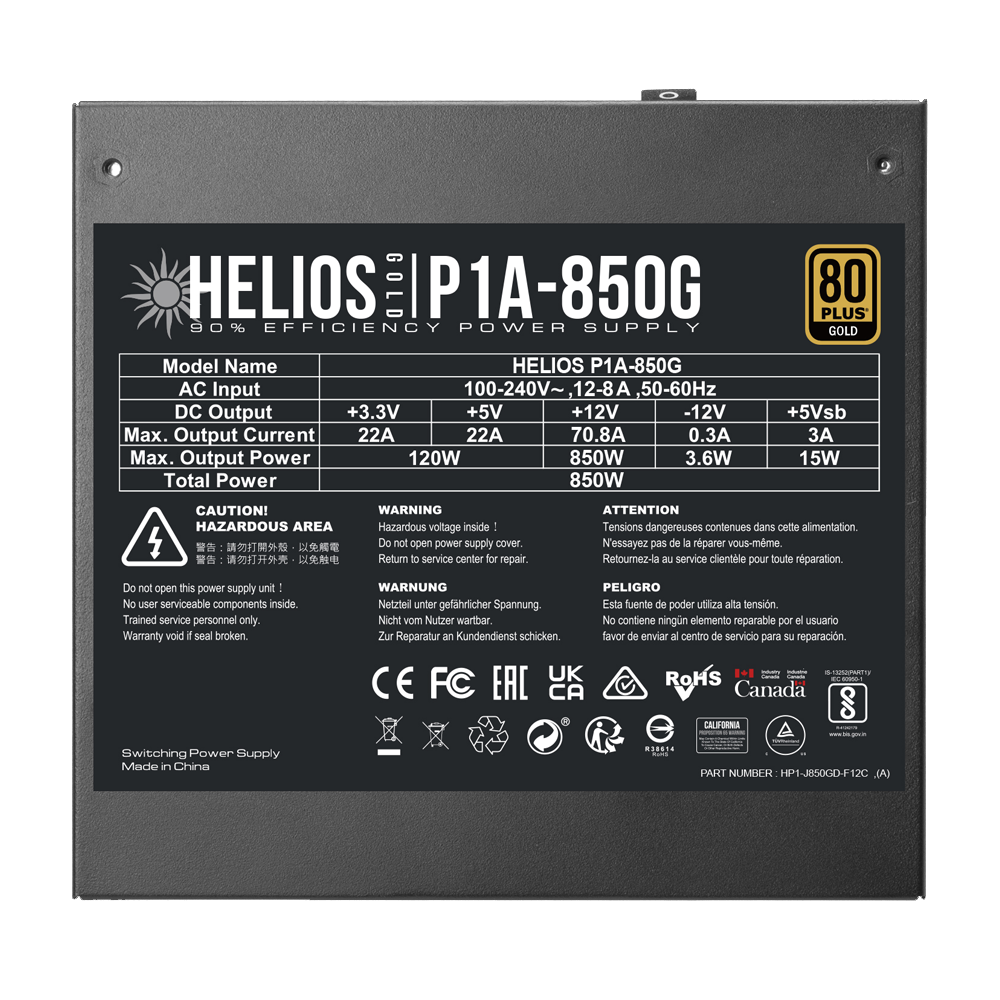

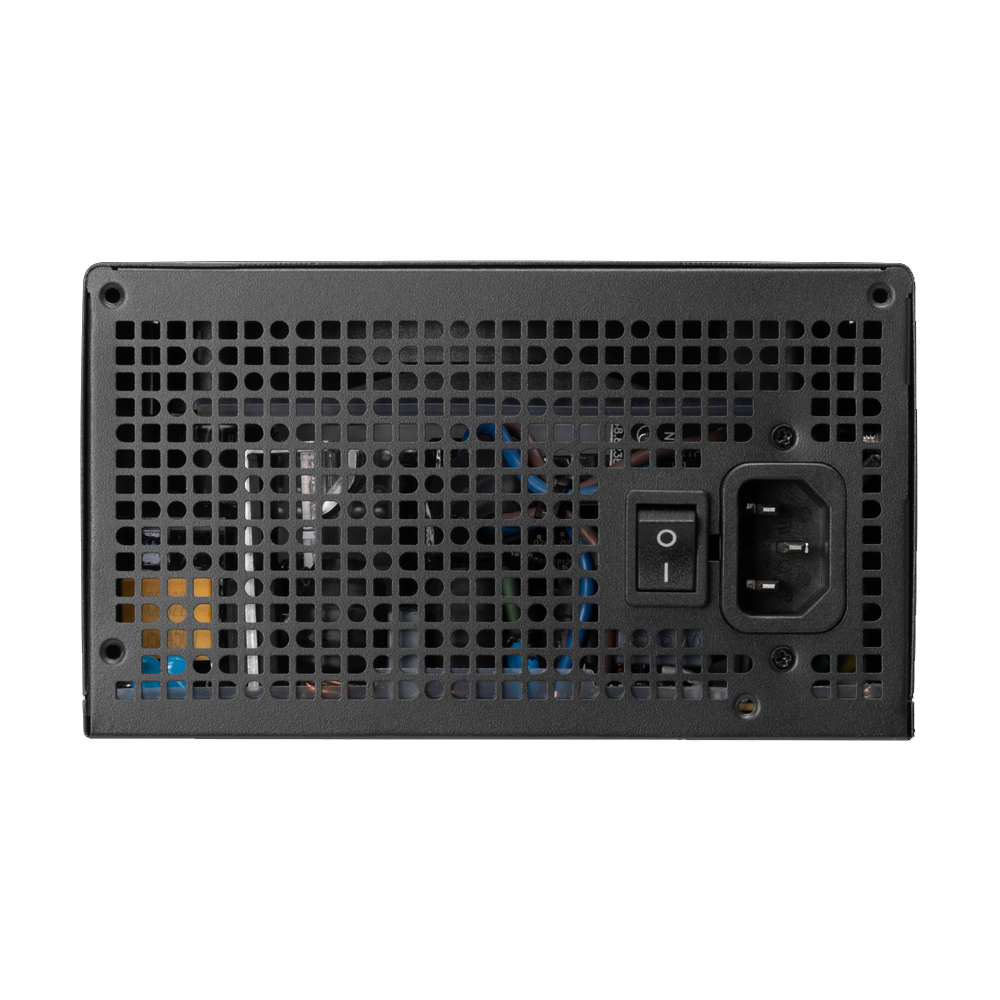

- AC Input: 100-240V~ / 12-8A / 50-60Hz
-
DC Output:+3.3V / +5V / +12V / -12V / +5Vsb
- Max. Output Current:22A / 22A / 70.8A / 0.3A / 3A
- Max. Output Power:120W / 850W / 3.6W / 15W
- Total Power :850W
- Peak Power: 1105W
- Protection :OVP / UVP / OPP / SCP / OCP / OTP

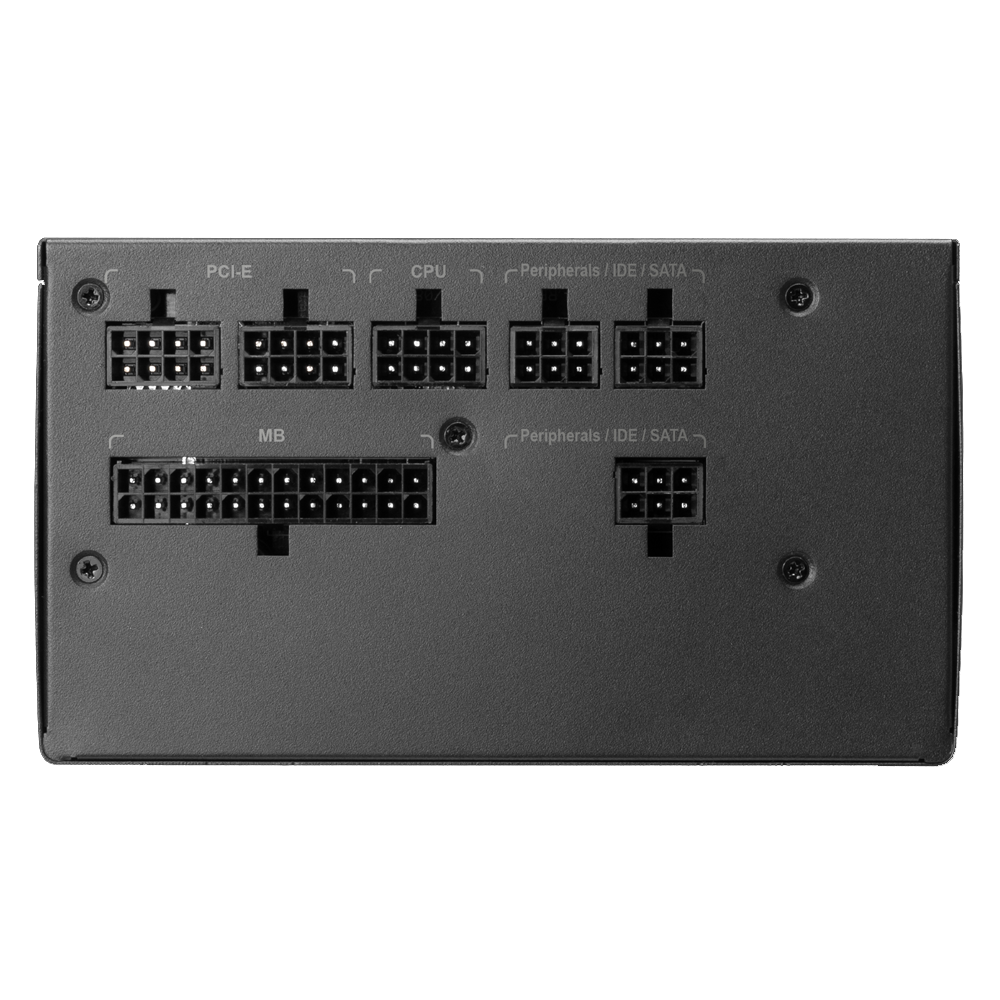

- Main Power1: (24 Pin)
- CPU1: (4+4 Pin)
- PCI-E4: (6+2 Pin)
- SATA6: (5 Pin)
- Molex3: (4 Pin)
- Modular :Fully Modular
- Flat Cable: Yes

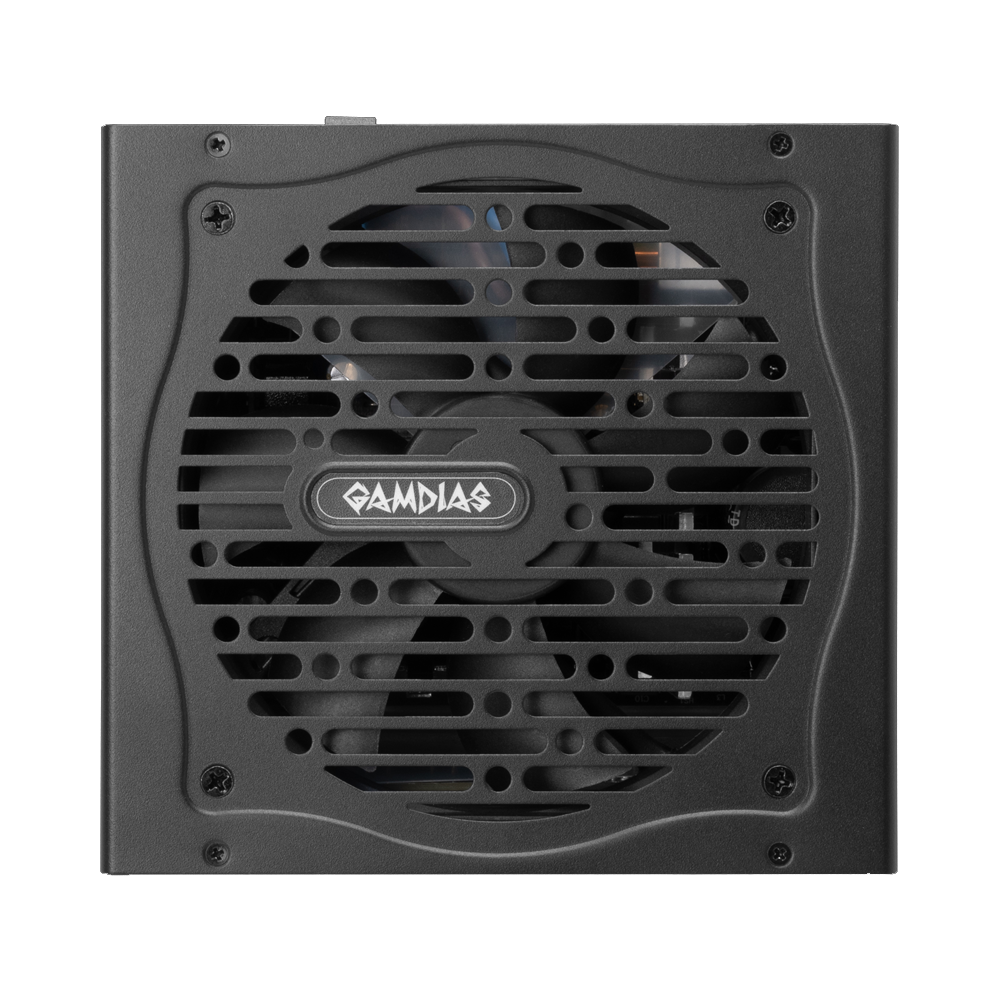

- Cooling System: 120mm hydraulic bearing fan
- Silent Mode: No
- DC to DC: Yes
- Environmental Compliance: Erp Lot 6
- warranty : 1 year
