Description
IPC-D121H-C

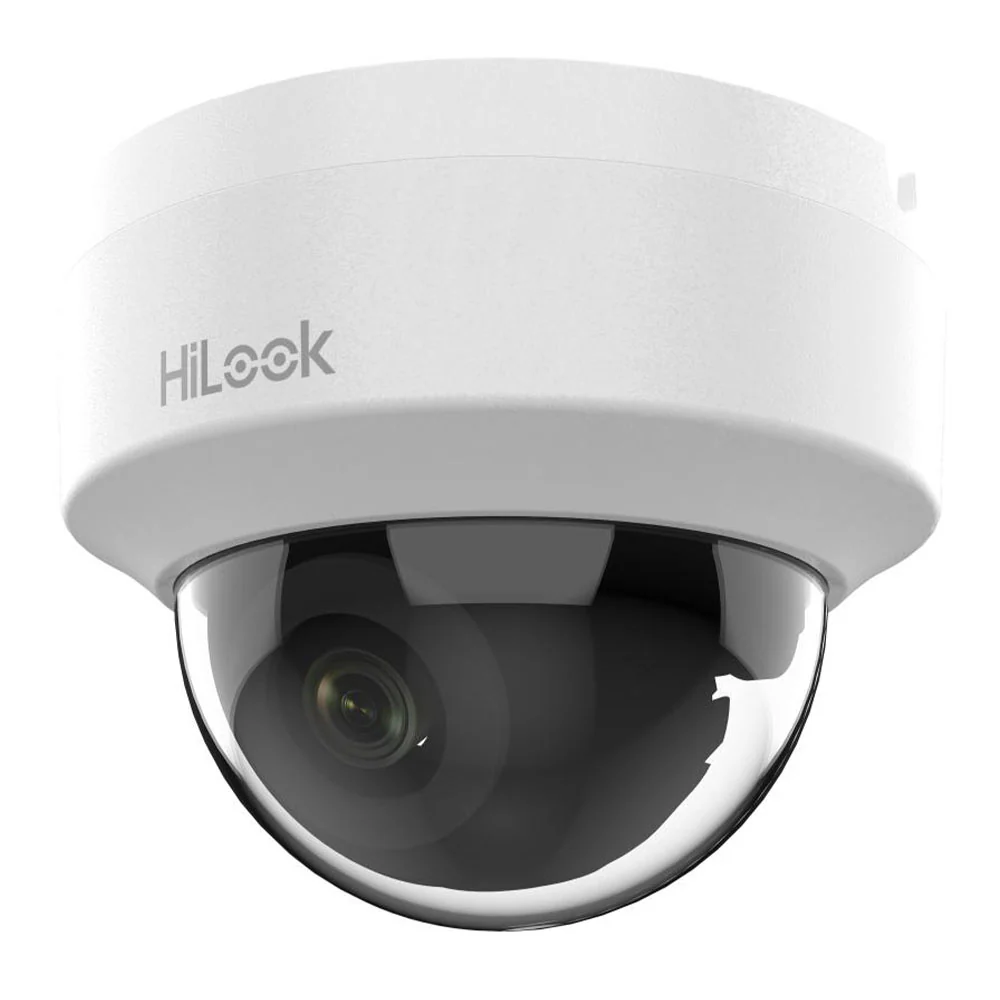

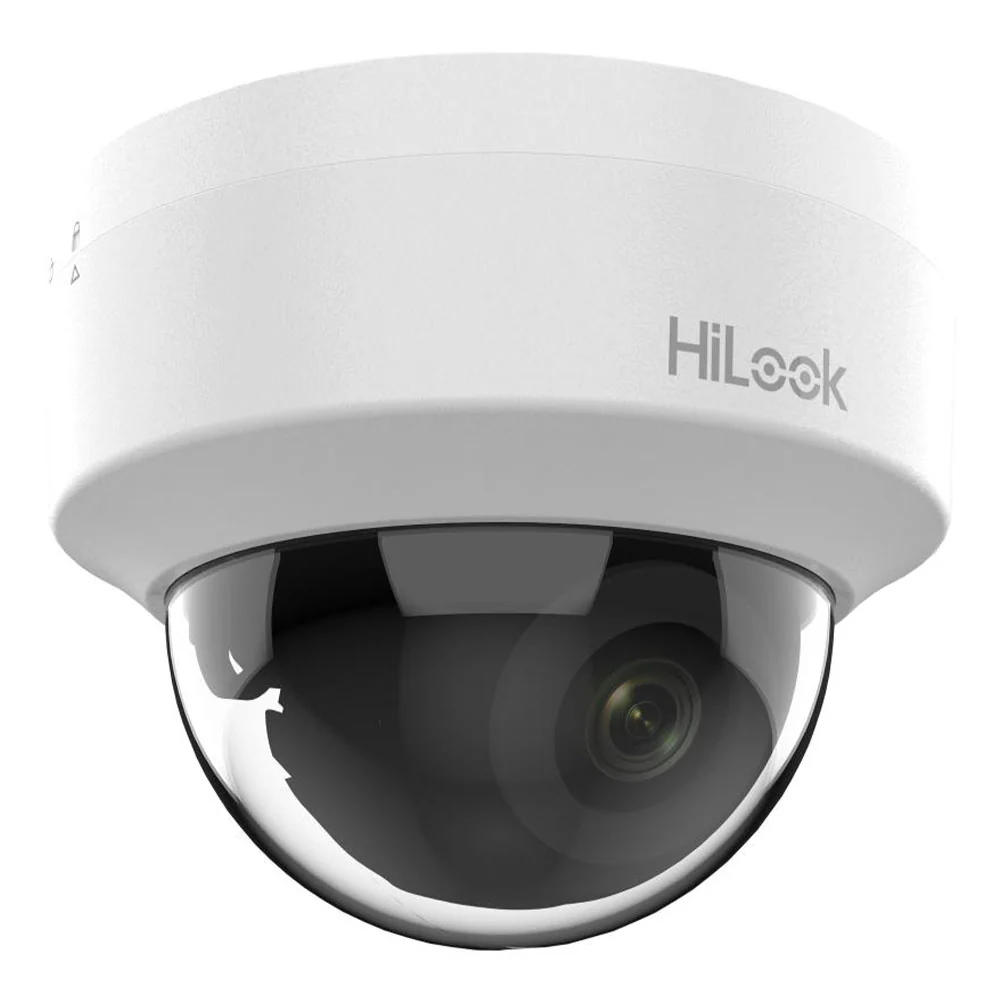

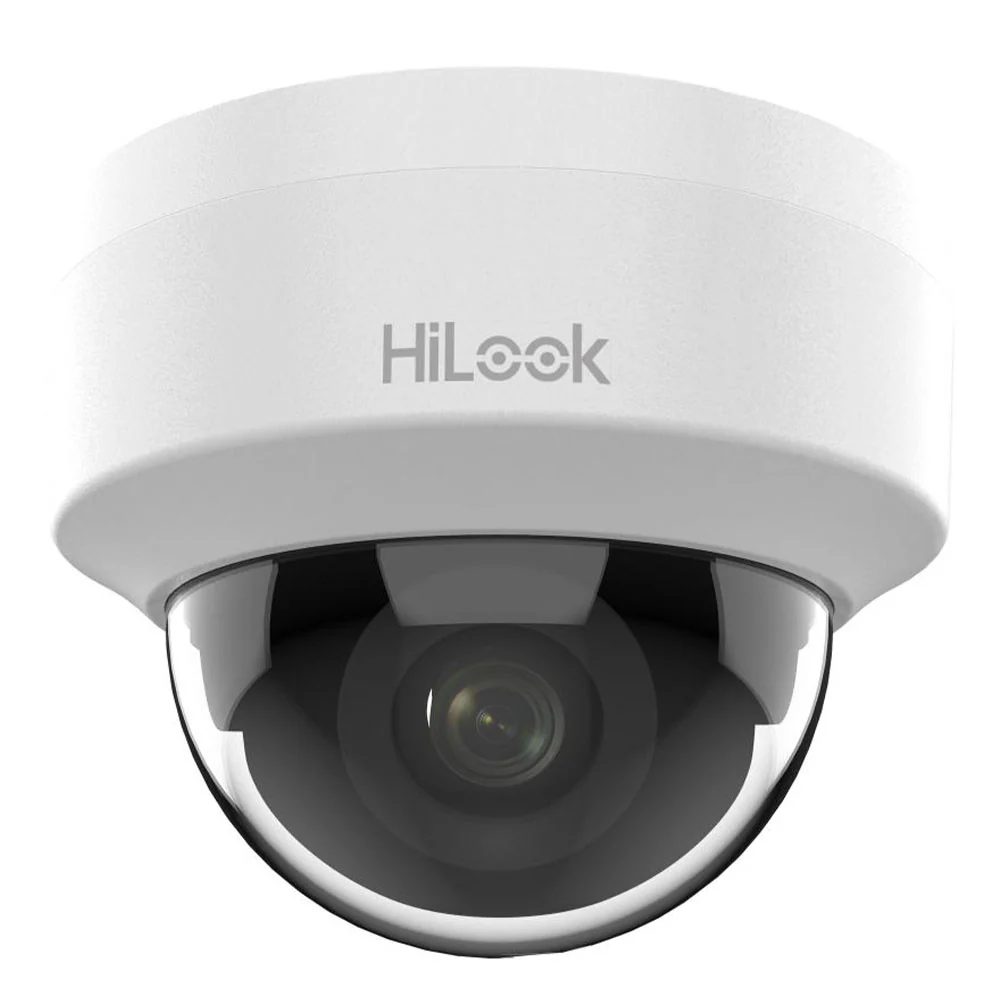

2 MP Fixed Dome Network Camera
- High quality imaging with 2 MP resolution
- Easy installation with Power over Ethernet (PoE) technology
Specifications
- Camera
- Image Sensor: 1/2.9" Progressive Scan CMOS
- Resolution: Max. 2MP, 1920 × 1080
- Illumination: Min. Color: 0.01 Lux @ (F2.2, AGC ON),B/W: 0 Lux with IR
- Shutter Time: 1/3 s to 1/100,000 s
- Day/Night: IR Cut Filter
- Angle Adjustment: Pan: 0° to 355°,tilt: 0° to 75°
- Lens: 2.8mm, Fixed Focal Lens
-
Field of View: Horizontal FOV 101°, Vertical FOV 56°, Diagonal FOV 118°
- Lens Mount: M12
- Light Type: IR
- Light Range: Up to 20m
- IR Wavelength: 850 nm
- Support Digital WDR: Yes
- Image Enhancement: BLC,HLC,3D DNR
- General
- Operating Conditions: -10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (Non-Condensing)
- Power Supply: 12 VDC ± 25% 0.4 A
-
Power Consumption: Max. 4.8W, PoE: IEEE 802.3af, Class 3, Max. 6.5W
- Material: Plastic
- Dimensions: 110.8 × 85.2 mm
- Weight: 240 g
- Warranty: 1 Year
