Description
DS-2CE16D0T-LPFS

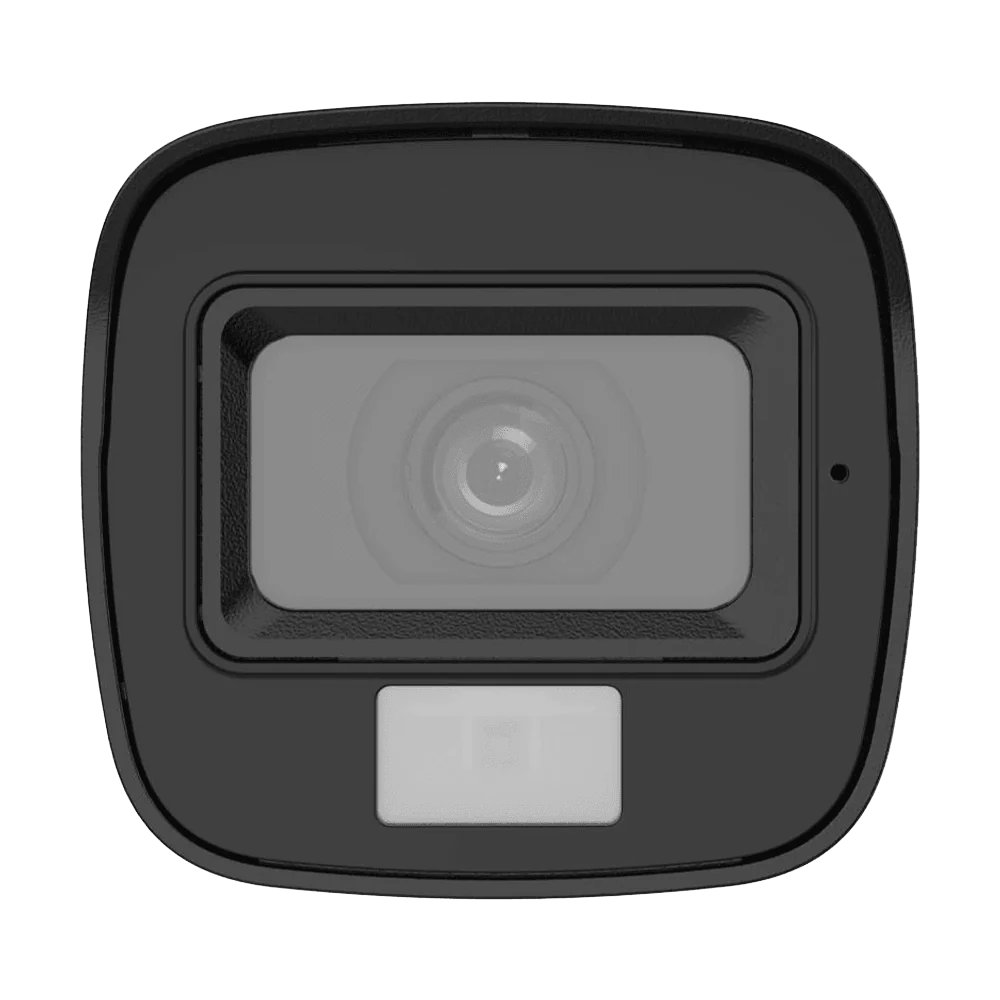

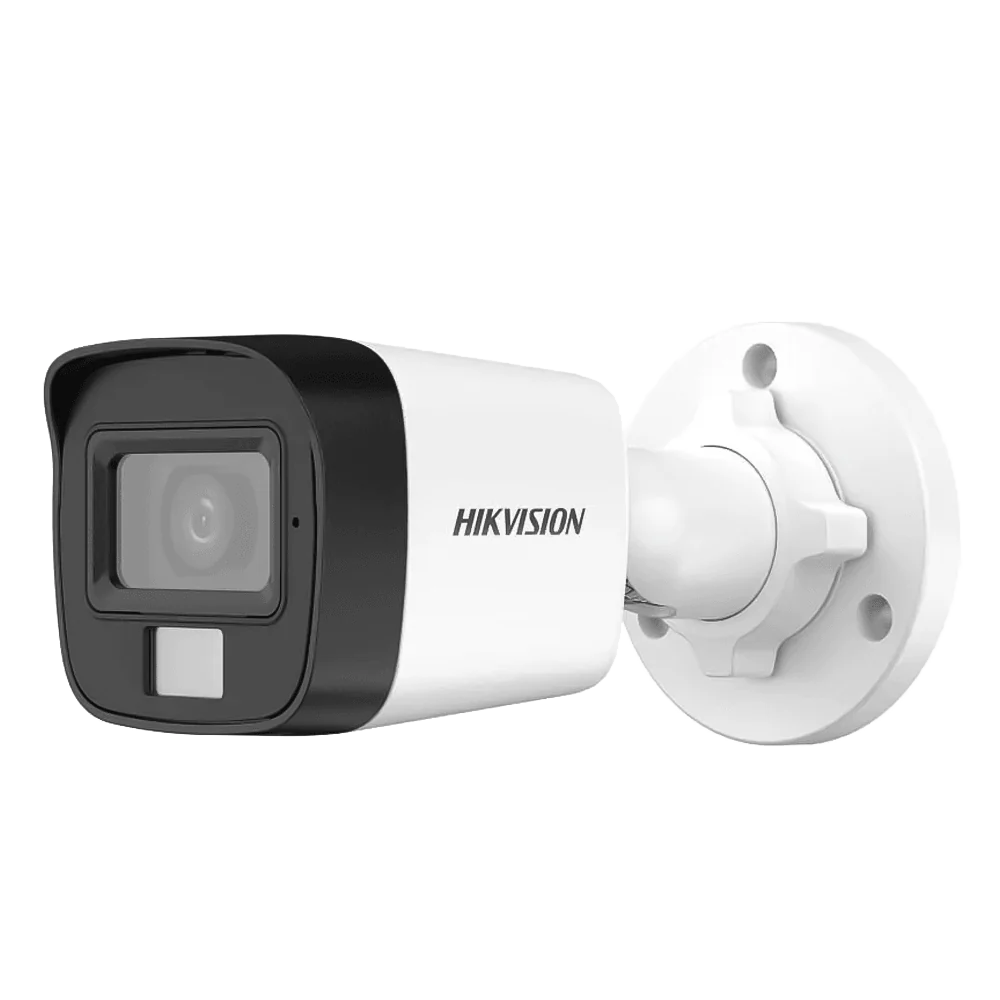

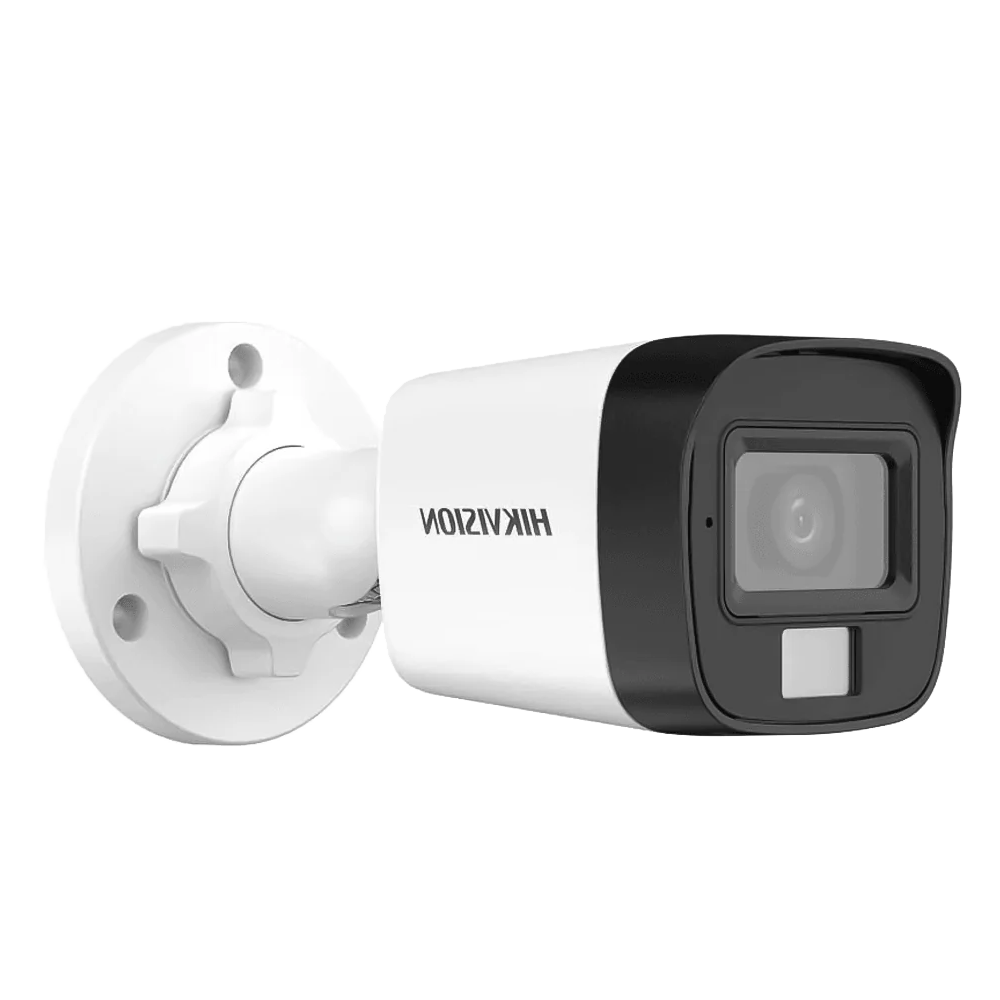

2 MP Dual Light Audio Fixed Mini Bullet Camera
- High quality imaging with 2 MP, 1920×1080 resolution
- 2.8 mm, 3.6 mm fixed focal lens
- Up to 25 m IR distance for bright night imaging
- Up to 20 m white light distance for bright night imaging
- One port for four switchable signals (TVI/AHD/CVI/CVBS）
- High quality audio with audio over coaxial cable, built-in mic
- Water and dust resistant (IP67)
- Smart-Hybrid light, optimize your security with flexible lighting options
Specifications
-
Camera
Image Sensor : 2 MP CMOS
Max. Resolution : 1920 (H) × 1080 (V)
Min. Illumination : 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
Day & Night ICR
Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360°
Signal System PAL/NTSC -
Lens
Lens Type : 3.6 mm fixed focal lens
Focal Length & FOV: 3.6 mm, horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 92°
Lens Mount: M12 -
Microphone
Pickup Distance: In a radius of up to 5 m
Amount : 1
Illuminator
Supplement Light Type: Smart, IR, White Light
Supplement Light Range
IR : Up to 25 m
White Light : Up to 20 m -
Image Settings Brightness, Sharpness, Smart IR
Frame Rate
TVI: 1080P @ 30 fps, 1080P @ 25 fps
AHD: 1080P @ 30 fps, 1080P @ 25 fps
CVI: 1080P @ 30 fps, 1080P @ 25 fps
CVBS: PAL/NTSC
Day/Night Mode Auto/Color
Wide Dynamic Range (WDR) Digital WDR
Image Enhancement DWDR/BLC/HLC/Global
White Balance Auto/Manual
AGC Yes -
Interface
Video Output Switchable TVI/AHD/CVI/CVBS -
General
Material Plastic
Dimension 138.8 mm × 60.9 mm × 57.9 mm (5.47" × 2.4 " × 2.3")
Weight Approx. 155 g (0.34 lb.)
Operating Condition -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Communication HIKVISION-C
Power Supply 12 VDC ± 25%
Consumption Max. 3.3 W - warranty : 1 year
