Description

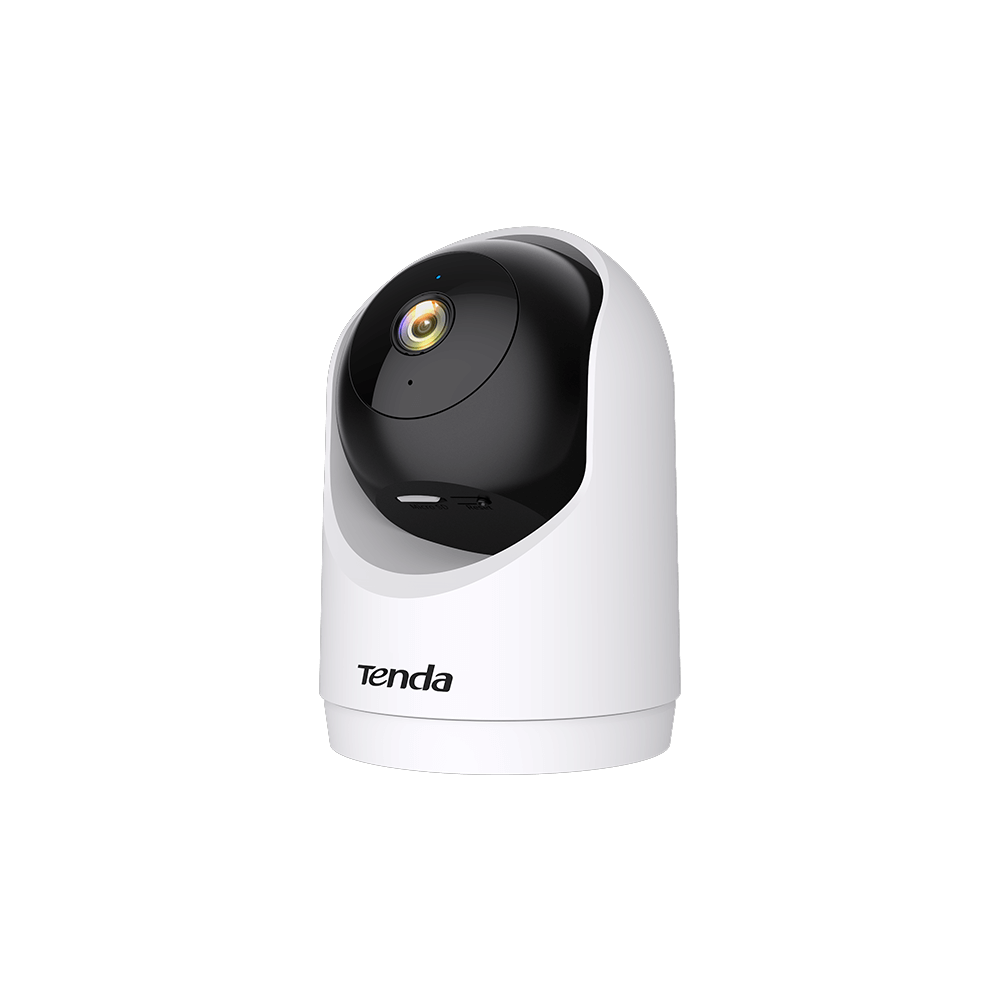

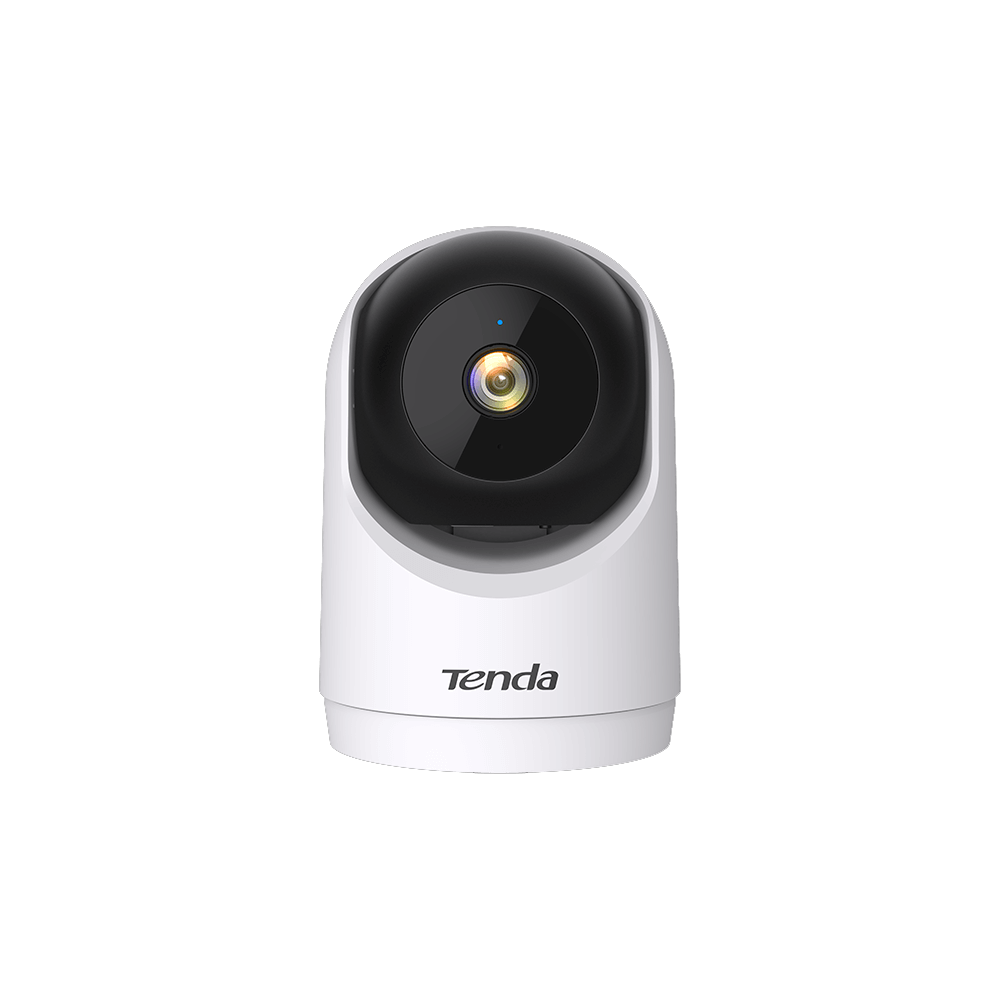

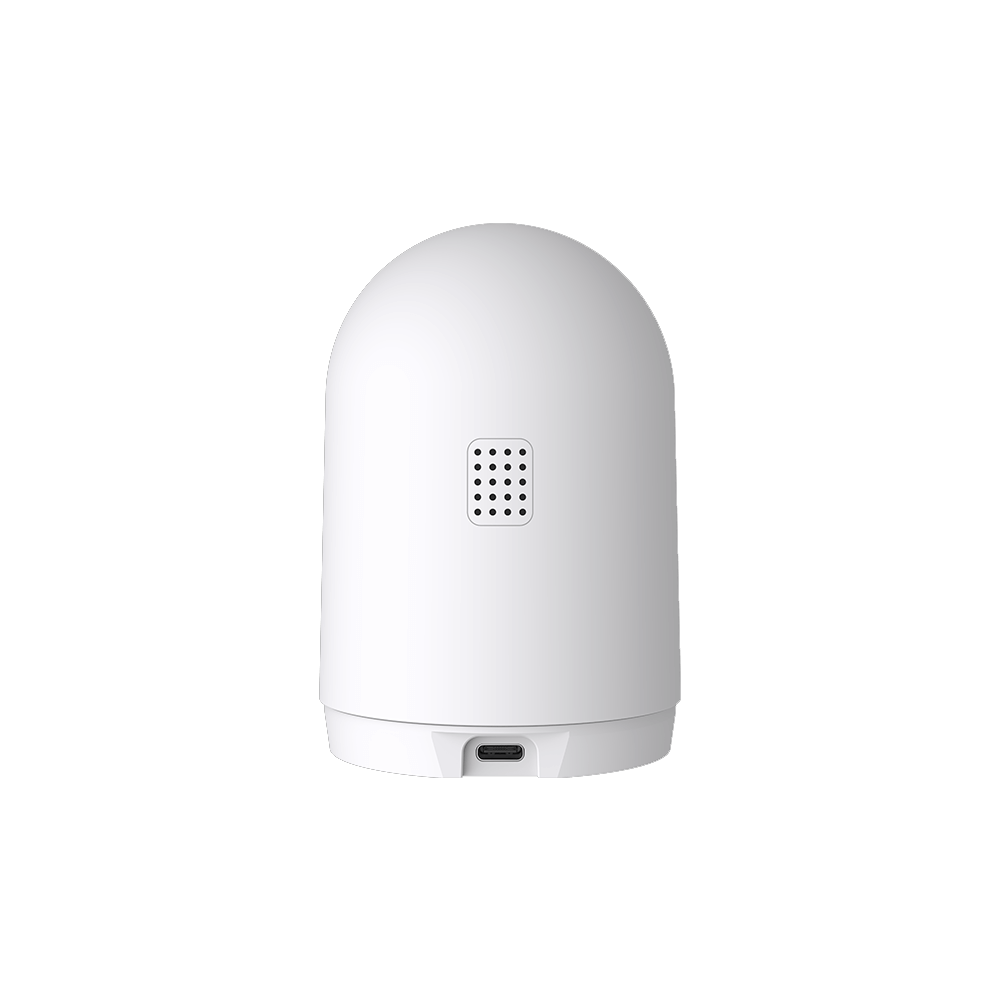

Tenda CP3 Wi-Fi 6 Security Pan - Tilt 3MP Quad HD 2K Camera
Specifications
- Camera
- Image Sensor :1/3 Progressive Scan CMOS sensor
- Day and Night : IR-Cut Filter with Auto-Switching
-
Lens
Focal Length :4 mm - Aperture : F2.0
- FOV :Horizontal FOV: 84°, Vertical FOV: 53.1°, Diagonal FOV: 91.1°
-
Illuminator
Supplementary Light :4 IR lights - Supplementary Light Distance :Up to 10 m/30 ft (depending on environment)
- IR Wavelength :850 nm
- Night Vision Mode : Black & White Mode
- Video
- Video Encoding Format :H.265
- Main Stream Resolution :2304 ×1296
- Sub Stream Resolution: 640 × 360
- Frame Rate: 1-20fps, Default 20fps
- Bit Rate :128kbps -- 4096kbps
- Bit Rate Control: VBR
-
Audio
Audio Encoding Format: G.711A, G.711U, AAC - Audio Sampling Rate: 8 kHz
- Audio Communication: Two-way Audio
-
Image Enhancement: DWDR, 3D DNR - Privacy Mask: 4 areas
-
Network
ONVIF :Support -
Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, ARP -
Pan&Tilt
Pan Movement Range: 0-355° - Tilt Movement Range: -15°-55°
- Preset: 6
- Patrol: Panoramic Patrol, Preset Patrol
-
Wi-Fi
Antenna :Internal antenna - Wireless Standard: IEEE 802.11 b/g/n/ax
- Transmission Rate: Up to 287 Mbps
- Channel Width: 20/40 MHz
- Modulation: DSSS/OFDM/OFDMA
- Frequency Band: 2.4GHz: 2412MHz-2472MHz(CH1-CH13)
- Transmit Power: 2.4GHz: <0.04W(EIRP)
- Security:64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
-
Alarm
Smart Detection: Motion Detection, Human Detection - Smart Linkage: Human Tracking
- DIY Audio: 3 customized audios
-
Interface
Audio Input: Built-in MIC, adjustable microphone volume - Audio Output: Built-in Speaker, 68 dBA (Alarm sound at 1 meter), adjustable sound level
- Storage: Supports up to 256 GB Micro SD card
- Reset Button : Support
-
LED Indicator
Dual color (red & blue)
LED indicator -
General
Power :5 V 1A, Type-C Power Plug - Material: Plastic
- Product Dimension :76.7mm x76.7mm x110.4mm(3'' × 3'' × 4.3'')
- Product Weight :158g(0.34lb)
- Installation Method :Desktop, Ceiling-mounted
- Certification :CE, FCC, RoHS, UKCA
-
Temperature
Operating Temperature: -10°C ~ 45°C (14°F ~ 113°F)
Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) -
Humidity
Operating Humidity: 10% ~ 95% RH (non-condensing)
Storage Humidity: 3% ~ 95% RH (non-condensing) - Warranty : 1 year
