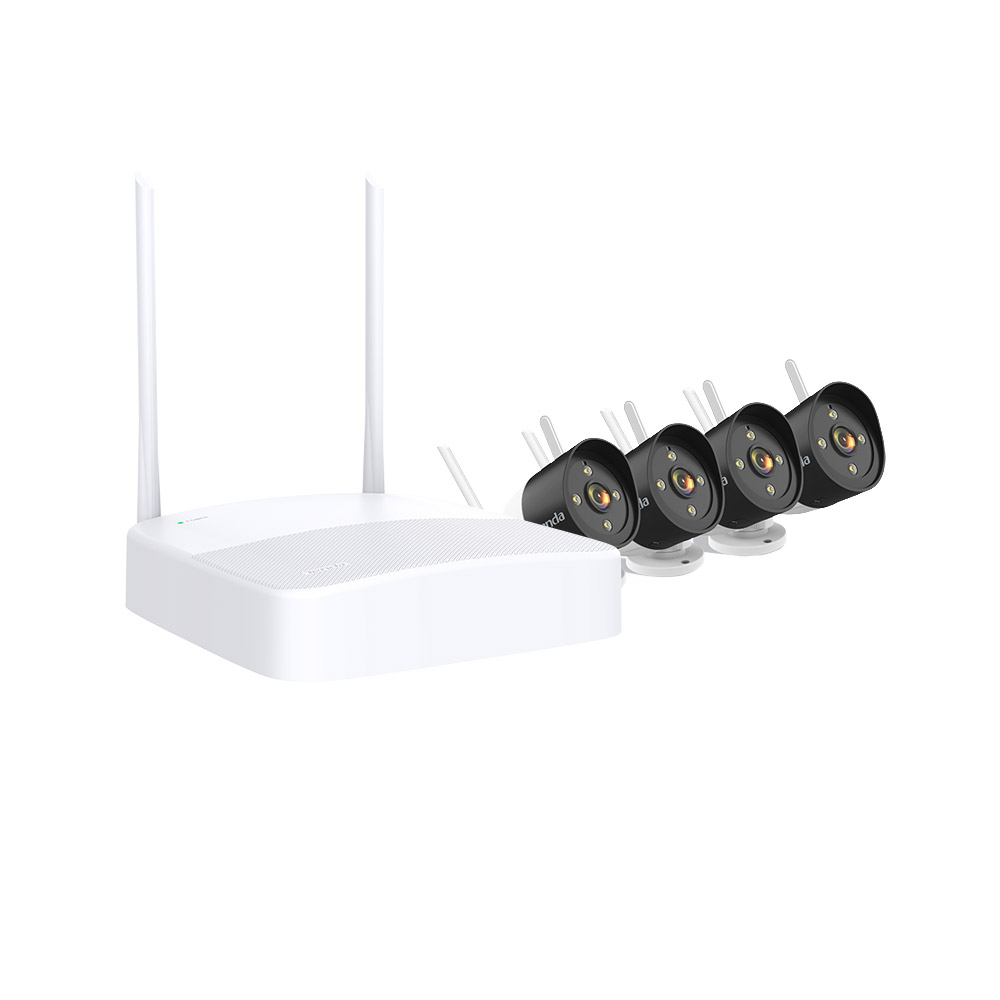

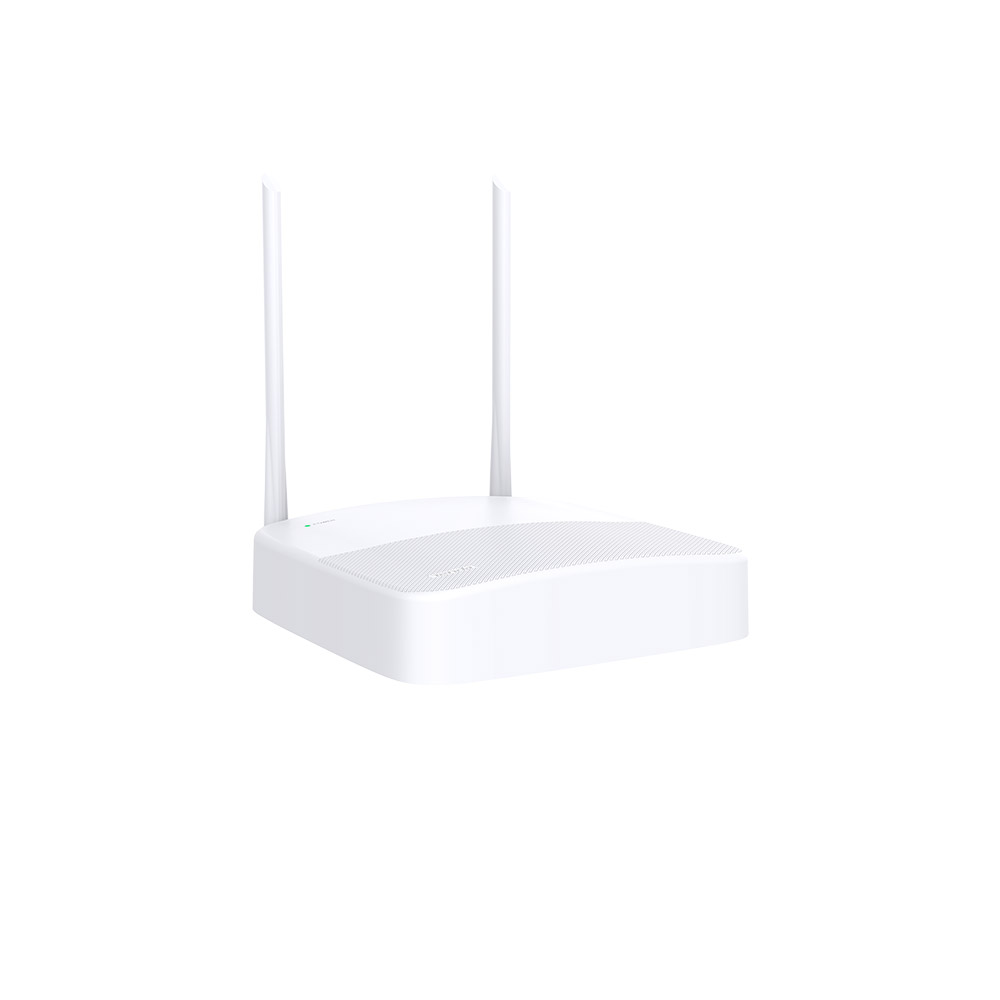

Tenda K4W-3TC 4-Channel Wireless 2K Video Security Kit

Specifications

• Video&Audio Input
  IP Video Input :8-ch

  IP Video Resolution :Up to 3MP

  Input Bandwidth :60 Mbps
• Video&Audio Output
  HDMI Output :1-ch, 2K(2560 × 1440)/30HZ, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

  VGA Output  :1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, HDMI/VGA simultaneous output

  Output Bandwidth :60 Mbps
• Video&Audio Decoding
  Video Decoding Format :H.265, H.264

  Audio Decoding Format :G.711A, G.711U

  Recording Resolution :3MP, 1080P, 720P, VGA, nHD, 4CIF, CIF

  Decoding Capability :4-ch@1080p (30 fps)

  Stream Type :Video, Video & Audio
• Recording Management
  Record Mode :Normal, Alarm

  Playback Mode :Instant, Channel, File, Tag

  Sync Playback :Up to 8-ch

  Backup Mode :USB device
• Network Managemants
  Ethernet Port :1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port

  Network Protocol :HTTP, HTTPS, WebSockets, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, DDNS

  Mobile Client :Supports iOS, Android

  Web Browser :Plug-in free live view: Chrome, Edge, Opera

  Wireless Specification

  Wireless Standard :IEEE 802.11b/g/n

  Frequency :2.4 GHz

  Antenna :Dual external antennas

  Transmission Rate :Up to 144 Mbps

  HDD Storage

  HDD Interface : 1 SATA 3.0 interface

  Capacity :Up to 10 TB capacity for each HDD


• External Interfaces
  USB Port :1 x USB 2.0
• General
  Power :12 VDC, 2 A

  Dimension :200 mm × 200 mm × 48 mm (7.9" × 7.9" × 1.9")

  Weight (Without HDD) :510 g (1.1lb)

  Certification :SRRC, CE, FCC, RoHS, UKCA

  Installation Method :Desk mounting, wall mounting

  Temperature

  Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
  Storage Temperature: -30°C ~ 70°C (-22°F ~ 158°F)

  Humidity

  Operating Humidity: 10% ~ 90% RH (non-condensing)
  Storage Humidity: 5% ~ 95% RH (non-condensing)

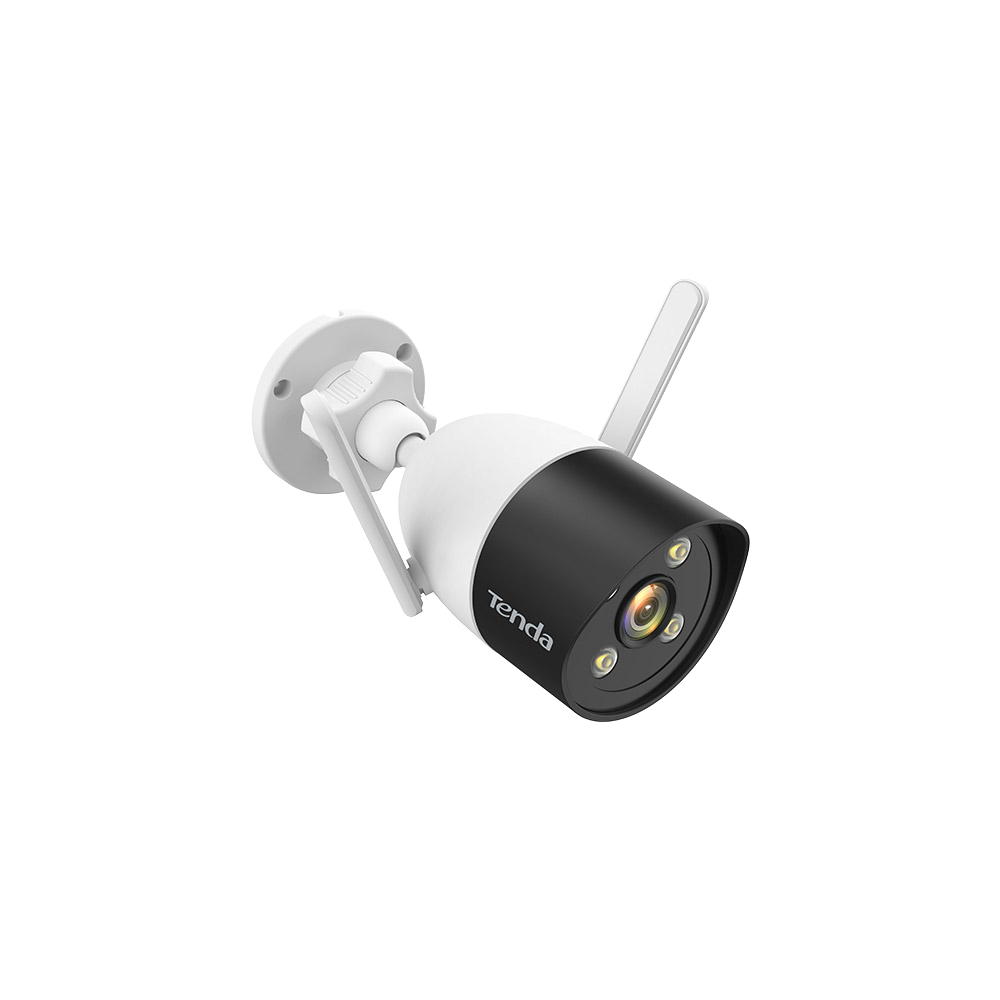

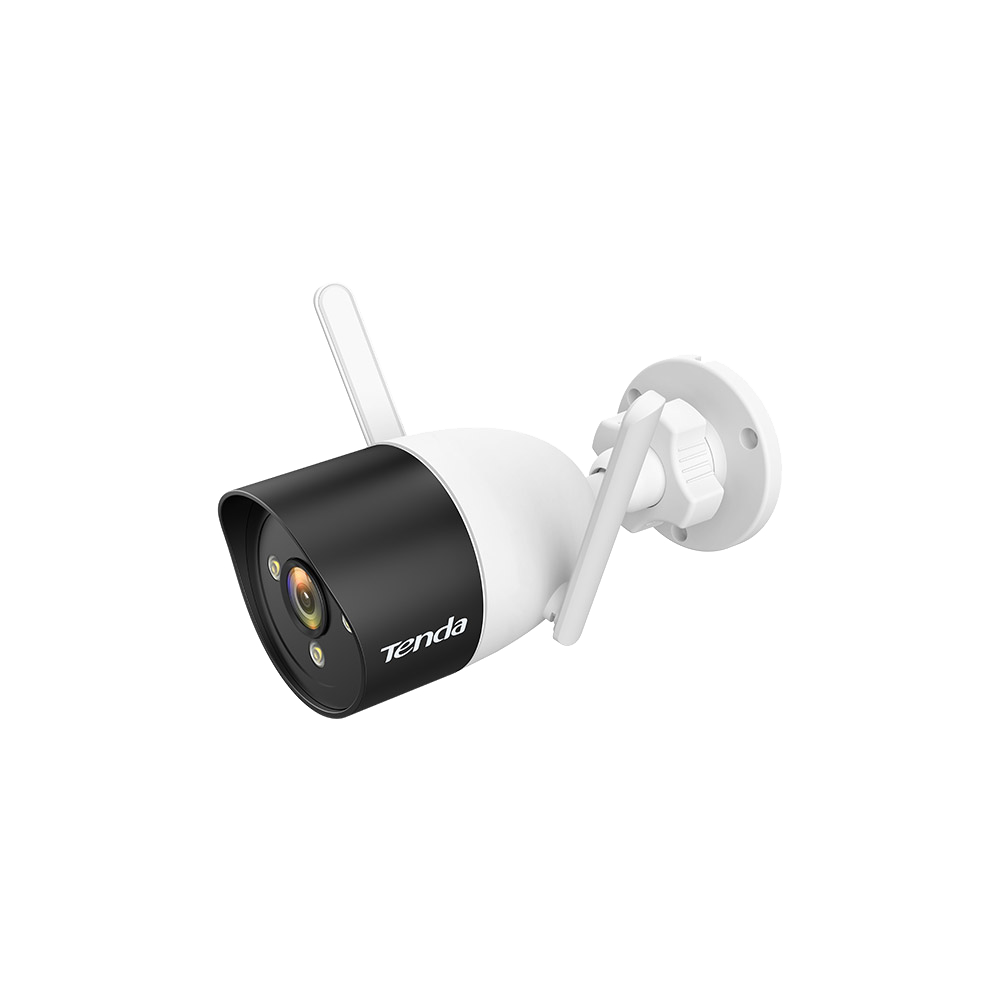

• Camera
  Image Sensor :1/2.7" CMOS sensor

  Max. Resolution :2304 x 1296

  Day and Night :ICR type

  Digital Noise Reduction :3D DNR

  Digital Wide Dynamic Range :Support

  Highlight Compensation (HLC) :Support

  Backlight Compensation :Support

  Supplementary Light :2 IR lights, 2 spotlights

  Infrared Supplementary Light Distance :30 meters (depending on environment)

  Night Vision Mode :Smart Mode, Full Color Mode, Black & White Mode
• Lens
  Lens Type :4 mm@F1.6

  FOV :Horizontal FOV: 86.1°, Vertical FOV: 46°, Diagonal FOV: 104°
• Video
  Video Encoding Format :H.265, H.264

  Main Stream: 20fps (2304 ×1296, 1920 × 1080, 1280 × 720, 640 × 360)

  Sub Stream :20fps (640 × 360, 352 × 288)
• Audio
  Audio Encoding Format :G.711A, G.711U

  Audio Sampling Rate :8 kHz
• Network Management
  Ethernet Port :1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port
• Wireless Specifications
  Wireless Standard :IEEE 802.11b/g/n

  Frequency :2.4 GHz

  Transmission Rate :Up to 144 Mbps

  Antenna :Dual external antennas
• Smart Alarm
  Motion Detection :Support

  Human Detection :Support

  Sound and Light Alert :Support
• External Interface
  Audio Input :Built-in MIC

  Audio Output :Built-in speaker

  Button :1 x Reset button

  LED Indicator :1 x Dual color (red & blue) LED indicator
• Generals
  Power :12 VDC, 1 A

  Dimension :175 mm x 72 mm x 72 mm (6.9" × 2.9" × 2.9")

  Weight :226 g (0.5lb)

  Protection Level :IP66

  Installation Method :Wall mounting, ceiling mounting

  Certification :CE, FCC, RoHS, UKCA

  Temperature

  Operating Temperature: -30°C ~ 60°C (-22°F ~ 140°F)
  Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)

  Humidity

  Operating Humidity: 10% ~ 95% RH (non-condensing)
  Storage Humidity: 3% ~ 95% RH (non-condensing)

• Kit
  Dimension :305 mm x 305 mm x 280 mm (12.0" × 12.0" × 11.0")

  Weight :4.0 kg (8.8lb)

  warranty: 1 year
